Each year, we bring the Analytics Engineering community together for an Analytics Summit — a multi-day internal conference to share analytical deliverables across Netflix, discuss analytic practice, and build relationships within the community. This post is one of several topics presented at the Summit highlighting the breadth and impact of Analytics work across different areas of the business.

At Netflix, our goal is to entertain the world, which means we must speak the world’s languages. Given the company’s growth to serving 300 million+ members in more than 190+ countries and 50+ languages, the Localization team has had to scale rapidly in creating more dubs and subtitle assets than ever before. However, this growth created technical debt within our systems: a fragmented landscape of analytics workflows, duplicated pipelines, and siloed dashboards that we are now actively modernizing.

The Challenge: “Who Made This Dub?”

Historically, business logic for localization metrics was replicated across isolated domains. A question as simple as “Who made this dub/subtitle?” is actually complex — it requires mapping multiple data sources through intricate and constantly changing logic, which varies depending on the specific language asset type and creation workflow.

When this logic is copied into isolated pipelines for different use cases it creates two major risks: inconsistency in reporting and a massive maintenance burden whenever upstream logic changes. We realized we needed to move away from these vertical silos.

Our Modernization Strategy

To address this, we defined a vision centered on consolidation, standardization, and trust, executed through three strategic pillars:

1. The Audit and Consolidation Playbook

We initiated a comprehensive audit of over 40 dashboards and tools to assess usage and code quality. Our focus has shifted from patching frontend visualizations to consolidating backend pipelines. For example, we are currently merging three legacy dashboards related to dubbing partner KPIs (around operational performance, capacity, and finances), focusing first on a unified data and backend layer that can support a variety of future frontend iterations.

2. Reducing “Not-So-Tech” Debt

Technical debt isn’t just about code; it is also about the user experience. We define “Not-So-Tech Debt” as the friction stakeholders feel when tools are hard to interpret or can benefit from better storytelling. To fix this, we revamped our Language Asset Consumption tool — instead of reporting dub and subtitle metrics independently, we combine audio and text languages into one consumption language that helps differentiate Original Language versus Localized Consumption and measure member preferences between subtitles, dubs, or a combination of both for a given language. This unlocks more intuitive insights based on actual recurring stakeholder use cases.

3. Investing in Core Building Blocks

We are shifting to a write once, read many architecture. By centralizing business logic into unified tables — such as a “Language Asset Producer” table — we solve the “Who made this dub?” problem once. This centralized source now feeds into multiple downstream domains, including our Dub Quality and Translation Quality metrics, ensuring that any logic update propagates instantly across the ecosystem.

The Future: Event-Level Analytics

Looking ahead, we are moving beyond asset-level metrics to event-level analytics. We are building a generic data model to capture granular timed-text events, such as individual subtitle lines. This data helps us understand how subtitle characteristics (e.g. reading speed) affect member engagement and, in turn, refine the style guidelines we provide to our subtitle linguists to improve the member experience with localized content.

Ultimately, this modernization effort is about scaling our ability to measure and enhance the joy and entertainment we deliver to our diverse global audience, ensuring that every member, regardless of their language, has the best possible Netflix experience.

Scaling Global Storytelling: Modernizing Localization Analytics at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Ranker is one of the largest and most complex services at Netflix. Among many things, it powers the personalized rows you see on the Netflix homepage, and runs at an enormous scale. When we looked at CPU profiles for this service, one feature kept standing out: video serendipity scoring — the logic that answers a simple question:

“How different is this new title from what you’ve been watching so far?”

This single feature was consuming about 7.5% of total CPU on each node running the service. What started as a simple idea — “just batch the video scoring feature” — turned into a deeper optimization journey. Along the way we introduced batching, re-architected memory layout and tried various libraries to handle the scoring kernels.

Read on to learn how we achieved the same serendipity scores, but at a meaningfully lower CPU per request, resulting in a reduced cluster footprint.

Problem: The Hotspot in Ranker

At a high level, serendipity scoring works like this: A candidate title and each item in a member’s viewing history are represented as embeddings in a vector space. For each candidate, we compute its similarity against the history embeddings, find the maximum similarity, and convert that into a “novelty” score. That score becomes an input feature to the downstream recommendation logic.

The original implementation was straightforward but expensive. For each candidate we fetch its embedding, loop over the history to compute cosine similarity one pair at a time and track the maximum similarity score. Although it is easy to reason about, at Ranker’s scale, this results in significant sequential work, repeated embedding lookups, scattered memory access, and poor cache locality. Profiling confirmed this.

A flamegraph made it clear: One of the top hotspots in the service was Java dot products inside the serendipity encoder. Algorithmically, the hotspot was a nested loop structure of M candidates × N history items where each pair generates its own cosine similarity i.e. O(M×N) separate dot product operations.

Solution

The Original Implementation: Single video cosine loop

In simplified form the code looked like this:

for (Video candidate : candidates) {
  Vector c = embedding(candidate); // D-dimensional
  double maxSim = -1.0;

  for (Video h : history) {
    Vector v = embedding(h); // D-dimensional
    double sim = cosine(c, v); // dot(c, v) / (||c|| * ||v||)
    maxSim = Math.max(maxSim, sim);
  }

  double serendipity = 1.0 - maxSim;
  emitFeature(candidate, serendipity);
}

The nested for loop with O(M×N) separate dot products brought upon its own overheads. One interesting detail we learned by instrumenting traffic shapes: most requests (about 98%) were single-video, but the remaining 2% were large batch requests. Because those batches were so large, the total volume of videos processed ended up being roughly 50:50 between single and batch jobs. This made batching worth pursuing even if it didn’t help the median request.

Step 1 : Batching, from Nested Loops to Matrix Multiply

The first idea was to stop thinking in terms of “many small dot products” and instead treat the work as a matrix operation. i.e. For batch candidates, implement a data layout to parallelize the math in a single operation i.e. matrix multiply. If D is the embedding dimension:

1. Pack all candidate embeddings into a matrix A of shape M x D
2. Pack all history embeddings into a matrix B of shape N x D
3. Normalize all rows to unit length.
4. Compute: cosine similarities as
   [ C = A x B^T ]; where C is an M x N matrix of cosine similarities.

In pseudo‑code:

// Build matrices
double[][] A = new double[M][D]; // candidates
double[][] B = new double[N][D]; // history

for (int i = 0; i < M; i++) {
  A[i] = embedding(candidates[i]).toArray();
}
for (int j = 0; j < N; j++) {
  B[j] = embedding(history[j]).toArray();
}

// Normalize rows to unit vectors
normalizeRows(A);
normalizeRows(B);

// Compute C = A * B^T
double[][] C = matmul(A, B);
C[i][j] = cosine(candidates[i], history[j])

// Derive serendipity
for (int i = 0; i < M; i++) {
  double maxSim = max(C[i][0..N-1]);
  double serendipity = 1.0 - maxSim;
  emitFeature(candidates[i], serendipity);
}

This turns M×N separate dot products into a single matrix multiply, which is exactly what CPUs and optimized kernels are built for. We integrated this into the existing framework by supporting both, encode()for single videos and batchEncode() for batches, while maintaining backward compatibility. At this point it seemed like we were “done”, but we weren't.

Step 2: When Batching Isn’t Enough

Once we had a batched implementation, we ran canaries and saw something surprising: about a 5% performance regression. The algorithm wasn’t the issue — turning M×N separate dot products into a matrix multiplication is mathematically sound. The problem was the overhead we introduced in the first implementation.

1. Our initial version built double[][] matrices for candidates, history, and results on every batch. Those large, short-lived allocations created GC pressure, and the double[][] layout itself is non-contiguous in memory, which meant extra pointer chasing and worse cache behavior.
2. On top of that, the first-cut Java matrix multiply was a straightforward scalar implementation, so it couldn’t take advantage of SIMD. In other words, we paid the cost of batching without getting the compute efficiency we were aiming for.

The lesson was immediate: algorithmic improvements don’t matter if the implementation details—memory layout, allocation strategy, and the compute kernel—work against you. That set up the next step for making the data layout cache-friendly and eliminating per-batch allocations before revisiting the matrix multiply kernel.

Step 3: Flat Buffers & ThreadLocal Reuse

We reworked the data layout to be cache-friendly and allocation-light. Instead of double[m][n], we moved to flat double[] buffers in row-major order. That gave us contiguous memory and predictable access patterns. Then we introduced a ThreadLocal<BufferHolder> that owns reusable buffers for candidates, history, and any other scratch space. Buffers grow as needed but never shrink, which avoids per-request allocation while keeping each thread isolated (no contention). A simplified sketch:

class BufferHolder {
  double[] candidatesFlat = new double[0];
  double[] historyFlat = new double[0];

  double[] getCandidatesFlat(int required) {
    if (candidatesFlat.length < required) {
      candidatesFlat = new double[required];
    }
    return candidatesFlat;
  }

  double[] getHistoryFlat(int required) {
    if (historyFlat.length < required) {
      historyFlat = new double[required];
    }
    return historyFlat;
  }
}

private static final ThreadLocal<BufferHolder> threadBuffers =
    ThreadLocal.withInitial(BufferHolder::new);

This change alone made the batched path far more predictable: fewer allocations, less GC pressure, and better cache locality.

Now the remaining question was the one we originally thought we were answering: what’s the best way to do the matrix multiply?

Step 4: BLAS: Great in Tests, Not in Production

The obvious next step was BLAS (Basic Linear Algebra Subprograms). In isolation, microbenchmarks looked promising. But once integrated into the real batch scoring path, the gains didn’t materialize. A few things were working against us:

• The default netlib-java path was using F2J (Fortran-to-Java) BLAS rather than a truly native implementation.
• Even with native BLAS, we paid overhead for setup and JNI transitions.
• Java’s row-major layout doesn’t match the column-major expectations of many BLAS routines, which can introduce conversion and temporary buffers.
• Those extra allocations and copies mattered in the full pipeline, especially alongside TensorFlow embedding work.

BLAS was still a useful experiment — it clarified where time was being spent, but it wasn’t the drop-in win we wanted. What we needed was something that stayed pure Java, fit our flat-buffer architecture, and could still exploit SIMD.

Step 5: JDK Vector API to the rescue

A Short Note on the JDK Vector API: The JDK Vector API is an incubating feature that provides a portable way to express data-parallel operations in Java — think “SIMD without intrinsics”. You write in terms of vectors and lanes, and the JIT maps those operations to the best SIMD instructions available on the host CPU (SSE/AVX2/AVX-512), with a scalar fallback when needed. More crucially for us, it’s pure Java: no native dependencies, no JNI transitions, and a development model that looks like normal Java code rather than platform-specific assembly or intrinsics.

This was a particularly good match for our workload because we had already moved embeddings into flat, contiguous double[] buffers, and the hot loop was dominated by large numbers of dot products. The final step was to replace BLAS with a pure-Java SIMD implementation using the JDK Vector API. By this point we already had the right shape for high performance — batching, flat buffers, and ThreadLocal reuse. So the remaining work was to swap out the compute kernel without introducing JNI overhead or platform-specific code. We did that behind a small factory. At class load time, MatMulFactory selects the best available implementation:

• If jdk.incubator.vector is available, use a Vector API implementation.
• Otherwise, fall back to a scalar implementation with a highly optimized loop-unrolled dot product (implemented by my colleague Patrick Strawderman, inspired by patterns used in Lucene)

In the Vector API implementation, the inner loop computes a dot product by accumulating a * b into a vector accumulator using fma() (fused multiply-add). DoubleVector.SPECIES_PREFERRED lets the runtime pick an appropriate lane width for the machine. Here’s a simplified sketch of the inner loop:

// Vector API path (simplified)
for (int i = 0; i < M; i++) {
  for (int j = 0; j < N; j++) {

  DoubleVector acc = DoubleVector.zero(SPECIES);
    int k = 0;
    // SPECIES.length() (e.g. often 4 doubles on AVX2 and 8 doubles on AVX-512).
    for (; k + SPECIES.length() <= D; k += SPECIES.length()) {
      DoubleVector a = DoubleVector.fromArray(SPECIES, candidatesFlat, i*D + k);
      DoubleVector b = DoubleVector.fromArray(SPECIES, historyFlat,   j*D + k);
      acc = a.fma(b, acc);  // fused multiply-add
    }
    double dot = acc.reduceLanes(VectorOperators.ADD);
    // handle tail k..D-1
    similaritiesFlat[i*N + j] = dot;
  }
}

Figure below shows how the Vector API utilizes SIMD hardware to process multiple doubles per instruction (e.g., 4 lanes on AVX2 and 8 lanes on AVX‑512). What used to be many scalar multiply-adds becomes a smaller number of vector fma() operations plus a reduction—same algorithm, much better use of the CPU’s vector units.

Fallbacks & Safety: When the Vector API Isn’t Available

Because the Vector API is still incubating, it requires a runtime flag: --add-modules=jdk.incubator.vector We didn’t want correctness or availability to depend on that flag. So we designed the fallback behavior explicitly: At startup, we detect Vector API support and use the SIMD batched matmul when available; otherwise we fall back to an optimized scalar path, with single-video requests continuing to use the per-item implementation.

That gives us a clean operational story: services can opt in to the Vector API for maximum performance, but the system remains safe and predictable without it.

Results in Production:

With the full design in place with batching, flat buffers, ThreadLocal reuse, and the Vector API, we ran canaries that run production traffic. We observed a ~7% drop in CPU utilization and ~12% drop in average latency. To normalize across any small throughput differences, we also tracked CPU/RPS (CPU consumed per request-per-second). That metric improved by roughly 10%, meaning we could handle the same traffic with about 10% less CPU, and we saw similar numbers hold after full production rollout.

At the function operator level, we saw the CPU drop from the initial 7.5% to a merely ~1% with the optimization in place. At the assembly level, the shift was clear: from loop-unrolled scalar dot products to a vectorized matrix multiply on AVX-512 hardware.

Closing Thoughts

This optimization ended up being less about finding the “fastest library” and more about getting the fundamentals right: choosing the right computation shape, keeping data layout cache-friendly, and avoiding overheads that can erase theoretical wins. Once those pieces were in place, the JDK Vector API was a great fit, as it let us express SIMD-style math in pure Java, without JNI, while still keeping a safe fallback path. Another bonus was the low developer overhead: compared to lower-level approaches, the Vector API let us replace a much larger, more complex implementation with a relatively small amount of readable Java code, which made it easier to review, maintain, and iterate on.

Have you tried the Vector API in a real service yet? I’d love to hear what workloads it helped (or didn’t), and what you learned about benchmarking and rollout in production.

Special thanks to Jason Koch, Patrick Strawderman, Daniel Huang, Fan Yang, and the Performance Engineering team at Netflix

Optimizing Recommendation Systems with JDK’s Vector API was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Imagine this — you click play on Netflix on a Friday night and behind the scenes hundreds of containers spring to action in a few seconds to answer your call. At Netflix, scaling containers efficiently is critical to delivering a seamless streaming experience to millions of members worldwide. To keep up with responsiveness at this scale, we modernized our container runtime, only to hit a surprising bottleneck: the CPU architecture itself.

Let us walk you through the story of how we diagnosed the problem and what we learned about scaling containers at the hardware level.

The Problem

When application demand requires that we scale up our servers, we get a new instance from AWS. To use this new capacity efficiently, pods are assigned to the node until its resources are considered fully allocated. A node can go from no applications running to being maxed out within moments of being ready to receive these applications.

As we migrated more and more from our old container platform to our new container platform, we started seeing some concerning trends. Some nodes were stalling for long periods of time, with a simple health check timing out after 30 seconds. An initial investigation showed that the mount table length was increasing dramatically in these situations, and reading it alone could take upwards of 30 seconds. Looking at systemd’s stack it was clear that it was busy processing these mount events as well and could lead to complete system lockup. Kubelet also timed out frequently talking to containerd in this period. Examining the mount table made it clear that these mounts were related to container creation.

The affected nodes were almost all r5.metal instances, and were starting applications whose container image contained many layers (50+).

Challenge

Mount Lock Contention

The flamegraph in Figure 1 clearly shows where containerd spent its time. Almost all of the time is spent trying to grab a kernel-level lock as part of the various mount-related activities when assembling the container’s root filesystem!

Looking closer, containerd executes the following calls for each layer if using user namespaces:

1. open_tree() to get a reference to the layer / directory
2. mount_setattr() to set the idmap to match the container’s user range, shifting the ownership so this container can access the files
3. move_mount() to create a bind mount on the host with this new idmap applied

These bind mounts are owned by the container’s user range and are then used as the lowerdirs to create the overlayfs-based rootfs for the container. Once the overlayfs rootfs is mounted, the bind mounts are then unmounted since they are not necessary to keep around once the overlayfs is constructed.

If a node is starting many containers at once, every CPU ends up busy trying to execute these mounts and umounts. The kernel VFS has various global locks related to the mount table, and each of these mounts requires taking that lock as we can see in the top of the flamegraph. Any system trying to quickly set up many containers is prone to this, and this is a function of the number of layers in the container image.

For example, assume a node is starting 100 containers, each with 50 layers in its image. Each container will need 50 bind mounts to do the idmap for each layer. The container’s overlayfs mount will be created using those bind mounts as the lower directories, and then all 50 bind mounts can be cleaned up via umount. Containerd actually goes through this process twice, once to determine some user information in the image and once to create the actual rootfs. This means the total number of mount operations on the start up path for our 100 containers is 100 * 2 * (1 + 50 + 50) = 20200 mounts, all of which require grabbing various global mount related locks!

Diagnosis

What’s Different In The New Runtime?

As alluded to in the introduction, Netflix has been undergoing a modernization of its container runtime. In the past a virtual kubelet + docker solution was used, whereas now a kubelet + containerd solution is being used. Both the old runtime and the new runtime used user namespaces, so what’s the difference here?

1. Old Runtime:
   All containers shared a single host user range. UIDs in image layers were shifted at untar time, so file permissions matched when containers accessed files. This worked because all containers used the same host user.
2. New Runtime:
   Each container gets a unique host user range, improving security — if a container escapes, it can only affect its own files. To avoid the costly process of untarring and shifting UIDs for every container, the new runtime uses the kernel’s idmap feature. This allows efficient UID mapping per container without copying or changing file ownership, which is why containerd performs many mounts.

Figure 2 below is a simplified example of how this idmap feature looks like:

Why Does Instance Type Matter?

As noted earlier, the issue was predominantly occurring on r5.metal instances. Once we identified the root issue we could easily reproduce by creating a container image with many layers and sending hundreds of workloads using the image to a test node.

To better understand why this bottleneck was more profound on some instances compared to others, we benchmarked container launches on different AWS instance types:

• r5.metal (5th gen Intel, dual-socket, multiple NUMA domains)
• m7i.metal-24xl (7th gen Intel, single-socket, single NUMA domain)
• m7a.24xlarge (7th gen AMD, single-socket, single NUMA domain)

Baseline Results

Figure 3 shows the baseline results from scaling containers on each instance type

• At low concurrency (≤ ~20 containers), all platforms performed similarly
• As concurrency increased, r5.metal began to fail around 100 containers
• 7th generation AWS instances maintained lower launch times and higher success rates as concurrency grew
• m7a instances showed the most consistent scaling behavior with the lowest failure rates even at high concurrency

Deep Dive

Using perf record and custom microbenchmarks, we can see the hottest code path was in the Linux kernel’s Virtual Filesystem (VFS) path lookup code — specifically, a tight spin loop waiting on a sequence lock in path_init(). The CPU spent most of its time executing the pause instruction, indicating many threads were spinning, waiting for the global lock, as shown in the disassembly snippet below

path_init():
…
mov mount_lock,%eax
test $0x1,%al
je 7c
pause
…

Using Intel’s Topdown Microarchitecture Analysis (TMA), we observed:

• 95.5% of pipeline slots were stalled on contested accesses (tma_contested_accesses).
• 57% of slots were due to false sharing (multiple cores accessing the same cache line).
• Cache line bouncing and lock contention were the primary culprits.

Given a high amount of time being spent in contested accesses, the natural thinking from a perspective of hardware variations led to investigation of NUMA and Hyperthreading impact coming from the architecture to this subset

NUMA Effects

Non-Uniform Memory Access (NUMA) is a system design where each processor has its own local memory for faster access but relies on an interconnect to access the memory attached to a remote processor. Introduced in the 1990s to improve scalability in multiprocessor systems, NUMA boosts performance but also introduces higher latency when a CPU needs to access memory attached to another processor. Figure 4 is a simple image describing local vs remote access patterns of a NUMA architecture

AWS instances come in a variety of shapes and sizes. To obtain the largest core count, we tested the 2-socket 5th generation metal instances (r5.metal), on which containers were orchestrated by the titus agent. Modern dual-socket architectures implement NUMA design, leading to faster local but higher remote access latencies. Although container orchestration can maintain locality, global locks can easily run into high latency effects due to remote synchronization. In order to test the impact of NUMA, we tested an AWS 48xl sized instance with 2 NUMA nodes or sockets versus an AWS 24xl sized instance, which represents a single NUMA node or socket. As seen from Figure 5, the extra hop introduces high latencies and hence failures very quickly.

Hyperthreading Effects

• Hyperthreading (HT): Disabling HT on m7i.metal-24xl (Intel) improved container launch latencies by 20–30% as seen in Figure 6, since hyperthreads compete for shared execution resources, worsening the lock contention. When hyperthreading is enabled, each physical CPU core is split into two logical CPUs (hyperthreads) that share most of the core’s execution resources, such as caches, execution units, and memory bandwidth. While this can improve throughput for workloads that are not fully utilizing the core, it introduces significant challenges for workloads that rely heavily on global locks. By disabling hyperthreading, each thread runs on its own physical core, eliminating this competition for shared resources between hyperthreads. As a result, threads can acquire and release global locks more quickly, reducing overall contention and improving latency for operations that generally share underlying resources.

Why Does Hardware Architecture Matter?

Centralized Cache Architectures

Some modern server CPUs use a mesh-style interconnect to link cores and cache slices, with each intersection managing cache coherence for a subset of memory addresses. In these designs, all communication passes through a central queueing structure, which can only handle one request for a given address at a time. When a global lock (like the mount lock) is under heavy contention, all atomic operations targeting that lock are funneled through this single queue, causing requests to pile up and resulting in memory stalls and latency spikes.

In some well-known mesh-based architectures as shown in Figure 7 below, this central queue is called the “Table of Requests” (TOR), and it can become a surprising bottleneck when many threads are fighting for the same lock. If you’ve ever wondered why certain CPUs seem to “pause for breath” under heavy contention, this is often the culprit.

Distributed Cache Architectures

Some modern server CPUs use a distributed, chiplet-based architecture (Figure 8), where multiple core complexes, each with their own local last-level cache — are connected via a high-speed interconnect fabric. In these designs, cache coherence is managed within each core complex, and traffic between complexes is handled by a scalable control fabric. Unlike mesh-based architectures with centralized queueing structures, this distributed approach spreads contention across multiple domains, making severe stalls from global lock contention less likely. For those interested in the technical details, public documentation from major CPU vendors provides deeper insight into these distributed cache and chiplet designs.

Here is a comparison of the same workload run on m7i (centralized cache architecture) vs m7a (distributed cache architecture). Note that, in order to make it closely comparable, Hyperthreading (HT) was disabled on m7i, given previous regression seen in Figure 6, and experiments were run using same core counts. The result clearly shows a fairly consistent difference in performance of approximately 20% as shown in Figure 9

Microbenchmark Results

To prove the above theory related to NUMA, HT and micro-architecture, we developed a small microbenchmark which basically invokes a given number of threads that then spins on a globally contended lock. Running the benchmark at increasing thread counts reveals the latency characteristics of the system under different scenarios. For example, Figure 10 below is the microbenchmark results with NUMA, HT and different microarchitectures.

Results from this custom synthetic benchmark (pause_bench) confirmed:

• On r5.metal, eliminating NUMA by only using a single socket significantly drops latency at high thread counts
• On m7i.metal-24xl, disabling hyperthreading further improves scaling
• On m7a.24xlarge, performance scales the best, demonstrating that a distributed cache architecture handles cache-line contention in this case of global locks more gracefully.

Improving Software Architecture

While understanding the impacts of the hardware architecture is important for assessing possible mitigations, the root cause here is contention over a global lock. Working with containerd upstream we came to two possible solutions:

1. Use the newer kernel mount API’s fsconfig() lowerdir+ support to supply the idmap’ed lowerdirs as fd’s instead of filesystem paths. This avoids the move_mount() syscall mentioned prior which requires global locks to mount each layer to the mount table
2. Map the common parent directory of all the layers. This makes the number of mount operations go from O(n) to O(1) per container, where n is the number of layers in the image

Since using the newer API requires using a new kernel, we opted to make the latter change to benefit more of the community. With that in place, no longer do we see containerd’s flamegraph being dominated by mount-related operations. In fact, as seen in Figure 11 below we had to highlight them in purple below to see them at all!

Conclusion

Our journey migrating to a modern kubelet + containerd runtime at Netflix revealed just how deeply intertwined software and hardware architecture can be when operating at scale. While kubelet/containerd’s usage of unique container users brought significant security gains, it also surfaced new bottlenecks rooted in kernel and CPU architecture — particularly when launching hundreds of many layered container images in parallel. Our investigation highlighted that not all hardware is created equal for this workload: centralized cache management amplified cache contention while distributed cache design smoothly scaled under load.

Ultimately, the best solution combined hardware awareness with software improvements. For an immediate mitigation we chose to route these workloads to CPU architectures that scaled better under these conditions. By changing the software design to minimize per-layer mount operations, we eliminated the global lock as a launch-time bottleneck — unlocking faster, more reliable scaling regardless of the underlying CPU architecture. This experience underscores the importance of holistic performance engineering: understanding and optimizing both the software stack and the hardware it runs on is key to delivering seamless user experiences at Netflix scale.

We trust these insights will assist others in navigating the evolving container ecosystem, transforming potential challenges into opportunities for building robust, high-performance platforms.

Special thanks to the Titus and Performance Engineering teams at Netflix.

Mount Mayhem at Netflix: Scaling Containers on Modern CPUs was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Introduction

Netflix’s core mission is to connect millions of members around the world with stories they’ll love. This requires not just an incredible catalog, but also a deep, machine-level understanding of every piece of content in that catalog, from the biggest blockbusters to the most niche documentaries. As we onboard new types of content such as live events and podcasts, the need to scalably understand these nuances becomes even more critical to our productions and member-facing experiences.

Many of these media-related tasks require sophisticated long-form video understanding e.g., identifying subtle narrative dependencies and emotional arcs that span entire episodes or films. Previous work has found that to truly grasp the content’s essence, our models must leverage the full multimodal signal. For example, the audio soundtrack is a crucial, non-visual modality that can help more precisely identify clip-level tones or when a new scene starts. Can we use our collection of shows and movies to learn how to a) fuse modalities like audio, video, and subtitle text together and b) develop robust representations that leverage the narrative structure that is present in long form entertainment? Consisting of tens of millions of individual shots across multiple titles, our diverse yet entertainment-specific dataset provides the perfect foundation to train multimodal media understanding models that enable many capabilities across the company such as ads relevancy, clip popularity prediction, and clip tagging.

For these reasons, we developed the Netflix Media Foundational Model (MediaFM), our new, in-house, multimodal content embedding model. MediaFM is the first tri-modal (audio, video, text) model pretrained on portions of the Netflix catalog. Its core is a multimodal, Transformer-based encoder designed to generate rich, contextual embeddings¹ for shots from our catalog by learning the temporal relationships between them through integrating visual, audio, and textual information. The resulting shot-level embeddings are powerful representations designed to create a deeper, more nuanced, and machine-readable understanding of our content, providing the critical backbone for effective cold start of newly launching titles in recommendations, optimized promotional assets (like art and trailers), and internal content analysis tools.

Input Representation & Preprocessing

The model’s fundamental unit of input is a shot, derived by segmenting a movie or episode (collectively referred to as “title”) using a shot boundary detection algorithm. For each shot, we generate three distinct embeddings from its core modalities:

• Video: an internal model called SeqCLIP (a CLIP-style model fine-tuned on video retrieval datasets) is used to embed frames sampled at uniform intervals from segmented shots
• Audio: the audio samples from the same shots are embedded using Meta FAIR’s wav2vec2
• Timed Text: OpenAI’s text-embedding-3-large model is used to encode the corresponding timed text (e.g., closed captions, audio descriptions, or subtitles) for each shot

For each shot, the three embeddings² are concatenated and unit-normed to form a single 2304-dimensional fused embedding vector. The transformer encoder is trained on sequences of shots, so each example in our dataset is a temporally-ordered sequence of these fused embeddings from the same movie or episode (up to 512 shots per sequence). We also have access to title-level metadata which is used to provide global context for each sequence (via the [GLOBAL]token). The title-level embedding is computed by passing title-level metadata (such as synopses and tags) through the text-embedding-3-large model.

Model Architecture and Training Objective

The core of our model is a transformer encoder, architecturally similar to BERT. A sequence of preprocessed shot embeddings is passed through the following stages:

1. Input Projection: The fused shot embeddings are first projected down to the model’s hidden dimension via a linear layer.
2. Sequence Construction & Special Tokens: Before entering the Transformer, two special embeddings are prepended to the sequence:
   • a learnable [CLS] embedding is added at the very beginning.
   • the title-level embedding is projected to the model’s hidden dimension and inserted after the [CLS] token as the [GLOBAL] token, providing title-level context to every shot in the sequence and participating in the self-attention process.
3. Contextualization: The sequence is enhanced with positional embeddings and fed through the Transformer stack to provide shot representations based on their surrounding context.
4. Output Projection: The contextualized hidden states from the Transformer are passed through a final linear layer, projecting them from the hidden layers back up to the 2304-dimensional fused embedding space for prediction.

We train the model using a Masked Shot Modeling (MSM) objective. In this self-supervised task, we randomly mask 20% of the input shot embeddings in each sequence by replacing them with a learnable [MASK] embedding. The model’s objective is to predict the original, unmasked fused embedding for these masked positions. The model is optimized by minimizing the cosine distance between its predicted embedding and the ground-truth embedding for each masked shot.

We optimized the hidden parameters with Muon and the remaining parameters with AdamW. It’s worth noting that the switch to Muon resulted in noticeable improvements.

Evaluation

To evaluate the learned embeddings, we learn task-specific linear layers on top of frozen representations (i.e., linear probes). Most of the tasks are clip-level, i.e., each example is a short clip ranging from a few seconds to a minute which are often presented to our members while recommending a title to them. When embedding these clips, we find that “embedding in context”, namely extracting the embeddings from within a larger sequence (e.g., the episode containing the clip), naturally does much better than embedding only the shots from a clip.

Tasks

Our embeddings are foundational and we find that they bring value to applications across Netflix. Here are a few:

• Ad Relevancy: A multilabel classification task to categorize Netflix clips for relevant ad placement, measured by Average Precision. In this task, these representations operate at the retrieval stage, where they help in identifying the candidate set and in turn are fed into the ad serving system for relevance optimization.
• Clip Popularity Ranking: A ranking task to predict the relative performance (in click-through rate, CTR) of a media clip relative to other clips from that show or movie, measured by a ten-fold with Kendall’s tau correlation coefficient.
• Clip Tone: A multi-label classification of hook clips into 100 tone categories (e.g., creepy, scary, humorous) from our internal Metadata & Ratings team, measured by micro Average Precision (averaged across tone categories).
• Clip Genre: A multi-label classification of clips into eleven core genres (Action, Anime, Comedy, Documentary, Drama, Fantasy, Horror, Kids, Romance, Sci-fi, Thriller) derived from the genre of the parent title, measured by macro Average Precision (averaged across genres).
• Clip Retrieval: a binary classification of clips from movies or episodes into “clip-worthy” (i.e., a good clip to showcase the title) or not, as determined by human annotators, and as measured by Average Precision. The positive to negative clip ratio is 1:3, and for each title we select 6–10 positive clips and the corresponding number of negatives.

It’s worth noting that for the tasks above (as well as other tasks that use our model), the model outputs are utilized as information that the relevant teams use when driving to a decision rather than being used in a completely end-to-end fashion. Many of the improvements are also in various stages of deployment.

Results

Figure 2³ compares MediaFM to several strong baselines:

• The previously mentioned SeqCLIP, which also provides the video embedding input for MediaFM
• Google’s VertexAI multimodal embeddings
• TwelveLabs’ Marengo 2.7 embeddings

On all tasks, MediaFM is better than the baselines. Improvements seem to be larger for tasks that require more detailed narrative understanding e.g., predicting the most relevant ads for an ad break given the surrounding context. We look further into this next.

Ablations

MediaFM’s primary improvements over previous Netflix work stem from two key areas: combining multiple modalities and learning to contextualize shot representations. To determine the contribution of each factor across different tasks, we compared MediaFM to a baseline. This baseline concatenates the three input embeddings, essentially providing the same complete, shot-level input as MediaFM but without the contextualization step. This comparison allows us to isolate which tasks benefit most from the contextualization aspect.

Additional modalities help somewhat for tone but the main improvement comes from contextualization.

Oddly, multiple uncontextualized modalities hurts the clip popularity ranking model, but adding contextualization significantly improves performance.

For clip retrieval we see a natural progression of around 15% for each improvement.

Next Steps

MediaFM presents a way to learn how to fuse and/or contextualize shot-level information by leveraging Netflix’s catalog in a self-supervised manner. With this perspective, we are actively investigating how pretrained multimodal (audio, video/image, text) LLMs like Qwen3-Omni, where the modality fusion has already been learned, can provide an even stronger starting point for subsequent model generations.

Next in this series of blog posts, we will present our method to embed title-level metadata and adapt it to our needs. Stay tuned!

Footnotes

1. We chose embeddings over generative text outputs to prioritize modular design. This provides a tighter, cleaner abstraction layer: we generate the representation once, and it is consumed across our entire suite of services. This avoids the architectural fragility of fine-tuning, allowing us to enhance our existing embedding-based workflows with new modalities more flexibly.
2. All of our data has audio and video; we zero-pad for missing timed text data, which is relatively likely to occur (e.g., in shots without dialogue).
3. The title-level tasks couldn’t be evaluated with the VertexAI MM and Marengo embedding models as the videos exceed the length limit set by the APIs.

MediaFM: The Multimodal AI Foundation for Media Understanding at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Introduction

Pre-training gives Large Language Models (LLMs) broad linguistic ability and general world knowledge, but post-training is the phase that actually aligns them to concrete intents, domain constraints, and the reliability requirements of production environments. At Netflix, we are exploring how LLMs can enable new member experiences across recommendation, personalization, and search, which requires adapting generic foundation models so they can better reflect our catalog and the nuances of member interaction histories. At Netflix scale, post-training quickly becomes an engineering problem as much as a modeling one: building and operating complex data pipelines, coordinating distributed state across multi-node GPU clusters, and orchestrating workflows that interleave training and inference. This blog describes the architecture and engineering philosophy of our internal Post-Training Framework, built by the AI Platform team to hide infrastructure complexity so researchers and model developers can focus on model innovation — not distributed systems plumbing.

A Model Developer’s Post-Training Journey

Post-training often starts deceptively simply: curate proprietary domain data, load an open-weight model from Hugging Face, and iterate batches through it. At the experimentation scale, that’s a few lines of code. But when fine-tuning production-grade LLMs at scale, the gap between “running a script” and “robust post-training” becomes an abyss of engineering edge cases.

Getting the data right

On paper, post-training is straightforward: choose a tokenizer, preprocess the dataset, and build a dataloader. In practice, data preparation is where things break. High-quality post-training — instruction following, multi-turn dialogue, Chain-of-Thought — depends on precisely controlling which tokens contribute to the loss. Hugging Face chat templates serialize conversations, but don’t specify what to train on versus ignore. The pipeline must apply explicit loss masking so only assistant tokens are optimized; otherwise the model learns from prompts and other non-target text, degrading quality.

Variable sequence length is another pitfall. Padding within a batch can waste compute, and uneven shapes across FSDP workers can cause GPU synchronization overhead. A more GPU-efficient approach is to pack multiple samples into fixed-length sequences and use a “document mask” to prevent cross-attention across samples, reducing padding and keeping shapes consistent.

Setting up the model

Loading an open-source checkpoint sounds simple until the model no longer fits on one GPU. At that point you need a sharding strategy (e.g., FSDP, TP) and must load partial weights directly onto the device mesh to avoid ever materializing the full model on a single device.

After loading, you still need to make the model trainable: choose full fine-tuning vs. LoRA, and apply optimizations like activation checkpointing, compilation, and correct precision settings (often subtle for RL, where rollout and policy precision must align). Large vocabularies (>128k) add a further memory trap: logits are [batch, seq_len, vocab] and can spike peak memory. Common mitigations include dropping ignored tokens before projection and computing logits/loss in chunks along the sequence dimension.

Starting the training

Even with data and models ready, production training is not a simple “for loop”. The system must support everything from SFT’s forward/backward pass to on-policy RL workflows that interleave rollout generation, reward/reference inference, and policy updates.

At Netflix scale, training runs as a distributed job. We use Ray to orchestrate workflows via actors, decoupling modeling logic from hardware. Robust runs also require experiment tracking (model quality metrics like loss and efficiency metrics like MFU) and fault tolerance via standardized checkpoints to resume cleanly after failures.

These challenges motivate a post-training framework that lets developers focus on modeling rather than distributed systems and operational details.

The Netflix Post-Training Framework

We built Netflix’s LLM post-training framework so Netflix model developers can turn ideas like those in Figure 1 into scalable, robust training jobs. It addresses the engineering hurdles described above, and also constraints that are specific to the Netflix ecosystem. Existing tools (e.g., Thinking Machines’ Tinker) work well for standard chat and instruction-tuning, but their structure can limit deeper experimentation. In contrast, our internal use cases often require architectural variation (for example, customizing output projection heads for task-specific objectives), expanded or nonstandard vocabularies driven by semantic IDs or special tokens, and even transformer models pre-trained from scratch on domain-specific, non-natural-language sequences. Supporting this range requires a framework that prioritizes flexibility and extensibility over a fixed fine-tuning paradigm.

Figure 2 shows the end-to-end stack from infrastructure to trained models. At the base is Mako, Netflix’s internal ML compute platform, which provisions GPUs on AWS. On top of Mako, we run robust open-source components — PyTorch, Ray, and vLLM — largely out of the box. Our post-training framework sits above these foundations as a library: it provides reusable utilities and standardized training recipes for common workflows such as Supervised Fine-Tuning (SFT), Direct Preference Optimization (DPO), Reinforcement Learning (RL), and Knowledge Distillation. Users typically express jobs as configuration files that select a recipe and plug in task-specific components.

Figure 3 summarizes the modular components we built to reduce complexity across four dimensions. As with most ML systems, training success hinges on three pillars — Data, Model, and Compute — and the rise of RL fine-tuning adds a fourth pillar: Workflow, to support multi-stage execution patterns that don’t fit a simple training loop. Below, we detail the specific abstractions and features the framework provides for each of these dimensions:

• Data: Dataset abstractions for SFT, reward modeling, and RL; high-throughput streaming from cloud and disk for datasets that exceed local storage; and asynchronous, on-the-fly sequence packing to overlap CPU-heavy packing with GPU execution and reduce idle time.
• Model: Support for modern architectures (e.g., Qwen3, Gemma3) and Mixture-of-Experts variants (e.g., Qwen3 MoE, GPT-OSS); LoRA integrated into model definitions; and high-level sharding APIs so developers can distribute large models across device meshes without writing low-level distributed code.
• Compute: A unified job submission interface that scales from a single node to hundreds of GPUs; MFU (Model FLOPS Utilization) monitoring that remains accurate under custom architectures and LoRA; and comprehensive checkpointing (states of trained parameters, optimizer, dataloader, data mixer, etc.) to enable exact resumption after interruptions.
• Workflow: Support for training paradigms beyond SFT, including complex online RL. In particular, we extend Single Program, Multiple Data (SPMD) style SFT workloads to run online RL with a hybrid single-controller + SPMD execution model, which we’ll describe next.

Today, this framework supports research use cases ranging from post-training large-scale foundation models to fine-tuning specialized expert models. By standardizing these workflows, we’ve lowered the barrier for teams to experiment with advanced techniques and iterate more quickly.

Learnings from Building the Post-Training Framework

Building a system of this scope wasn’t a linear implementation exercise. It meant tracking a fast-moving open-source ecosystem, chasing down failure modes that only appear under distributed load, and repeatedly revisiting architectural decisions as the post-training frontier shifted. Below are three engineering learnings and best practices that shaped the framework.

Scaling from SFT to RL

We initially designed the library around Supervised Fine-Tuning (SFT): relatively static data flow, a single training loop, and a Single Program, Multiple Data (SPMD) execution model. That assumption stopped holding in 2025. With DeepSeek-R1 and the broader adoption of efficient on-policy RL methods like GRPO, SFT became table stakes rather than the finish line. Staying close to the frontier required infrastructure that could move from “offline training loop” to “multi-stage, on-policy orchestration.”

SFT’s learning signal is dense and immediate: for each token position we compute logits over the full vocabulary and backpropagate a differentiable loss. Infrastructure-wise, this looks a lot like pre-training and maps cleanly to SPMD — every GPU worker runs the same step function over a different shard of data, synchronizing through Pytorch distributed primitives.

On-policy RL changes the shape of the system. The learning signal is typically sparse and delayed (e.g., a scalar reward at the end of an episode), and the training step depends on data generated by the current policy. Individual sub-stages — policy updates, rollout generation, reference model inference, reward model scoring — can each be implemented as SPMD workloads, but the end-to-end algorithm needs explicit coordination: you’re constantly handing off artifacts (prompts, sampled trajectories, rewards, advantages) across stages and synchronizing their lifecycle.

In our original SFT architecture, the driver node was intentionally “thin”: it launched N identical Ray actors, each encapsulating the full training loop, and scaling meant launching more identical workers. That model breaks down for RL. RL required us to decompose the system into distinct roles — Policy, Rollout Workers, Reward Model, Reference Model, etc. — and evolve the driver into an active controller that encodes the control plane: when to generate rollouts, how to batch and score them, when to trigger optimization, and how to manage cluster resources across phases.

Figure 4 highlights this shift. To add RL support without reinventing distributed orchestration from scratch, we integrated the core infrastructure from the open-source Verl library to manage Ray actor lifecycle and GPU resource allocation. Leveraging Verl’s backend let us focus on the “modeling surface area” — our Data/Model/Compute abstractions and internal optimizations — while keeping orchestration concerns decoupled. The result is a hybrid design: a unified user interface where developers can move between SFT and RL workflows without adopting an entirely different mental model or API set.

Hugging Face-Centric Experience

The Hugging Face Hub has effectively become the default distribution channel for open-weight LLMs, tokenizers, and configs. We designed the framework to stay close to that ecosystem rather than creating an isolated internal standard. Even when we use optimized internal model representations for speed, we load and save checkpoints in standard Hugging Face formats. This avoids “walled garden” friction and lets teams pull in new architectures, weights, and tokenizers quickly.

This philosophy also shaped our tokenizer story. Early on, we bound directly to low-level tokenization libraries (e.g., SentencePiece, tiktoken) to maximize control. In practice, that created a costly failure mode: silent training–serving skew. Our inference stack (vLLM) defaults to Hugging Face AutoTokenizer, and tiny differences in normalization, special token handling, or chat templating can yield different token boundaries — exactly the kind of mismatch that shows up later as inexplicable quality regressions. We fixed this by making Hugging Face AutoTokenizer the single source of truth. We then built a thin compatibility layer (BaseHFModelTokenizer) to handle post-training needs — setting padding tokens, injecting generation markers to support loss masking, and managing special tokens / semantic IDs — while ensuring the byte-level tokenization path matches production.

We do take a different approach for model implementations. Rather than training directly on transformers model classes, we maintain our own optimized, unified model definitions that can still load/save Hugging Face checkpoints. This layer is what enables framework-level optimizations — e.g., FlexAttention, memory-efficient chunked cross-entropy, consistent MFU accounting, and uniform LoRA extensibility — without re-implementing them separately for every model family. A unified module naming convention also makes it feasible to programmatically locate and swap components (Attention, MLP, output heads) across architectures, and provides a consistent surface for Tensor Parallelism and FSDP wrapping policies.

The trade-off is clear: supporting a new model family requires building a bridge between the Hugging Face reference implementation and our internal definition. To reduce that overhead, we use AI coding agents to automate much of the conversion work, with a strict logit verifier as the gate: given random inputs, our internal model must match the Hugging Face logits within tolerance. Because the acceptance criterion is mechanically checkable, agents can iterate autonomously until the implementation is correct, dramatically shortening the time-to-support for new architectures.

Today, this design means we can only train architectures we explicitly support — an intentional constraint shared by other high-performance systems like vLLM, SGLang, and torchtitan. To broaden coverage, we plan to add a fallback Hugging Face backend, similar to the compatibility patterns these projects use: users will be able to run training directly on native transformers models for rapid exploration of novel architectures, with the understanding that some framework optimizations and features may not apply in that mode.

Providing Differential Value

A post-training framework is only worth owning if it delivers clear value beyond assembling OSS components. We build on open source for velocity, but we invest heavily where off-the-shelf tools tend to be weakest: performance tuned to our workload characteristics, and integration with Netflix-specific model and business requirements. Here are some concrete examples:

First, we optimize training efficiency for our real use cases. A representative example is extreme variance in sequence length. In FSDP-style training, long-tail sequences create stragglers: faster workers end up waiting at synchronization points for the slowest batch, lowering utilization. Standard bin-packing approaches help, but doing them offline at our data scale can add substantial preprocessing latency and make it harder to keep datasets fresh. Instead, we built on-the-fly sequence packing that streams samples from storage and dynamically packs them in memory. Packing runs asynchronously, overlapping CPU work with GPU compute. Figure 5 shows the impact: for our most skewed dataset, on-the-fly packing improved the effective token throughput by up to 4.7x.

We also encountered subtler performance cliffs around vocabulary expansion. Our workloads frequently add custom tokens and semantic IDs. We found that certain vocabulary sizes could cause the language model head to fall back from a highly optimized cuBLAS kernel to a much slower CUTLASS path, tripling that layer’s execution time. The framework now automatically pads vocabulary sizes to multiples of 64 so the compiler selects the fast kernel, preserving throughput without requiring developers to know these low-level constraints.

Second, owning the framework lets us support “non-standard” transformer use cases that generic LLM tooling rarely targets. For example, some internal models are trained on member interaction event sequences rather than natural language, and may require bespoke RL loops that integrate with highly-customized inference engines and optimize business-defined metrics. These workflows demand custom environments, reward computation, and orchestration patterns — while still needing the same underlying guarantees around performance, tracking, and fault tolerance. The framework is built to accommodate these specialized requirements without fragmenting into one-off pipelines, enabling rapid iteration.

Wrap up

Building the Netflix Post-Training Framework has been a continual exercise in balancing standardization with specialization. By staying anchored to the open-source ecosystem, we’ve avoided drifting into a proprietary stack that diverges from where the community is moving. At the same time, by owning the core abstractions around Data, Model, Compute, and Workflow, we’ve preserved the freedom to optimize for Netflix-scale training and Netflix-specific requirements.

In the process, we’ve moved post-training from a loose collection of scripts into a managed, scalable system. Whether the goal is maximizing SFT throughput, orchestrating multi-stage on-policy RL, or training transformers over member interaction sequences, the framework provides a consistent set of primitives to do so reliably and efficiently. As the field shifts toward more agentic, reasoning-heavy, and multimodal architectures, this foundation will help us translate new ideas into scalable GenAI prototypes — so experimentation is constrained by our imagination, not by operational complexity.

Acknowledgements

This work builds on the momentum of the broader open-source ML community. We’re especially grateful to the teams and contributors behind Torchtune, Torchtitan, and Verl, whose reference implementations and design patterns informed many of our training framework choices — particularly around scalable training recipes, distributed execution, and RL-oriented orchestration. We also thank our partner teams in Netflix AI for Member Systems for close collaboration, feedback, and shared problem-solving throughout the development and rollout of the Post-Training Framework, and the Training Platform team for providing the robust infrastructure and operational foundation that makes large-scale post-training possible.

Scaling LLM Post-Training at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Introduction

In 2024, the Online Data Stores team at Netflix conducted a comprehensive review of the relational database technologies used across the company. This evaluation examined functionality, performance, and total cost of ownership across our database ecosystem. Based on this analysis, we decided to standardize on Amazon Aurora PostgreSQL as the primary relational database offering for Netflix teams.

Several key factors influenced this decision:

• PostgreSQL already underpinned the majority of our relational workloads, which made it a natural foundation for standardization. Internal evaluations revealed that Aurora PostgreSQL had supported over 95% of the applications and workloads running on other relational databases across our internal services.
• Industry momentum had continued to shift toward PostgreSQL, driven by its open ecosystem, strong community support, and broad adoption across modern data platforms.
• Aurora’s cloud-native, distributed architecture provided clear advantages in scalability, high availability, and elasticity compared to traditional single-node PostgreSQL deployments.
• Aurora PostgreSQL offered a rich feature set, along with a strong, forward-looking roadmap aligned with the needs of large-scale, globally distributed applications.

A Clear Migration Path Forward

As part of this strategic shift, one of our key initiatives for 2024/2025 was migrating existing users to Aurora PostgreSQL. This effort began with RDS PostgreSQL migrations and will expand to include migrations from other relational systems in subsequent phases.

As a data platform organization, our goal is to make this evolution predictable, well-supported, and minimally disruptive. This allows teams to adopt Aurora PostgreSQL at a pace that aligns with their product and operational roadmaps, while we move toward a unified and scalable relational data platform across the organization.

Database Migration: More Than a Simple Transfer

Migrating a database involves far more than copying rows from one system to another. It is a coordinated process of transitioning both data and database functionality while preserving correctness, availability, and performance. At scale, a well-designed migration must minimize disruption to applications and ensure a clean, deterministic handoff from the old system to the new one.

Most database migrations follow a common set of high-level steps:

1. Data Replication: Data is first copied from the source database to the destination, typically using replication, so that ongoing changes are continuously captured and applied.
2. Quiescence: Write traffic to the source database is halted, allowing the destination to fully catch up and eliminate any remaining divergence.
3. Validation: The system verifies that the source and destination databases are fully synchronized and contain identical data.
4. Cutover: Client applications are reconfigured to point to the destination database, which becomes the new primary source of truth.

Challenges

Operational Challenges

Migrating to a new relational database at Netflix scale presents substantial operational challenges. With a fleet approaching 400 PostgreSQL clusters, manually migrating each one is simply not scalable for the data platform team. Such an approach would require a significant amount of time, introduce the risk of human error, and necessitate considerable hands-on engineering effort. Compounding the problem, coordinating downtime across the many interconnected services that depend on each database is extremely cumbersome at this scale.

To address these challenges, we designed a self-service migration workflow that enables service owners to run their own RDS PostgreSQL to Aurora PostgreSQL migrations. The workflow automatically handles orchestration, safety checks, and correctness guarantees end-to-end, resulting in lower operational overhead and a predictable, reliable migration experience.

Technical challenges

• Zero data loss — We must guarantee that all data from the source cluster is fully and safely migrated to the destination within a very tight window, with no possibility of data loss.
• Minimal downtime — Some downtime is unavoidable during migration, as applications must briefly pause write traffic while cutting over to Aurora PostgreSQL. For higher-tier services that power critical parts of the Netflix ecosystem, this window must be kept extremely short to prevent user-facing impact and maintain service reliability.
• No control over client applications — As the platform team, we manage the databases, but application teams handle the read and write operations. We cannot assume that they have the ability to pause writes on demand, nor do we want to expose such controls to them, as mistakes could lead to data inconsistencies post migration. Therefore, building a self-service migration pipeline requires creative control-plane solutions to halt traffic, ensuring that no writes occur during the validation and cutover phases.
• No direct access to RDS credentials — The migration automation must perform replication, quiescence, and validation without requesting database credentials from users or relying on manual authentication. Source databases are often tightly secured, allowing access only from client applications, but more importantly, requiring credential access — even if it were possible — would significantly increase operational overhead and risk. At the same time, the migration platform may operate in environments without direct access to the source database, making traditional verification or parity checks impossible.
• No Degradation in Performance — The migration process must not impact the performance or stability of production databases once they are running in the Aurora PostgreSQL ecosystem.
• Full Ecosystem Parity — Beyond migrating the core database, associated components such as parameter groups, read replicas, and replication slots must also be migrated to ensure functional equivalence.

Minimal User Effort — Since we rely on teams who are not database experts to perform migrations, the process must be simple, intuitive, and fully self-guided.

AWS recommended migration techniques

Using a snapshot

One of the simplest AWS-recommended approaches for migrating from RDS PostgreSQL to Aurora PostgreSQL is based on snapshots. In this model, write traffic to the source PostgreSQL database is first stopped. A manual snapshot of the RDS PostgreSQL instance is then taken and migrated to Aurora, where AWS converts it into an Aurora-compatible format.

Once the conversion completes, a new Aurora PostgreSQL cluster is created from the snapshot. After the cluster is brought online and validated, application traffic is redirected to the Aurora endpoint, completing the migration.

Reference

Using an Aurora read replica

In the read-replica–based approach, an Aurora PostgreSQL read replica is created from an existing RDS PostgreSQL instance. AWS establishes continuous, asynchronous replication from the RDS source to the Aurora replica, allowing ongoing changes to be streamed in near real time.

Because replication runs continuously, the Aurora replica remains closely synchronized with the source database. This enables teams to provision and validate the Aurora environment — including configuration, connectivity, and performance characteristics — while production traffic continues to flow to the source.

When the replication lag is sufficiently low, write traffic is briefly paused to allow the replica to fully catch up. The Aurora read replica is then promoted to a standalone Aurora PostgreSQL cluster, and application traffic is redirected to the new Aurora endpoint. This approach significantly reduces downtime compared to snapshot-based migrations and is well-suited for production systems that require minimal disruption.

These differences represent the key considerations when choosing a migration strategy from RDS PostgreSQL to Aurora PostgreSQL. For our automation, we opted for the Aurora Read Replica approach, trading increased implementation complexity for a significantly shorter downtime window for client applications.

In Netflix’s RDS setup, a Data Access Layer (DAL) sits between applications and backend databases, acting as middleware that centralizes database connectivity, security, and traffic routing on behalf of client applications.

On the client side, applications connect through a forward proxy that manages mutual TLS (mTLS) authentication and establishes a secure tunnel to the Data Gateway service. The Data Gateway, acting as a reverse proxy for database servers, terminates client connections, enforces centralized authentication and authorization, and forwards traffic to the appropriate RDS PostgreSQL instance.

This layered design ensures that applications never handle raw database credentials, provides a consistent and secure access pattern across all datastore types, and delivers isolated, transparent connectivity to managed PostgreSQL clusters. While the primary goal of this architecture is to enforce strong security controls and standardize how applications access external AWS data stores, it also allows backend databases to be switched transparently via configuration, enabling controlled, low-downtime migrations.

Migration Process

The Platform team’s goal is to deliver a fully automated, self-service workflow that helps with the migration of customer RDS PostgreSQL instances to Aurora PostgreSQL clusters. This migration tool orchestrates the entire process — from preparing the source environment, initializing the Aurora read replica, and maintaining continuous synchronization, all the way through to cutover — without requiring any database credentials or manual intervention from the customer.

Designed for minimal downtime and seamless user experience, the workflow ensures full ecosystem parity between RDS and Aurora, preserving performance characteristics and operational behavior while enabling customers to benefit from Aurora’s improved scalability, resilience, and cost efficiency.

Data Replication Phase

Enable Automated Backups

Automated backups must be enabled on the source database because the Aurora read replica is initialized from a consistent snapshot of the source and then kept in sync through continuous replication. Automated backups provide the stable snapshot required to bootstrap the replica, along with the continuous streaming of write-ahead log (WAL) records needed to keep the read replica closely synchronized with the source.

Port RDS parameters to an Aurora parameter group

We create a dedicated Aurora parameter group for each cluster and migrate all RDS-compatible parameters from the source RDS instance. This ensures that the Aurora cluster inherits the same configuration settings — such as memory configuration, connection limits, query planner behavior, and other PostgreSQL engine parameters that have equivalents in Aurora. Parameters that are unsupported or behave differently in Aurora are either omitted or adjusted according to Aurora best practices.

Create an Aurora read replica cluster and instance

Creating an Aurora read replica cluster is a critical step in migrating from RDS PostgreSQL to Aurora PostgreSQL. At this stage, the Aurora cluster is created and attached to the RDS PostgreSQL primary as a replica, establishing continuous replication from the source RDS PostgreSQL instance. These Aurora read replicas stay nearly in sync with ongoing changes by streaming write-ahead logs (WAL) from the source, enabling minimal downtime during cutover. The cluster is fully operational for validation and performance testing, but it is not yet writable — RDS remains the authoritative primary.

Quiescence Phase

The goal of the quiescence phase is to transition client applications from the source RDS PostgreSQL instance to the Aurora PostgreSQL cluster as the new primary database, while preserving data consistency during cutover.

The first step in this process is to stop all write traffic to the source RDS PostgreSQL instance to guarantee consistency. To achieve this, we instruct users to halt application-level traffic, which helps prevent issues such as retry storms, queue backlogs, or unnecessary resource consumption when connectivity changes during cutover. This coordination also gives teams time to prepare operationally, for example, by suppressing alerts, notifying downstream consumers, or communicating planned maintenance to their customers.

However, relying solely on application-side controls is unreliable. Operational gaps, misconfigurations, or lingering connections can still modify the source database state, potentially resulting in changes that are not replicated to the destination and leading to data inconsistency or loss. To enforce a clean and deterministic cutover, we also block traffic at the infrastructure layer. This is done by detaching the RDS instance’s security groups to prevent new inbound connections, followed by a reboot of the instance. With security groups removed, no new SQL sessions can be established, and the reboot forcibly terminates any existing connections.

This approach intentionally avoids requiring database credentials or logging into the PostgreSQL server to manually terminate connections. While it may be slower than application- or database-level intervention, it provides a reliably automated and repeatable mechanism to fully quiesce the source RDS PostgreSQL instance before Aurora promotion, eliminating the risk of divergent writes or an inconsistent WAL state.

Validation Phase

To determine whether the Aurora read replica has fully caught up with the source RDS PostgreSQL instance, we track replication progress using Aurora’s OldestReplicationSlotLag metric. This metric represents how far the Aurora replica is behind the source in applying write-ahead log (WAL) records.

Once client traffic is halted during quiescence, the source RDS PostgreSQL instance stops producing meaningful WAL entries. At that point, the replication lag should converge to zero, indicating that all WAL records corresponding to real writes have been fully replayed on Aurora.

However, in practice, our experiments show that the metric never settles at a steady zero. Instead, it briefly drops to 0, then quickly returns to 64 MB, repeating this pattern every few minutes as shown in the figure below.

This behavior stems from how OldestReplicationSlotLag is calculated. Internally, the lag is derived using the following query:

SELECT
  slot_name,
  pg_wal_lsn_diff(pg_current_wal_lsn(), restart_lsn) AS slot_lag_bytes
FROM pg_replication_slots;

Conceptually, this translates to:

OldestReplicationSlotLag = current_WAL_position_on_RDS
                           – restart_lsn

See AWS references here and here.

The restart_lsn represents the oldest write-ahead log (WAL) record that PostgreSQL must retain to ensure a replication consumer can safely resume replication.

When PostgreSQL performs a WAL segment switch, Aurora typically catches up almost immediately. At that moment, the restart_lsn briefly matches the source’s current WAL position, causing the reported lag to drop to 0. During idle periods, PostgreSQL performs an empty WAL segment rotation approximately every five minutes, driven by the archive_timeout = 300s setting in the database parameter group.

Immediately afterward, PostgreSQL begins writing to the new WAL segment. Since this new segment has not yet been fully flushed or consumed by Aurora, the WAL position in source RDS PostgreSQL advances ahead of the restart_lsn of Aurora PostgreSQL by exactly one segment. As a result, OldestReplicationSlotLag jumps to 64 MB, which corresponds to the configured WAL segment size at database initialization, and remains there until the next segment switch occurs.

Because idle PostgreSQL performs an empty WAL rotation approximately every five minutes, this zero-then-64 MB oscillation is expected. Importantly, the moment when the lag drops to 0 indicates that all meaningful WAL records have been fully replicated, and the Aurora read replica is fully caught up with the source.

Cutover Phase

Once the Aurora read replica has fully caught up with the source RDS PostgreSQL instance — as confirmed through replication lag analysis — the final step is to promote the replica and redirect application traffic. Promoting the Aurora read replica converts it into an independent, writable Aurora PostgreSQL cluster with its own writer and reader endpoints. At this point, the source RDS PostgreSQL instance is no longer the authoritative primary and is made inaccessible.

Because Netflix’s RDS ecosystem is fronted by a Data Access Layer (DAL), consisting of client-side forward proxies and a centralized Data Gateway, switching databases does not require application code changes or database credential access. Instead, traffic redirection is handled entirely through configuration updates in the reverse-proxy layer. Specifically, we update the runtime configuration of the Envoy-based Data Gateway to route traffic to the newly promoted Aurora cluster. Once this configuration change propagates, all client-initiated database connections are transparently routed through the DAL to the Aurora writer endpoint, completing the migration without requiring any application changes.

This proxy-level cutover, combined with Aurora promotion, enables a seamless transition for service owners, minimizes downtime, and preserves data consistency throughout the migration process.

Customer Experience: Migrating a Business-Critical Partner Platform

One of the critical teams to adopt the RDS PostgreSQL to Aurora PostgreSQL migration workflow was the Enablement Applications team. This team owns a set of databases that model Netflix’s entire ecosystem of partner integrations, including device manufacturers, discovery platforms, and distribution partners. These databases power a suite of enterprise applications that partners worldwide rely on to build, test, certify, and launch Netflix experiences on their devices and services.

Because these databases sit at the center of Netflix’s partner enablement and certification workflows, they are consumed by a diverse set of client applications across both internal and external organizations. Internally, reliability teams use this data to identify streaming failures for specific devices and configurations, supporting quality improvements across the device ecosystem. At the same time, these databases directly serve external partners operating across many regions. Device manufacturers rely on them to configure, test, and certify new hardware, while payment partners use them to set up and launch bundled offerings with Netflix.

Device Lifecycle Management

Netflix works with a wide range of device partners to ensure Netflix streams seamlessly across a diverse ecosystem of consumer devices. A core responsibility of Device Lifecycle Management is to provide tools and workflows that allow partners to develop, test, and certify Netflix integrations on their devices.

As part of the device lifecycle, partners run Netflix-provided test suites against their NRDP implementation. We store signals that represent the current stage for each device in the certification process. This certification data forms the backbone of Netflix’s device enablement program, ensuring that only validated devices can launch Netflix experiences.

Partner Billed Integrations

In addition to device enablement, the same partner metadata is also consumed by Netflix’s Partner Billed Integrations organization. This group enables external partners to offer Netflix as part of bundled subscription and billing experiences.

Any disruption in these databases affects partner integration workflows. If the database is unavailable, partners may be unable to configure or launch service bundles with Netflix. Maintaining high availability and data correctness is essential to preserving smooth integration operations.

The global nature of these workflows makes it difficult to schedule downtime windows. Any disruption would impact partner productivity and risk eroding trust in Netflix’s integration and certification processes.

Preparation

Given the criticality of the Enablement Applications databases, thorough preparation was essential before initiating the migration. The team invested significant effort upfront to understand traffic patterns, identify all consumers, and establish clear communication channels.

Understand Client Fan-Out and Traffic Patterns
The first step was to gain a complete view of how the databases were being used in production. Using observability tools like CloudWatch metrics, the team analyzed PostgreSQL connection counts, read and write patterns, and overall load characteristics. This helped establish a baseline for normal behavior and ensured there were no unexpected traffic spikes or hidden dependencies that could complicate the migration.

Just as importantly, this baseline gave the Enablement Applications team a rough idea of the post-migration behavior on Aurora. For example, they expected to see a similar number of active database connections and comparable traffic patterns after cutover, making it easier to validate that the migration had preserved operational characteristics.

Identify and Enumerate All Database Consumers
Unlike most databases, where the set of consumers is well known to the owning team, these databases were accessed by a wide range of internal services and external-facing systems that were not fully enumerated upfront. To address this, we leveraged a tool called flowlogs, an eBPF-based network attribution tooling was used to capture TCP flow data to identify the services and applications establishing connections to the database(link).

This approach allowed the team to enumerate active consumers, including those that were not previously documented, ensuring no clients were missed during migration planning.

Establish Dedicated Communication Channels
Once all consumers were identified, a dedicated communication channel was created to provide continuous updates throughout the migration process. This channel was used to share timelines, readiness checks, status updates, and cutover notifications, ensuring that all stakeholders remained aligned and could respond quickly if issues arose.

Migration Process

After completing application-side preparation, the Enablement Applications team initiated the data replication phase of the migration workflow. The automation successfully provisioned the Aurora read replica cluster and ported the RDS PostgreSQL parameter group to a corresponding Aurora parameter group, bringing the destination environment up with equivalent configuration.

Unexpected Replication Slot Behavior

However, shortly after replication began, we observed that the OldestReplicationSlotLag metric was unexpectedly high. This was counterintuitive, as Aurora read replicas are designed to remain closely synchronized with the source database by continuously streaming write-ahead logs (WAL).

Further investigation revealed the presence of an inactive logical replication slot on the source RDS PostgreSQL instance. An inactive replication slot can cause elevated OldestReplicationSlotLag because PostgreSQL must retain all WAL records required by the slot’s last known position (restart_lsn), even if no client is actively consuming data from it. Replication slots are intentionally designed to prevent data loss by ensuring that a consumer can resume replication from where it left off. As a result, PostgreSQL will not recycle or delete WAL segments needed by a replication slot until the slot advances. When a slot becomes inactive — such as when a client migration task is stopped or abandoned — the slot’s position no longer moves forward. Meanwhile, the database continues to generate WAL, forcing PostgreSQL to retain increasingly older WAL files. This growing gap between the current WAL position and the slot’s restart_lsn manifests as a high OldestReplicationSlotLag.

Identifying and addressing these inactive replication slots was a critical prerequisite to proceeding safely with the migration and ensuring accurate replication state during cutover.

Successful Migration After Remediation
After identifying the inactive logical replication slot, the team safely cleaned it up on the source RDS PostgreSQL instance and resumed the migration workflow. With the stale slot removed, replication progressed as expected, and the Aurora read replica quickly converged with the source. The migration then proceeded smoothly through the quiescence phase, with no unexpected behavior or replication anomalies observed.

Following promotion, application traffic transitioned seamlessly to the newly writable Aurora PostgreSQL cluster. Through the Data Access Layer, new client connections were automatically routed to Aurora, and observability metrics confirmed healthy behavior — connection counts, read/write patterns, and overall load closely matched pre-migration baselines. From the application and partner perspective, the cutover was transparent, validating both the correctness of the migration workflow and the effectiveness of the preparation steps.

Open questions

How do we select target Aurora PostgreSQL instance types based on the existing production RDS PostgreSQL instance?

When selecting the target Aurora PostgreSQL instance type for a production migration, our guidance is intentionally conservative. We prioritize stability and performance first, and optimize for cost only after observing real workload behavior on Aurora.

In practice, the recommended approach is to adopt Graviton2-based instances (particularly the r6g family) whenever possible, maintain the same instance family and size where feasible, and — at minimum — preserve the memory footprint of the existing RDS instance.

Unlike RDS PostgreSQL, Aurora does not support the m-series, making a direct family match impossible for those instances. In such cases, simply keeping the same “size” (e.g., 2xlarge → 2xlarge) is not meaningful because the memory profiles differ across families. Instead, we map instances by memory equivalence. For example, an Aurora r6g.xlarge provides a memory footprint comparable to an RDS m5.2xlarge, making it a practical replacement. This memory-aligned strategy offers a safer and more predictable baseline for production migrations.

Downtime During RDS → Aurora Cutover?

To achieve minimal downtime during an RDS PostgreSQL → Aurora PostgreSQL migration, we front-load as much work as possible into the preparation phase. By the time we reach cutover, the Aurora read replica is already provisioned and continuously replicating WAL from the source RDS instance. Before initiating downtime, we ensure that the replication lag between Aurora and RDS has stabilized within an acceptable threshold. If the lag is large or fluctuating significantly, forcing a cutover will only inflate downtime.

Downtime begins the moment we remove the security groups from the source RDS instance, blocking all inbound traffic. We then reboot the instance to forcibly terminate existing connections, which typically takes up to a minute. From this point forward, no writes can be performed.

After traffic is halted, the next objective is to verify that Aurora has fully replayed all meaningful WAL records from RDS. We track this using OldestReplicationSlotLag. We first wait for the metric to drop to 0, indicating that Aurora has consumed all WAL with real writes. Under normal idle behavior, PostgreSQL triggers an empty WAL switch every five minutes. After observing one data point at 0, we wait for an additional idle WAL rotation and confirm that the lag oscillates within the expected 0 → 64 MB pattern — signifying that the only remaining WAL segments are empty ones produced during idle time. At this point, we know the Aurora replica is fully caught up and can be safely promoted.

While these validation steps run, we perform the configuration updates on the Envoy reverse proxy in parallel. Once promotion completes and Envoy is restarted with the new runtime configuration, all client-initiated connections begin routing to the Aurora cluster. In practice, the total write-downtime observed across services averages around 10 minutes, dominated largely by the RDS reboot and the idle WAL switch interval.

Optimization: Reducing Idle-Time Wait

For services requiring stricter downtime budgets, waiting the full five minutes for an idle WAL switch can be prohibitively expensive. In such cases, we can force a WAL rotation immediately after traffic is cut off by issuing:

SELECT pg_switch_wal();

Once the switch occurs, OldestReplicationSlotLag will drop to 0 again as Aurora consumes the new (empty) WAL segment. This approach eliminates the need to wait for the default archive_timeout interval, which can significantly reduce overall downtime.

How do we migrate CDC consumers?

As part of the data platform organization in Netflix, we provide a managed Change Data Capture (CDC) service across a variety of datastores. For PostgreSQL, logical replication slots is the way of implementing change data capture. At Netflix, we build a managed abstraction on top of these replication slots called datamesh to manage customers who are leveraging them (link).

Each logical replication slot tracks a consumer’s position in the write-ahead log (WAL), ensuring that WAL records are retained until the consumer has successfully processed them. This guarantees ordered and reliable delivery of row-level changes to downstream systems. At the same time, it tightly couples the lifecycle of replication slots to database operations, making their management a critical consideration during database migrations.

A key challenge in migrating from RDS PostgreSQL to Aurora PostgreSQL is transitioning these CDC consumers safely — without data loss, stalled replication, or extended downtime — while ensuring that replication slots are correctly managed throughout the cutover process.

Each row-level change in PostgreSQL is emitted as a CDC event with an operation type of INSERT, UPDATE, DELETE, or REFRESH. REFRESH events are generated during backfills by querying the database directly and emitting the current state of rows in chunks. Downstream consumers are designed to be idempotent and eventually consistent, allowing them to safely process retries, replays, and backfills.

Handling Replication Slots During Migration

Before initiating database cutover, we temporarily pause CDC consumption by stopping the infrastructure responsible for consuming from PostgreSQL replication slots and writing into datamesh source. This also drops the replication slot from the database and cleans up our internal state around replication slot offsets. This essentially resets the state of the connector to one of a brand new one.

This step is critical for two reasons. First, it prevents replication slots from blocking WAL recycling during migration. Second, it ensures that no CDC consumers are left pointing at the source database once traffic is quiesced and cutover begins. While CDC consumers are paused, downstream systems temporarily stop receiving new change events, but remain stable. Once CDC consumers are paused, we proceed with stopping other client traffic and executing the RDS-to-Aurora cutover.

Reinitializing CDC After Cutover

After the Aurora PostgreSQL cluster has been promoted and traffic has been redirected, CDC consumers are reconfigured to point to the Aurora endpoint and restarted. Because their previous state was intentionally cleared, consumers initialize as if they are starting fresh.

On startup, new logical replication slots are created on Aurora, and a full backfill is performed by querying the database and emitting REFRESH events for all existing rows. These events let the consumer know that a manual refresh was done from Aurora and to treat this as an upsert operation. This establishes a clean and consistent baseline from which ongoing CDC can resume. Consumers are expected to handle these refresh events correctly as part of normal operation.

By explicitly managing PostgreSQL replication slots as part of the migration workflow, we are able to migrate CDC consumers safely and predictably, without leaving behind stalled slots, retained WAL, or consumers pointing to the wrong database. This approach allows CDC pipelines to be cleanly re-established on Aurora while preserving correctness and operational simplicity.

How do we roll back in the middle of the process?

Pre-quiescence
Rolling back before the pre-quienscence phase is quite easy. Your primary RDS database is still the source. Rolling back before the quiescence phase is straightforward. At this stage, the primary RDS PostgreSQL instance continues to serve as the sole source of truth, and no client traffic has been redirected.

If a rollback is required, the migration can be safely aborted by deleting the newly created Aurora PostgreSQL cluster along with its associated parameter groups. No changes are needed on the application side, and normal operations on RDS PostgreSQL can continue without impact.

During-quiescence
Rolling back during the quiescence phase is more involved. At this point, client traffic to the source RDS PostgreSQL instance has already been stopped by detaching its security groups. To roll back safely, access must first be restored by reattaching the original security groups to the RDS instance, allowing client connections to resume. In addition, any logical replication slots removed during the migration must be recreated so that CDC consumers can continue processing changes from the source database.

Once connectivity and replication slots are restored, the RDS PostgreSQL instance can safely resume its role as the primary source of truth.

Post-quiescence
Rolling back after cutover, once the Aurora PostgreSQL cluster is serving production traffic, is significantly more complex. At this stage, Aurora has become the primary source of truth, and client applications may already have written new data to it.

In this scenario, rollback requires setting up replication in the opposite direction, with Aurora as the source and RDS PostgreSQL as the destination. This can be achieved using a service such as AWS Database Migration Service (DMS). AWS provides detailed guidance for setting up this reverse replication flow, which can be followed to migrate data back to RDS if necessary.

Conclusion

Standardizing and reducing the surface area of data technologies is crucial for any large-scale platform. For the Netflix platform team, this strategy allows us to concentrate engineering effort, deliver deeper value on a smaller set of well-understood systems, and significantly cut the operational overhead of running multiple database technologies that serve similar purposes. Within the relational database ecosystem, Aurora PostgreSQL has become the paved-path datastore — offering strong scalability, resilience, and consistent operational patterns across the fleet.

Migrations of this scale demand solutions that are reliable, low-touch, and minimally disruptive for service owners. Our automated RDS PostgreSQL → Aurora PostgreSQL workflow represents a major step forward, providing predictable cutovers, strong correctness guarantees, and a migration experience that works uniformly across diverse workloads.

As we continue this journey, the Relational Data Platform team is building higher-level abstractions and capabilities on top of Aurora, enabling service owners to focus less on the complexities of database internals and more on delivering product value. More to come — stay tuned.

Acknowledgements

Special thanks to our other stunning colleagues/customers who contributed to the success of the RDS PostgreSQL to Aurora PostgreSQL migration. Sumanth Pasupuleti, Cole Perez, Ammar Khaku

Automating RDS Postgres to Aurora Postgres Migration was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

By Alex Hutter and Bartosz Balukiewicz

Our previous blog posts (part 1, part 2, part 3) detailed how Netflix’s Graph Search platform addresses the challenges of searching across federated data sets within Netflix’s enterprise ecosystem. Although highly scalable and easy to configure, it still relies on a structured query language for input. Natural language based search has been possible for some time, but the level of effort required was high. The emergence of readily-available AI, specifically Large Language Models (LLMs), has created new opportunities to integrate AI search features, with a smaller investment and improved accuracy.

While Text-to-Query and Text-to-SQL are established problems, the complexity of distributed Graph Search data in the GraphQL ecosystem necessitates innovative solutions. This is the first in a three-part series where we will detail our journey: how we implemented these solutions, evaluated their performance, and ultimately evolved them into a self-managed platform.

The Need for Intuitive Search: Addressing Business and Product Demands

Natural language search is the ability to use everyday language to retrieve information as opposed to complex, structured query languages like the Graph Search Filter Domain Specific Language (DSL). When users interact with 100’s of various UIs within the suite of Content and Business Products applications, a frequent task is filtering a data table like the one below:

Ideally, a user simply wants to satisfy a query like “I want to see all movies from the 90s about robots from the US.” Because the underlying platform operates on the Graph Search Filter DSL, the application acts as an intermediary. Users input their requirements through UI elements — toggling facets or using query builders — and the system programmatically converts these interactions into a valid DSL query to filter the data.

This process presents a few issues.

Today, many applications have bespoke components for collecting user input — the experience varies across them and they have inconsistent support for the DSL. Users need to “learn” how to use each application to achieve their goals.

Additionally, some domains have hundreds of fields in an index that could be faceted or filtered by. A subject matter expert (SME) may know exactly what they want to accomplish, but be bottlenecked by the inefficient pace of filling out a large scale UI form and translating their questions in order to encode it in a representation Graph Search needs.

Most importantly, users think and operate using natural language, not technical constructs like query builders, components, or DSLs. By requiring them to switch contexts, we introduce friction that slows them down or even prevents their progress.

With readily-available AI components, our users can now interact with our systems through natural language. The challenge now is to make sure our offering, searching Netflix’s complex enterprise state with natural language, is an intuitive and trustworthy experience.

We’ve made a decision to pursue generating Graph Search Filter statements from natural language to meet this need. Our intention is to augment and not replace existing applications with retrieval augmented generation (RAG), providing tooling and capabilities so that applications in our ecosystem have newly accessible means of processing and presenting their data in their distinct domain flavours. It should be noted that all the work here has direct application to building a RAG system on top of Graph Search in the future.

Under the Hood: Our Approach to Text-to-Query

The core function of the text-to-query process is converting a user’s (often ambiguous) natural language question into a structured query. We primarily achieve this through the use of an LLM.

Before we dive deeper, let’s quickly revisit the structure of Graph Search Filter DSL. Each Graph Search index is defined by a GraphQL query, made up of a collection of fields. Each field has a type e.g. boolean, string, and some have their permitted values governed by controlled vocabularies — a standardized and governed list of values (like an enumeration, or a foreign key). The names of those fields can be used to construct expressions using comparison (e.g. > or ==) or inclusion/exclusion operators (e.g. IN). In turn those expressions can be combined using logical operators (e.g. AND) to construct complex statements.

With that understanding, we can now more rigorously define the conversion process. We need the LLM to generate a Graph Search Filter DSL statement that is syntactically, semantically, and pragmatically correct.

Syntactic correctness is easy — does it parse? To be syntactically correct, the generated statement must be well formed i.e. follow the grammar of the Graph Search Filter DSL.

Semantic correctness adds some additional complexity as it requires more knowledge of the index itself. To be semantically correct:

• it must respect the field types i.e. only use comparisons that make sense given the underlying type;
• it must only use fields that are actually present in the index, i.e. does not hallucinate;
• when the values of a field are constrained to a controlled vocabulary, any comparison must only use values from that controlled vocabulary.

Pragmatic correctness is much more difficult. It asks the question: does the generated filter actually capture the intent of the user’s query?

The following sections will detail how we pre-process the user’s question to create appropriate context for the instructions that we will provide to the LLM — both of which are fundamental to LLM interaction — as well as post-processing we perform on the generated statement to validate it, and help users understand and trust the results they receive.

At a high level that process looks like this:

Context Engineering

Preparation for the filter generation task is predominantly engineering the appropriate context. The LLM will need access to the fields of an index and their metadata in order to construct semantically correct filters. As the indices are defined by GraphQL queries, we can use the type information from the GraphQL schema to derive much of the required information. For some fields, there is additional information we can provide beyond what’s available in the schema as well, in particular permissible values that pull from controlled vocabularies.

Each field in the index is associated with metadata as seen below, and that metadata is provided as part of the context.

• The field is derived from the document path as characterized by the GraphQL query.
• The description is the comment from the GraphQL schema for the field.
• The type is derived from the GraphQL schema for the field e.g. Boolean, String, enum. We also support an additional controlled vocabulary type we will discuss more of shortly.
• The valid values are derived from enum values for the enum type or from a controlled vocabulary as we will now discuss.

A controlled vocabulary is a specific field type that consists of a finite set of allowed values, which are defined by a SMEs or domain owners. Index fields can be associated with a particular controlled vocabulary, e.g. countries with members such as Spain and Thailand, and any usage of that field within a generated statement must refer to values from that vocabulary.

Naively providing all the metadata as context to the LLM worked for simple cases but did not scale. Some indices have hundreds of fields and some controlled vocabularies have thousands of valid values. Providing all of those, especially the controlled vocabulary values and their accompanying metadata, expands the context; this proportionally increases latency and decreases the correctness of generated filter statements. Not providing the values wasn’t an option as we needed to ground the LLMs generated statements- without them, the LLM would frequently hallucinate values that did not exist.

Curating the context to an appropriate subset was a problem we addressed using the well known RAG pattern.

Field RAG

As mentioned previously, some indices have hundreds of fields, however, most user’s questions typically refer only to a handful of them. If there was no cost in including them all, we would, but as mentioned prior, there is a cost in terms of the latency of query generation as well as the correctness of the generated query (e.g. needle-in-the-hackstack problem) and non-deterministic results.

To determine which subset of fields to include in the context, we “match” them against the intent of the user’s question.

• Embeddings are created for index fields and their metadata (name, description, type) and are indexed in a vector store
• At filter generation time, the user’s question is chunked with an overlapping strategy. For each chunk, we perform a vector search to identify the top K most relevant values and the fields to which they belong.
• Deduplication: The top K fields from each chunk are both consolidated and deduplicated before being provided as context to the system instructions.

Controlled Vocabularies RAG

Index fields of the controlled vocabulary type are associated with a particular controlled vocabulary, again, countries are one example. Given a user’s question, we can infer whether or not it refers to values of a particular controlled vocabulary. In turn, by knowing which controlled vocabulary values are present, we can identify additional, related index fields that should be included in the context that may not have been identified by the field RAG step.

Each controlled vocabulary value has:

• a unique identifier within its type;
• a human readable display name;
• a description of the value;
• also-known-as values or AKA display names, e.g. “romcom” for “Romantic Comedy”.

To determine which subset of values to include in the context for controlled vocabulary fields (and also possibly infer additional fields), we “match” them against the user’s question.

• Embeddings are created for controlled vocabulary values and their metadata, and these are indexed in a vector store. The controlled vocabularies are available via GraphQL and are regularly fetched and reindexed so this system stays up to date with any changes in the domain.
• At filter generation time, the user’s question is chunked. For each chunk, we perform a vector search to identify the top K most relevant values (but only for the controlled vocabularies that are associated with fields in the index)
• The top K values from each chunk are deduplicated by their controlled vocabulary type. The associated field definition is then injected into the context along with the matched values.

Combining both approaches, the RAG of fields and controlled vocabularies, we end up with the solution that each input question resolves in available and matched fields and values:

The quality of results generated by the RAG tool can be significantly enhanced by tuning its various parameters, or “levers.” These include strategies for reranking, chunking, and the selection of different embedding generation models. The careful and systematic evaluation of these factors will be the focus of the subsequent parts of this series.

The Instructions

Once the context is constructed, it is provided to the LLM with a set of instructions and the user’s question. The instructions can be summarised as follows: “Given a natural language question, generate a syntactically, semantically, and pragmatically correct filter statement given the availability of the following index fields and their metadata.”

• In order to generate a syntactically correct filter statement, the instructions include the syntax rules of the DSL.
• In order to generate a semantically correct filter statement, the instructions tell the LLM to ground the generated statement in the provided context.
• In order to generate a pragmatically correct filter statement, so far we focus on better context engineering to ensure that only the most relevant fields and values are provided. We haven’t identified any instructions that make the LLM just “do better” at this aspect of the task.

After the filter statement is generated by the LLM, we deterministically validate it prior to returning the values to the user.

Validation

Syntactic Correctness

Syntactic correctness ensures the LLM output is a parsable filter statement. We utilize an Abstract Syntax Tree (AST) parser built for our custom DSL. If the generated string fails to parse into a valid AST, we know immediately that the query is malformed and there is a fundamental issue with the generation.

The other approach to solve this problem could be using the structured outputs modes provided by some LLMs. However, our initial evaluation yielded mixed results, as the custom DSL is not natively supported and requires further work.

Semantic Correctness

Despite careful context engineering using the RAG pattern, the LLM sometimes hallucinates both fields and available values in the generated filter statement. The most straightforward way of preventing this phenomenon is validating the generated filters against available index metadata. This approach does not impact the overall latency of the system, as we are already working with an AST of the filter statement, and the metadata is freely available from the context engineering stage.

If a hallucination is detected it can be returned as an error to a user, indicating the need to refine the query, or can be provided back to the LLM in the form of a feedback loop for self correction.

This increases the filter generation time, so should be used cautiously with a limited number of retries.

Building Confidence

You probably noticed we are not validating the generated filter for pragmatic correctness. That task is the hardest challenge: The filter parses (syntactic) and uses real fields (semantic), but is it what the user meant? When a user searches for “Dark”, do they mean the specific German sci-fi series Dark, or are they browsing for the mood category “dark TV shows”?

The gap between what a user intended and the generated filter statement is often caused by ambiguity. Ambiguity stems from the compression of natural language. A user says “German time-travel mystery with the missing boy and the cave” but the index contains discrete metadata fields like releaseYear, genreTags, and synopsisKeywords.

How do we ensure users aren’t inadvertently led to wrong answers or to answers for questions they didn’t ask?

Showing Our Work

One way we are handling ambiguity is by showing our work. We visualise the generated filters in the UI in a user-friendly way allowing them to very clearly see if the answer we’re returning is what they were looking for so they can trust the results..

We cannot show a raw DSL string (e.g., origin.country == ‘Germany’ AND genre.tags CONTAINS ‘Time Travel’ AND synopsisKeywords LIKE ‘*cave*’) to a non-technical user. Instead, we reflect its underlying AST into UI components.

After the LLM generates a filter statement, we parse it into an AST, and then map that AST to the existing “Chips” and “Facets” in our UI (see below). If the LLM generates a filter for origin.country == ‘Germany’, the user sees the “Country” dropdown pre-selected to “Germany.” This gives users immediate visual feedback and the ability to easily fine-tune the query using standard UI controls when the results need improvement or further experimentation.

Explicit Entity Selection

Another strategy we’ve developed to remove ambiguity happens at query time. We give users the ability to constrain their input to refer to known entities using “@mentions”. Similar to Slack, typing @ lets them search for entities directly from our specialized UI Graph Search component, giving them easy access to multiple controlled vocabularies (plus other identifying metadata like launch year) to feel confident they’re choosing the entity they intend.

If a user types, “When was @dark produced”, we explicitly know they are referring to the Series controlled vocabulary, allowing us to bypass the RAG inference step and hard-code that context, significantly increasing pragmatic correctness (and building user trust in the process).

End-to-end architecture

As mentioned previously, the solution architecture is divided into pre-processing, filter statement generation, and then post-processing stages. The pre-processing handles context building and involves a RAG pattern for similarity search, while the post-processing validation stage checks the correctness of the LLM-generated filter statements and provides visibility into the results for end users. This design strategically balances LLM involvement with more deterministic strategies.

The end-to-end process is as follows:

1. A user’s natural language question (with optional `@mentions` statements) are provided as input, along with the Graph Search index context
2. The context is scoped by using the RAG pattern on both fields and possible values
3. The pre-processed context and the question are fed into the LLM with an instruction asking for a syntactically and semantically correct filter statement
4. The generated filer statement DSL is verified and checked for hallucinations
5. The final response contains the related AST in order to build “Chips” and “Facets”

Summary

By combining our existing Graph Search infrastructure with the power and flexibility of LLMs, we’ve bridged the gap between complex filter statements and user intent. We moved from requiring users to speak our language (DSL) to our systems understanding theirs.

The initial challenge for our users was successfully addressed. However, our next steps involve transforming this system into a comprehensive and expandable platform, rigorously evaluating its performance in a live production environment, and expanding its capabilities to support GraphQL-first user interfaces. These topics, and others, will be the focus of the subsequent installments in this series. Be sure to follow along!

You may have noticed that we have a lot more to do on this project, including named entity recognition and extraction, intent detection so we can route questions to the appropriate indices, and query rewriting among others. If this kind of work interests you, reach out! We’re hiring in our Warsaw office, check for open roles here.

Credits

Special thanks to Alejandro Quesada, Yevgeniya Li, Dmytro Kyrii, Razvan-Gabriel Gatea, Orif Milod, Michal Krol, Jeff Balis, Charles Zhao, Shilpa Motukuri, Shervine Amidi, Alex Borysov, Mike Azar, Bernardo Gomez Palacio, Haoyun He, Eduardo Ramirez, Cynthia Xie.

The AI Evolution of Graph Search at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Temporal is a Durable Execution platform which allows you to write code “as if failures don’t exist”. It’s become increasingly critical to Netflix since its initial adoption in 2021, with users ranging from the operators of our Open Connect global CDN to our Live reliability teams now depending on Temporal to operate their business-critical services. In this post, I’ll give a high-level overview of what Temporal offers users, the problems we were experiencing operating Spinnaker that motivated its initial adoption at Netflix, and how Temporal helped us reduce the number of transient deployment failures at Netflix from 4% to 0.0001%.

A Crash Course on (some of) Spinnaker

Spinnaker is a multi-cloud continuous delivery platform that powers the vast majority of Netflix’s software deployments. It’s composed of several (mostly nautical themed) microservices. Let’s double-click on two in particular to understand the problems we were facing that led us to adopting Temporal.

In case you’re completely new to Spinnaker, Spinnaker’s fundamental tool for deployments is the Pipeline. A Pipeline is composed of a sequence of steps called Stages, which themselves can be decomposed into one or more Tasks, or other Stages. An example deployment pipeline for a production service may consist of these stages: Find Image -> Run Smoke Tests -> Run Canary -> Deploy to us-east-2 -> Wait -> Deploy to us-east-1.

Pipeline configuration is extremely flexible. You can have Stages run completely serially, one after another, or you can have a mix of concurrent and serial Stages. Stages can also be executed conditionally based on the result of previous stages. This brings us to our first Spinnaker service: Orca. Orca is the orca-stration engine of Spinnaker. It’s responsible for managing the execution of the Stages and Tasks that a Pipeline unrolls into and coordinating with other Spinnaker services to actually execute them.

One of those collaborating services is called Clouddriver. In the example Pipeline above, some of the Stages will require interfacing with cloud infrastructure. For example, the canary deployment involves creating ephemeral hosts to run an experiment, and a full deployment of a new version of the service may involve spinning up new servers and then tearing down the old ones. We call these sorts of operations that mutate cloud infrastructure Cloud Operations. Clouddriver’s job is to decompose and execute Cloud Operations sent to it by Orca as part of a deployment. Cloud Operations sent from Orca to Clouddriver are relatively high level (for example: createServerGroup), so Clouddriver understands how to translate these into lower-level cloud provider API calls.

Pain points in the interaction between Orca and Clouddriver and the implementation details of Cloud Operation execution in Clouddriver are what led us to look for new solutions and ultimately migrate to Temporal, so we’ll next look at the anatomy of a Cloud Operation. Cloud Operations in the OSS version of Spinnaker still work as described below, so motivated readers can follow along in source code, however our migration to Temporal is entirely closed-source following a fork from OSS in 2020 to allow Netflix to make larger pivots to the product such as this one.

The Original Cloud Operation Flow

A Cloud Operation’s execution goes something like this:

1. Orca, in orchestrating a Pipeline execution, decides a particular Cloud Operation needs to be performed. It sends a POST request to Clouddriver’s /ops endpoint with an untyped bag-of-fields.
2. Clouddriver attempts to resolve the operation Orca sent into a set of AtomicOperation s— internal operations that only Clouddriver understands.
3. If the payload was valid and Clouddriver successfully resolved the operation, it will immediately return a Task ID to Orca.
4. Orca will immediately begin polling Clouddriver’s GET /task/<id> endpoint to keep track of the status of the Cloud Operation.
5. Asynchronously, Clouddriver begins executing AtomicOperations using its own internal orchestration engine. Ultimately, the AtomicOperations resolve into cloud provider API calls. As the Cloud Operation progresses, Clouddriver updates an internal state store to surface progress to Orca.
6. Eventually, if all went well, Clouddriver will mark the Cloud Operation complete, which eventually surfaces to Orca in its polling. Orca considers the Cloud Operation finished, and the deployment can progress.

This works well enough on the happy path, but veer off the happy path and dragons begin to emerge:

1. Clouddriver has its own internal orchestration system independent of Orca to allow Orca to query the progress of Cloud Operation. This is largely undifferentiated lifting relative to Clouddriver’s goal of actuating cloud infrastructure changes, and ultimately adds complexity and surface area for bugs to the application. Additionally, Orca is tightly coupled to Clouddriver’s orchestration system — it must understand how to poll Clouddriver, interpret the status, and handle errors returned by Clouddriver.
2. Distributed systems are messy — networks and external services are unreliable. While executing a Cloud Operation, Clouddriver could experience transient network issues, or the cloud provider it’s attempting to call into may be having an outage, or any number of issues in between. Despite all of this, Clouddriver must be as reliable as reasonably possible as a core platform service. To deal with this shape of issue, Clouddriver internally evolved complex retry logic, further adding cognitive complexity to the system.
3. Remember how a Cloud Operation gets decomposed by Clouddriver into AtomicOperations? Sometimes, if there’s a failure in the middle of a Cloud Operation, we need to be able to roll back what was done in AtomicOperations prior to the failure. This led to a homegrown Saga framework being implemented inside Clouddriver. While this did result in a big step forward in reliability of Cloud Operations facing transient failures because the Saga framework also allowed replaying partially-failed Cloud Operations, it added yet more undifferentiated lifting inside the service.
4. The task state kept by Clouddriver was instance-local. In other words, if the Clouddriver instance carrying out a Cloud Operation crashed, that Cloud Operation state was lost, and Orca would eventually time out polling for the task status. The Saga implementation mentioned above mitigated this for certain operations, but was not widely adopted across all cloud providers supported by Spinnaker.

We introduced a lot of incidental complexity into Clouddriver in an effort to keep Cloud Operation execution reliable, and despite all this deployments still failed around 4% of the time due to transient Cloud Operation failures.

Now, I can already hear you saying: “So what? Can’t people re-try their deployments if they fail?” While true, some pipelines take days to complete for complex deployments, and a failed Cloud Operation mid-way through requires re-running the whole thing. This was detrimental to engineering productivity at Netflix in a non-trivial way. Rather than continue trying to build a faster horse, we began to look elsewhere for our reliable orchestration requirements, which is where Temporal comes in.

Temporal: Basic Concepts

Temporal is an open source product that offers a durable execution platform for your applications. Durable execution means that the platform will ensure your programs run to completion despite adverse conditions. With Temporal, you organize your business logic into Workflows, which are a deterministic series of steps. The steps inside of Workflows are called Activities, which is where you encapsulate all your non-deterministic logic that needs to happen in the course of executing your Workflows. As your Workflows execute in processes called Workers, the Temporal server durably stores their execution state so that in the event of failures your Workflows can be retried or even migrated to a different Worker. This makes Workflows incredibly resilient to the sorts of transient failures Clouddriver was susceptible to. Here’s a simple example Workflow in Java that runs an Activity to send an email once every 30 days:

@WorkflowInterface
public interface SleepForDaysWorkflow {
    @WorkflowMethod
    void run();
}

public class SleepForDaysWorkflowImpl implements SleepForDaysWorkflow {

    private final SendEmailActivities emailActivities =
            Workflow.newActivityStub(
                    SendEmailActivities.class,
                    ActivityOptions.newBuilder()
                            .setStartToCloseTimeout(Duration.ofSeconds(10))
                            .build());

    @Override
    public void run() {
        while (true) {
            // Activities already carry retries/timeouts via options.
            emailActivities.sendEmail();

            // Pause the workflow for 30 days before sending the next email.
            Workflow.sleep(Duration.ofDays(30));
        }
    }
}

@ActivityInterface
public interface SendEmailActivities {
    void sendEmail();
}

There’s some interesting things to note about this Workflow:

1. Workflows and Activities are just code, so you can test them using the same techniques and processes as the rest of your codebase.
2. Activities are automatically retried by Temporal with configurable exponential backoff.
3. Temporal manages all the execution state of the Workflow, including timers (like the one used by Workflow.sleep). If the Worker executing this workflow were to have its power cable unplugged, Temporal would ensure another Worker continues to execute it (even during the 30 day sleep).
4. Workflow sleeps are not compute-intensive, and they don’t tie up the process.

You might already begin to see how Temporal solves a lot of the problems we had with Clouddriver. Ultimately, we decided to pull the trigger on migrating Cloud Operation execution to Temporal.

Cloud Operations with Temporal

Today, we execute Cloud Operations as Temporal workflows. Here’s what that looks like.

1. Orca, using a Temporal client, sends a request to Temporal to execute an UntypedCloudOperationRunner Workflow. The contract of the Workflow looks something like this:

@WorkflowInterface
interface UntypedCloudOperationRunner {
  /**
   * Runs a cloud operation given an untyped payload.
   *
   * WorkflowResult is a thin wrapper around OutputType providing a standard contract for
   * clients to determine if the CloudOperation was successful and fetching any errors.
   */
  @WorkflowMethod
  fun <OutputType : CloudOperationOutput> run(stageContext: Map<String, Any?>, operationType: String): WorkflowResult<OutputType>
}

2. The Clouddriver Temporal worker is constantly polling Temporal for work. A worker will eventually see a task for an UntypedCloudOperationRunner Workflow and start executing it.

3. Similar to before with resolution into AtomicOperations, Clouddriver does some pre-processing of the bag-of-fields in stageContext and resolves it to a strongly typed implementation of the CloudOperation Workflow interface based on the operationType input and the stageContext:

interface CloudOperation<I : CloudOperationInput, O : CloudOperationOutput> {
  @WorkflowMethod
  fun operate(input: I, credentials: AccountCredentials<out Any>): O
}

4. Clouddriver starts a Child Workflow execution of the CloudOperation implementation it resolved. The child workflow will execute Activities which handle the actual cloud provider API calls to mutate infrastructure.

5. Orca uses its Temporal Client to await completion of the UntypedCloudOperationRunner Workflow. Once it’s complete, Temporal notifies the client and sends the result and Orca can continue progressing the deployment.

Results and Lessons Learned from the Migration

A shiny new architecture is great, but equally important is the non-glamorous work of refactoring legacy systems to fit the new architecture. How did we integrate Temporal into critical dependencies of all Netflix engineers transparently?

The answer, of course, is a combination of abstraction and dynamic configuration. We built a CloudOperationRunner interface in Orca to encapsulate whether the Cloud Operation was being executed via the legacy path or Temporal. At runtime, Fast Properties (Netflix’s dynamic configuration system) determined which path a stage that needed to execute a Cloud Operation would take. We could set these properties quite granularly — by Stage type, cloud provider account, Spinnaker application, Cloud Operation type (createServerGroup), and cloud provider (either AWS or Titus in our case). The Spinnaker services themselves were the first to be deployed using Temporal, and within two quarters, all applications at Netflix were onboarded.

Impact

What did we have to show for it all? With Temporal as the orchestration engine for Cloud Operations, the percentage of deployments that failed due to transient Cloud Operation failures dropped from 4% to 0.0001%. For those keeping track at home, that’s a four and a half order of magnitude reduction. Virtually eliminating this failure mode for deployments was a huge win for developer productivity, especially for teams with long and complex deployment pipelines.

Beyond the improvement in deployment success metrics, we saw a number of other benefits:

1. Orca no longer needs to directly communicate with Clouddriver to start Cloud Operations or poll their status with Temporal as the intermediary. The services are less coupled, which is a win for maintainability.
2. Speaking of maintainability, with Temporal doing the heavy lifting of orchestration and retries inside of Clouddriver, we got to remove a lot of the homegrown logic we’d built up over the years for the same purpose.
3. Since Temporal manages execution state, Clouddriver instances became stateless and Cloud Operation execution can bounce between instances with impunity. We can treat Clouddriver instances more like cattle and enable things like Chaos Monkey for the service which we were previously prevented from doing.
4. Migrating Cloud Operation steps into Activities was a forcing function to re-write the logic to be idempotent. Since Temporal retries activities by default, it’s generally recommended they be idempotent. This alone fixed a number of issues that existed previously when operations were retried in Clouddriver.
5. We set the retry timeout for Activities in Clouddriver to be two hours by default. This gives us a long leash to fix-forward or rollback Clouddriver if we introduce a regression before customer deployments fail — to them, it might just look like a deployment is taking longer than usual.
6. Cloud Operations are much easier to introspect than before. Temporal ships with a great UI to help visualize Workflow and Activity executions, which is a huge boon for debugging live Workflows executing in production. The Temporal SDKs and server also emit a lot of useful metrics.

Lessons Learned

With the benefit of hindsight, there are also some lessons we can share from this migration:

1. Avoid unnecessary Child Workflows: Structuring Cloud Operations as an UntypedCloudOperationRunner Workflow that starts Child Workflows to actually execute the Cloud Operation’s logic was unnecessary and the indirection made troubleshooting more difficult. There are situations where Child Workflows are appropriate, but in this case we were using them as a tool for code organization, which is generally unnecessary. We could’ve achieved the same effect with class composition in the top-level parent Workflow.

2. Use single argument objects: At first, we structured Workflow and Activity functions with variable arguments, much as you’d write normal functions. This can be problematic for Temporal because of Temporal’s determinism constraints. Adding or removing an argument from a function signature is not a backward-compatible change, and doing so can break long-running workflows — and it’s not immediately obvious in code review your change is problematic. The preferred pattern is to use a single serializable class to host all your arguments for Workflows and Activities — these can be more freely changed without breaking determinism.

3. Separate business failures from workflow failures: We like the pattern of the WorkflowResult type that UntypedCloudOperationRunner returns in the interface above. It allows us to communicate business process failures without failing the Workflow itself and have more overall nuance in error handling. This is a pattern we’ve carried over to other Workflows we’ve implemented since.

Temporal at Netflix Today

Temporal adoption has skyrocketed at Netflix since its initial introduction for Spinnaker. Today, we have hundreds of use cases, and we’ve seen adoption double in the last year with no signs of slowing down.

One major difference between initial adoption and today is that Netflix migrated from an on-prem Temporal deployment to using Temporal Cloud, which is Temporal’s SaaS offering of the Temporal server. This has let us scale Temporal adoption while running a lean team. We’ve also built up a robust internal platform around Temporal Cloud to integrate with Netflix’s internal ecosystem and make onboarding for our developers as easy as possible. Stay tuned for a future post digging into more specifics of our Netflix Temporal platform.

Acknowledgement

We all stand on the shoulders of giants in software. I want to call out that I’m retelling the work of my two stunning colleagues Chris Smalley and Rob Zienert in this post, who were the two aforementioned engineers who introduced Temporal and carried out the migration.

How Temporal Powers Reliable Cloud Operations at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Introduction

Behind the Streams: Building a Reliable Cloud Live Streaming Pipeline for Netflix introduced the architecture of the streaming pipeline. This blog post looks at the custom Origin Server we built for Live — the Netflix Live Origin. It sits at the demarcation point between the cloud live streaming pipelines on its upstream side and the distribution system, Open Connect, Netflix’s in-house Content Delivery Network (CDN), on its downstream side, and acts as a broker managing what content makes it out to Open Connect and ultimately to the client devices.

Netflix Live Origin is a multi-tenant microservice operating on EC2 instances within the AWS cloud. We lean on standard HTTP protocol features to communicate with the Live Origin. The Packager pushes segments to it using PUT requests, which place a file into storage at the particular location named in the URL. The storage location corresponds to the URL that is used when the Open Connect side issues the corresponding GET request.

Live Origin architecture is influenced by key technical decisions of the live streaming architecture. First, resilience is achieved through redundant regional live streaming pipelines, with failover orchestrated at the server-side to reduce client complexity. The implementation of epoch locking at the cloud encoder enables the origin to select a segment from either encoding pipeline. Second, Netflix adopted a manifest design with segment templates and constant segment duration to avoid frequent manifest refresh. The constant duration templates enable Origin to predict the segment publishing schedule.

Multi-pipeline and multi-region aware origin

Live streams inevitably contain defects due to the non-deterministic nature of live contribution feeds and strict real-time segment publishing timelines. Common defects include:

• Short segments: Missing video frames and audio samples.
• Missing segments: Entire segments are absent.
• Segment timing discontinuity: Issues with the Track Fragment Decode Time.

Communicating segment discontinuity from the server to the client via a segment template-based manifest is impractical, and these defective segments can disrupt client streaming.

The redundant cloud streaming pipelines operate independently, encompassing distinct cloud regions, contribution feeds, encoder, and packager deployments. This independence substantially mitigates the probability of simultaneous defective segments across the dual pipelines. Owing to its strategic placement within the distribution path, the live origin naturally emerges as a component capable of intelligent candidate selection.

The Netflix Live Origin features multi-pipeline and multi-region awareness. When a segment is requested, the live origin checks candidates from each pipeline in a deterministic order, selecting the first valid one. Segment defects are detected via lightweight media inspection at the packager. This defect information is provided as metadata when the segment is published to the live origin. In the rare case of concurrent defects at the dual pipeline, the segment defects can be communicated downstream for intelligent client-side error concealment.

Open Connect streaming optimization

When the Live project started, Open Connect had become highly optimised for VOD content delivery — nginx had been chosen many years ago as the Web Server since it is highly capable in this role, and a number of enhancements had been added to it and to the underlying operating system (BSD). Unlike traditional CDNs, Open Connect is more of a distributed origin server — VOD assets are pre-positioned onto carefully selected server machines (OCAs, or Open Connect Appliances) rather than being filled on demand.

Alongside the VOD delivery, an on-demand fill system has been used for non-VOD assets — this includes artwork and the downloadable portions of the clients, etc. These are also served out of the same nginx workers, albeit under a distinct server block, using a distinct set of hostnames.

Live didn’t fit neatly into this ‘small object delivery’ model, so we extended the proxy-caching functionality of nginx to address Live-specific needs. We will touch on some of these here related to optimized interactions with the Origin Server. Look for a future blog post that will go into more details on the Open Connect side.

The segment templates provided to clients are also provided to the OCAs as part of the Live Event Configuration data. Using the Availability Start Time and Initial Segment number, the OCA is able to determine the legitimate range of segments for each event at any point in time — requests for objects outside this range can be rejected, preventing unnecessary requests going up through the fill hierarchy to the origin. If a request makes it through to the origin, and the segment isn’t available yet, the origin server will return a 404 Status Code (indicating File Not Found) with the expiration policy of that error so that it can be cached within Open Connect until just before that segment is expected to be published.

If the Live Origin knows when segments are being pushed to it, and knows what the live edge is — when a request is received for the immediately next object, rather than handing back another 404 error (which would go all the way back through Open Connect to the client), the Live Origin can ‘hold open’ the request, and service it once the segment has been published to it. By doing this, the degree of chatter within the network handling requests that arrive early has been significantly reduced. As part of this, millisecond grain caching was added to nginx to enhance the standard HTTP Cache Control, which only works at second granularity, a long time when segments are generated every 2 seconds.

Streaming metadata enhancement

The HTTP standard allows for the addition of request and response headers that can be used to provide additional information as files move between clients and servers. The HTTP headers provide notifications of events within the stream in a highly scalable way that is independently conveyed to client devices, regardless of their playback position within the stream.

These notifications are provided to the origin by the live streaming pipeline and are inserted by the origin in the form of headers, appearing on the segments generated at that point in time (and persist to future segments — they are cumulative). Whenever a segment is received at an OCA, this notification information is extracted from the response headers and used to update an in-memory data structure, keyed by event ID; and whenever a segment is served from the OCA, the latest such notification data is attached to the response. This means that, given any flow of segments into an OCA, it will always have the most recent notification data, even if all clients requesting it are behind the live edge. In fact, the notification information can be conveyed on any response, not just those supplying new segments.

Cache invalidation and origin mask

An invalidation system has been available since the early days of the project. It can be used to “flush” all content associated with an event by altering the key used when looking up objects in cache — this is done by incorporating a version number into the cache key that can then be bumped on demand. This is used during pre-event testing so that the network can be returned to a pristine state for the test with minimal fuss.

Each segment published by the Live Origin conveys the encoding pipeline it was generated by, as well as the region it was requested from. Any issues that are found after segments make their way into the network can be remedied by an enhanced invalidation system that takes such variants into account. It is possible to invalidate (that is, cause to be considered expired) segments in a range of segment numbers, but only if they were sourced from encoder A, or from Encoder A, but only if retrieved from region X.

In combination with Open Connect’s enhanced cache invalidation, the Netflix Live Origin allows selective encoding pipeline masking to exclude a range of segments from a particular pipeline when serving segments to Open Connect. The enhanced cache invalidation and origin masking enable live streaming operations to hide known problematic segments (e.g., segments causing client playback errors) from streaming clients once the bad segments are detected, protecting millions of streaming clients during the DVR playback window.

Origin storage architecture

Our original storage architecture for the Live Origin was simple: just use AWS S3 like we do for SVOD. This served us well initially for our low-traffic events, but as we scaled up we discovered that Live streaming has unique latency and workload requirements that differ significantly from on-demand where we have significant time ahead-of-time to pre-position content. While S3 met its stated uptime guarantees, our strict 2-second retry budget inherent to Live events (where every write is critical) led us to explore optimizations specifically tailored for real-time delivery at scale. AWS S3 is an amazing object store, but our Live streaming requirements were closer to those of a global low-latency highly-available database. So, we went back to the drawing board and started from the requirements. The Origin required:

1. [HA Writes] Extremely high write availability, ideally as close to full write availability within a single AWS region, with low second replication delay to other regions. Any failed write operation within 500ms is considered a bug that must be triaged and prevented from re-occurring.
2. [Throughput] High write throughput, with hundreds of MiB replicating across regions
3. [Large Partitions] Efficiently support O(MiB) writes that accumulate to O(10k) keys per partition with O(GiB) total size per event.
4. [Strong Consistency] Within the same region, we needed read-your-write semantics to hit our <1s read delay requirements (must be able to read published segments)
5. [Origin Storm] During worst-case load involving Open Connect edge cases, we may need to handle O(GiB) of read throughput without affecting writes.

Fortunately, Netflix had previously invested in building a KeyValue Storage Abstraction that cleverly leveraged Apache Cassandra to provide chunked storage of MiB or even GiB values. This abstraction was initially built to support cloud saves of Game state. The Live use case would push the boundaries of this solution, however, in terms of availability for writes (#1), cumulative partition size (#3), and read throughput during Origin Storm (#5).

High Availability for Writes of Large Payloads

The KeyValue Payload Chunking and Compression Algorithm breaks O(MiB) work down so each part can be idempotently retried and hedged to maintain strict latency service level objectives, as well as spreading the data across the full cluster. When we combine this algorithm with Apache Cassandra’s local-quorum consistency model, which allows write availability even with an entire Availability Zone outage, plus a write-optimized Log-Structured Merge Tree (LSM) storage engine, we could meet the first four requirements. After iterating on the performance and availability of this solution, we were not only able to achieve the write availability required, but did so with a P99 tail latency that was similar to the status quo’s P50 average latency while also handling cross-region replication behind the scenes for the Origin. This new solution was significantly more expensive (as expected, databases backed by SSD cost more), but minimizing cost was not a key objective and low latency with high availability was:

High Availability Reads at Gbps Throughputs

Now that we solved the write reliability problem, we had to handle the Origin Storm failure case, where potentially dozens of Open Connect top-tier caches could be requesting multiple O(MiB) video segments at once. Our back-of-the-envelope calculations showed worst-case read throughput in the O(100Gbps) range, which would normally be extremely expensive for a strongly-consistent storage engine like Apache Cassandra. With careful tuning of chunk access, we were able to respond to reads at network line rate (100Gbps) from Apache Cassandra, but we observed unacceptable performance and availability degradation on concurrent writes. To resolve this issue, we introduced write-through caching of chunks using our distributed caching system EVCache, which is based on Memcached. This allows almost all reads to be served from a highly scalable cache, allowing us to easily hit 200Gbps and beyond without affecting the write path, achieving read-write separation.

Final Storage Architecture

In the final storage architecture, the Live Origin writes and reads to KeyValue, which manages a write-through cache to EVCache (memcached) and implements a safe chunking protocol that spreads large values and partitions them out across the storage cluster (Apache Cassandra). This allows almost all read load to be handled from cache, with only misses hitting the storage. This combination of cache and highly available storage has met the demanding needs of our Live Origin for over a year now.

Delivering this consistent low latency for large writes with cross-region replication and consistent write-through caching to a distributed cache required solving numerous hard problems with novel techniques, which we plan to share in detail during a future post.

Scalability and scalable architecture

Netflix’s live streaming platform must handle a high volume of diverse stream renditions for each live event. This complexity stems from supporting various video encoding formats (each with multiple encoder ladders), numerous audio options (across languages, formats, and bitrates), and different content versions (e.g., with or without advertisements). The combination of these elements, alongside concurrent event support, leads to a significant number of unique stream renditions per live event. This, in turn, necessitates a high Requests Per Second (RPS) capacity from the multi-tenant live origin service to ensure publishing-side scalability.

In addition, Netflix’s global reach presents distinct challenges to the live origin on the retrieval side. During the Tyson vs. Paul fight event in 2024, a historic peak of 65 million concurrent streams was observed. Consequently, a scalable architecture for live origin is essential for the success of large-scale live streaming.

Scaling architecture

We chose to build a highly scalable origin instead of relying on the traditional origin shields approach for better end-to-end cache consistency control and simpler system architecture. The live origin in this architecture directly connects with top-tier Open Connect nodes, which are geographically distributed across several sites. To minimize the load on the origin, only designated nodes per stream rendition at each site are permitted to directly fill from the origin.

While the origin service can autoscale horizontally using EC2 instances, there are other system resources that are not autoscalable, such as storage platform capacity and AWS to Open Connect backbone bandwidth capacity. Since in live streaming, not all requests to the live origin are of the same importance, the origin is designed to prioritize more critical requests over less critical requests when system resources are limited. The table below outlines the request categories, their identification, and protection methods.

Publishing isolation

Publishing traffic, unlike potentially surging CDN retrieval traffic, is predictable, making path isolation a highly effective solution. As shown in the scalability architecture diagram, the origin utilizes separate EC2 publishing and CDN stacks to protect the latency and failure-sensitive origin writes. In addition, the storage abstraction layer features distinct clusters for key-value (KV) read and KV write operations. Finally, the storage layer itself separates read (EVCache) and write (Cassandra) paths. This comprehensive path isolation facilitates independent cloud scaling of publishing and retrieval, and also prevents CDN-facing traffic surges from impacting the performance and reliability of origin publishing.

Priority rate limiting

Given Netflix’s scale, managing incoming requests during a traffic storm is challenging, especially considering non-autoscalable system resources. The Netflix Live Origin implemented priority-based rate limiting when the underlying system is under stress. This approach ensures that requests with greater user impact are prioritized to succeed, while requests with lower user impact are allowed to fail during times of stress in order to protect the streaming infrastructure and are permitted to retry later to succeed.

Leveraging Netflix’s microservice platform priority rate limiting feature, the origin prioritizes live edge traffic over DVR traffic during periods of high load on the storage platform. The live edge vs. DVR traffic detection is based on the predictable segment template. The template is further cached in memory on the origin node to enable priority rate limiting without access to the datastore, which is valuable especially during periods of high datastore stress.

To mitigate traffic surges, TTL cache control is used alongside priority rate limiting. When the low-priority traffic is impacted, the origin instructs Open Connect to slow down and cache identical requests for 5 seconds by setting a max-age = 5s and returns an HTTP 503 error code. This strategy effectively dampens traffic surges by preventing repeated requests to the origin within that 5-second window.

The following diagrams illustrate origin priority rate limiting with simulated traffic. The nliveorigin_mp41 traffic is the low-priority traffic and is mixed with other high-priority traffic. In the first row: the 1st diagram shows the request RPS, the 2nd diagram shows the percentage of request failure. In the second row, the 1st diagram shows datastore resource utilization, and the 2nd diagram shows the origin retrieval P99 latency. The results clearly show that only the low-priority traffic (nliveorigin_mp41) is impacted at datastore high utilization, and the origin request latency is under control.

404 storm and cache optimization

Publishing isolation and priority rate limiting successfully protect the live origin from DVR traffic storms. However, the traffic storm generated by requests for non-existent segments presents further challenges and opportunities for optimization.

The live origin structures metadata hierarchically as event > stream rendition > segment, and the segment publishing template is maintained at the stream rendition level. This hierarchical organization allows the origin to preemptively reject requests with an HTTP 404(not found)/410(Gone) error, leveraging highly cacheable event and stream rendition level metadata, avoiding unnecessary queries to the segment level metadata:

• If the event is unknown, reject the request with 404
• If the event is known, but the segment request timing does not match the expected publishing timing, reject the request with 404 and cache control TTL matching the expected publishing time
• If the event is known, the requested segment is never generated or misses the retry deadline, reject the request with a 410 error, preventing the client from repeatedly requesting

At the storage layer, metadata is stored separately from media data in the control plane datastore. Unlike the media datastore, the control plane datastore does not use a distributed cache to avoid cache inconsistency. Event and rendition level metadata benefits from a high cache hit ratio when in-memory caching is utilized at the live origin instance. During traffic storms involving non-existent segments, the cache hit ratio for control plane access easily exceeds 90%.

The use of in-memory caching for metadata effectively handles 404 storms at the live origin without causing datastore stress. This metadata caching complements the storage system’s distributed media cache, providing a complete solution for traffic surge protection.

Summary

The Netflix Live Origin, built upon an optimized storage platform, is specifically designed for live streaming. It incorporates advanced media and segment publishing scheduling awareness and leverages enhanced intelligence to improve streaming quality, optimize scalability, and improve Open Connect live streaming operations.

Acknowledgement

Many teams and stunning colleagues contributed to the Netflix live origin. Special thanks to Flavio Ribeiro for advocacy and sponsorship of the live origin project; to Raj Ummadisetty, Prudhviraj Karumanchi for the storage platform; to Rosanna Lee, Hunter Ford, and Thiago Pontes for storage lifecycle management; to Ameya Vasani for e2e test framework; Thomas Symborski for orchestrator integration; to James Schek for Open Connect integration; to Kevin Wang for platform priority rate limit; to Di Li, Nathan Hubbard for origin scalability testing.

Netflix Live Origin was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Liwei Guo, Zhi Li, Sheldon Radford, Jeff Watts

Streaming video has become an integral part of our daily lives. At Netflix, our top priority is delivering the best possible entertainment experience to our members, regardless of their devices or network conditions. One of the key technologies enabling this is AV1, a modern, open video codec that is rapidly transforming both how we stream content and how users experience it. Today, AV1 powers approximately 30% of all Netflix viewing, marking a major milestone in our efforts to bring more efficient and higher-quality streaming to our members.

In this post, we’ll revisit Netflix’s AV1 journey to date, highlight emerging use cases, and share adoption trends across the device ecosystem. Having witnessed AV1’s significant impact，and with AV2 on the horizon, we’re more excited than ever about how open codecs will continue to revolutionize streaming for everyone.

AV1: A Modern, Open Codec

Since entering the streaming business in 2007, Netflix has primarily relied on H.264/AVC as its streaming format. However, we quickly recognized that a modern, open codec would benefit not only Netflix, but the entire multimedia industry. In 2015, together with a group of like-minded industry leaders, Netflix co-founded the Alliance for Open Media (AOMedia) to develop and promote next generation, open source media technologies. The AV1 codec became the first major project of this collaboration, with ambitious goals: to deliver significant improvements in compression efficiency over state-of-the-art codecs, and to introduce rich features that enable new use cases. After three years of collaborative development, AV1 was officially released in 2018.

Netflix’s AV1 Journey: From Android to TVs and Beyond

Piloting on Android Mobile

When we first set out to bring AV1 streaming to Netflix members, Android was the ideal starting point. Android’s flexibility allowed us to quickly integrate a software AV1 decoder using the efficient dav1d library, which was already optimized for ARM chipsets in mobile devices.

AV1’s superior compression efficiency was especially valuable for mobile users, many of whom are mindful of their data usage and network conditions. By adopting AV1, we were able to deliver noticeably better video quality at lower bitrates. For members relying on cellular data, this meant crisper images with fewer compression artifacts, even when bandwidth was limited. Launching AV1 support on Android in 2020 marked a significant step forward for Netflix on mobile, making high-quality streaming more accessible and enjoyable for members everywhere.

Front-and-Center for Netflix VOD Streaming

The success of our AV1 launch on Android proved its value for Netflix streaming, motivating us to expand support to smart TVs and other large-screen devices, where most of our members watch their favorite shows.

Smart TVs depend on hardware decoders for efficient high-quality playback. We worked closely with device manufacturers and SoC vendors to certify these devices, ensuring they are both conformant and performant. This collaborative effort enabled our AV1 streaming to TV devices in late 2021. Shortly thereafter, we expanded AV1 streaming to web browsers (in 2022) and continued to broaden device support. In 2023, this included Apple devices with the introduction of AV1 hardware support in the new M3 and A17 Pro chips.

As more devices began shipping with AV1 hardware support, a rapidly growing share of our members could enjoy the benefits of this advanced codec. Combined with our investment in adding AV1 streams across the entire catalog, AV1 viewing share has been consistently increasing in recent years. Today, AV1 accounts for approximately 30% of all Netflix streaming, making it our second most-used codec — and it’s on track to become number one very soon. The payoff has been substantial.

• Elevating Streaming Experience Across the Board: Large-screen TVs and other devices demand higher bitrates to deliver stunning 4K, high frame rate (HFR) experiences. AV1’s superior compression efficiency has allowed us to provide these experiences using less data, making high-quality streaming more accessible and reliable. On average, AV1 streaming sessions achieve VMAF scores¹ that are 4.3 points higher than AVC and 0.9 points higher than HEVC sessions. At the same time, AV1 sessions use one-third less bandwidth than both AVC and HEVC, resulting in 45% fewer buffering interruptions. Moreover, Netflix’s diverse content catalog benefits universally from AV1, with improvements across all content types.
• Driving Network Efficiency Worldwide: Netflix streams are delivered through our own content delivery network (Open Connect), in partnership with local ISPs around the globe. With more than 300 million members, Netflix streaming constitutes a non-trivial portion of global internet traffic. Because AV1 is a more efficient codec, its streams are smaller in size (while providing even better visual quality). By shifting a substantial share of our streaming to AV1, we reduce overall internet bandwidth consumption, and lessen system and network load for both Netflix and our partners.

Unlocking Advanced Experiences

In addition to its superior compression efficiency, AV1 was designed to support a rich set of features. Once we established a robust framework for the continuous expansion of AV1 streaming, we quickly shifted our focus towards exploring AV1’s unique features to unlock even more advanced and immersive experiences for our members.

High-Dynamic-Range(HDR)
HDR brings enhanced detail, vivid colors, and greater clarity to images. As a premium streaming service, Netflix has been a pioneer in adopting HDR, offering HDR streaming since 2016. In March 2025, we launched AV1 HDR streaming. We chose HDR10+ as the HDR format for its use of dynamic metadata, which enabled us to adapt the tone mapping per device in a scene-dependent manner.

As anticipated, the combination of AV1 and HDR10+ allows us to deliver images with greater detail, more vibrant colors, and an overall heightened sense of immersion for our members. At the moment, 85% of our HDR catalog (from the perspective of view-hours) has AV1-HDR10+ coverage, and this number is expected to reach 100% in the next couple of months.

Cinematic Film Grain
Film grain is a hallmark of the cinematic experience, widely used in the movie industry to enhance a film’s depth, texture, and realism. However, because film grain is inherently random, faithfully representing it in digital video requires a significant amount of data. This presents a unique challenge for streaming: restricting the bitrate can result in grain that appears unnatural or distorted, while increasing the bitrate to accurately preserve cinematic grain almost inevitably leads to elevated rebuffering. The AV1 specification incorporates a unique solution called Film Grain Synthesis (FGS). Instead of encoding grain as part of every frame, the grain is stripped out before encoding and then resynthesized at the decoder using parameters sent in the bitstream, delivering a realistic cinematic film grain experience without the usual data costs.

This approach represents a significant shift from traditional compression and streaming techniques. Our team invested substantial effort in fine-tuning the media processing pipeline, ensuring FGS delivers robust performance at scale. In July 2025, we successfully productized AV1 FGS, and the results were astonishing: AV1 with FGS could deliver videos with cinematic film grain at a bitrate well within the capabilities of typical household internet connections. For non-FGS AV1 encodings, even at much higher bitrate, they may not be able to achieve comparable quality.

Beyond VOD Streaming

So far, our AV1 journey has been mainly on VOD, but we see significant opportunities for AV1 beyond traditional VOD streaming. On a mission to entertain the world, Netflix has constantly explored and established other ways to bring joy to our members, and we believe AV1 could contribute to the success of these new products.

Live Streaming
Debuting in 2023, live streaming has experienced rapid growth at Netflix, becoming a key part of our streaming offerings in just two short years. We are actively evaluating the use of AV1 in live streaming, as we believe it could help further scale Netflix’s live programming:

• Hyper-scale concurrent viewership: Live streaming at Netflix means delivering content to tens of millions of viewers simultaneously. AV1’s superior compression efficiency could significantly reduce the required bandwidth, enabling us to deliver high-quality live experiences to large audiences without compromising video quality.
• Customizable graphics overlay: for live sport events such as football, tennis and boxing, graphics overlays have become an integral part of the member experience — from embedding game statistics to delivering sponsorships. AV1 offers an opportunity to make the graphics highly customizable: layered coding is supported in AV1’s main profile, allowing encoding the main content in the base layer, and graphics in the enhancement layer, and easily swapping out one version of the enhancement layer with another. We envision that the use of AV1’s layered coding can greatly simplify the live streaming workflow and reduce delivery costs.

Cloud Gaming
Cloud gaming is a new Netflix offering that is currently in the beta phase and is available to members in select countries. The game engines run on cloud servers, while the rendered graphics are streamed directly to members’ devices. By removing barriers and transforming every Netflix-enabled device into a game console, Cloud gaming aims to deliver a seamless, “play anywhere” experience for our members. For a glimpse of this in action, watch as Co-CEO Greg Peters and CTO Elizabeth Stone play a round of Boggle Party — powered entirely by Netflix’s cloud gaming platform!

Unlike traditional video streaming, cloud gaming requires that every player action is reflected instantly on the screen to ensure a responsive and immersive experience. This makes delivering high-quality video frames with extremely low latency, despite fluctuating network conditions, one of the biggest challenges in cloud gaming.

Our team is actively working on productizing AV1 for cloud gaming. Given AV1’s high compression efficiency, we can reduce frame sizes, helping video frames get through even when network conditions become challenging. This positions AV1 as a promising technology for enabling a high-quality, low-latency gaming experience across a wide range of devices.

A Device Ecosystem United for AV1

Netflix is a streaming company, and we have worked diligently to create highly efficient and standards-conformant AV1 streams for our catalog. However, an equally, if not more, important factor in AV1’s success is the widespread support from device manufacturers. Throughout our AV1 journey, we have been impressed by the unprecedented pace at which the device ecosystem has embraced AV1.

Just six months after the AV1 specification was finalized, the open-source AV1 decoder library sponsored by AOM, dav1d, was released. Small, performant, and highly resource-efficient, dav1d bridged the gap for early adopters like Netflix while hardware solutions were still in development. Continuous improvements to its performance and compatibility have made dav1d the preferred choice for a wide range of platforms and practical applications. Today, it serves as Android’s default software decoder. Additionally, it plays a key role in web browsers — for Netflix, it powers approximately 40% of our browser playback. This broad adoption has significantly expanded access to high-quality AV1 streaming, even in the absence of dedicated hardware decoders.

Netflix maintains a close working relationship with device manufacturers and SoC vendors, and we have witnessed first-hand their enthusiasm for adopting AV1. To ensure optimal streaming performance, Netflix has a rigorous certification process to verify proper support for our streaming formats on devices. AV1 was added to this certification process in 2019, and since then, we have seen a steady increase in the number of devices with full AV1 decoding capabilities. Over the past five years (2021–2025), 88% of large-screen devices, including TVs, set-top boxes, and streaming sticks, submitted for Netflix certification have supported AV1, with the vast majority offering full 4K@60fps capability. Notably, since 2023, almost all devices we have received for certification are AV1-capable.

We have also been impressed by the robustness of AV1 implementations across these devices. As mentioned earlier, FGS is an innovative tool that departs from traditional codec architectures and was not included in our initial full-scale AV1 streaming rollout. When we launched FGS this July, we worked closely with our partners to ensure broad device compatibility. We are pleased with the successful progress made, and AV1 with FGS is now supported across a significant and growing number of in-field devices.

Looking Ahead: AV1 Today, AV2 Tomorrow

As we reflect on our AV1 journey, it’s clear that the codec has already transformed the streaming experience for hundreds of millions of Netflix members worldwide. Thanks to industry-wide collaboration and rapid device adoption, AV1 is delivering higher quality, greater efficiency, and new cinematic features to more screens than ever before.

Looking ahead, we are excited about the forthcoming release of AV2, announced by the Alliance for Open Media for the end of 2025. AV2 is poised to set a new benchmark for compression efficiency and streaming capabilities, building on the solid foundation laid by AV1. At Netflix, we remain committed to adopting the best open technologies to delight our members around the globe. While AV2 represents the future of streaming, AV1 is very much the present — serving as the backbone of our platform and powering exceptional entertainment experiences across a vast and ever-expanding ecosystem of devices.

Acknowledgement

The success of AV1 at Netflix is the result of the dedication, expertise, and collaboration of many teams across the company — including Encoding, Clients, Device Certification, Partner Engineering, Data Science & Engineering, Infra, Platform, etc.

We would also like to thank Artem Danylenko, Aditya Mavlankar, Anne Aaron, Cyril Concolato, Allan Zhou and Anush Moorthy for their valuable comments and feedback on earlier drafts of this post.

Footnotes

1. These numbers represent a snapshot of data from November 13, 2025. Actual values may vary slightly from day to day and across different regions, depending on the mix of content, devices, and internet connectivity.

AV1 — Now Powering 30% of Netflix Streaming was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Shashank Srikanth, Romain Cledat

Metaflow — a framework we started and open-sourced in 2019 — now powers a wide range of ML and AI systems across Netflix and at many other companies. It is well loved by users for helping them take their ML/AI workflows from prototype to production, allowing them to focus on building cutting-edge systems that bring joy and entertainment to audiences worldwide.

Metaflow allows users to:

1. Iterate and ship quickly by minimizing friction
2. Operate systems reliably in production with minimal overhead, at Netflix scale.

Metaflow works with many battle-hardened tooling to address the second point — among them Maestro, our newly open-sourced workflow orchestrator that powers nearly every ML and AI system at Netflix and serves as a backbone for Metaflow itself.

In this post, we focus on the first point and introduce a new Metaflow functionality, Spin, that helps users accelerate their iterative development process. By the end, you’ll have a solid understanding of Spin’s capabilities and learn how to try it out yourself with Metaflow 2.19.

Iterative development in ML and AI workflows

To understand our approach to improving the ML and AI development experience, it helps to consider how these workflows differ from traditional software engineering.

ML and AI development revolves not just around code but also around data and models, which are large, mutable, and computationally expensive to process. Iteration cycles can involve long-running data transformations, model training, and stochastic processes that yield slightly different results from run to run. These characteristics make fast, stateful iteration a critical part of productive development.

This is where notebooks — such as Jupyter, Observable, or Marimo — shine. Their ability to preserve state in memory allows developers to load a dataset once and iteratively explore, transform, and visualize it without reloading or recomputing from scratch. This persistent, interactive environment turns what would otherwise be a slow, rigid loop into a fluid, exploratory workflow — perfectly suited to the needs of ML and AI practitioners.

Because ML and AI development is computationally intensive, stochastic, and data- and model-centric, tools that optimize iteration speed must treat state management as a first-class design concern. Any system aiming to improve the development experience in this domain must therefore enable quick, incremental experimentation without losing continuity between iterations.

New: rapid, iterative development with spin

At first glance, Metaflow code looks like a workflow — similar to Airflow — but there’s another way to look at it: each Metaflow @step serves as a checkpoint boundary. At the end of every step, Metaflow automatically persists all instance variables as artifacts, allowing the execution to resume seamlessly from that point onward. The below animation shows this behavior in action:

In a sense, we can consider a @step similar to a notebook cell: it is the smallest unit of execution that updates state upon completion. It does have a few differences that address the issues with notebook cells:

• The execution order is explicit and deterministic: no surprises due to out-of-order cell execution;
• The state is not hidden: state is explicitly stored as self. variables as shared state, which can be discovered and inspected;
• The state is versioned and persisted making results more reproducible.

While Metaflow’s resume feature can approximate the incremental and iterative development approach of notebooks, it restarts execution from the selected step onward, introducing more latency between iterations. In contrast, a notebook allows near-instant feedback by letting users tweak and rerun individual cells while seamlessly reusing data from earlier cells held in memory.

The new spin command in Metaflow 2.19 addresses this gap. Similar to executing a single notebook cell, it quickly executes a single Metaflow @step — with all the state carried over from the parent step. As a result, users can develop and debug Metaflow steps as easily as a cell in a notebook.

The effect becomes clear when considering the three complementary execution modes — run, resume, and spin — side by side, mapping them to the corresponding notebook behavior:

Another major difference isn’t just what gets executed, but what gets recorded. Both run and resume create a full, versioned run with complete metadata and artifacts, while spin skips tracking altogether. It’s built for fast, throw-away iterations during development.

The one-minute clip below illustrates a typical iterative development workflow that alternates between run and spin. In this example, we are building a flow that reads a dataset from a Parquet file and trains a separate model for each product category, focusing on computer-related categories.

As shown in the video, we start by creating a flow from scratch and running a minimal version of it to persist test artifacts — in this case, a Parquet dataset. From there, we can use spin to iterate on one step at a time, incrementally building out the flow, for example, by adding the parallel training steps demonstrated in the clip.

Once the flow has been iterated on locally, it can be seamlessly deployed to production orchestrators like Maestro or Argo, and scaled up on compute platforms such as AWS Batch, Titus, Kubernetes and more. Thus, the experience is as smooth as developing in a notebook, but the outcome is a production-ready, scalable workflow, implemented as an idiomatic Python project!

Spin up smooth development in VSCode/Cursor

Instead of typing run and spin manually in the terminal, we can bind them to keyboard shortcuts. For example, the simple metaflow-dev VS Code extension (works with Cursor as well) maps Ctrl+Opt+R to run and Ctrl+Opt+S to spin. Just hack away, hit Ctrl+Opt+S, and the extension will save your file and spin the step you are currently editing.

One area where spin truly shines is in creating mini-dashboards and reports with Metaflow Cards. Visualization is another strong point of notebooks but the combination of spin and cards makes Metaflow a very compelling alternative for developing real-time and post-execution visualizations. Developing cards is inherently iterative and visual (much like building web pages) where you want to tweak code and see the results instantly. This workflow is readily available with the combination of VSCode/Cursor, which includes a built-in web-view, the local card viewer, and spin.

To see the trio of tools — along with the VS Code extension — in action, in this short clip we add observability to the train step that we built in the earlier example:

A major benefit of Metaflow Cards is that we don’t need to deploy any extra services, data streams, and databases for observability. Just develop visual outputs as above, deploy the flow, and wehave a complete system in production with reporting and visualizations included.

Spin to the next level: injecting inputs, inspecting outputs

Spin does more than just run code — it also lets us take full control of a spun @step’s inputs and outputs, enabling a range of advanced patterns.

In contrast to notebooks, we can spin any arbitrary @step in a flow using state from any past run, making it easy to test functions with different inputs. For example, if we have multiple models produced by separate runs, we could spin an inference step, supplying a different model run each time.

We can also override artifact values or inject arbitrary Python objects — similar to a notebook cell — for spin. Simply specify a Python module with an ARTIFACTS dictionary:

ARTIFACTS = {
  "model": "kmeans",
  "k": 15
}

and point spin at the module:

spin train --artifacts-module artifacts.py

By default spin doesn’t persist artifacts, but we can easily change this by adding --persist. Even in this case, artifacts are not persisted in the usual Metaflow datastore but to a directory-specific location which you can easily clean up after testing. We can access the results with the Client API as usual — just specify the directory you want to inspect with inspect_spin:

from metaflow import inspect_spin

inspect_spin(".")
Flow("TrainingFlow").latest_run["train"].task["model"].data

Being able to inspect and modify a step’s inputs and outputs on the fly unlocks a powerful use case: unit testing individual steps. We can use spin programmatically through the Runner API and assert the results:

from metaflow import Runner

with Runner("flow.py").spin("train", persist=True) as spin:
  assert spin.task["model"].data == "kmeans"

Making AI agents spin

In addition to speeding up development for humans, spin turns out to be surprisingly handy for coding agents too. There are two major advantages to teaching AI how to spin:

1. It accelerates the development loop. Agents don’t naturally understand what’s slow, or why speed matters, so they need to be nudged to favor faster tools over slower ones.
2. It helps surface errors faster and contextualizes them to a specific piece of code, increasing the chance that the agent is able to fix errors by itself.

Metaflow users are already using Claude Code; spin makes this even easier. In the example below, we added the following section in a CLAUDE.md file:

## Developing Metaflow code
Follow this incremental development workflow that ensures quick iterations
and correct results. You must create a flow incrementally, step by step
following this process:
1. Create a flow skeleton with empty `@step`s.
2. Add a data loading step.
3. `run` the flow.
4. Populate the next step and use `spin` to test it with the correct inputs.
5. `run` the flow to record outputs from the new step.
5. Iterate on (4–5) until all steps have been implemented and work correctly.
6. `run` the whole flow to ensure final correctness.

To test a flow, run the flow as follows
```
python flow.py - environment=pypi run
```

Do this once before running `spin`.
As you are building the flow, you `spin` to test steps quickly.
For instance
```
python flow.py - environment=pypi spin train
```

Just based on these quick instructions, the agent is able to use spin effectively. Take a look at the following inspirational example that one-shots Claude to create a flow, along the lines of our earlier examples, which trains a classifier to predict product categories:

In the video, we can see Claude using spin around the 45-second mark to test a preprocess step. The step initially fails due to a classic data science pitfall: during testing, Claude samples only a small subset of data, causing some classes to be underrepresented. The first spin surfaces the issue, which Claude then fixes by switching to stratified sampling — and finally does another spin to confirm the fix, before proceeding to complete the task.

The inner loop of end-to-end ML/AI

To circle back to where we started, our motivation for adding spin — and for creating Metaflow in the first place — is to accelerate development cycles so we can deliver more joy to our subscribers, faster. Ultimately, we believe there’s no single magic feature that makes this possible. It takes all parts of an ML/AI platform working together coherently — spin included.

From this perspective, it’s useful to place spin in the context of other Metaflow features. It’s designed for the innermost loop of model and business-logic development, with the added benefit of supporting unit testing during deployment, as shown in the overall blueprint of the Metaflow toolchain below.

In this diagram, the solid blue boxes represent different Metaflow commands, while the blue text denotes decorators and other features. In particular, note the Shared Functionality box — another key focus area for us over the past year — which includes configuration management and custom decorators. These capabilities let domain-specific teams and platform providers tailor Metaflow to their own use cases. Following our ethos of composability, all of these features integrate seamlessly with spin as well.

Another key design philosophy of Metaflow is to let projects start small and simple, adding complexity only when it becomes necessary. So don’t be overwhelmed by the diagram above. To get started, install Metaflow easily with

pip install metaflow

and take your first baby @steps for a spin! Check out the docs and for questions, support, and feedback, join the friendly Metaflow Community Slack.

Acknowledgments

We would like to thank our partners at Outerbounds, and particularly Ville Tuulos, Savin Goyal, and Madhur Tandon, for their collaboration on this feature, from initial ideation to review, testing and documentation. We would also like to acknowledge the rest of the Model Development and Management team (Maria Alder, David J. Berg, Shaojing Li, Rui Lin, Nissan Pow, Chaoying Wang, Regina Wang, Seth Yang, Darin Yu) for their input and comments.

Supercharging the ML and AI Development Experience at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

(*The work was done when Keertana interned at Netflix.)

Introduction

This blog focuses on post-training generative recommender systems. Generative recommenders (GRs) represent a new paradigm in the field of recommendation systems (e.g. HSTU, OneRec). These models draw inspiration from recent advancements in transformer architectures used for language and vision tasks. They approach the recommendation problem, including both ranking and retrieval, as a sequential transduction task. This perspective enables generative training, where the model learns by imitating the next event in a sequence of user activities, thereby effectively modeling user behavior over time.

However, a key challenge with simply replicating observed user patterns is that it may not always lead to the best possible recommendations. User interactions are influenced by a variety of factors — such as trends, or external suggestions — and the system’s view of these interactions is inherently limited. For example, if a user tries a popular show but later indicates it wasn’t a good fit, a model that only imitates this behavior might continue to recommend similar content, missing the chance to enhance the user’s experience.

This highlights the importance of incorporating user preferences and feedback, rather than solely relying on observed behavior, to improve recommendation quality. In the context of recommendation systems, we benefit from a wealth of user feedback, which includes explicit signals such as ratings and reviews, as well as implicit signals like watch time, click-through rates, and overall engagement. This abundance of feedback serves as a valuable resource for improving model performance.

Given the recent success of reinforcement learning techniques in post-training large language models, such as DPO and GRPO, this study investigates whether similar methods can be applied to generative recommenders. Ultimately, our goal is to identify both the opportunities and challenges in using these techniques to enhance the quality and relevance of recommendations.

Unlike language models, post-training generative recommenders presents unique challenges. One of the most significant is the difficulty of obtaining counterfactual feedback in recommendation scenarios. The recommendation feedback is generated on-policy — that is, it reflects users’ real-time interactions with the system as they naturally use it. Since a typical user sequence can span weeks or even years of activity, it is impractical to ask users to review or provide feedback on hypothetical, counterfactual experiences. As a result, the absence of counterfactual data makes it challenging to apply post-training methods such as PPO or DPO, which require feedback from counterfactual user sequences.

Furthermore, post-training methods typically rely on a reward model — either implicit or explicit — to guide optimization. The quality of reward models heavily influences the effectiveness of post-training. In the context of recommendation systems, however, reward signals tend to be much noisier. For instance, if we use watch time as an implicit reward, it may not always accurately reflect user satisfaction: a viewer might stop watching a favorite show simply due to time constraints, while finishing a lengthy show doesn’t necessarily indicate genuine enjoyment.

To address these post-training challenges, we introduce a novel algorithm called Advantage-Weighted Supervised Fine-tuning (A-SFT). Our analysis first demonstrates that reward models in recommendation systems often exhibit higher uncertainty due to the issues discussed above. Rather than relying solely on these uncertain reward models, A-SFT combines supervised fine-tuning with the advantage function to more effectively guide post-training optimization. This approach proves especially effective when the reward model has high variance but still provides valuable directional signals. We benchmark A-SFT against four other representative methods, and our results show that A-SFT achieves better alignment between the pre-trained generative recommendation model and the reward model.

In Figure 1, we conceptualize the pros and cons of different post-training paradigms. For example, Online Reinforcement Learning is most useful when the reward model has a good generalization ability, and behavior cloning is suitable when no reward models are available. Using these algorithms under fitting use cases is the key to a successful post-training. For example, over-exploitation of noisy reward models will hurt task performance, as guidance from the reward models can be simply noise. Conversely, not leveraging a good reward model leaves out potential improvements. We find A-SFT fits the sweet point between offline reinforcement learning and behavior cloning, where it benefits from the directional signals in those noisy estimations and is less dependent on the reward accuracy.

Figure 1: The landscape of RL algorithms based on the reward models’ accuracy

Challenges in Post-training for Recommendation

Reinforcement Learning from Human Feedback (RLHF) is the most popular framework for post-training large language models. In this framework, human annotators evaluate and rank different outputs generated by a model. This feedback is then used to train a reward model that predicts how well a model output aligns with human preferences. This reward model then serves as a proxy for human judgment during reinforcement learning, guiding the model to generate outputs that are more likely to be preferred by humans.

While traditional RLHF methods like PPO or DPO are effective for aligning LLMs, there are several challenges in applying them directly to large-scale recommendation systems:

1. Lack of Counter-factual Observations

As in typical RLHF settings, collecting real-time feedback from a diverse user base across a wide range of items is both costly and impractical. The data in recommendation are generated by the real-time user interests. Any third-party annotators or even the user themselves lack the practical means to evaluate an alternative reality. For example, it is impractical to ask the Netflix users to evaluate hundreds of unseen movies. Consequently, we lack a live environment in which to perform reinforcement learning.

2. Noisy Reward Models

In addition to the limited counter-factual data, the recommendation task itself has a higher randomness by its nature. The recommendation data has less structure than language data. Users choose to watch some shows not because there is a grammar rule that nouns need to follow by the verbs. In fact, the users’ choices usually exhibit a level of permutation invariance, where swapping the order of events in the user history still makes a valid activity sequence. This randomness in the behaviors makes learning a good reward model extremely difficult. Often the reward models we learnt still have a large margin of errors.

Here is an ablation study we did on the reward model performance with O(Millions) users and O(Billions) of tokens. The reward model uses an open-sourced HSTU architecture in the convenience of reproducing this study. We adopt the standard RLHF approach of training a reward model using offline, human-collected feedback. We start by creating a proxy reward, scored on a scale from 1 to 5 in the convenience of understanding. This reward model is co-trained as a shallow reward head on top of the generative recommender. It predicts the reward for the most recently selected title based on a user’s interaction history. To evaluate its effectiveness, we compare the model’s performance against two simple baselines: (1) predicting the next reward as the average reward the user has given in their past interactions, and (2) predicting it as the average reward that all users have assigned to that particular title in previous interactions.

Table 1: Reward model performance metrics

We observe that the model’s predictions do not significantly outperform the simple baselines. This result is intuitive, as a user’s historical interactions typically cover only a small subset of titles, making it difficult to accurately predict their responses to the vast number of unexplored titles in the catalogue. We expect this to be a potential issue for any large recommendation systems where the ratio between explored and unexplored titles is very small.

3. Lack of Logged Policy

In recommendation systems, the policy that generated the logged data is typically unknown and cannot be directly estimated. Offline reinforcement learning methods often rely on Inverse Propensity Scoring (IPS) to debias such data by reweighting interactions according to the logging policy’s action probabilities. However, estimating the logging policy accurately is challenging and prone to error, which can introduce additional biases, and IPS itself is known to suffer from high variance. Consequently, offline RL approaches that depend on IPS are ill-suited for our setting.

Advantage Weighted Supervised Fine Tuning

Given the three challenges outlined above, we propose a new algorithm Advantage-Weighted SFT (A-SFT). It leverages a combination of supervised fine-tuning and advantage reweighting from reinforcement learning. The key observation is as follows. Despite the reward estimation for each individual event having a high uncertainty, we find the estimations of rewards contain directional signals between high-reward and low-reward events. These signals could help better align the model during post-training.

A central factor in this study is the generalization ability of the reward model. Better generalization enables more accurate predictions of user preferences for unseen titles, thereby making exploration more effective. For reward models with moderate to high generalization power, both online RL methods such as PPO and offline RL methods such as CQL can perform effectively. However, in our setting, reward model generalization is worse than the language counterparts’, which makes these algorithms less appropriate. In addition, the use of techniques like inverse propensity scoring (IPS) introduces a heightened risk of high-variance estimates, prompting us to exclude algorithms such as off-policy REINFORCE.

Our proposed method A-SFT does not rely on IPS. With no need of prior knowledge of the logging policy, it can be generally applied to cases where observation of the environments are limited or biased. This is particularly useful to the recommendation setting due to the user feedback loop and distribution shifts with time. Without knowing the logging policy, A-SFT still provides means to control the policy deviation between the current policy and logging policy by tuning the parameter. This design provides essential means to control the learnt bias from uncertain reward models. We show that A-SFT outperforms baseline behavior cloning by directly optimizing observed rewards.

The advantage-weighted SFT algorithm is as follows:

For the results presented in this blog post, we treat the recommendation problem as a contextual bandit, i.e. given a history of user interactions as the context, can we recommend a high reward next title recommendation for the user?

Benchmarks

We compared representative algorithms including PPO, IPO, DPO, CQL and SFT as the baselines:

1. Reward weighted Behavior Cloning: This benchmark algorithm modifies supervised fine-tuning (SFT) by weighting the loss with the raw rewards of the chosen item instead of weighing the loss with advantage as in the proposed algorithm.
2. Rejection Sampling Direct Preference Optimization / Identity Preference Optimization (RS DPO/IPO): this is a variant of DPO/IPO where, for each user history x, ​we generate contrasting response pairs by training an ensemble of reward models to estimate confidence intervals for the reward of multiple potential responses y. If the lower bound of the reward confidence interval for one response​ is less than the upper bound for another response, then this pair is used to train DPO/IPO.
3. Conservative Q-Learning (CQL): This is a standard offline algorithm that learns a conservative Q function, penalizing overestimation of Q-values, particularly in regions of the state-action space with little or no reward data.
4. Proximal Policy Optimization (PPO): This is a standard RLHF (Reinforcement Learning from Human Feedback) algorithm that uses reward models as an online environment. PPO learns an advantage function and optimizes the policy to maximize expected reward while maintaining proximity to the initial policy.

We sampled a separate test set of O(Millions) users. This test set is collected on a future date after the training.

Offline Evaluation Results

We evaluate our algorithm on a dataset of high-reward user trajectories. For sake of simplicity, we consider a trajectory to have a high reward if the accumulated reward is higher than the median of the population. We present the following metrics for the held out test dataset:

1. NDCG@k: This measures the ranking quality of the recommended items up to position k. It accounts for the position of relevant items in the recommendation list, assigning higher scores when relevant items appear higher in the ranking. The gain is discounted logarithmically at lower ranks, and the result is normalized by the ideal ranking (i.e., the best possible ordering of items).
2. HR@k: This measures the proportion of test cases in which the ground-truth chosen item y appears in the top k recommendations. It is a binary metric per test case (hit or miss) and is averaged over all test cases.
3. MRR: MRR evaluates the ranking quality by measuring the reciprocal of the rank at which the chosen item appears in the recommendation list. The metric is averaged across all test cases.
4. Reward Model as A Judge: We use the reward model to evaluate the policy for future user events. We propose to use an ensemble of reward models for the evaluation to increase confidence. The result is based on the discounted reward generated for a few steps. The standard deviation is less than 4%.

We measure the percentage improvement in each metric compared to the baseline, Reward Weighted Behavior Cloning(BC). We notice that advantage weighted SFT shows the largest improvement in metrics, outweighing BC as well as reward model dependent algorithms like CQL, PPO, DPO and IPO.

Our experiments show that advantage weighted SFT is a simple but promising approach for post-training generative recommenders as it deals with the issue of poor reward model generalizations and lack of IPS. More specifically, we find PPO, IPO and DPO achieve a good reward score, but also causes the overfitting from the reward model. Conservative Q-Learning achieves more robust improvements but does not fully capture the potential signals in the reward modeling. A-SFT achieved both better recommendation metrics and reward scores.

Post-Training Generative Recommenders with Advantage-Weighted Supervised Finetuning was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

This is part 3 in a series called “Behind the Streams”. Check out part 1 and part 2 to learn more.

Picture this: It’s seconds before the biggest fight night in Netflix history. Sixty-five million fans are waiting, devices in hand, hearts pounding. The countdown hits zero. What does it take to get everyone to the action on time, every time? At Netflix, we’re used to on-demand viewing where everyone chooses their own moment. But with live events, millions are eager to join in at once. Our job: make sure our members never miss a beat.

When Live events break streaming records ¹ ² ³, our infrastructure faces the ultimate stress test. Here’s how we engineered a discovery experience for a global audience excited to see a knockout.

Why are Live Events Different?

Unlike Video on Demand (VOD), members want to catch live events as they happen. There’s something uniquely exciting about being part of the moment. That means we only have a brief window to recommend a Live event at just the right time. Too early, excitement fades; too late, the moment is missed. Every second counts.

To capture that excitement, we enhanced our recommendation delivery systems to serve real-time suggestions, providing members richer and more compelling signals to hit play in the moment when it matters most. The challenge? Sending dynamic, timely updates concurrently to over a hundred million devices worldwide without creating a thundering herd effect that would overwhelm our cloud services. Simply scaling up linearly isn’t efficient and reliable. For popular events, it could also divert resources from other critical services. We needed a smarter and more scalable solution than just adding more resources.

Orchestrating the moment: Real-time Recommendations

With millions of devices online and live event schedules that can shift in real time, the challenge was to keep everyone perfectly in sync. We set out to solve this by building a system that doesn’t just react, but adapts by dynamically updating recommendations as the event unfolds. We identified the need to balance three constraints:

• Time: the duration required to coordinate an update.
• Request throughput: the capacity of our cloud services to handle requests.
• Compute cardinality: the variety of requests necessary to serve a unique update.

We solved this constraint optimization problem by splitting the real-time recommendations into two phases: prefetching and real-time broadcasting. First, we prefetch the necessary data ahead of time, distributing the load over a longer period to avoid traffic spikes. When the Live event starts or ends, we broadcast a low cardinality message to all connected devices, prompting them to use the prefetched data locally. The timing of the broadcast also adapts when event times shift to preserve accuracy with the production of the Live event. By combining these two phases, we’re able to keep our members’ devices in sync and solve the thundering herd problem. To maximize device reach, especially for those with unstable networks, we use “at least once” broadcasts to ensure every device gets the latest updates and can catch up on any previously missed broadcasts as soon as they’re back online.

The first phase optimizes request throughput and compute cardinality by prefetching materialized recommendations, displayed title metadata, and artwork for a Live event. As members naturally browse their devices before the event, this data is prepopulated and stored locally in device cache, awaiting the notification trigger to serve the recommendations instantaneously. By distributing these requests naturally over time ahead of the event, we can eliminate any related traffic spikes and avoid the need for large-scale, real-time system scaling.

The second phase optimizes request throughput and time to update devices by broadcasting a low-cardinality, real-time message to all connected devices at critical moments in a Live event’s lifecycle. Each broadcast payload includes a state key and a timestamp. The state key indicates the current stage of the Live event, allowing devices to use their pre-fetched data to update cached responses locally without additional server requests. The timestamp ensures that if a device misses a broadcast due to network issues, it can catch up by replaying missed updates upon reconnecting. This mechanism guarantees devices receive updates at least once, significantly increasing delivery reliability even on unstable networks.

Moment in Numbers: During peak load, we have successfully delivered updates at multiple stages of our events to over 100 million devices in under a minute.

Under the Hood: How It Works

With the big picture in mind, let’s examine how these pieces interact in practice.

In the diagram below, the Message Producer microservice centralizes all of the business logic. It continuously monitors live events for setup and timing changes. When it detects an update, it schedules broadcasts to be sent at precisely the right moment. The Message Producer also standardizes communication by providing a concise GraphQL schema for both device queries and broadcast payloads.

Rather than sending broadcasts directly to devices via WebSocket, the Message Producer hands them off to the Message Router. The Message Router is part of a robust two-tier pub/sub architecture built on proven technologies like Pushy (our WebSocket proxy), Apache Kafka, and Netflix’s KV key-value store. The Message Router tracks subscriptions at the Pushy node granularity, while Pushy nodes map the subscriptions to individual connections, creating a low-latency fanout that minimizes compute and bandwidth requirements.

Devices interface with our GraphQL Domain Graph Service (DGS). These schemas offer multiple query interfaces for prefetching, allowing devices to tailor their requests to the specific experience being presented. Each response adheres to a consistent API that resolves to a map of stage keys, enabling fast lookups and keeping business logic off the device. Our broadcast schema specifies WebSocket connection parameters, the current event stage, and the timestamp of the last broadcast message. When a device receives a broadcast, it injects the payload directly into its cache, triggering an immediate update and re-render of the interface.

Balancing the Moment: Throughput Management

In addition to building the new technology to support real-time recommendations, we also evaluated our existing systems for potential traffic hotspots. Using high-watermark traffic projections for live events, we generated synthetic traffic to simulate game-day scenarios and observed how our online services handled these bursts. Through this process, several common patterns emerged:

Breaking the Cache Synchrony

Our game-day simulations revealed that while our approach mitigated the immediate thundering herd risks driven by member traffic during the events, live events introduced unexpected mini thundering herds in our systems hours before and after the actual events. The surge of members joining just in time for these events led to concentrated cache expirations and recomputations, which created traffic spikes well outside the event window that we did not anticipate. This was not a problem for VOD content because the member traffic patterns are a lot smoother. We found that fixed TTLs caused cache expirations and refresh-traffic spikes to happen all at once. To address this, we added jitter to server and client cache expirations to spread out refreshes and smooth out traffic spikes.

Adaptive Traffic Prioritization

While our services already leverage traffic prioritization and partitioning based on factors such as request type and device type, live events introduced a distinct challenge. These events generated brief traffic bursts that were intensely spiky and placed significant strain on our systems. Through simulations, we recognized the need for an additional event-driven layer of traffic management.

To tackle this, we improved our traffic sharding strategies by using event-based signals. This enabled us to route live event traffic to dedicated clusters with more aggressive scaling policies. We also added a dynamic traffic prioritization ruleset that activates whenever we see high requests per second (RPS) to ensure our systems can handle the surge smoothly. During these peaks, we aggressively deprioritize non-critical server-driven updates so that our systems can devote resources to the most time-sensitive computations. This approach ensures smooth performance and reliability when demand is at its highest.

Looking Ahead

When we set out to build a seamlessly scalable scheduled viewing experience, our goal was to create a dynamic and richer member experience for live content. Popular live events like the Crawford v. Canelo fight and the NFL Christmas games truly put our systems to the test. Along the way, we also uncovered valuable learnings that continue to shape our work. Our attempts to deprioritize traffic to other non-critical services caused unexpected call patterns and spikes in traffic elsewhere. Similarly, in hindsight, we also learned that the high traffic volume from popular events caused excessive non-essential logging and was putting unnecessary pressure on our ingestion pipelines.

None of this work would have been possible without our stunning colleagues at Netflix who collaborated across multiple functions to architect, build, and test these approaches, ensuring members can easily access events at the right moment: UI Engineering, Cloud Gateway, Data Science & Engineering, Search and Discovery, Evidence Engineering, Member Experience Foundations, Content Promotion and Distribution, Operations and Reliability, Device Playback, Experience and Design and Product Management.

As Netflix’s content offering expands to include new formats like live titles, free-to-air linear content, and games, we’re excited to build on what we’ve accomplished and look ahead to even more possibilities. Our roadmap includes extending the capabilities we developed for scheduled live viewing to these emerging formats. We’re also focused on enhancing our engineering tooling for greater visibility into operations, message delivery, and error handling to help us continue to deliver the best possible experience for our members.

Join Us for What’s Next

We’re just scratching the surface of what’s possible as we bring new live experiences to members around the world. If you are looking to solve interesting technical challenges in a unique culture, then apply for a role that captures your curiosity.

Look out for future blog posts in our “Behind the Streams” series, where we’ll explore the systems that ensure viewers can watch live streams once they manage to find and play them.

Behind the Streams: Real-Time Recommendations for Live Events Part 3 was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Authors: Adrian Taruc and James Dalton

This is the first entry of a multi-part blog series describing how we built a Real-Time Distributed Graph (RDG). In Part 1, we will discuss the motivation for creating the RDG and the architecture of the data processing pipeline that populates it.

Introduction

The Netflix product experience historically consisted of a single core offering: streaming video on demand. Our members logged into the app, browsed, and watched titles such as Stranger Things, Squid Game, and Bridgerton. Although this is still the core of our product, our business has changed significantly over the last few years. For example, we introduced ad-supported plans, live programming events (e.g., Jake Paul vs. Mike Tyson and NFL Christmas Day Games), and mobile games as part of a Netflix subscription. This evolution of our business has created a new class of problems where we have to analyze member interactions with the app across different business verticals. Let’s walk through a simple example scenario:

1. Imagine a Netflix member logging into the app on their smartphone and beginning to watch an episode of Stranger Things.
2. Eventually, they decide to watch on a bigger screen, so they log into the app on a smart TV in their home and continue watching the same episode.
3. Finally, after completing the episode, they log into the app on their tablet and play the game “Stranger Things: 1984”.

We want to know that these three activities belong to the same member, despite occurring at different times and across various devices. In a traditional data warehouse, these events would land in at least two different tables and may be processed at different cadences. But in a graph system, they become connected almost instantly. Ultimately, analyzing member interactions in the app across domains empowers Netflix to create more personalized and engaging experiences.

In the early days of our business expansion, discovering these relationships and contextual insights was extremely difficult. Netflix is famous for adopting a microservices architecture — hundreds of microservices developed and maintained by hundreds of individual teams. Some notable benefits of microservices are:

1. Service Decomposition: The overall platform is separated into smaller services, each responsible for a specific business capability. This modularity allows for independent service development, deployment, and scaling.
2. Data Isolation: Each service manages its own data, reducing interdependencies. This allows teams to choose the most suitable data schemas and storage technologies for their services.

However, these benefits also led to drawbacks for our data science and engineering partners. In practice, the separation of business concerns and service development ultimately resulted in a separation of data. Manually stitching data together from our data warehouse and siloed databases was an onerous task for our partners. Our data engineering team recognized we needed a solution to process and store our enormous swath of interconnected data while enabling fast querying to discover insights. Although we could have structured the data in various ways, we ultimately settled on a graph representation. We believe a graph offers key advantages, specifically:

• Relationship-Centric Queries: Graphs enable fast “hops” across multiple nodes and edges without expensive joins or manual denormalization that would be required in table-based data models.
• Flexibility as Relationships Grow: As new connections and entities emerge, graphs can quickly adapt without significant schema changes or re-architecture.
• Pattern and Anomaly Detection: Our stakeholders’ use cases often require identifying hidden relationships, cycles, or groupings in the data — capabilities much more naturally expressed and efficiently executed using graph traversals than siloed point lookups.

This is why we set out to build a Real-Time Distributed Graph, or “RDG” for short.

Ingestion and Processing

Three main layers in the system power the RDG:

1. Ingestion and Processing — receive events from disparate upstream data sources and use them to generate graph nodes and edges.
2. Storage — write nodes and edges to persistent data stores.
3. Serving — expose ways for internal clients to query graph nodes and edges.

The rest of this post will focus on the first layer, while subsequent posts in this blog series will cover the other layers. The diagram below depicts a high-level overview of the ingestion and processing pipeline:

Building and updating the RDG in real-time requires continuously processing vast volumes of incoming data. Batch processing systems and traditional data warehouses cannot offer the low latency needed to maintain an up-to-date graph that supports real-time applications. We opted for a stream processing architecture, enabling us to update the graph’s data as events happen, thus minimizing delay and ensuring the system reflects the latest member interactions within the Netflix app.

Kafka as the Ingestion Backbone

Member actions in the Netflix app are published to our API Gateway, which then writes them as records to Apache Kafka topics. Kafka is the mechanism through which internal data applications can consume these events. It provides durable, replayable streams that downstream processors, such as Apache Flink jobs, can consume in real-time.

Our team’s applications consume several different Kafka topics, each generating up to roughly 1 million messages per second. Topic records are encoded in the Apache Avro format, and Avro schemas are persisted in an internal centralized schema registry. In order to strike a balance between maintaining data availability and managing the financial expenses of storage infrastructure, we tailor retention policies for each topic according to its throughput and record size. We also persist topic records to Apache Iceberg data warehouse tables, which allows us to backfill data in scenarios where older data is no longer available in the Kafka topics.

Processing Data with Apache Flink

The event records in the Kafka streams are ingested by Flink jobs. We chose Flink because of its strong capabilities around near-real-time event processing. There is also robust internal platform support for Flink within Netflix, which allows jobs to integrate with Kafka and various storage backends seamlessly. At a high level, the anatomy of an RDG Flink job looks like this:

For the sake of simplicity, the diagram above depicts a basic flow in which a member logs into their Netflix account and begins watching an episode of Stranger Things. Reading the diagram from left to right:

• The actions of logging into the app and watching the Stranger Things episode are ultimately written as events to Kafka topics.
• The Flink job consumes event records from the upstream Kafka topics.
• Next, we have a series of Flink processor functions that:

1. Apply filtering and projections to remove noise based on the individual fields that are present — or in some cases, not present — in the events.
2. Enrich events with additional metadata, which are stored and accessed by the processor functions via side inputs.
3. Transform events into graph primitives — nodes representing entities (e.g., member accounts and show/movie titles), and edges representing relationships or interactions between them. In this example, the diagram only shows a few nodes and an edge to keep things simple. However, in reality, we create and update up to a few dozen different nodes and edges, depending on the member actions that occurred within the Netflix app.
4. Buffer, detect, and deduplicate overlapping updates that occur to the same nodes and edges within a small, configurable time window. This step reduces the data throughput we publish downstream. It is implemented using stateful process functions and timers.
5. Publish nodes and edges records to Data Mesh, an abstraction layer that connects data applications and storage systems. We write a total (nodes + edges) of more than 5 million records per second to Data Mesh, which handles persisting the records to various data stores that other internal services can query.

From One Job to Many: Scaling Flink the Hard Way

Initially, we tried having just one Flink job that consumed all the Kafka source topics. However, this quickly became a big operational headache since different topics can have different data volumes and throughputs at different times during the day. Consequently, tuning the monolithic Flink job became extremely difficult — we struggled to find CPU, memory, job parallelism, and checkpointing interval configurations that ensured job stability.

Instead, we pivoted to having a 1:1 mapping from the Kafka source topic to the consuming Flink job. Although this led to additional operational overhead due to more jobs to develop and deploy, each job has been much simpler to maintain, analyze, and tune.

Similarly, each node and edge type is written to a separate Kafka topic. This means we have significantly more Kafka topics to manage. However, we decided the tradeoff of having bespoke tuning and scaling per topic was worth it. We also designed the graph data model to be as generic and flexible as possible, so adding new types of nodes and edges would be an infrequent operation.

Acknowledgements

We would be remiss if we didn’t give a special shout-out to our stunning colleagues who work on the internal Netflix data platform. Building the RDG was a multi-year effort that required us to design novel solutions, and the investments and foundations from our platform teams were critical to its successful creation. You make the lives of Netflix data engineers much easier, and the RDG would not exist without your diligent collaboration!

—

Thanks for reading the first season of the RDG blog series; stay tuned for Season 2, where we will go over the storage layer containing the graph’s various nodes and edges.

How and Why Netflix Built a Real-Time Distributed Graph: Part 1 — Ingesting and Processing Data… was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

TL;DR

We recently upgraded the Maestro engine to go beyond scalability and improved its performance by 100X! The overall overhead is reduced from seconds to milliseconds. We have updated the Maestro open source project with this improvement! Please visit the Maestro GitHub repository to get started. If you find it useful, please give us a star.

Introduction

In our previous blog post, we introduced Maestro as a horizontally scalable workflow orchestrator designed to manage large-scale Data/ML workflows at Netflix. Over the past two and a half years, Maestro has achieved its design goal and successfully supported massive workflows with hundreds of thousands of jobs, managing millions of executions daily. As the adoption of Maestro increases at Netflix, new use cases have emerged, driven by Netflix’s evolving business needs, such as Live, Ads, and Games. To meet these needs, some of the workflows are now scheduled on a sub-hourly basis. Additionally, Maestro is increasingly being used for low-latency use cases, such as ad hoc queries, beyond traditional daily or hourly scheduled ETL data pipeline use cases.

While Maestro excels in orchestrating various heterogeneous workflows and managing user end-to-end development experiences, users have experienced noticeable speedbumps (i.e. ten seconds overhead) from the Maestro engine during workflow executions and development, affecting overall efficiency and productivity. Although being fully scalable to support Netflix-scale use cases, the processing overhead from Maestro internal engine state transitions and lifecycle activities have become a bottleneck, particularly during development cycles. Users have expressed the need for a high performance workflow engine to support iterative development use cases.

To visualize our end users’ needs for the workflow orchestrator, we create a 5-layer structure graph shown below. Before the change, Maestro reached level 4 but faced challenges to satisfy the user’s needs in level 5. With the new engine design, Maestro is able to power the users to work with their highest capacity and spark joy for end users during their development over the Maestro.

In this blog post, we will share our new engine details, explain our design trade-off decisions, and share learnings from this redesign work.

Architectural Evolution of Maestro

Before the change

To understand the improvements, we will first revisit the original architecture of Maestro to understand why the overhead is high. The system was divided into three main layers, as illustrated in the diagram below. In the sections that follow we will explain each layer and the role it played in our performance optimization.

Maestro API and Step Runtime Layer

This layer offers seamless integrations with other Netflix services (e.g., compute engines like Spark and Trino). Using Maestro, thousands of practitioners build production workflows using a paved path to access platform services . They can focus primarily on their business logic while relying on Maestro to manage the lifecycle of jobs and workflows plus the integration with data platform services and required integrations such as for authentication, monitoring and alerting. This layer functioned efficiently without introducing significant overhead.

Maestro Engine Layer

The Maestro engine serves several crucial functions:

• Managing the lifecycle of workflows, their steps and maintaining their state machines
• Supporting all user actions (e.g., start, restart, stop, pause) on workflow and step entities
• Translating complex Maestro workflow graphs into parallel flows, where each flow is an array of sequentially chained flow tasks, translating every step into a flow task, and then executing transformed flows using the internal flow engine
• Acting as a middle layer to maintain isolation between the Maestro step runtime layer and the underlying flow engine layer
• Implementing required data access patterns and writing Maestro data into the database

In terms of speed, this layer had acceptable overhead but faced edge cases (e.g. a step might be concurrently executed by two workers at the same time, causing race conditions) due to lacking a strong guarantee from the internal flow engine and the external distributed job queue.

Maestro Internal Flow Engine Layer

The Maestro internal flow engine performed 2 primary functions:

• Calling task’s execution functions at a given interval.
• Starting the next tasks in an array of sequential task flows (not a graph), if applicable.

This foundational layer was based on Netflix OSS Conductor 2.x (deprecated since Apr 2021), which requires a dedicated set of separate database tables and distributed job queues.

The existing implementation of this layer introduces an impactful overhead (e.g. a few seconds to tens of seconds overall delays). The lack of strong guarantees (e.g. exactly once publishing) from this layer leads to race conditions which cause stuck jobs or lost executions.

Options to consider

We have evaluated three options to address those existing issues:

• Option 1: Implement an internal flow engine optimized for Maestro specific use cases
• Option 2: Upgrade Conductor library to 4.0, which addresses the overheads and offers other improvements and enhancements compared with Conductor 2.X.
• Option 3: Use Temporal as the internal flow engine

One aspect that influenced our assessment of option two is that Conductor 2 provided a final callback capability in the state machine that was contributed specifically for Maestro’s use case to ensure database synchronization between the Conductor and Maestro engine states. It would require porting this functionality to Conductor 4 though it had been dropped given no other Conductor use cases besides Maestro relied on this. By rewriting the flow engine it would allow removal of several complex internal databases and database synchronization requirements which was attractive for simplifying operational reliability. Given Maestro did not need the full set of state engine features offered by Conductor, this motivated us to consider a flow engine rewrite as a higher priority.

The decision for Temporal was more straightforward. Temporal is optimized towards facilitating inter-process orchestration and would involve calling an external service to interact with the Temporal flow engine. Given Maestro is operating greater than a million tasks per day, many of which are long running, we felt it was an unnecessary source of risk to couple the DAG engine execution with an external service call. If our requirements went beyond lightweight state transition management we might reconsider because Temporal is a very robust control plane orchestration system, but for our needs it introduced complexity and potential reliability weak spots when there was no direct need for the advanced feature set that it offered.

After considering Option 2 and Option 3, we developed more conviction that Maestro’s architecture could be greatly simplified by not using a full DAG evaluation engine and having to maintain the state machine for two systems (Maestro and Conductor/Temporal). Therefore, we have decided to go with Option 1.

After the change

To address these issues, we completely rewrote the Maestro internal flow engine layer to satisfy Maestro’s specific needs and optimize its performance. This new flow engine is lightweight with minimal dependencies, focusing on excelling in the two primary functions mentioned above. We also replaced existing distributed job queues with internal ones to provide a strong guarantee.

The new engine is highly performant, efficient, scalable, and fault-tolerant. It is the foundation for all upper components of Maestro and provides the following guarantees to avoid race conditions:

• A single step should only be executed by a single worker at any given time
• Step state should never be rolled back
• Steps should always eventually run to a terminal state
• The internal flow state should be eventually consistent with the Maestro workflow state
• External API and user actions should not cause race conditions on the workflow execution

Here is the new architecture diagram after the change, which is much simpler with less dependencies:

New Flow Engine Optimization

The new flow engine significantly boosts speed by maintaining state in memory. It ensures consistency by using Maestro engine’s database as the source of truth for workflow and step states. During bootstrapping, the flow engine rebuilds its in-memory state from the database, improving performance and simplifying the overall architecture. This is in contrast to the previous design in which multiple databases had to be reconciled against one another (Conductor’s tables and Maestro’s tables) or else suffer race conditions and rare orphaned job status.

The flow engine operates on in-memory flow states, resembling a write through caching pattern. Updates to workflow or step state in the database also update the in-memory flow state. If in-memory state is lost, the flow engine rebuilds it from the database, ensuring eventual consistency and resolving race conditions.

This design delivers lower latency and higher throughput, avoids inconsistencies from dual persistence, simplifies the architecture, and keeps the in‑memory view eventually consistent with the database.

Maintaining Scalability While Gaining Speed

With the new engine, we significantly boost performance by collocating flows and their tasks on the same node throughout their lifecycle. Therefore, states of a flow and its tasks will stay in a single node’s memory without persisting to the database. This stickiness and locality bring great performance benefits but inevitably impact scalability since tasks are no longer reassigned to a new worker of the whole cluster in each polling cycle.

To maintain horizontal scalability, we introduced a flow group concept to partition running flows into groups. In this way, each Maestro flow engine instance only needs to maintain ownership of groups rather than individual flows, reducing maintenance costs (e.g., heartbeat) and simplifying reconciliation by allowing each Maestro node to load flows for a group in batches. Each Maestro node claims ownership of a group of flows through a flow group actor and manages their entire lifecycle via child flow actors. If ownership is lost due to node failure or long JVM GC, another node can claim the group to resume flow executions by reconciling internal state from Maestro database. The following diagram illustrates the ownership maintenance.

Flow Partitioning

To efficiently distribute traffic, Maestro assigns a consistent group ID to flows/workflows by a simple stable ID assignment method, as shown in the diagram’s Partitioning Function box. We chose this simpler partitioning strategy over advanced ones, e.g. consistent hashing, primarily due to execution and reconciliation costs and consistency challenges in a distributed system.

Since Maestro decomposes workflows into hierarchical internal flows (e.g., foreach), parent flows need to interact with child flows across different groups. To enable this, the maximal group number from the parent, denoted as N’ in the diagram, is passed down to all child flows. This allows child flows, such as subworkflows or foreach iterations, to recompute their own group IDs and also ensures that a parent flow can always determine the group ID of its child flows using only their workflow identifiers.

After a flow’s group ID is determined, the flow operator routes the flow request to the appropriate node. Each node owns a specific range of group IDs. For example, in the diagram, Node 1 owns groups 0, 1, and 2, while Node 3 owns groups 6, 7, and 8. The groups then contain the individual flows (e.g., Flow A, Flow B).

In this design, the group size is configurable and nodes can also have different group size configurations. The following diagram shows a flow group partitioning example while the maximal group number is changed during the engine execution without impacting any existing workflows.

In short, Maestro flow engine shares the group info across the parent and child workflows to provide a flexible and stable partitioning mechanism to distribute work across the cluster.

Queue Optimization

We replaced both external distributed job queues in the existing system with internal ones, preserving the same fault‑tolerance and recovery guarantees while reducing latency and boosting throughput.

For the internal flow engine, the queue is a simple in‑memory Java blocking queue. It requires no persistence and can be rebuilt from Maestro state during reconciliation.

For the Maestro engine, we implemented a database‑backed in‑memory queue that provides exactly‑once publishing and at‑least‑once delivery guarantees, addressing multiple edge cases that previously required manual state correction.

This design is similar to the transactional outbox pattern. In the same transaction that updates Maestro tables, a row is inserted into the `maestro_queue` table. Upon transaction commit, the job is immediately pushed to a queue worker on the same node, eliminating polling latency. After successful processing, the worker deletes the row from the database. A periodic sweeper re-enqueues any rows whose timeout has expired, ensuring another worker picks them up if a worker stalls or a node fails.

This design handles failures cleanly. If the transaction fails, both data and message roll back atomically, no partial publishing. If a worker or node fails after commit, the timeout mechanism ensures the job is retried elsewhere. On restart, a node rebuilds its in‑memory queue from the queue table, providing at-least-once delivery guarantee.

To enhance scalability and avoid contention across event types, each event type is assigned a `queue_id`. Job messages are then partitioned by `queue_id`, optimizing performance and maintaining system efficiency under high load.

From Stateless Worker Model to Stateful Actor Model

Maestro previously used a shared-nothing stateless worker model with a polling mechanism. When a task started, its identifier was enqueued to a distributed task queue. A worker from the flow engine would pick the task identifier from the queue, load the complete states of the whole workflow (including the flow itself and every task), execute the task interface method once, write the updated task data back to the database, and put the task back in the queue with a polling delay. The worker would then forget this task and start polling the next one.

That architecture was simple and horizontally scalable (excluding database scalability considerations), but it had drawbacks. The process introduced considerable overhead due to polling intervals and state loading. The time spent in one polling cycle on distributed queues, loading complete states, and other DB queries was significant.

As Maestro engine decomposes complex workflow graphs into multiple flows, actions might involve multiple flows spanning multiple polling cycles, adding up to significant overhead (around ten seconds in the worst cases). Also, this design didn’t offer strong execution guarantees mainly because the distributed job queue could only provide at-least-once guarantees. Tasks might be dequeued and dispatched to multiple workers, workers might reset states in certain race conditions, or load stale states of other tasks and make incorrect decisions. For example, after a long garbage-collection pause or network hiccup, two workers can pick up the same task: one sets the task status as completed and then unblocks the downstream steps to move forward. However, the other worker, working off stale state, resets the task status back to running, leaving the whole workflow in a conflicting state.

In the new design, we developed a stateful actor model, keeping internal states in memory. All tasks of a workflow are collocated in the same Maestro node, providing the best performance as states are in the same JVM.

Actor-Based Model

The new flow engine fits well into an actor model. We also deliberately designed it to allow sharing certain local states (read-only) between parent, child, and sibling actors. This optimization gains performance benefits without losing thread safety due to Maestro’s use cases. We used Java 21’s virtual thread support to implement it with minimal dependencies.

The new actor-based flow engine is fully message/event-driven and can take actions immediately when events are received, eliminating polling interval delays. To maintain compatibility with the existing polling-based logic, we developed a wakeup mechanism. This model requires flow actors and their child task actors to be collocated in the same JVM for communication over the in-memory queue. Since the Maestro engine already decomposes large-scale workflow instances into many small flows, each flow has a limited number of tasks that fit well into memory.

Below is a high-level overview of the Maestro execution flow based on the actor model.

• When a workflow starts or during reconciliation, the flow engine inserts (if not existing) or loads the Maestro workflow and step instance from the database, transforming it into the internal flow and task state. This state remains in JVM memory until evicted (e.g., when the workflow instance reaches a terminal state).
• A virtual thread is created for each entity (workflow instance or step attempt) as an actor to handle all updates or actions for this entity, ensuring thread safety and eliminating distributed locks and potential race conditions.
• Each virtual thread actor contains an in-memory state, a thread-safe blocking queue, and a state machine to update states, ensuring thread safety and high efficiency.
• Actors are organized hierarchically, with flow actors managing all their task actors. Flow actors and their task actors are kept in the same JVM for locality benefits, with the ability to relocate flow instances to other nodes if needed.
• An event can wake up a virtual thread by pushing a message to the actor’s job queue, enabling Maestro to move toward an event-driven approach alongside the current polling-based approach.
• A reconciliation process transforms the Maestro data model into the internal flow data.

Virtual Thread Based Implementation

We chose Java virtual threads to implement various actors (e.g. group actors and flow actors), which simplified the actor model implementation. With a smaller amount of code, we developed a fully functional and highly performant event-driven distributed flow engine. Virtual threads fit very well in use cases like state machine transitions within actors. They are lightweight enough to be created in a large number without Out-Of-Memory risks.

However, virtual threads can potentially deadlock. They’re not suitable for executing user-provided logic or complex step runtime logic that might depend on external libraries or services outside our control. To address this, we separate flow engine execution from task execution logic by adding a separate worker thread pool (not virtual threads) to run actual step runtime business logic like launching containers or making external API calls. Flow/task actors can wait indefinitely for the future of the thread poll executor to complete but don’t perform actual execution, allowing us to benefit from virtual threads while avoiding deadlock issues.

Providing Strong Execution Guarantees

To provide strong execution guarantees, we implemented a generation ID-based solution to ensure that a single flow or task is executed by only one actor at any time, with states that never roll back and eventually reach a terminal state.

When a node claims a new group or a group with an expired heartbeat, it updates the database table row and increments the group generation ID. During node bootstrap, the group actor updates all its owned flows’ generation IDs while rebuilding internal flow states. When creating a new flow, the group actor verifies that the database generation ID matches its in-memory generation ID, otherwise rejecting the creation and reporting a retryable error to the caller. Please check the source code for the implementation details.

Additionally, the new flow engine supports both event-driven execution and polling-based periodic reconciliation. Event-driven support allows us to extend polling intervals for state reconciliation at a very low cost, while polling-based reconciliation relaxes event delivery requirements to at-most-once.

Testing, Validation and Rollout

Migrating hundreds of thousands of Netflix data processing jobs to a new workflow engine required meticulous planning and execution to avoid data corruption, unexpected traffic patterns, and edge cases that could hinder performance gains. We adopted a principled approach to ensure a smooth transition:

1. Realistic Testing: Our testing mirrored real-world use cases as closely as possible.
2. Balanced Approach: We balanced the need for rapid delivery with comprehensive testing.
3. Minimal User Disruption: The goal was for users to be unaware of the underlying changes.
4. Clear Communication: For cases requiring user involvement, clear communication was provided.

Maestro Test Framework

To achieve our testing goals, we developed an adaptable testing framework for Maestro. This framework addresses the limitations of static unit and integration tests by providing a more dynamic and comprehensive approach, mimicking organic production traffic. It complements existing tests to instill confidence when rolling out major changes, such as new DAG engines.

The framework is designed to sample real user workflows, disconnecting business logic from external side effects like data reads or writes. This allows us to run workflow graphs of various shapes and sizes, reflecting the diverse use cases across Netflix. While system integrations are handled through deployment pipeline integration tests, the ability to exercise a wide variety of workflow topologies (e.g., parallel executions, for-each jobs, conditional branching and parameter passing between jobs) was crucial for ensuring the new flow engine’s correctness and performance.

The prototype workflow for the test framework focuses on auto-testing parameters, involving two main steps:

1. Caching Production Workflows:

• Successful production instances are queried from a historical Maestro feed table over a specified period.
• Run parameters, initiator, and instance IDs are extracted and organized into an instance data map.
• YAML definitions and subworkflow IDs are pulled from S3 storage.
• Both workflow definitions and instance data are cached on S3 for subsequent steps.

2. Pushing, Running, and Monitoring Workflows:

• Cached workflow definitions and instance data are loaded.
• Notebook-based jobs are replaced with custom notebooks, and certain job types (e.g., vanilla container runtime jobs, templated data movement jobs) and signal triggers are converted to a special no-op job type or skipped.
• Abstract job types like Write-Audit-Publish are expressed as a single step template but are translated to multiple reified nodes of the DAG when executed. These are auto-translated into several custom notebook job types to replace the generated nodes.
• Workflows and subworkflows are pushed, with only non-subworkflows being run using original production instance information.
• 1. In the parent workflow, each sub-workflow is replaced with a special no-op placeholder so that the overall topology is preserved but without executing any side-effects of child workflows and avoid cases using dynamic runtime parameter logic.
• 2. Each sub-workflow is then separately treated like a top-level parent workflow not initiated from its parent, to exercise the actual workflow steps of the sub-workflow.
• The custom notebook internally compares all passed parameters for each job.
• Workflow instances are monitored until termination (success or failure).
• An email detailing failed workflow instances is generated.

Future phases of the test framework aim to expand support for native steps, more templates, Titus and Metaflow workflows, and include more robust signal testing. Further integration with the ecosystem, including dedicated Genie clusters for no-op jobs and DGS for our internal workflow UI feature verification, is also being explored.

Rollout Plan

Our rollout strategy prioritized minimal user disruption. We determined that an entire workflow, from its root instance, must reside in either the old or new flow engine, preventing mixed operations that could lead to complex failure modes and manual data reconciliation.

To facilitate this, we established a parallel infrastructure for the new workflow engine and leveraged our orchestrator gateway API to hide any routing or redirection logic from users. This approach provided excellent isolation for managing the migration. Initially, specific workflows could explicitly opt in via a system flag, allowing us to observe their execution and gain confidence. By scaling up traffic to the parallel infrastructure in direct proportion to what was scaled down from the original infrastructure, the dual infrastructure cost increase was negligible.

Once confident, we transitioned to a percentage-based cutover. In the event of a sustained failure in the new engine, our team could roll back a workflow by removing it from the new engine’s database and restarting it in the original stack. However, one consequence of rollback was that failed workflows had to restart from the beginning, recomputing previously successful steps, to ensure all artifacts were generated from a consistent flow engine.

Leveraging Maestro’s 10-day workflow timeout, we migrated users without disruption. Existing executions would either complete or time out. Upon restarting (due to failure/timeout) or triggering a new instance (due to success), the workflow would be picked up by the new engine. This effectively allowed us to gradually “drain” traffic from the old engine to the new one with no user involvement.

While the plan generally proceeded as expected with limited edge cases, we did encounter a few challenges:

• Stuck Workflows: Around 50 workflows with defunct or incorrect ownership information entered a stuck state. In some cases, a backlog of queued instances behind a stuck instance created a race condition in which a new instance would be started immediately when an old instance was terminated, perpetually keeping the workflow on the old engine. For these, we proactively contacted users to negotiate manual stop-and-restart times, forcing them onto the new engine.
• Configuration Discrepancies: A significant lesson learned was the importance of meticulous record-keeping and management of parallel infrastructure components. We discovered alerts, system flags, and feature flags configured for one stack but not the other. This led to a failure in a partner team’s system that dynamically rolled out a Python migration by analyzing workflow configurations. The absence of a required feature flag in the new engine stack caused the process to be silently skipped, resulting in incorrect Python version configurations for about 40 workflows. Although quickly remediated, this caused user inconvenience as affected workflows needed to be restarted and verified for no lingering data corruption issues. This issue also highlighted limitations in the testing framework since runtime configuration based on external API calls to the configuration service were not exercised in simulated workflow executions.

Despite these challenges, the migration was a success. We migrated over 60,000 active workflows generating over a million data processing tasks daily with almost no user involvement. By observing the flow engine’s lifecycle management latency, we validated a reduction in step launch overhead from around 5 seconds to 50 milliseconds. Workflow start overhead (incurred once per each workflow execution) also improved from 200 milliseconds to 50 milliseconds. Aggregating this over a million daily step executions translates to saving approximately 57 days of flow engine overhead per day, leading to a snappier user experience, more timely workflow status for data practitioners and greater overall task throughput for the same infrastructure scale.

We additionally realized significant benefits internally with reduced maintenance effort due to the new flow engine’s simplified set of database components. We were able to delete nearly 40TB of obsolete tables related to the previous stateless flow engine and saw a 90% reduction in internal database query traffic which had previously been a significant source of system alerts for the team.

Conclusion

The architectural evolution of Maestro represents a significant leap in performance, reducing overhead from seconds to milliseconds. This redesign with a stateful actor model not only enhances speed by 100X but also maintains scalability and reliability, ensuring Maestro continues to meet the diverse needs of Netflix’s data and ML workflows.

Key takeaways from this evolution include:

• Performance matters: Even in a system designed for scale, the speed of individual operations significantly impacts user experience and productivity.
• Simplicity wins: Reducing dependencies and simplifying architecture not only improved performance but also enhanced reliability and maintainability.
• Strong guarantees are essential: Providing strong execution guarantees eliminates race conditions and edge cases that previously required manual intervention.
• Locality optimizations pay off: Collocating related flows and tasks in the same JVM dramatically reduces overhead from the Maestro engine.
• Modern language features help: Java 21’s virtual threads enabled an elegant actor-based implementation with minimal code complexity and dependencies.

We’re excited to share these improvements with the open-source community and look forward to seeing how Maestro continues to evolve. The performance gains we’ve achieved open new possibilities for low-latency workflow orchestration use cases while continuing to support the massive scale that Netflix and other organizations require.

Visit the Maestro GitHub repository to explore these improvements. If you have any questions, thoughts, or comments about Maestro, please feel free to create a GitHub issue in the Maestro repository. We are eager to hear from you. If you are passionate about solving large scale orchestration problems, please join us.

Acknowledgements

Special thanks to Big Data Orchestration team members for general contributions to Maestro and diligent review, discussion and incident response required to make this project successful: Davis Shepherd, Natallia Dzenisenka, Praneeth Yenugutala, Brittany Truong, Jonathan Indig, Deepak Ramalingam, Binbing Hou, Zhuoran Dong, Victor Dusa, and Gabriel Ikpaetuk — and and internal partners Yun Li and Romain Cledat.

Thank you to Anoop Panicker and Aravindan Ramkumar from our partner organization that leads Conductor development in Netflix. They helped us understand issues in Conductor 2.X that initially motivated the rearchitecture and helped provide context on later versions of Conductor that defined some of the core trade-offs for the decision to implement a custom DAG engine in Maestro.

We’d also like to thank our partners on the Data Security & Infrastructure and Engineering Support teams who helped identify and rapidly fix the configuration discrepancy error encountered during production rollout: Amer Hesson, Ye Ji, Sungmin Lee, Brandon Quan, Anmol Khurana, and Manav Garekar.

A special thanks also goes out to partners from the Data Experience team including Jeff Bothe, Justin Wei, and Andrew Seier. The flow engine speed improvement was actually so dramatic that it broke some integrations with our internal workflow UI that reported state transition durations. Our partners helped us catch and fix UI regressions before they shipped to avoid impact to users.

We also thank Prashanth Ramdas, Anjali Norwood, Eva Tse, Charles Zhao, Sumukh Shivaprakash, Joey Lynch, Harikrishna Menon, Marcelo Mayworm, Charles Smith and other leaders for their constructive feedback and guidance on the Maestro project.

100X Faster: How We Supercharged Netflix Maestro’s Workflow Engine was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Introduction

Netflix operates at a massive scale, serving hundreds of millions of users with diverse content and features. Behind the scenes, ensuring data consistency, reliability, and efficient operations across various services presents a continuous challenge. At the heart of many critical functions lies the concept of a Write-Ahead Log (WAL) abstraction. At Netflix scale, every challenge gets amplified. Some of the key challenges we encountered include:

• Accidental data loss and data corruption in databases
• System entropy across different datastores (e.g., writing to Cassandra and Elasticsearch)
• Handling updates to multiple partitions (e.g., building secondary indices on top of a NoSQL database)
• Data replication (in-region and across regions)
• Reliable retry mechanisms for real time data pipeline at scale
• Bulk deletes to database causing OOM on the Key-Value nodes

All the above challenges either resulted in production incidents or outages, consumed significant engineering resources, or led to bespoke solutions and technical debt. During one particular incident, a developer issued an ALTER TABLE command that led to data corruption. Fortunately, the data was fronted by a cache, so the ability to extend cache TTL quickly together with the app writing the mutations to Kafka allowed us to recover. Absent the resilience features on the application, there would have been permanent data loss. As the data platform team, we needed to provide resilience and guarantees to protect not just this application, but all the critical applications we have at Netflix.

Regarding the retry mechanisms for real time data pipelines, Netflix operates at a massive scale where failures (network errors, downstream service outages, etc.) are inevitable. We needed a reliable and scalable way to retry failed messages, without sacrificing throughput.

With these problems in mind, we decided to build a system that would solve all the aforementioned issues and continue to serve the future needs of Netflix in the online data platform space. Our Write-Ahead Log (WAL) is a distributed system that captures data changes, provides strong durability guarantees, and reliably delivers these changes to downstream consumers. This blog post dives into how Netflix is building a generic WAL solution to address common data challenges, enhance developer efficiency, and power high-leverage capabilities like secondary indices, enable cross-region replication for non-replicated storage engines, and support widely used patterns like delayed queues.

API

Our API is intentionally simple, exposing just the essential parameters. WAL has one main API endpoint, WriteToLog, abstracting away the internal implementation and ensuring that users can onboard easily.

rpc WriteToLog (WriteToLogRequest) returns (WriteToLogResponse) {...}

/**
  * WAL request message
  * namespace: Identifier for a particular WAL
  * lifecycle: How much delay to set and original write time
  * payload: Payload of the message
  * target: Details of where to send the payload
  */
message WriteToLogRequest {
  string namespace = 1;
  Lifecycle lifecycle = 2;
  bytes payload = 3;
  Target target = 4;
}

/**
  * WAL response message
  * durable: Whether the request succeeded, failed, or unknown
  * message: Reason for failure
  */
message WriteToLogResponse {
  Trilean durable = 1;
  string message = 2;
}

A namespace defines where and how data is stored, providing logical separation while abstracting the underlying storage systems. Each namespace can be configured to use different queues: Kafka, SQS, or combinations of multiple. Namespace also serves as a central configuration of settings, such as backoff multiplier or maximum number of retry attempts, and more. This flexibility allows our Data Platform to route different use cases to the most suitable storage system based on performance, durability, and consistency needs.

WAL can assume different personas depending on the namespace configuration.

Persona #1 (Delayed Queues)

In the example configuration below, the Product Data Systems (PDS) namespace uses SQS as the underlying message queue, enabling delayed messages. PDS uses Kafka extensively, and failures (network errors, downstream service outages, etc.) are inevitable. We needed a reliable and scalable way to retry failed messages, without sacrificing throughput. That’s when PDS started leveraging WAL for delayed messages.

"persistenceConfigurations": {
  "persistenceConfiguration": [
  {
    "physicalStorage": {
      "type": "SQS",
    },
    "config": {
      "wal-queue": [
        "dgwwal-dq-pds"
      ],
      "wal-dlq-queue": [
        "dgwwal-dlq-pds"
      ],
      "queue.poll-interval.secs": 10,
      "queue.max-messages-per-poll": 100
    }
  }
  ]
}

Persona #2 (Generic Cross-Region Replication)

Below is the namespace configuration for cross-region replication of EVCache using WAL, which replicates messages from a source region to multiple destinations. It uses Kafka under the hood.

"persistence_configurations": {
  "persistence_configuration": [
  {
    "physical_storage": {
      "type": "KAFKA"
    },
    "config": {
      "consumer_stack": "consumer",
      "context": "This is for cross region replication for evcache_foobar",
      "target": {
        "euwest1": "dgwwal.foobar.cluster.eu-west-1.netflix.net",
        "type": "evc-replication",
        "useast1": "dgwwal.foobar.cluster.us-east-1.netflix.net",
        "useast2": "dgwwal.foobar.cluster.us-east-2.netflix.net",
        "uswest2": "dgwwal.foobar.cluster.us-west-2.netflix.net"
      },
      "wal-kafka-dlq-topics": [],
      "wal-kafka-topics": [
        "evcache_foobar"
      ],
      "wal.kafka.bootstrap.servers.prefix": "kafka-foobar"
    }
  }
  ]
}

Persona #3 (Handling multi-partition mutations)

Below is the namespace configuration for supporting mutateItems API in Key-Value, where multiple write requests can go to different partitions and have to be eventually consistent. A key detail in the below configuration is the presence of Kafka and durable_storage. These data stores are required to facilitate two phase commit semantics, which we will discuss in detail below.

"persistence_configurations": {
  "persistence_configuration": [
  {
    "physical_storage": {
      "type": "KAFKA"
    },
    "config": {
      "consumer_stack": "consumer",
      "contacts": "unknown",
      "context": "WAL to support multi-id/namespace mutations for dgwkv.foobar",
      "durable_storage": {
        "namespace": "foobar_wal_type",
        "shard": "walfoobar",
        "type": "kv"
      },
      "target": {},
      "wal-kafka-dlq-topics": [
        "foobar_kv_multi_id-dlq"
      ],
      "wal-kafka-topics": [
        "foobar_kv_multi_id"
      ],
      "wal.kafka.bootstrap.servers.prefix": "kaas_kafka-dgwwal_foobar7102"
    }
  }
  ]
}

An important note is that requests to WAL support at-least once semantics due to the underlying implementation.

Under the Hood

The core architecture consists of several key components working together.

Message Producer and Message Consumer separation: The message producer receives incoming messages from client applications and adds them into the queue, while the message consumer processes messages from the queue and sends them to the targets. Because of this separation, other systems can bring their own pluggable producers or consumers, depending on their use cases. WAL’s control plane allows for a pluggable model, which, depending on the use-case, allows us to switch between different message queues.

SQS and Kafka with a dead letter queue by default: Every WAL namespace has its own message queue and gets a dead letter queue (DLQ) by default, because there can be transient errors and hard errors. Application teams using Key-Value abstraction simply need to toggle a flag to enable WAL and get all this functionality without needing to understand the underlying complexity.

• Kafka-backed namespaces: handle standard message processing
• SQS-backed namespaces: support delayed queue semantics (we added custom logic to go beyond the standard defaults enforced in terms of delay, size limits, etc)
• Complex multi-partition scenarios: use queues and durable storage

Target Flexibility: The messages added to WAL are pushed to the target datastores. Targets can be Cassandra databases, Memcached caches, Kafka queues, or upstream applications. Users can specify the target via namespace configuration and in the API itself.

Deployment Model

WAL is deployed using the Data Gateway infrastructure. This means that WAL deployments automatically come with mTLS, connection management, authentication, runtime and deployment configurations out of the box.

Each data gateway abstraction (including WAL) is deployed as a shard. A shard is a physical concept describing a group of hardware instances. Each use case of WAL is usually deployed as a separate shard. For example, the Ads Events service will send requests to WAL shard A, while the Gaming Catalog service will send requests to WAL shard B, allowing for separation of concerns and avoiding noisy neighbour problems.

Each shard of WAL can have multiple namespaces. A namespace is a logical concept describing a configuration. Each request to WAL has to specify its namespace so that WAL can apply the correct configuration to the request. Each namespace has its own configuration of queues to ensure isolation per use case. If the underlying queue of a WAL namespace becomes the bottleneck of throughput, the operators can choose to add more queues on the fly by modifying the namespace configurations. The concept of shards and namespaces is shared across all Data Gateway Abstractions, including Key-Value, Counter, Timeseries, etc. The namespace configurations are stored in a globally replicated Relational SQL database to ensure availability and consistency.

Based on certain CPU and network thresholds, the Producer group and the Consumer group of each shard will (separately) automatically scale up the number of instances to ensure the service has low latency, high throughput and high availability. WAL, along with other abstractions, also uses the Netflix adaptive load shedding libraries and Envoy to automatically shed requests beyond a certain limit. WAL can be deployed to multiple regions, so each region will deploy its own group of instances.

Solving different flavors of problems with no change to the core architecture

The WAL addresses multiple data reliability challenges with no changes to the core architecture:

Data Loss Prevention: In case of database downtime, WAL can continue to hold the incoming mutations. When the database becomes available again, replay mutations back to the database. The tradeoff is eventual consistency rather than immediate consistency, and no data loss.

Generic Data Replication: For systems like EVCache (using Memcached) and RocksDB that do not support replication by default, WAL provides systematic replication (both in-region and across-region). The target can be another application, another WAL, or another queue — it’s completely pluggable through configuration.

System Entropy and Multi-Partition Solutions: Whether dealing with writes across two databases (like Cassandra and Elasticsearch) or mutations across multiple partitions in one database, the solution is the same — write to WAL first, then let the WAL consumer handle the mutations. No more asynchronous repairs needed; WAL handles retries and backoff automatically.

Data Corruption Recovery: In case of DB corruptions, restore to the last known good backup, then replay mutations from WAL omitting the offending write/mutation.

There are some major differences between using WAL and directly using Kafka/SQS. WAL is an abstraction on the underlying queues, so the underlying technology can be swapped out depending on use cases with no code changes. WAL emphasizes an easy yet effective API that saves users from complicated setups and configurations. We leverage the control plane to pivot technologies behind WAL when needed without app or client intervention.

WAL usage at Netflix

Delay Queue

The most common use case for WAL is as a Delay Queue. If an application is interested in sending a request at a certain time in the future, it can offload its requests to WAL, which guarantees that their requests will land after the specified delay.

Netflix’s Live Origin processes and delivers Netflix live stream video chunks, storing its video data in a Key-Value abstraction backed by Cassandra and EVCache. When Live Origin decides to delete certain video data after an event is completed, it issues delete requests to the Key-Value abstraction. However, the large amount of delete requests in a short burst interfere with the more important real-time read/write requests, causing performance issues in Cassandra and timeouts for the incoming live traffic. To get around this, Key-Value issues the delete requests to WAL first, with a random delay and jitter set for each delete request. WAL, after the delay, sends the delete requests back to Key-Value. Since the deletes are now a flatter curve of requests over time, Key-Value is then able to send the requests to the datastore with no issues.

Additionally, WAL is used by many services that utilize Kafka to stream events, including Ads, Gaming, Product Data Systems, etc. Whenever Kafka requests fail for any reason, the client apps will send WAL a request to retry the kafka request with a delay. This abstracts away the backoff and retry layer of Kafka for many teams, increasing developer efficiency.

Cross-Region Replication

WAL is also used for global cross-region replication. The architecture of WAL is generic and allows any datastore/applications to onboard for cross-region replication. Currently, the largest use case is EVCache, and we are working to onboard other storage engines.

EVCache is deployed by clusters of Memcached instances across multiple regions, where each cluster in each region shares the same data. Each region’s client apps will write, read, or delete data from the EVCache cluster of the same region. To ensure global consistency, the EVCache client of one region will replicate write and delete requests to all other regions. To implement this, the EVCache client that originated the request will send the request to a WAL corresponding to the EVCache cluster and region.

Since the EVCache client acts as the message producer group in this case, WAL only needs to deploy the message consumer groups. From there, the multiple message consumers are set up to each target region. They will read from the Kafka topic, and send the replicated write or delete requests to a Writer group in their target region. The Writer group will then go ahead and replicate the request to the EVCache server in the same region.

The biggest benefits of this approach, compared to our legacy architecture, is being able to migrate from multi-tenant architecture to single tenant architecture for the most latency sensitive applications. For example, Live Origin will have its own dedicated Message Consumer and Writer groups, while a less latency sensitive service can be multi-tenant. This helps us reduce the blast radius of the issues and also prevents noisy neighbor issues.

Multi-Table Mutations

WAL is used by Key-Value service to build the MutateItems API. WAL enables the API’s multi-table and multi-id mutations by implementing 2-phase commit semantics under the hood. For this discussion, we can assume that Key-Value service is backed by Cassandra, and each of its namespaces represents a certain table in a Cassandra DB.

When a Key-Value client issues a MutateItems request to Key-Value server, the request can contain multiple PutItems or DeleteItems requests. Each of those requests can go to different ids and namespaces, or Cassandra tables.

message MutateItemsRequest {
 repeated MutationRequest mutations = 1;
 message MutationRequest {
  oneof mutation {
    PutItemsRequest put = 1;
    DeleteItemsRequest delete = 2;
  }
 }
}

The MutateItems request operates on an eventually consistent model. When the Key-Value server returns a success response, it guarantees that every operation within the MutateItemsRequest will eventually complete successfully. Individual put or delete operations may be partitioned into smaller chunks based on request size, meaning a single operation could spawn multiple chunk requests that must be processed in a specific sequence.

Two approaches exist to ensure Key-Value client requests achieve success. The synchronous approach involves client-side retries until all mutations complete. However, this method introduces significant challenges; datastores might not natively support transactions and provide no guarantees about the entire request succeeding. Additionally, when more than one replica set is involved in a request, latency occurs in unexpected ways, and the entire request chain must be retried. Also, partial failures in synchronous processing can leave the database in an inconsistent state if some mutations succeed while others fail, requiring complex rollback mechanisms or leaving data integrity compromised. The asynchronous approach was ultimately adopted to address these performance and consistency concerns.

Given Key-Value’s stateless architecture, the service cannot maintain the mutation success state or guarantee order internally. Instead, it leverages a Write-Ahead Log (WAL) to guarantee mutation completion. For each MutateItems request, Key-Value forwards individual put or delete operations to WAL as they arrive, with each operation tagged with a sequence number to preserve ordering. After transmitting all mutations, Key-Value sends a completion marker indicating the full request has been submitted.

The WAL producer receives these messages and persists the content, state, and ordering information to a durable storage. The message producer then forwards only the completion marker to the message queue. The message consumer retrieves these markers from the queue and reconstructs the complete mutation set by reading the stored state and content data, ordering operations according to their designated sequence. Failed mutations trigger re-queuing of the completion marker for subsequent retry attempts.

Closing Thoughts

Building Netflix’s generic Write-Ahead Log system has taught us several key lessons that guided our design decisions:

Pluggable Architecture is Core: The ability to support different targets, whether databases, caches, queues, or upstream applications, through configuration rather than code changes has been fundamental to WAL’s success across diverse use cases.

Leverage Existing Building Blocks: We had control plane infrastructure, Key-Value abstractions, and other components already in place. Building on top of these existing abstractions allowed us to focus on the unique challenges WAL needed to solve.

Separation of Concerns Enables Scale: By separating message processing from consumption and allowing independent scaling of each component, we can handle traffic surges and failures more gracefully.

Systems Fail — Consider Tradeoffs Carefully: WAL itself has failure modes, including traffic surges, slow consumers, and non-transient errors. We use abstractions and operational strategies like data partitioning and backpressure signals to handle these, but the tradeoffs must be understood.

Future work

• We are planning to add secondary indices in Key-Value service leveraging WAL.
• WAL can also be used by a service to guarantee sending requests to multiple datastores. For example, a database and a backup, or a database and a queue at the same time etc.

Acknowledgements

Launching WAL was a collaborative effort involving multiple teams at Netflix, and we are grateful to everyone who contributed to making this idea a reality. We would like to thank the following teams for their roles in this launch.

• Caching team — Additional thanks to Shih-Hao Yeh, Akashdeep Goel for contributing to cross region replication for KV, EVCache etc. and owning this service.
• Product Data System team — Carlos Matias Herrero, Brandon Bremen for contributing to the delay queue design and being early adopters of WAL giving valuable feedback.
• KeyValue and Composite abstractions team — Raj Ummadisetty for feedback on API design and mutateItems design discussions. Rajiv Shringi for feedback on API design.
• Kafka and Real Time Data Infrastructure teams — Nick Mahilani for feedback and inputs on integrating the WAL client into Kafka client. Sundaram Ananthanarayan for design discussions around the possibility of leveraging Flink for some of the WAL use cases.
• Joseph Lynch for providing strategic direction and organizational support for this project.

Building a Resilient Data Platform with Write-Ahead Log at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

At Netflix, we prioritize getting timely data and insights into the hands of the people who can act on them. One of our key internal applications for this purpose is Muse. Muse’s ultimate goal is to help Netflix members discover content they’ll love by ensuring our promotional media is as effective and authentic as possible. It achieves this by equipping creative strategists and launch managers with data-driven insights showing which artwork or video clips resonate best with global or regional audiences and flagging outliers such as potentially misleading (clickbait-y) assets. These kinds of applications fall under Online Analytical Processing (OLAP), a category of systems designed for complex querying and data exploration. However, enabling Muse to support new, more advanced filtering and grouping capabilities while maintaining high performance and data accuracy has been a challenge. Previous posts have touched on artwork personalization and our impressions architecture. In this post, we’ll discuss some steps we’ve taken to evolve the Muse data serving layer to enable new capabilities while maintaining high performance and data accuracy.

An Evolving Architecture

Like many early analytics applications, Muse began as a simple dashboard powered by batch data pipelines (Spark¹) and a modest Druid² cluster. As the application evolved, so did user demands. Users wanted new features like outlier detection and notification delivery, media comparison and playback, and advanced filtering, all while requiring lower latency and supporting ever-growing datasets (in the order of trillions of rows a year). One of the most challenging requirements was enabling dynamic analysis of promotional media performance by “audience” affinities: internally defined, algorithmically inferred labels representing collections of viewers with similar tastes. Answering questions like “Does specific promotional media resonate more with Character Drama fans or Pop Culture enthusiasts?” required augmenting already voluminous impression and playback data. Supporting filtering and grouping by these many-to-many audience relationships led to a combinatorial explosion in data volume, pushing the limits of our original architecture.

To address these complexities and support the evolving needs of our users, we undertook a significant evolution of Muse’s architecture. Today’s Muse is a React app that queries a GraphQL layer served with a set of Spring Boot GRPC microservices. In the remainder of this post, we’ll focus on steps we took to scale the data microservice, its backing ETL, and our Druid cluster. Specifically, we’ve changed the data model to rely on HyperLogLog (HLL) sketches, used Hollow for access to in-memory, precomputed aggregates, and taken a series of steps to tune Druid. To ensure the accuracy of these changes, we relied heavily on internal debugging tools to validate pre- and post-changes.

Moving to HyperLogLog (HLL) Sketches for Distinct Counts

Some of the most important metrics we track are impressions, the number of times an asset is shown to a user within a time window, and qualified plays, which links a playback event with a minimum duration back to a specific impression. Calculating these metrics requires counting distinct users. However, performing distinct counts in distributed systems is resource-intensive and challenging. For instance, to determine how many unique profiles have ever seen a particular asset, we need to compare each new set of profile ids with those from all days before it, potentially spanning months or even years.

For performance, we can trade accuracy. The Apache Datasketches library allows us to get distinct count estimates that are within a 1–2% error. This is tunable with a precision parameter called logK (0.8% in our case with logK of 17). We build sketches in two places:

1. During Druid ingest: we use the HLLSketchBuild aggregator with Druid rollup set to true to reduce our data in preparation for fast distinct counting
2. During our Spark ETL: we persist precomputed aggregates like all-time impressions per asset in the form of HLL sketches. Each day, we merge a new HLL sketch into the existing one using a combination of hll_union and hll_union_agg (functions added by our very own Ryan Berti)

HLL has been a huge performance boost for us both within the serving and ETL layer. Across our most common OLAP query patterns, we’ve seen latencies reduce by approx 50%. Nevertheless, running APPROX_COUNT_DISTINCT over large date ranges on the Druid cluster for very large titles exhausts limited threads, especially in high-concurrency situations. To further offload Druid query volume and preserve cluster threads, we’ve also relied extensively on the Hollow library.

Hollow as a Read-Only Key Value Store for Precomputed Aggregates

Our in-house Hollow³ infrastructure allows us to easily create Hollow feeds — essentially highly compressed and performant in-memory key/value stores — from Iceberg⁴ tables. In this setup, dedicated producer servers listen for changes to Iceberg tables, and when updates occur, they push the latest data to downstream consumers. On the consumer side, our Spring Boot applications listen to announcements from these producers and automatically refresh in-memory caches with the latest dataset.

This architecture has enabled us to migrate several data access patterns from Druid to Hollow, specifically ones with a limited number of parameter combinations per title. One of these was fetching distinct filter dimensions. For example, while most Netflix-branded titles are released globally, licensed titles often have rights restrictions that limit their availability to specific countries and time windows. As a result, a particular licensed title might only be available to members in Germany and Luxembourg.

In the past, retrieving these distinct country values per asset required issuing a SELECT DISTINCT query to our Druid cluster. With Hollow, we maintain a feed of distinct dimension values, allowing us to perform stream operations like the one below directly on a cached dataset.

/**
 * Returns the possible filter values for a dimension such as countries
 */
public List<Dimension> getDimensions(long movieId, String dimensionId) {
    // Access in-memory Hollow feed with near instant query time
    Map<String, List<Dimension>> dimensions = dimensionsHollowConsumer.lookup(movieId);
    return dimensions.getOrDefault(dimensionId, List.of()).stream()
        .sorted(Comparator.comparing(Dimension::getName))
        .toList();
}

Although it adds complexity to our service by requiring more intricate request routing and a higher memory footprint, pre-computed aggregates have given us greater stability and performance. In the case of fetching distinct dimensions, we’ve observed query times drop from hundreds of milliseconds to just tens of milliseconds. More importantly, this shift has offloaded high concurrency demands from our Druid cluster, resulting in more consistent query performance. In addition to this use case, cached pre-computed aggregates also power features such as retrieving recently launched titles, accessing all-time asset metrics, and serving various pieces of title metadata.

Tuning Druid

Even with the efficiencies gained from HLL sketches and Hollow feeds, ensuring that our Druid cluster operates performantly has been an ongoing challenge. Fortunately, at Netflix, we are in the company of multiple Apache Druid PMC members like Maytas Monsereenusorn and Jesse Tuğlu who have helped us wring out every ounce of performance. Some of the key optimizations we’ve implemented include:

• Increasing broker count relative to historical nodes: We aim for a broker-to-historical ratio close to the recommended 1:15, which helps improve query throughput.
• Tuning segment sizes: By targeting the 300–700 MB “sweet spot” for segment sizes, primarily using the tuningConfig.targetRowsPerSegment parameter during ingestion — we ensure that each segment a single historical thread scans is not overly large.
• Leveraging Druid lookups for data enrichment: Since joins can be prohibitively expensive in Druid, we use lookups at query time for any key column enrichment.
• Optimizing search predicates: We ensure that all search predicates operate on physical columns rather than virtual ones, creating necessary columns during ingestion with transformSpec.transforms.
• Filtering and slimming data sources at ingest: By applying filters within transformSpec.filter and removing all unused columns in dimensionsSpec.dimensions, we keep our data sources lean and improve the possibility of higher rollup yield.
• Use of multi-value dimensions: Exploiting the Druid multi-value dimension feature was key to overcoming the “many-to-many” combinatorial quandary when integrating audience filtering and grouping functionality mentioned in the “An Evolving Architecture” section above.

Together, these optimizations, combined with previous ones, have decreased our p99 Druid latencies by roughly 50%.

Validation & Rollout

Rolling out these changes to our metrics system required a thorough validation and release strategy. Our approach prioritized both data integrity and user trust, leveraging a blend of automation, targeted tooling, and incremental exposure to production traffic. At the core of our strategy was a parallel stack deployment: both the legacy and new metric stacks operated side-by-side within the Muse Data microservice. This setup allowed us to validate data quality, monitor real-world performance, and mitigate risk by enabling seamless fallback at any stage.

We adopted a two-pronged validation process:

• Automated Offline Validation: Using Jupyter Notebooks, we automated the sampling and comparison of key metrics across both the legacy and new stacks. Our sampling set included a representative mix: recently accessed titles, high-profile launches, and edge-case titles with unique handling requirements. This allowed us to catch subtle discrepancies in metrics early in the process. Iterative testing on this set guided fixes, such as tuning the HLL logK parameter and benchmarking end-to-end latency improvements.
• In-App Data Comparison Tooling: To facilitate rapid triage, we built a developer-facing comparison feature within our application that displays data from both the legacy and new metric stacks side by side. The tool automatically highlights any significant differences, making it easy to quickly spot and investigate discrepancies identified during offline validation or reported by users.

We implemented several release best practices to mitigate risk and maintain stability:

• Staggered Implementation by Application Segment: We developed and deployed the new metric stack in stages, focusing on specific application segments. This meant building out support for asset types like artwork and video separately and then further dividing by CEE phase (Explore, Exploit). By implementing changes segment by segment, we were able to isolate issues early, validate each piece independently, and reduce overall risk during the migration.
• Shadow Testing (“Dark Launch”): Prior to exposing the new stack to end users, we mirrored production traffic asynchronously to the new implementation. This allowed us to validate real-world latency and catch potential faults in a live environment, without impacting the actual user experience.
• Granular Feature Flagging: We implemented fine-grained feature flags to control exposure within each segment. This allowed us to target specific user groups or titles and instantly roll back or adjust the rollout scope if any issues were detected, ensuring rapid mitigation with minimal disruption.

Learnings and Next Steps

Our journey with Muse tested the limits of several parts of the stack: the ETL layer, the Druid layer, and the data serving layer. While some choices, like leveraging Netflix’s in-house Hollow infrastructure, were influenced by available resources, simple principles like offloading query volume, pre-filtering of rows and columns before Druid rollup, and optimizing search predicates (along with a bit of HLL magic) went a long way in allowing us to support new capabilities while maintaining performance. Additionally, engineering best practices like producing side-by-side implementations and backwards-compatible changes enabled us to roll out revisions steadily while maintaining rigorous validation standards. Looking ahead, we’ll continue to build on this foundation by supporting a wider range of content types like Live and Games, incorporating synopsis data, deepening our understanding of how assets work together to influence member choosing, and incorporating new metrics to distinguish between “effective” and “authentic” promotional assets, in service of helping members find content that truly resonates with them.

¹ Apache Spark is an open-source analytics engine for processing large-scale data, enabling tasks like batch processing, machine learning, and stream processing.

² Apache Druid is a high-performance, real-time analytics database designed for quickly querying large volumes of data.

³ Hollow is a Java library for efficient in-memory storage and access to moderately sized, read-only datasets, making it ideal for high-performance data retrieval.

⁴ Apache Iceberg is an open-source table format designed for large-scale analytical datasets stored in data lakes. It provides a robust and reliable way to manage data in formats like Parquet or ORC within cloud object storage or distributed file systems.

Scaling Muse: How Netflix Powers Data-Driven Creative Insights at Trillion-Row Scale was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

Netflix’s mission to provide seamless entertainment to hundreds of millions of users globally demands exceptional reliability. At the heart of this reliability is how we handle incidents — those inevitable moments when something doesn’t go as expected.

Teams can respond quickly and more effectively when incidents are managed consistently across a company. A robust process for following up after incidents creates opportunities for learning and improving systems. This continuous improvement cycle is essential for maintaining the highly reliable systems on which our members depend.

Having a shared, consistent approach to incident management became critical as Netflix grew and expanded its business. This post delves into our journey to transform incident management from a centralized function into a widespread, accessible practice and the hard-won lessons we’ve learned along the way.

The Past: Countless Missed Opportunities

For most of Netflix’s past, incident management was the domain of our central Site Reliability Engineering team, called CORE (Critical Operations and Reliability Engineering). CORE was focused on streaming and was the sole initiator of incidents. They used Jira and a single Slack channel for incident response. This approach worked in the early days, but we knew it wouldn’t scale as Netflix grew and diversified.

With thousands of microservices supporting critical functions beyond streaming, we knew plenty of things were breaking that we were not capturing. We had an internal post-incident write-up template called “OOPS,” which teams could use to write about operational surprises. The template saw limited adoption as many engineers didn’t know about it or understand its purpose or value. With countless smaller, everyday incidents going unnoticed, we were missing key opportunities to learn and improve.

The Aspiration: A Paved Road to Incident Management

Recognizing these limits, we embarked on a journey to democratize incident management. Our goal: open more incidents and engage more teams in the process. We envisioned a “paved road” for incident management — a process so intuitive and streamlined that anyone could easily declare and manage an incident, even at 3 AM. Creating a paved road required a shift: our central SRE team would no longer be the only ones declaring incidents. Instead, we’d empower teams across engineering to own their own incidents. Making this significant shift required both technological and cultural changes.

Finding the Right Tool

Scaling technical processes within an organization as diverse and intricate as Netflix is challenging. To enable every engineering team to manage incidents effectively, we needed a comprehensive incident management tool that was far more sophisticated than Jira and a single Slack channel. We knew any solution, whether built or bought, would need to meet four key requirements:

• Intuitive user experience — Our number one priority was making sure the tool was so intuitive that anyone could use it with little to no training.
• Internal data integration capabilities — We needed the ability to hook in Netflix-specific data.
• Balanced customization with consistency — We wanted teams to have flexibility while maintaining shared standards.
• Approachable — A friendly and appealing tool that could help drive a cultural shift around incidents.

The “build vs. buy” question was a significant consideration. While Netflix boasts a world-class engineering team, building an in-house solution meeting these requirements was impractical due to our ambitious timeline, the substantial investment needed, and ongoing ownership costs. Following Netflix’s engineering principle of “build only when necessary,” we evaluated external solutions against these criteria.

This evaluation process led us to adopt Incident.io. While the platform checked all our boxes during selection, the four above requirements proved even more impactful than anticipated during Netflix’s incident management transformation.

Tackling the Transformation

Selecting the right tool was just the beginning. The real challenge was rolling it out across Netflix’s diverse engineering organization and achieving the cultural shift we envisioned. Here are four elements that helped make our goal a reality.

Intuitive Design Drove Adoption and Cultural Transformation

Tool usability was crucial to encourage teams to open incidents. It had to be easily understandable, even for engineers who aren’t incident management experts and only use it a few times a year. When introducing Incident.io, we saw rapid organic adoption because the tool was easy to pick up without much guidance. Its intuitive design allowed users to discover features as they used it. Thanks to prioritizing usability, within four months, 20% of engineering teams were using the tooling, and six months later, we had over 50% adoption.

Beyond rapid adoption, the tool helped shift how Netflix engineers think about incidents. Incidents went from “big scary outages” to simply “any blip or issue that degrades or disrupts a service that deserves attention and learning.” The tool’s friendly, welcoming interface made incident management less intimidating and more accessible. Some engineers described the platform as “jolly” and mentioned that it actually made them want to open incidents. The approachable design lowered psychological barriers for engineers to declare incidents and made it feel like a natural, even positive, part of their workflow.

Organizational Investment Supported Scalable Growth

While having an intuitive tool was important, successfully empowering engineers to open incidents required deliberate organizational investment. We invested heavily in standardization, developing an incident management process lightweight enough to avoid overwhelming users yet structured enough to support complex incidents. Finding the right balance took time and active engagement with users to understand what was working and what wasn’t. To this day, we still make adjustments to refine and improve the process.

On the education front, we created lightweight docs, quick-reference cheatsheets, and short demo videos to accelerate adoption across Netflix’s diverse engineering organization. We took these resources on roadshows across engineering teams and proved that the barrier to entry for managing incidents was practically nonexistent. While most engineers bought in easily, we had our skeptics. Over time, we worked with these folks to understand their needs better and help them fit incident management into their daily routines and processes.

Internal Integrations Reduce Cognitive Load

Integrating our unique organizational context — like teams, software services, business domains, and even hardware devices — directly into the incident management platform was critical. Netflix-specific contextualization enables powerful automations, such as automatically looping in the right teams or pre-filling incident fields from alerts. These integrations significantly reduce cognitive load during an incident and empower engineers to focus on quick mitigation. Beyond individual incidents, integrations with internal data across multiple incidents enable us to identify and address systemic issues.

Balanced Customization with Consistency Improved Response

A flexible platform allowed us to create a tailored incident response experience while enforcing a shared language and standard metadata across all engineering teams. This balance proved crucial for response effectiveness: different teams can adapt workflows to their specific needs, but core elements like “impacted areas and domains” stay consistent. Incident responders can quickly understand any incident organization-wide because the structure and language remain familiar, enabling faster, more effective incident response.

The Result: A New Era of Incident Management

Our journey to democratize incident management has yielded massive wins across Netflix Engineering. We successfully transitioned from a centralized incident response model to empowering engineers to declare and manage incidents. The transformation has fostered a culture of renewed ownership and learning across engineering teams.

We’ve established new practices and are growing an incident management culture we’re genuinely proud of, but we’re not done yet. Our incident management processes continue to evolve and adapt to fit Netflix’s growing needs. Every day, we work to educate engineers and leaders on the tremendous value incidents provide. We’re excited to continue harnessing these incredible learning opportunities to improve our platform for our hundreds of millions of members.

Empowering Netflix Engineers with Incident Management was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

At Netflix, data engineering has always been a critical function to enable the business’s ability to understand content, power recommendations, and drive business decisions. Traditionally, the function centered on building robust tables and pipelines to capture facts, derive metrics, and provide well modeled data products to their partners in analytics & data science functions. But as Netflix’s studio and content production scaled, so too have the challenges — and opportunities — of working with complex media data.

Today, we’re excited to share how our team is formalizing a new specialization of data engineering at Netflix: Media ML Data Engineering. This evolution is embodied in our latest collaboration with our platform teams, the Media Data Lake, which is designed to harness the full potential of media assets (video, audio, subtitles, scripts, and more) and enable the latest advances in machine learning, including latest transformer model architecture. As part of this initiative, we’re intentionally applying data engineering best practices — ensuring that our approach is both innovative and grounded in proven methodologies.

The Evolution: From Traditional Tables to Media Tables

Traditional data engineering at Netflix focused on building structured tables for metrics, dashboards, and data science models. These tables were primarily structured text or numerical fields, ideal for business intelligence, analytics and statistical modeling.

However, the nature of media data is fundamentally different:

• It’s multi-modal (video, audio, text, images).
• It contains derived fields from media (embeddings, captions, transcriptions…etc)
• It’s unstructured and massive in scale when parsed out.
• It’s deeply intertwined with creative workflows and business asset lineage.

As our studio operations (see below) expanded, we saw the need for a new approach — one that could provide centralized, standardized, and scalable access to all types of media assets and their metadata for both analytical and machine learning workflows.

The Rise of Media ML Data Engineering

Enter Media ML Data Engineering — a new specialization at Netflix that bridges the gap between traditional data engineering and the unique demands of media-centric machine learning. This role sits at the intersection of data engineering, ML infrastructure, and media production. Our mission is to provide seamless access to media assets and derived data (including outputs from machine learning models) for researchers, data scientists, and other downstream data consumers.

Key Responsibilities

• Centralized Media Data Access: Building, cataloging and maintaining the data and pipelines that populates the Media Data Lake, a data platform for storing and serving media assets and their metadata.
• Asset Standardization: Standardizing media assets across modalities (video, images, audio, text) to ensure consistency and quality for ML applications in partnership with domain engineering teams.
• Metadata Management: Unifying and enriching asset metadata, making it easier to track asset lineage, quality, and coverage.
• ML-Ready Data: Exposing large corpora of assets for early-stage algorithm exploration, benchmarking, and productionization.
• Collaboration: Partnering closely with domain experts, algorithm researchers, upstream content engineering teams and (machine learning & data) platform colleagues to ensure our data meets real-world needs.

This new role is essential for bridging the gap between creative media workflows and the technical demands of cutting-edge ML.

Introducing the Media Data Lake

To enable the next generation of media analytics and machine learning, we are building the Media Data Lake at Netflix — a data lake designed specifically for media assets at Netflix using LanceDB. We have partnered with our data platform team on integrating LanceDB into our Big Data Platform.

Architecture and Key Components

• Media Table: The core of the Media Data Lake, this structured dataset captures essential metadata and references to all media assets. It’s designed to be extensible, supporting both traditional metadata and outputs from ML models (including transformer-based embeddings, media understanding research and more).
• Data Model: We are developing a robust data model to standardize how media assets and their attributes are represented, making it easier to query and join across schemas.
• Data API: An pythonic interface that will provide programmatic access to the Media Table, supporting both interactive exploration and automated workflows.
• UI Components: Off-the-shelf UI interfaces enable teams to visually explore assets in the media data lake, accelerating discovery and iteration for ICs.
• Online and Offline System Architecture: Real-time access for lightweight queries and exploration of raw media assets; scalable large batch processing for ML training, benchmarking, and research.
• Compute: distributed batch inference layer capable of processing using GPUs and media data processing at scale using CPUs.

Starting Small with New Technology

Our initial focus this past year has been on delivering a “data pond” — a mini-version of the Media Data Lake targeted at video/audio datasets for early stage model training, evaluation and research. All data for this phase comes from AMP, our internal asset management system and annotation store, and the scope is intentionally small to ensure a solid, extensible foundation could be built while introducing a new technology into the company. We are able to perform data exploration of the raw media assets to build up an intuitive understanding of the media via lightweight queries to AMP.

Media Tables: The New Foundation for ML and Innovation

One of the most exciting developments is the rise of media tables — structured datasets that not only capture traditional metadata, but also include the outputs of advanced ML models.

These media tables power a range of innovative applications, such as:

• Translation & Audio Quality Measures: Managing audio clips and features via text-to-speech models for engineering localization quality metrics.
• Media Fidelity Restoration: Research on restoration of videos to HDR for remastering and other image technology use-cases.
• Story Understanding and Content Embedding: Structuring narrative elements extracted from textual evidence and video of a title to increase operational efficiency in title launch preparation and ratings, e.g. detection of smoking, gore, NSFW scenes in our titles.
• Media Search: Leverage multi-modal vector search to find similar keyframes, shots, dialogue to facilitate research and experimentation.

These tables built on top of LanceDB are designed to scale, support complex queries, and serve both research and other data science & analytical needs.

The Human Side: New Roles and Collaboration

Media ML Data Engineering is a team sport. Our data engineers partner with domain experts, data scientists, ML researchers, upstream business ops and content engineering teams to ensure our data solutions are fit for purpose. We also work closely with our friendly platform teams to ensure technological breakthroughs that are beneficial beyond our small corner of the universe could become horizontal abstractions that benefit the rest of Netflix. This collaborative model enables rapid iteration, high data quality, innovative use cases and technology re-use.

Looking Ahead

The evolution from traditional data engineering to Media ML data engineering — anchored by our media data lake — is unlocking new frontiers for Netflix:

• Richer, more accurate ML models trained on high-quality, standardized media data.
• Supercharge ML Model evaluations via quick iteration cycles on the data.
• Faster experimentation and productization of new AI-powered features.
• Deeper insights into our content and creative workflows via metrics constructed from Media ML algorithms inferred features.

As we continue to grow the media data lake, be on the lookout for subsequent blog posts sharing our learnings and tools with the broader media ml & data engineering community.

From Facts & Metrics to Media Machine Learning: Evolving the Data Engineering Function at Netflix was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

At Netflix, the importance of ML observability cannot be overstated. ML observability refers to the ability to monitor, understand, and gain insights into the performance and behavior of machine learning models in production. It involves tracking key metrics, detecting anomalies, diagnosing issues, and ensuring models are operating reliably and as intended. ML observability helps teams identify data drift, model degradation, and operational problems, enabling faster troubleshooting and continuous improvement of ML systems.

One specific area where ML observability plays a crucial role is in payment processing. At Netflix, we strive to ensure that technical or process-related payment issues never become a barrier for someone wanting to sign up or continue using our service. By leveraging ML to optimize payment processing, and using ML observability to monitor and explain these decisions, we can reduce payment friction. This ensures that new members can subscribe seamlessly and existing members can renew without hassle, allowing everyone to enjoy Netflix without interruption.

ML Observability: A Primer

ML Observability is a set of practices and tools to help ML practitioners and stakeholders alike gain a deeper, end to end understanding of their ML systems across all stages of its lifecycle, from development to deployment to ongoing operations. An effective ML Observability framework not only facilitates automatic detection and surfacing of issues but also provides detailed root cause analysis, acting as a guardrail to ensure ML systems perform reliably over time. This enables teams to iterate and improve their models rapidly, reduce time to detection for incidents, while also increasing the buy-in and trust of their stakeholders by providing rich context about the system’s’ behaviors and impact.

Some examples of these tools include long-term production performance monitoring and analysis, feature, target, and prediction drift monitoring, automated data quality checks, and model explainability. For example, a good observability system would detect aberrations in input data, the feature pipeline, predictions, and outcomes as well provide insight into the likely causes of model decisions and/or performance.

As an ML portfolio grows, ad-hoc monitoring becomes increasingly challenging. Greater complexity also raises the likelihood of interactions between different model components, making it unrealistic to treat each model as an isolated black box. At this stage, investing strategically in observability is essential — not only to support the current portfolio, but also to prepare for future growth.

Stakeholder-Facing Observability Modules

In order to reliably and responsibly evolve our payments processing system to be increasingly ML-driven, we invested heavily up-front in ML observability solutions. To provide confidence to our business stakeholders through this evolution, we looked beyond technical metrics such as precision and recall and placed greater emphasis on real-world outcomes like “how much traffic did we send down this route” and “where are the regions that ML is underperforming.”

Using this as a guidepost, we designed a collection of interconnected modules for machine learning observability: logging, monitoring, and explaining.

Logging

In order to support the monitoring and explaining we wanted to do, we first needed to log the appropriate data. This seems obvious and trivial, but as usual the devil is in the details: what fields exactly do we need to log and when? How does this work for simple models vs. more complex ones? What about models that are actually made of multiple models?

Consider the following, relatively straightforward model. It takes some input data, creates features, passes these to a model which creates some score between 0 and 1, and then that score is translated into a decision (say, whether to process a card as Debit or Credit).

There are several elements you may wish to log: a unique identifier for each record that is trained and scored, the raw data, the final features that fed the model, a unique identifier for the model, the feature importances for that model, the raw model score, the cutoffs used to map a score to a decision, timestamps for the decision as well as the model, etc.

To address this, we drafted an initial data schema that would enable our various ML observability initiatives. We identified the following logical entities to be necessary for the observability initiatives we were pursuing:

Monitoring

The goal of monitoring is twofold: 1) enable self-serve analytics and 2) provide opinionated views into key model insights. It can be helpful to think of this as “business analytics on your models,” as a lot of the key concepts (online analytical processing cubes, visualizations, metric definitions, etc) carry over. Following this analogy, we can craft key metrics that help us understand our models. There are several considerations when defining metrics, including whether your needs are understanding real-world model behavior versus offline model metrics, and whether your audience are ML practitioners or model stakeholders.

Due to our particular needs, our bias for metrics is toward online, stakeholder-focused metrics. Online metrics tell us what actually happened in the real world, rather than in an idealized counterfactual universe that might have its own biases. Additionally, our stakeholders’ focus is on business outcomes, so our metrics tend to be outcome-focused rather than abstract and technical model metrics.

We focused on simple, easy to explain metrics:

These metrics begin to suggest reasons for changing trends in the model’s behavior over time, as well as more generally how the model is performing. This gives us an overall view of model health and an intuitive approximation of what we think the model should have done. For example, if payment processor A starts receiving more traffic in a certain market compared to payment processor B, you might ask:

• Has the model seen something to make it prefer processor A?
• Have more transactions become eligible to go to processor A?

However, to truly explain specific decisions made by the model, especially which features are responsible for current trends, we need to use more advanced explainability tools, which will be discussed in the next section.

Explaining

Explainability means understanding the “why” behind ML decisions. This can mean the “why” in aggregate (e.g. why are so many of our transactions suddenly going down one particular route) or the “why” for a single instance (e.g. what factors led to this particular transaction being routed a particular way). This gives us the ability to approximate the previous status quo where we could inspect our static rules for insights about route volume.

One of the most effective tools we can leverage for ML explainability is SHAP (Shapley Additive exPlanations, Lundberg & Lee 2017). At a high level, SHAP values are derived from cooperative game theory, specifically the Shapley values concept. The core idea is to fairly distribute the “payout” (in our case, the model’s prediction) among the “players” (the input features) by considering their contribution to the prediction.

Key Benefits of SHAP:

1. Model-Agnostic: SHAP can be applied to any ML model, making it a versatile tool for explainability.
2. Consistent and Local Explanations: SHAP provides consistent explanations for individual predictions, helping us understand the contribution of each feature to a specific decision.
3. Global Interpretability: By aggregating SHAP values across many predictions, we can gain insights into the overall behavior of the model and the importance of different features.
4. Mathematical properties: SHAP satisfies important mathematical axioms such as efficiency, symmetry, dummy, and additivity. These properties allow us to compute explanations at the individual level and aggregate them for any ad-hoc groups that stakeholders are interested in, such as country, issuing bank, processor, or any combinations thereof.

Because of the above advantages, we leverage SHAP as one core algorithm to unpack a variety of models and open the black box for stakeholders. Its well-documented Python interface makes it easy to integrate into our workflows.

Explaining Complex ML Systems

For ML systems that score single events and use the output scores directly for business decisions, explainability is relatively straightforward, as the production decision is directly tied to the model’s output. However, in the case of a bandit algorithm, explainability can be more complex because the bandit policy may involve multiple layers, meaning the model’s output may not be the final decision used in production. For example, we may have a classifier model to predict the likelihood of transaction approval for each route, but we might want to penalize certain routes due to higher processing fees.

Here is an example of a plot we built to visualize these layers. The traffic that the model would have selected on its own is on the left, and different penalty or guardrail layers impact final volume as you move left to right. For example, the model originally allocated 22% traffic to processor W with Configuration A, however for cost and contractual considerations, the traffic was reduced to 19% with 3% being allocated to Processor W with Configuration B, and Processor Nc with Configuration B.

While individual event analysis is crucial, such as in fraud detection where false positives need to be scrutinized, in payment processing, stakeholders are more interested in explaining model decisions at a group level (e.g., decisions for one issuing bank from a country). This is essential for business conversations with external parties. SHAP’s mathematical properties allow for flexible aggregation at the group level while maintaining consistency and accuracy.

Additionally, due to the multi-candidate structure, when stakeholders inquire about why a particular candidate was chosen, they are often interested in the differential perspective — specifically, why another similar candidate was not selected. We leverage SHAP to segment populations into cohorts that share the same candidates and identify the features that make subtle but critical differences. For example, while Feature A might be globally important, if we compare two candidates that both have the same value for Feature A, the local differences become crucial. This facilitates stakeholders discussions and helps understand subtle differences among different routes or payment partners.

Earlier, we were alerted that our ML model consistently reduced traffic to a particular route every Tuesday. By leveraging our explanation system, we identified that two features — route and day of the week — were contributing negatively to the predictions on Tuesdays. Further analysis revealed that this route had experienced an outage on a previous Tuesday, which the model had learned and encoded into the route and day of the week features. This raises an important question: should outage data be included in model training? This discovery opens up discussions with stakeholders and provides opportunities to further enhance our ML system.

The explanation system not only demystifies our machine learning models but also fosters transparency and trust among our stakeholders, enabling more informed and confident decision-making.

Wrapping Up

At Netflix, we face the challenge of routing thousands of payment transactions per minute in our mission to entertain the world. To help meet this challenge, we introduced an observability framework and set of tools to allow us to open the ML black box and understand the intricacies of how we route billions of dollars of transactions in hundreds of countries every year. This has led to a massive operational complexity reduction in addition to improved transaction approval rate, while also allowing us to focus on innovation rather than operations.

Looking ahead, we are generalizing our solution with a standardized data schema. This will simplify applying our advanced ML observability tools to other models across various domains. By creating a versatile and scalable framework, we aim to empower ML developers to quickly deploy and improve models, bring transparency to stakeholders, and accelerate innovation.

We also thank Karthik Chandrashekar, Zainab Mahar Mir, Josh Karoly and Josh Korn for their helpful suggestions.

ML Observability: Bringing Transparency to Payments and Beyond was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

At Netflix, we support the filmmaking process that merges creativity with technology. This includes reducing manual workloads wherever possible. Automating tedious tasks that take a lot of time while requiring very little creativity allows our creative partners to devote their time and energy to what matters most: creative storytelling.

With that in mind, we developed a new method for quality control (QC) that automatically detects pixel-level artifacts in videos, reducing the need for manual visual reviews in the early stages of QC.

Why This Matters

Netflix is deeply invested in ensuring our content creators’ stories are accurately carried from production to screen. As such, we invest manual time and energy in reviewing for technical errors that could distract from our members’ immersion in and enjoyment of these stories.

Teams spend a lot of time manually reviewing every shot to identify any issues that could cause problems down the line. One of the problems they look for is tiny bright spots caused by malfunctioning camera sensors (often called hot or lit pixels). Flagging those issues is a painstaking and error-prone process. They can be hard to catch even when every single frame in a shot is manually inspected. And if left undetected, they can surface unexpectedly later in production, leading to labor-intensive and costly fixes.

By automating these QC checks, we help production teams spot and address issues sooner, reduce tedious manual searches, and address issues before they accumulate.

Precision at the Pixel Level: Pixel Error Detection

Pixel errors come in two main types:

1. Hot (lit) pixels: single frame bright pixels
2. Dead (stuck) pixels: pixels that don’t respond to light

Earlier work at Netflix addressed detecting dead pixels using techniques based on pixel intensity gradients and statistical comparisons [1, 2]. In this work, we focus on hot pixels, which are a lot harder to flag manually.

Hot pixels in a frame can occupy only a few pixels and appear for just a single frame. Imagine reviewing thousands of high-resolution video frames looking for hot pixels. To reduce manual effort, we built a highly efficient neural network to pinpoint pixel-level artifacts in real time. While detection of hot pixels is not entirely new in video production workflows, we do it at scale and with near-perfect recall rates.

Detecting artifacts at the pixel level requires the ability to identify small-scale, fine features in large images. It also requires leveraging temporal information to distinguish between actual pixel artifacts and naturally bright pixels with artifact-like features, such as small lights, catch lights, and other specular reflections.

Given those requirements, we designed a bespoke model for this task. Many mainstream computer vision models downsample inputs to reduce dimensionality, but pixel errors are sensitive to this. For example, if we downsample a 4K frame by 8x to 480p resolution, pixel-level errors almost entirely disappear. For that reason, our model processes large-scale inputs at full resolution rather than explicitly downsampling them in pre-processing.

The network analyzes a window of five consecutive frames at a time, giving it the temporal context it needs to tell the difference between a one-off sensor glitch and a naturally bright object that persists across frames.

For every frame, the model outputs a continuous-valued map of pixel error occurrences at the input resolution. During training, we directly optimize those error maps by minimizing dense, pixel-wise loss functions.

During inference, our algorithm binarizes the model’s outputs using a confidence threshold, then performs connected component labeling to find clusters of pixel errors. Finally, it calculates the centroids of those clusters to report (x, y) locations of the found pixel errors.

All of this processing happens in real-time on a single GPU.

Building a Synthetic Pixel Error Generator

Pixel errors are rare and make up a very small portion of videos, both temporally and spatially, in the context of the total volume of footage captured and the full resolution of a given frame. Therefore, they are hard to annotate manually. Initially, we had virtually no data to train our model. To overcome this, we developed a synthetic pixel error generator that closely mimicked real-world artifacts. We simulated two main types of pixel errors: symmetrical and curvilinear.

Symmetrical: Most pixel errors are symmetrical along at least one axis.

Curvilinear: Some pixel errors follow curvilinear structures.

To create realistic training samples, we superimposed these synthetic errors onto frames from the Netflix catalog. We added those artificial hot pixels to where they would be most visible: dark, still areas in the scenes. Instead of sampling (x, y) coordinates for the synthetic errors uniformly, we sampled them from a heatmap, with selection probabilities determined by the amount of motion and image intensity.

Synthetic data was essential for training our initial model. However, to close the domain gap and improve precision, we needed to run multiple tuning cycles on fresh, real-world footage.

After training an initial model solely on this synthetic data, we refined it iteratively with real-world data as follows:

1. Inference: Run the model on previously unseen footage without any added synthetic hot pixels.
2. False Positive Elimination: Manually review detections and zero out labels for false positives, which is easier than labeling hot pixels from scratch.
3. Fine-tuning and Iteration: Fine-tune on the refined dataset and repeat until convergence.

While false positives represent a small percentage of total input volume, they can still constitute a meaningful number of alerts in absolute terms given the scale of content processing. We continue to refine our model and reduce false positives through ongoing application on real-world datasets. This synthetic-to-real refinement loop steadily reduces false alarms while preserving high sensitivity.

Looking Ahead

What once required hours of painstaking manual review can now potentially be completed in minutes, freeing creative teams to focus on what matters most: the art of storytelling. As we continue refining these capabilities through ongoing real-world deployment, we’re inspired by the many ways production teams can gain more time to build amazing stories for audiences around the world. We are also working with our partners to better understand how pixel errors affect the viewing experience, which will help us further optimize our models.

Accelerating Video Quality Control at Netflix with Pixel Error Detection was originally published in Netflix TechBlog on Medium, where people are continuing the conversation by highlighting and responding to this story.

By Vipul Marlecha, Lara Deek, Thiara Ortiz

The mission of Open Connect, our dedicated content delivery network (CDN), is to deliver the best quality of experience (QoE) to our members. By localizing our Open Connect Appliances (OCAs), we bring Netflix content closer to the end user. This is achieved through close partnerships with internet service providers (ISPs) worldwide. Our ability to efficiently localize traffic, known as Content Delivery Efficiency, is a critical component of Open Connect’s service.

In this post, we discuss one of the frameworks we use to evaluate our efficiency and identify sources of inefficiencies. Specifically, we classify the causes of traffic not being served from local servers, a phenomenon that we refer to as cache misses.

Why does Netflix have the Open Connect Program?

The Open Connect Program is a cornerstone of Netflix’s commitment to delivering unparalleled QoE for our customers. By localizing traffic delivery from Open Connect servers at IX or ISP sites, we significantly enhance the speed and reliability of content delivery. The inherent latencies of data traveling across physical links, compounded by Internet infrastructure components like routers and network stacks, can disrupt a seamless viewing experience. Delays in video start times, reduced initial video quality, and the frustrating occurrence of buffering lead to an overall reduction in customer QoE. Open Connect empowers Netflix to maintain hyper-efficiency, ensuring a flawless client experience for new, latency-sensitive, on-demand content such as live streams and ads.

Our custom-built servers, known as Open Connect Appliances (OCAs), are designed for both efficiency and cost-effectiveness. By logging detailed historical streaming behavior and using it to model and forecast future trends, we hyper-optimize our OCAs for long-term caching efficiency. We build methods to efficiently and reliably store, stream, and move our content.

The mission of Open Connect hinges on our ability to effectively localize content on our OCAs globally, despite limited storage space, and also by design with specific storage sizes. This ensures that our cost and power efficiency metrics continue to improve, enhancing client QoE and reducing costs for our ISP partners. A critical question we continuously ask is: How do we evaluate and monitor which bytes should have been served from local OCAs but resulted in a cache miss?

The Anatomy of a Playback Request

Let us start by introducing the logic that directs or “steers” a specific Netflix client device to its dedicated OCA. The lifecycle from when a client device presses play until the video starts being streamed to that device is referred to as “playback.” Figure 1 illustrates the logical components involved in playback.

Figure 1: Components for Playback

The components involved in playback are important to understand as we elaborate on the concept of how we determine a cache miss versus hit. Independent of client requests, every OCA in our CDN periodically reports its capacity and health, learned BGP routes, and current list of stored files. All of this data is reported to the Cache Control Service (CCS). When a member hits the play button, this request is sent to our AWS services, specifically the Playback Apps service. After Playback Apps determines which files correspond to a specific movie request, it issues a request to “steer” the client’s playback request to OCAs via the Steering Service. The Steering Service in turn, using the data reported from OCAs to CCS as well as other client information such as geo location, identifies the set of OCAs that can satisfy that client’s request. This set of OCAs is then returned in the form of rank-ordered URLs to the client device, the client connects to the top-ranked OCA and requests the files it needs to begin the video stream.

What is a Cache Miss?

A cache miss occurs when bytes are not served from the best available OCA for a given Netflix client, independent of OCA state. For each playback request, the Steering Service computes a ranked list of local sites for the client, ordered by network proximity alone. This ranked list of sites is known as the “proximity rank.” Network proximity is determined based on the IP ranges (BGP routes) that are advertised by our ISP partners. Any OCA from the first “most proximal” site on this list is the most preferred and closest, having advertised the longest, most specific matching prefix to the client’s IP address. A cache miss is logged when bytes are not streamed from any OCA at this first local site, and we log when and why that happens.

It is important to note that our concept of cache misses is viewed from the client’s perspective, focusing on the optimal delivery source for the end user and prepositioning content accordingly, rather than relying on traditional CDN proxy caching mechanisms. Our “prepositioning” differentiator allows us to prioritize client QoE by ensuring content is served from the most optimal OCA.

We attribute cache misses to three logical categories. The intuition behind the delineated categories is that each category informs parallel strategies to achieve content delivery efficiency.

• Content Miss: This happens when the files were not found on OCAs in the local site. In previous articles like “Content Popularity for Open Connect” and “Distributing Content to Open Connect,” we discuss how we decide what content to prioritize populating first onto our OCAs. A sample of efforts this insights informs include: (1) how accurately we predict the popularity of content, (2) how rapidly we pre-position that content, (3) how well we design our OCA hardware, and (4) how well we provision storage capacity at our locations of presence.
• Health Miss: This happens when the local site’s OCA hardware resources are becoming saturated, and one or more OCA can not handle more traffic. As a result, we direct clients to other OCAs with capacity to serve that content. Each OCA has a control loop that monitors its bottleneck metrics (such as CPU, disk usage, etc.) and assesses its ability to serve additional traffic. This is referred to as “OCA health.” Insight into health misses informs efforts such as: (1) how well we load balance traffic across OCAs with heterogeneous hardware resources, (2) how well we provision enough copies of highly popular content to distribute massive traffic, which is also tied to how accurately we predict the popularity of content, and (3) how well we preposition content to specific hardware components with varying traffic serve capabilities and bottlenecks.

Next we will dig into the framework we built to log and compute these metrics in real-time, with some extra attention to technical detail.

Cache Miss Computation Framework

Logging Components

There are two critical data components that we log, gather, and analyze to compute cache misses:

• Steering Playback Manifest Logs: Within the Steering Service, we compute and log the ranked list of sites for each client request, i.e. the “proximity rank” introduced earlier. We also enrich that list with information that reflects the logical decisions and filters our algorithms applied across all proximity ranks given that point-in-time state of our systems. This information allows us to replay/simulate any hypothetical scenario easily, such as to evaluate whether an outage across all sites in the first proximity rank would overwhelm sites in the second proximity rank, and many more such scenarios!
• OCA Server Logs: Once a Netflix client connects with an OCA to begin video streaming, the OCAs log any data regarding that streaming session, such as the files streamed and total bytes. All OCA logs are consolidated to identify which OCA(s) each client actually watched its video stream from, and the amount of content streamed.

The above logs are joined for every Netflix client’s playback request to compute detailed cache miss metrics (in bytes and hours streamed) at different aggregation levels (such as per OCA, movie, file, encode type, country, and so on).

System Architecture

Figure 2 outlines how the logging components fit into the general engineering architecture that allows us to compute content miss metrics at low-latency and almost real-time.

Figure 2: Components of the cache miss computation framework.

We will now describe the system requirements of each component.

1. Log Emission: The logs for computing cache miss are emitted to Kafka clusters in each of our evaluated AWS regions, enabling us to send logs with the lowest possible latency. After a client device makes a playback request, the Steering Service generates a steering playback manifest, logs it, and sends the data to a Kafka cluster. Kafka is used for event streaming at Netflix because of its high-throughput event processing, low latency, and reliability. After the client device starts the video stream from an OCA, the OCA stores information about the bytes served for each file requested by each unique client playback stream. This data is what we refer to as OCA server logs.
2. Log Consolidation: The logs emitted by the Steering Service and the OCAs can result in data for a single playback request being distributed across different AWS regions, because logs are recorded in geographically distributed Kafka clusters. OCA server logs might be stored in one region’s Kafka cluster while steering playback manifest logs are stored in another. One approach to consolidate data for a single playback is to build complex many-to-many joins. In streaming pipelines, performing these joins requires replicating logs across all regions, which leads to data duplication and increased complexity. This setup complicates downstream data processing and inflates operational costs due to multiple redundant cross-region data transfers. To overcome these challenges, we perform a cross-region transfer only once, consolidating all logs into a single region.
3. Log Enrichment: We enrich the logs during streaming joins with metadata using various slow-changing dimension tables and services so that we have the necessary information about the OCA and the played content.
4. Streaming Window-Based Join: We perform a streaming window-based join to merge the steering playback manifest logs with the OCA server logs. Performing enrichment and log consolidation upstream allows for more seamless and un-interrupted joining of our log data sources.
5. Cache Miss Calculations: After joining the logs, we compute the cache miss metrics. The computation checks whether the client played content from an OCA in the first site listed in the steering playback manifest’s proximity rank or from another site. When a video stream occurs at a higher proximity rank, this indicates that a cache miss occurred.

Data Model to Evaluate Cache Misses

One of the most exciting opportunities we have enabled through these logs (in these authors’ opinions) is the ability to replay our logic offline and in simulations with variable parameters, to reproduce impact in production under different conditions. This allows us to test new conditions, features, and hypothetical scenarios without impacting production Netflix traffic.

To achieve the above, our data should satisfy two main conditions. First, the data should be comprehensive in representing the state of each distinct logical step involved in steering, including the decisions and their reasons. In order to achieve this, the underlying logic, here the Steering Service, needs to be built in a modularized fashion, where each logical component overlays data from the prior component, resulting in a rich blurb representing the system’s full state, which is finally logged. This all needs to be achieved without adding perceivable latency to client playback requests! Second, the data should be in a format that allows near-real-time aggregate metrics for monitoring purposes.

Some components of our final, joined data model that enables us to collect rich insights in a scalable and timely manner are listed in Table 1.

Table 1: Unified Data Model after joining steering playback manifest and OCA server logs.

Cache Miss Computation Sample

Let us share an example of how we compute cache miss metrics. For a given unique client play request, we know we had a cache miss when the client streams from an OCA that is not in the client’s first proximity rank. As you can see from Table 1, each file needed for a client’s video streaming session is linked to routable OCAs and their corresponding sites with a proximity rank. These are 0 based indexes with proximity rank zero indicating the most optimal OCA for the client. “Proximity Rank Zero” indicates that the client connected to an OCA in the most preferred site(s), thus no misses occurred. Higher proximity ranks indicate a miss has occurred. The aggregation of all bytes and hours streamed from non-preferred sites constitutes a missed opportunity for Netflix and are reported in our cache miss metrics.

Decision Labels and Bytes Sent

Sourced from the steering playback manifest logs, we record why we did not select an OCA for playback. These are denoted by:

• “H”: Health miss.
• “C”: Content miss.

Metrics Calculation and Categorization

For each file needed for a client’s video streaming session, we can categorize the bytes streamed by the client into different types of misses:

• No Miss: If proximity rank is zero, bytes were streamed from the optimal OCA.
• Health Miss (“H”): Miss due to the OCA reporting high utilization.
• Content Miss (“C”): Miss due to the OCA not having the content available locally.

How are miss metrics used to monitor our efficiency?

Open Connect uses cache miss metrics to manage our Open Connect infrastructure. One of the team’s goals is to reduce the frequency of these cache misses, as they indicate that our members are being served by less proximal OCAs. By maintaining a detailed set of metrics that reveal the reasons behind cache misses, we can set up alerts to quickly identify when members are streaming from suboptimal locations. This is crucial because we operate a global CDN with millions of members worldwide and tens of thousands of servers.

The figure below illustrates how we track the volume of total streaming traffic alongside the proportion of traffic streamed from less preferred locations due to content shedding. By calculating the ratio of content shed traffic to total streamed traffic, we derive a content shed ratio:

content shed ratio = content shed traffic total streamed traffic

This active monitoring of content shedding allows us to maintain a tight feedback loop to ensure the efficacy of our deployment and prediction algorithms, streaming traffic, and the QoE of our members. Given that content shedding can occur for multiple reasons, it is essential to have clear signals indicating when it happens, along with known and automated remediation strategies, such as mechanisms to quickly deploy mispredicted content onto OCAs. When special intervention is necessary to minimize shedding, we use it as an opportunity to enhance our systems as well as to ensure they are comprehensive in considering all known failure cases.

Conclusion

Open Connect’s unique strategy requires us to be incredibly efficient in delivering content from our OCAs. We closely track miss metrics to ensure we are maximizing the traffic our members stream from most proximal locations. This ensures we are delivering the best quality of experience to our members globally.

Our methods for managing cache misses are evolving, especially with the introduction of new streaming types like Live and Ads, which have different streaming behaviors and access patterns compared to traditional video. We remain committed to identifying and seizing opportunities for improvement as we face new challenges.

Authors: Sejoon Oh, Moumita Bhattacharya, Yesu Feng, Sudarshan Lamkhede, Ko-Jen Hsiao, and Justin Basilico

Motivation

Recommender systems have become essential components of digital services across e-commerce, streaming media, and social networks [1, 2]. At Netflix, these systems drive significant product and business impact by connecting members with relevant content at the right time [3, 4]. While our recommendation foundation model (FM) has made substantial progress in understanding user preferences through large-scale learning from interaction histories (please refer to this article about FM @ Netflix), there is an opportunity to further enhance its capabilities. By extending FM to incorporate the prediction of underlying user intents, we aim to enrich its understanding of user sessions beyond next-item prediction, thereby offering a more comprehensive and nuanced recommendation experience.

Recent research has highlighted the importance of understanding user intent in online platforms [5, 6, 7, 8]. As Xia et al. [8] demonstrated at Pinterest, predicting a user’s future intent can lead to more accurate and personalized recommendations. However, existing intent prediction approaches typically employ simple multi-task learning that adds intent prediction heads to next-item prediction models without establishing a hierarchical relationship between these tasks.

To address these limitations, we introduce FM-Intent, a novel recommendation model that enhances our foundation model through hierarchical multi-task learning. FM-Intent captures a user’s latent session intent using both short-term and long-term implicit signals as proxies, then leverages this intent prediction to improve next-item recommendations. Unlike conventional approaches, FM-Intent establishes a clear hierarchy where intent predictions directly inform item recommendations, creating a more coherent and effective recommendation pipeline.

FM-Intent makes three key contributions:

1. A novel recommendation model that captures user intent on the Netflix platform and enhances next-item prediction using this intent information.
2. A hierarchical multi-task learning approach that effectively models both short-term and long-term user interests.
3. Comprehensive experimental validation showing significant performance improvements over state-of-the-art models, including our foundation model.

Understanding User Intent in Netflix

In the Netflix ecosystem, user intent manifests through various interaction metadata, as illustrated in Figure 1. FM-Intent leverages these implicit signals to predict both user intent and next-item recommendations.

Figure 1: Overview of user engagement data in Netflix. User intent can be associated with several interaction metadata. We leverage various implicit signals to predict user intent and next-item.

In Netflix, there can be multiple types of user intents. For instance,

Action Type: Categories reflecting what users intend to do on Netflix, such as discovering new content versus continuing previously started content. For example, when a member plays a follow-up episode of something they were already watching, this can be categorized as “continue watching” intent.

Genre Preference: The pre-defined genre labels (e.g., Action, Thriller, Comedy) that indicate a user’s content preferences during a session. These preferences can shift significantly between sessions, even for the same user.

Movie/Show Type: Whether a user is looking for a movie (typically a single, longer viewing experience) or a TV show (potentially multiple episodes of shorter duration).

Time-since-release: Whether the user prefers newly released content, recent content (e.g., between a week and a month), or evergreen catalog titles.

These dimensions serve as proxies for the latent user intent, which is often not directly observable but crucial for providing relevant recommendations.

FM-Intent Model Architecture

FM-Intent employs a hierarchical multi-task learning approach with three major components, as illustrated in Figure 2.

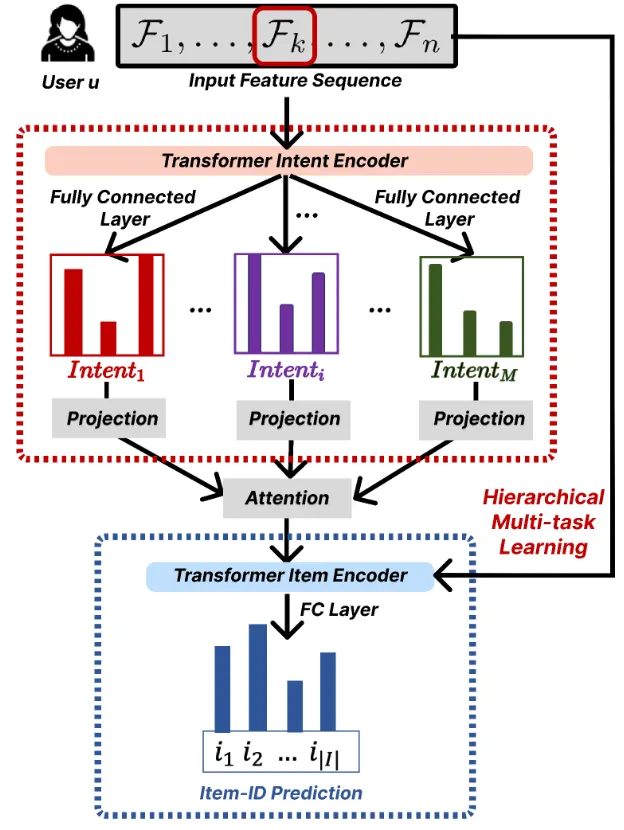

Figure 2: An architectural illustration of our hierarchical multi-task learning model FM-Intent for user intent and item predictions. We use ground-truth intent and item-ID labels to optimize predictions.

1. Input Feature Sequence Formation

The first component constructs rich input features by combining interaction metadata. The input feature for each interaction combines categorical embeddings and numerical features, creating a comprehensive representation of user behavior.

2. User Intent Prediction

The intent prediction component processes the input feature sequence through a Transformer encoder and generates predictions for multiple intent signals.

The Transformer encoder effectively models the long-term interest of users through multi-head attention mechanisms. For each prediction task, the intent encoding is transformed into prediction scores via fully-connected layers.

A key innovation in FM-Intent is the attention-based aggregation of individual intent predictions. This approach generates a comprehensive intent embedding that captures the relative importance of different intent signals for each user, providing valuable insights for personalization and explanation.

3. Next-Item Prediction with Hierarchical Multi-Task Learning

The final component combines the input features with the user intent embedding to make more accurate next-item recommendations.

FM-Intent employs hierarchical multi-task learning where intent predictions are conducted first, and their results are used as input features for the next-item prediction task. This hierarchical relationship ensures that the next-item recommendations are informed by the predicted user intent, creating a more coherent and effective recommendation model.

Offline Results

We conducted comprehensive offline experiments on sampled Netflix user engagement data to evaluate FM-Intent’s performance. Note that FM-Intent uses a much smaller dataset for training compared to the FM production model due to its complex hierarchical prediction architecture.

Next-Item and Next-Intent Prediction Accuracy

Table 1 compares FM-Intent with several state-of-the-art sequential recommendation models, including our production model (FM-Intent-V0).

Table 1: Next-item and next-intent prediction results of baselines and our proposed method FM-Intent on the Netflix user engagement dataset.

All metrics are represented as relative % improvements compared to the SOTA baseline: TransAct. N/A indicates that a model is not capable of predicting a certain intent. Note that we added additional fully-connected layers to LSTM, GRU, and Transformer baselines in order to predict user intent, while we used original implementations for other baselines. FM-Intent demonstrates statistically significant improvement of 7.4% in next-item prediction accuracy compared to the best baseline (TransAct).

Most baseline models show limited performance as they either cannot predict user intent or cannot incorporate intent predictions into next-item recommendations. Our production model (FM-Intent-V0) performs well but lacks the ability to predict and leverage user intent. Note that FM-Intent-V0 is trained with a smaller dataset for a fair comparison with other models; the actual production model is trained with a much larger dataset.

Qualitative Analysis: User Clustering

Figure 3: K-means++ (K=10) clustering of user intent embeddings found by FM-Intent; FM-Intent finds unique clusters of users that share the similar intent.

FM-Intent generates meaningful user intent embeddings that can be used for clustering users with similar intents. Figure 3 visualizes 10 distinct clusters identified through K-means++ clustering.These clusters reveal meaningful user segments with distinct viewing patterns:

• Users who primarily discover new content versus those who continue watching recent/favorite content.
• Genre enthusiasts (e.g., anime/kids content viewers).
• Users with specific viewing patterns (e.g., Rewatchers versus casual viewers).

Potential Applications of FM-Intent

FM-Intent has been successfully integrated into Netflix’s recommendation ecosystem, can be leveraged for several downstream applications:

Personalized UI Optimization: The predicted user intent could inform the layout and content selection on the Netflix homepage, emphasizing different rows based on whether users are in discovery mode, continue-watching mode, or exploring specific genres.

Analytics and User Understanding: Intent embeddings and clusters provide valuable insights into viewing patterns and preferences, informing content acquisition and production decisions.

Enhanced Recommendation Signals: Intent predictions serve as features for other recommendation models, improving their accuracy and relevance.

Search Optimization: Real-time intent predictions help prioritize search results based on the user’s current session intent.

Conclusion

FM-Intent represents an advancement in Netflix’s recommendation capabilities by enhancing them with hierarchical multi-task learning for user intent prediction. Our comprehensive experiments demonstrate that FM-Intent significantly outperforms state-of-the-art models, including our prior foundation model that focused solely on next-item prediction. By understanding not just what users might watch next but what underlying intents users have, we can provide more personalized, relevant, and satisfying recommendations.

Acknowledgements

We thank our stunning colleagues in the Foundation Model team & AIMS org. for their valuable feedback and discussions. We also thank our partner teams for getting this up and running in production.

References

[1] Amatriain, X., & Basilico, J. (2015). Recommender systems in industry: A netflix case study. In Recommender systems handbook (pp. 385–419). Springer.

[2] Gomez-Uribe, C. A., & Hunt, N. (2015). The netflix recommender system: Algorithms, business value, and innovation. ACM Transactions on Management Information Systems (TMIS), 6(4), 1–19.

[3] Jannach, D., & Jugovac, M. (2019). Measuring the business value of recommender systems. ACM Transactions on Management Information Systems (TMIS), 10(4), 1–23.

[4] Bhattacharya, M., & Lamkhede, S. (2022). Augmenting Netflix Search with In-Session Adapted Recommendations. In Proceedings of the 16th ACM Conference on Recommender Systems (pp. 542–545).

[5] Chen, Y., Liu, Z., Li, J., McAuley, J., & Xiong, C. (2022). Intent contrastive learning for sequential recommendation. In Proceedings of the ACM Web Conference 2022 (pp. 2172–2182).

[6] Ding, Y., Ma, Y., Wong, W. K., & Chua, T. S. (2021). Modeling instant user intent and content-level transition for sequential fashion recommendation. IEEE Transactions on Multimedia, 24, 2687–2700.

[7] Liu, Z., Chen, H., Sun, F., Xie, X., Gao, J., Ding, B., & Shen, Y. (2021). Intent preference decoupling for user representation on online recommender system. In Proceedings of the Twenty-Ninth International Conference on International Joint Conferences on Artificial Intelligence (pp. 2575–2582).

[8] Xia, X., Eksombatchai, P., Pancha, N., Badani, D. D., Wang, P. W., Gu, N., Joshi, S. V., Farahpour, N., Zhang, Z., & Zhai, A. (2023). TransAct: Transformer-based Realtime User Action Model for Recommendation at Pinterest. In Proceedings of the 29th ACM SIGKDD Conference on Knowledge Discovery and Data Mining (pp. 5249–5259).

By Cheng Xie, Bryan Shultz, and Christine Xu

In a previous blog post, we described how Netflix uses eBPF to capture TCP flow logs at scale for enhanced network insights. In this post, we delve deeper into how Netflix solved a core problem: accurately attributing flow IP addresses to workload identities.

A Brief Recap

FlowExporter is a sidecar that runs alongside all Netflix workloads. It uses eBPF and TCP tracepoints to monitor TCP socket state changes. When a TCP socket closes, FlowExporter generates a flow log record that includes the IP addresses, ports, timestamps, and additional socket statistics. On average, 5 million records are produced per second.

In cloud environments, IP addresses are reassigned to different workloads as workload instances are created and terminated, so IP addresses alone cannot provide insights on which workloads are communicating. To make the flow logs useful, each IP address must be attributed to its corresponding workload identity. FlowCollector, a backend service, collects flow logs from FlowExporter instances across the fleet, attributes the IP addresses, and sends these attributed flows to Netflix’s Data Mesh for subsequent stream and batch processing.

The eBPF flow logs provide a comprehensive view of service topology and network health across Netflix’s extensive microservices fleet, regardless of the programming language, RPC mechanism, or application-layer protocol used by individual workloads.

The Problem with Misattribution

Accurately attributing flow IP addresses to workload identities has been a significant challenge since our eBPF flow logs were introduced.

As noted in our previous blog post, our initial attribution approach relied on Sonar, an internal IP address tracking service that emits an event whenever an IP address in Netflix’s AWS VPCs is assigned or unassigned to a workload. FlowCollector consumes a stream of IP address change events from Sonar and uses this information to attribute flow IP addresses in real-time.

The fundamental drawback of this method is that it can lead to misattribution. Delays and failures are inevitable in distributed systems, which may delay IP address change events from reaching FlowCollector. For instance, an IP address may initially be assigned to workload X but later reassigned to workload Y. However, if the change event for this reassignment is delayed, FlowCollector will continue to assume that the IP address belongs to workload X, resulting in misattributed flows. Additionally, event timestamps may be inaccurate depending on how they are captured.

Misattribution rendered the flow data unreliable for decision-making. Users often depend on flow logs to validate workload dependencies, but misattribution creates confusion. Without expert knowledge of expected dependencies, users would struggle to identify or confirm misattribution. Moreover, misattribution occurred frequently for critical services with a large footprint due to frequent IP address changes. Overall, misattribution makes fleet-wide dependency analysis impractical.

As a workaround, we made FlowCollector hold received flows for 15 minutes before attribution, allowing time for delayed IP address change events. While this approach reduced misattribution, it did not eliminate it. Moreover, the waiting period made the data less fresh, reducing its utility for real-time analysis.

Fully eliminating misattribution is crucial because it only takes a single misattributed flow to produce an incorrect workload dependency. Solving this problem required a complete rethinking of our approach. Over the past year, Netflix developed a new attribution method that has finally eliminated misattribution, as detailed in the rest of this post.

Attributing Local IP Addresses

Each socket has two IP addresses: a local IP address and a remote IP address. Previously, we used the same method to attribute both. However, attributing the local IP address should be a simpler task since the local IP address belongs to the instance where FlowExporter captures the socket. Therefore, FlowExporter should determine the local workload identity from its environment and attribute the local IP address before sending the flow to FlowCollector.

This is straightforward for workloads running directly on EC2 instances, as Netflix’s Metatron provisions workload identity certificates to each EC2 instance at boot time. FlowExporter can simply read these certificates from the local disk to determine the local workload identity.

Attributing local IP addresses for container workloads running on Netflix’s container platform, Titus, is more challenging. FlowExporter runs at the container host level, where each host manages multiple container workloads with different identities. When FlowExporter’s eBPF programs receive a socket event from TCP tracepoints in the kernel, the socket may have been created by one of the container workloads or by the host itself. Therefore, FlowExporter must determine which workload to attribute the socket’s local IP address to. To solve this problem, we leveraged IPMan, Netflix’s container IP address assignment service. IPManAgent, a daemon running on every container host, is responsible for assigning and unassigning IP addresses. As container workloads are launched, IPManAgent writes an IP-address-to-workload-ID mapping to an eBPF map, which FlowExporter’s eBPF programs can then use to look up the workload ID associated with a socket local IP address.

Another challenge was to accommodate Netflix’s IPv6 to IPv4 translation mechanism on Titus. To facilitate IPv6 migration, Netflix developed a mechanism that enables IPv6-only containers to communicate with IPv4 destinations without incurring NAT64 overhead. This mechanism intercepts connect syscalls and replaces the underlying socket with one that uses a shared IPv4 address assigned to the container host. This confuses FlowExporter because the kernel reports the same local IPv4 address for sockets created by different container workloads. To disambiguate, local port information is additionally required. We modified Titus to write a mapping of (local IPv4 address, local port) to the workload ID into an eBPF map whenever a connect syscall is intercepted. FlowExporter’s eBPF programs then use this map to correctly attribute sockets created by the translation mechanism.

With these problems solved, we can now accurately attribute the local IP address of every flow.

Attributing Remote IP Addresses

Once the local IP address attribution problem is solved, accurately attributing remote IP addresses becomes feasible. Now, each flow reported by FlowExporter includes the local IP address, the local workload identity, and connection start/end timestamps. As FlowCollector receives these flows, it can learn the time ranges during which each workload owns a given IP address. For instance, if FlowCollector sees a flow with local IP address 10.0.0.1 associated with workload X that starts at t1 and ends at t2, it can deduce that 10.0.0.1 belonged to workload X from t1 to t2. Since Netflix uses Amazon Time Sync across its fleet, the timestamps (captured by FlowExporter) are reliable.

The FlowCollector service cluster consists of many nodes. Every node must be capable of attributing arbitrary remote IP addresses and, therefore, requires knowledge of all workload IP addresses and their recent ownership records. To represent this knowledge, each node maintains an in-memory hashmap that maps an IP address to a list of time ranges, as illustrated by the following Go structs:

type IPAddressTracker struct {
    ipToTimeRanges map[netip.Addr]timeRanges
}type timeRanges []timeRangetype timeRange struct {
    workloadID   string
    start        time.Time
    end          time.Time
}

To populate the hashmap, FlowCollector extracts the local IP address, local workload identity, start time, and end time from each received flow and creates/extends the corresponding time ranges in the map. The time ranges for each IP address are sorted in ascending order, and they are non-overlapping since an IP address cannot belong to two different workloads simultaneously.

Since each flow is only sent to one FlowCollector node, each node must share the time ranges it learned from received flows with other nodes. We implemented a broadcasting mechanism using Kafka, where each node publishes learned time ranges to all other nodes. Although more efficient broadcasting implementations exist, the Kafka-based approach is simple and has worked well for us.

Now, FlowCollector can attribute remote IP addresses by looking them up in the populated map, which returns a list of time ranges. It then uses the flow’s start timestamp to determine the corresponding time range and associated workload identity. If the start time does not fall within any time range, FlowCollector will retry after a delay, eventually giving up if the retry fails. Such failures may occur when flows are lost or broadcast messages are delayed. For our use cases, it is acceptable to leave a small percentage of flows unattributed, but any misattribution is unacceptable.

This new method achieves accurate attribution thanks to the continuous heartbeats, each associated with a reliable time range of IP address ownership. It handles transient issues gracefully — a few delayed or lost heartbeats do not lead to misattribution. In contrast, the previous method relied solely on discrete IP address assignment and unassignment events. Lacking heartbeats, it had to presume an IP address remained assigned until notified otherwise (which can be hours or days later), making it vulnerable to misattribution when the notifications were delayed.

One detail is that when FlowCollector receives a flow, it cannot attribute its remote IP address right away because it requires the latest observed time ranges for the remote IP address. Since FlowExporter reports flows in batches every minute, FlowCollector must wait until it receives the flow batch from the remote workload FlowExporter for the last minute, which may not have arrived yet. To address this, FlowCollector temporarily stores received flows on disk for one minute before attributing their remote IP addresses. This introduces a 1-minute delay, but it is much shorter than the 15-minute delay with the previous approach.

In addition to producing accurate attribution, the new method is also cost-effective thanks to its simplicity and in-memory lookups. Because the in-memory state can be quickly rebuilt when a FlowCollector node starts up, no persistent storage is required. With 30 c7i.2xlarge instances, we can process 5 million flows per second across the entire Netflix fleet.

Attributing Cross-Regional IP Addresses

For simplicity, we have so far glossed over one topic: regionalization. Netflix’s cloud microservices operate across multiple AWS regions. To optimize flow reporting and minimize cross-regional traffic, a FlowCollector cluster runs in each major region, and FlowExporter agents send flows to their corresponding regional FlowCollector. When FlowCollector receives a flow, its local IP address is guaranteed to be within the region.

To minimize cross-region traffic, the broadcasting mechanism is limited to FlowCollector nodes within the same region. Consequently, the IP address time ranges map contains only IP addresses from that region. However, cross-regional flows have a remote IP address in a different region. To attribute these flows, the receiving FlowCollector node forwards them to nodes in the corresponding region. FlowCollector determines the region for a remote IP address by looking up a trie built from all Netflix VPC CIDRs. This approach is more efficient than broadcasting IP address time range updates across all regions, as only 1% of Netflix flows are cross-regional.

Attributing Non-Workload IP Addresses

So far, FlowCollector can accurately attribute IP addresses belonging to Netflix’s cloud workloads. However, not all flow IP addresses fall into this category. For instance, a significant portion of flows goes through AWS ELBs. For these flows, their remote IP addresses are associated with the ELBs, where we cannot run FlowExporter. Consequently, FlowCollector cannot determine their identities by simply observing the received flows. To attribute these remote IP addresses, we continue to use IP address change events from Sonar, which crawls AWS resources to detect changes in IP address assignments. Although this data stream may contain inaccurate timestamps and be delayed, misattribution is not a main concern since ELB IP address reassignment occurs very infrequently.

Verifying Correctness

Verifying that the new method has eliminated misattribution is challenging due to the lack of a definitive source of truth for workload dependencies to validate flow logs against; the flow logs themselves are intended to serve as this source of truth, after all. To build confidence, we analyzed the flow logs of a large service with well-understood dependencies. A large footprint is necessary, as misattribution is more prevalent in services with numerous instances, and there must be a reliable method to determine the dependencies for this service without relying on flow logs.

Netflix’s cloud gateway, Zuul, served this purpose perfectly due to its extensive footprint (handling all cloud ingress traffic), its large number of downstream dependencies, and our ability to derive its dependencies from its routing configurations as the source of truth for comparison with flow logs. We found no misattribution for flows through Zuul over a two-week window. This provided strong confidence that the new attribution method has eliminated misattribution. In the previous approach, approximately 40% of Zuul’s dependencies reported by the flow logs were misattributed.

Conclusion

With misattribution solved, eBPF flow logs now deliver dependable, fleet-wide insights into Netflix’s service topology and network health. This advancement unlocks numerous exciting opportunities in areas such as service dependency auditing, security analysis, and incident triage, while helping Netflix engineers develop a better understanding of our ever-evolving distributed systems.

Acknowledgments

We would like to thank Martin Dubcovsky, Joanne Koong, Taras Roshko, Nabil Schear, Jacob Meyers, Parsha Pourkhomami, Hechao Li, Donavan Fritz, Rob Gulewich, Amanda Li, John Salem, Hariharan Ananthakrishnan, Keerti Lakshminarayan, and other stunning colleagues for their feedback, inspiration, and contributions to the success of this effort.

Jesse Korosi,Thijs van de Kamp, Mayra Vega,Laura Futuro,Anton Margoline

The journey from script to screen is full of challenges in the ever-evolving world of film and television. The industry has always innovated, and over the last decade, it started moving towards cloud-based workflows. However, unlocking cloud innovation and all its benefits on a global scale has proven to be difficult. The opportunity is clear: streamline complex media management logistics, eliminate tedious, non-creative task-based work and enable productions to focus on what matters most–creative storytelling. With these challenges in mind, Netflix has developed a suite of tools by filmmakers for filmmakers: the Media Production Suite (MPS).

What are we solving for?

Significant time and resources are devoted to managing media logistics throughout the production lifecycle. An average Netflix title produces around ~200 Terabytes of Original Camera Files (OCF), with outliers up to 700 Terabytes, not including any work-in-progress files, VFX assets, 3D assets, etc. The data produced on set is traditionally copied to physical tape stock like LTO. This workflow has been considered the industry norm for a long time and may be cost-effective, but comes with trade-offs. Aside from needing to physically ship and track all movement of the tape stock, storing media on a physical tape makes it harder to search, play and share media assets; slowing down accessibility to production media when needed, especially when titles need to collaborate with talent and vendors all over the world.

Even when workflows are fully digital, the distribution of media between multiple departments and vendors can still be challenging. A lack of automation and standardization often results in a labour-intensive process across post-production and VFX with a lot of dependencies that introduce potential human errors and security risks. Many productions utilize a large variety of vendors, making this collaboration a large technical puzzle. As file sizes grow and workflows become more complex, these issues are magnified, leading to inefficiencies that slow down post-production and reduce the available time spent on creative work.

Moving media into the cloud introduces new challenges for production and post ramping up to meet the operational and technological hurdles this poses. For some post-production facilities, it’s not uncommon to see a wall of portable hard drives at their facility, with media being hand-carried between vendors because alternatives are not available. The need for a centralized, cloud-based solution that transcends these barriers is more pressing than ever. This results in a willingness to embrace new and innovative ideas, even if exploratory, and introduce drastic workflow changes to productions in pursuit of creative evolution.

At Netflix, we believe that great stories can come from anywhere, but we have seen that technical limitations in traditional workflows reduce access to media and restrict filmmakers’ access to talent. Besides the need for robust cloud storage for their media, artists need access to powerful workstations and real-time playback. Depending on the market, or production budget, cutting-edge technology might not be available or affordable.

What if we started charting a course to break free from many of these technical limitations and found ways to enhance creativity? Industry trade shows like the International Broadcast Convention (IBC) and the National Association of Broadcasters Show (NAB) highlight a strong global trend: instead of bringing media to the artist/applications (traditional workflow) we see the shift towards bringing people and applications to the media (cloud workflows and remote workstations). The concept of cloud-based workflows is not new, as many technology leaders in our industry have been experimenting in this space for more than a decade. However, executing this vision at a Netflix scale with hundreds of titles a year has not been done before…

The challenge of building a global technology to solve this

Building solutions at a global scale poses significant challenges. The art of making movies and series lacks equal access to technology, best practices, and global standardization. Different countries worldwide are at different phases of innovation based on local needs and nuances. While some regions boast over a century of cinematic history and have a strong industry, others are just beginning to carve their niche. This vast gap presents a unique challenge: developing global technology that caters to both established and emerging markets, each with distinct languages and workflows.

The large diversity of needs by talent and vendors globally creates a standardization challenge and can be seen when productions use a global talent pool. Many mature post-production and VFX facilities have built scripts and automation that flow between various artists and personnel within their facility; allowing a more streamlined workflow, even though the customization is time-consuming. E.g., Transcoding, or transcriptions that automatically run when files are dropped in a hot folder, with the expectation that certain sidecar metadata files will accompany them with a specific organizational structure. Embracing and integrating new workflows introduces the fear of disrupting a well-established process, increasing additional pressure on the profit margins of vendors. Small workflow changes that may seem arbitrary may actually have a large impact on vendors. Therefore, innovation should provide meaningful benefits to a title in order to get adopted at scale. Reliability, a proven track record, strong support, and an incredibly low tolerance for bugs, or issues are top of mind in well-established markets.

In developing this suite, we recognized the necessity of addressing the vast array of titles that flow through Netflix without the luxury of expanding into a massive operational entity. Consequently, automation became imperative. The intricacies of color and framing management, along with deliverables, must be seamlessly controlled and effortlessly managed by the user, without the need for manual intervention. Therefore, we cannot lean into humans configuring JSON files behind the scenes to map camera formats into deliverables. By embracing open standards, we not only streamline these processes but also facilitate smoother collaboration across diverse markets and countries, ensuring that our global productions can operate with unparalleled efficiency and cohesion. To ensure this, we’ve decided to lean heavily into standards like ACES, AMF, ASC MHL, ASC FDL, and OTIO. ACES and AMF for color pipeline management. ASC MHL for any file management/verifications. ASC FDL will serve as our framing interoperability and OTIO for any timeline interchange. Leaning into standards like this means that many things can be automated at scale and more importantly, high-complexity workflows can be offered to markets or shows that don’t normally have access to them. As an example, if a show is shot on various camera formats all framed and recorded at different resolutions, with different lenses and different safeties on each frame. The task of normalizing all of these for a VFX vendor into one common container with a normalized center extracted frame is often only offered to very high-end titles, considering it takes a human behind the curtain to create all of these mappings. But by leaning into a standard like the FDL, it means this can now easily be automated, and the control for these mappings, put directly in the hands of users.

Our Answer — Content Hub’s Media Production Suite (MPS)

Building a global scalable solution that could be utilized in a diversity of markets has been an exciting challenge. We set out to provide customizable and feature-rich tooling for advanced users while remaining intuitive and streamlined enough for less experienced filmmakers. With collaboration from Netflix teams, vendors, and talent across the globe, we’ve taken a bold step forward in enabling a suite of tools inside Netflix Content Hub that democratizes technology: the Media Production Suite. While leveraging our scale economies and access to resources, we can now unlock global talent pools for our productions, drastically reduce non-creative task-based work, streamline workflows, and level the playing field between our markets, ultimately maximizing the time available for what matters most; creative work!

So what is it?

1. Netflix Hybrid Infrastructure: Netflix has invested in a hybrid infrastructure, a mix of cloud-based and physically distributed capabilities operating in multiple locations across the world and close to our productions to optimize user performance. This infrastructure is available for Netflix shows and is foundational under Content Hub’s Media Production Suite tooling. Local storage and compute services are connected through the Netflix Open Connect network (Netflix Content Delivery Network) to the infrastructure of Amazon Web Services (AWS). The system facilitates large volumes of camera and sound media and is built for speed. In order to ensure that productions have sufficient upload speeds to get their media into the cloud, Netflix has started to roll out Content Hub Ingest Centers globally to provide high-speed internet connectivity where required. With all media centralized, MPS eliminates the need for physical media transport and reduces the risk of human error. This approach not only streamlines operations but also enhances security and accessibility.

2. Automation and Tooling: In addition to the Netflix Hybrid infrastructure layer, MPS consists of a suite of tools that tap into the media in the Netflix ecosystem.

Footage Ingest — An application that allows users to upload media/files into Content Hub.

Media Library — A central library that allows users to search, preview, share and download media.

Dailies — A workflow, backed by an operational team, offering automated Quality Control of your footage, sound sync, application of color, rendering, and delivering dailies directly to editorial.

Remote Workstations — Offering access to remote editorial workstations and storage for post-production needs.

VFX Pulls — An automated method for converting and delivering visual effects plates, associated color, and framing files to VFX vendors.

Conform Pulls — An automated method for consolidating, trimming, and delivering all OCF to picture-finishing vendors.

Media Downloader — An automated download tool that initiates a download once media has been made available in the Netflix cloud.

While each of the individual tools within MPS is at different states of maturity, over 350 titles have made use of at least one of the tools noted above. Input has been taken from all over the world while developing, with users ranging from UCAN (United States/Canada), EMEA (Europe, Middle East, and Africa), SEA (South East Asia), LATAM (Latin America), and APAC (Asia Pacific).

Senna: Early Adoption and Insightful Feedback Driving MPS Evolution

The Brazilian-produced series Senna, which follows the life of legendary Formula 1 driver Ayrton Senna, utilized MPS to reshape their content creation workflow, overcome geographical barriers, and unlock innovation to support world-class storytelling for a global audience. Senna is a groundbreaking series, not just for its storytelling but for its production journey across Argentina, Uruguay, Brazil, and the United Kingdom. With editorial teams spread across Porto Alegre and Spain, and VFX studios collaborating across locations in Brazil, Canada, the United States, and India, all orchestrated by our subsidiary Scanline VFX. The series exemplifies the global nature of modern filmmaking and was the perfect fit for Netflix’s new Content Hub Media Production Suite (MPS).

At the heart of Senna’s workflow orchestration is MPS. While each of the tools within MPS is based on an opt-in model, in order to use many of the downstream services, the first step is ensuring that the original camera files (OCF) and original sound files (OSF) are uploaded. “We knew we were going to shoot in different places,” said Post Supervisor Gabriel Queiroz,“to have all this material cloud-based, it’s definitely one of the most important things for us. It would be hard to bring all this media physically from Argentina or wherever to Brazil. It will take us a lot of time.” With Senna shooting across locations, allowing production the capability of uploading their OCF and OSF resulted in no longer requiring shuttling hard drives on airplanes, creating LTO tapes, & managing physical shipments for their negative. And yes, you read that correctly; when utilizing MPS, we don’t require LTO tapes to be written unless there are title-specific needs.

With Senna beginning production back in June of 2023, our investment in MPS was still very early stages, and the tooling was considered beta. However, with the help, feedback, and partnership from this production, it was quickly realized that the investment was worth doubling down on. Since the early version used on Senna, Netflix has been spinning up ingest centers around the world, where drives can be dropped off, and within a matter of hours, all original camera files are uploaded into the Netflix ecosystem. While creating the ability to upload is not a novel concept, behind the scenes, it’s far from simple. Once a drive has been plugged in and our Netflix Footage Ingest application is opened, a validation is run, ensuring all expected media from set is on the drive. After media has been uploaded and checksums are run validating media integrity, all media is inspected, metadata is extracted, and assets are created for viewing/sharing/downloading with playable proxies. All media is then automatically backed up to a second tier of cloud-based storage for the final archive.

Traditionally, if you wanted to check in with your post vendor on how things are going for each of these media management steps noted above, or whether or not you can clear on set camera cards if you haven’t gotten a completion notification, you would have to pick up the phone and call your vendor. For Senna, anyone who wanted visibility on progress, simply logged in to Content Hub and could see any activity in the Footage Ingest dashboard, as well as look up any information needed on past uploads.

While many services in MPS are available once media has been uploaded, Senna’s use of MPS focused on VFX. With Senna shooting a high volume of footage and the show having a high volume of VFX shots, according to Post Supervisor Gabriel Queiroz “Using MPS was basically a no-brainer, [having] used the tool before, I knew what it could bring to the project. And to be honest, with the amount of footage that we have, it was just so much material and with the amount of vendors we have, knowing that we would have to deliver all this footage to all these kinds of vendors, including outside of Brazil and to different parts of the world.”

With a traditional workflow, utilizing available resources in Latin America, VFX Pulls would have been done manually. This process is prone to human error and more importantly, for a show like Senna, too slow and would have resulted in different I/O methods for every vendor.

By utilizing MPS, the Assistant Editor was able to log into Content Hub, upload an EDL, and have their VFX Pulls automatically transcoded, color files consolidated and all media placed into a Google Drive style folder built directly in Content Hub (called Workspaces). The VFX Editor was able to make any additional tweaks they wanted to the directory before farming out each of the shots to whichever vendor they were meant for. When it came time for the VFX vendors to then send shots back to editorial or DI, this was also done through MPS. Having one standard method for I/O for all VFX file sharing meant that Editorial and DI did not have to manage a different file transfer/workflow for every single vendor that was onboarded.

After picture was locked and it was time for Senna to do their Online, the DI facility Quanta was able to utilize the Conform Pull service within MPS. The Conform Pull service allowed their team to upload an EDL, which ran a QC on all of the media from within their edit to ensure a smooth conform and then consolidated, trimmed, and packaged up all of the media they needed for the online. Since this early beta and thanks to learnings from many shows like Senna, advancements have been made in the system’s ability to match back to source media for both Conform and VFX Pulls. Rather than requiring an exact match between EDL and source OCF, there are several variations of fuzzy matching that can take place, as well as a current investigation in using one of our perceptual matching algorithms, allowing for a perceptual conform using computer vision, instead of solely relying on metadata.

Conclusion

The Media Production Suite (MPS) represents a transformative leap in how we approach media production at Netflix. By embracing open standards, we have crafted a scalable solution that not only makes economic sense but also democratizes access to advanced production tools across the globe. This approach allows us to eliminate tedious tasks, enabling our teams to focus on what truly matters: creative storytelling. By fostering global collaboration and leveraging the power of cloud-based workflows, we’re not just enhancing efficiency but also elevating the quality of our productions. As we continue to innovate and refine our processes, we remain committed to breaking down barriers and unlocking the full potential of creative talent worldwide. The future of filmmaking is here, and with MPS, we are leading the charge toward a more connected and creatively empowered industry.

By Ko-Jen Hsiao, Yesu Feng and Sudarshan Lamkhede

Motivation

Netflix’s personalized recommender system is a complex system, boasting a variety of specialized machine learned models each catering to distinct needs including “Continue Watching” and “Today’s Top Picks for You.” (Refer to our recent overview for more details). However, as we expanded our set of personalization algorithms to meet increasing business needs, maintenance of the recommender system became quite costly. Furthermore, it was difficult to transfer innovations from one model to another, given that most are independently trained despite using common data sources. This scenario underscored the need for a new recommender system architecture where member preference learning is centralized, enhancing accessibility and utility across different models.

Particularly, these models predominantly extract features from members’ recent interaction histories on the platform. Yet, many are confined to a brief temporal window due to constraints in serving latency or training costs. This limitation has inspired us to develop a foundation model for recommendation. This model aims to assimilate information both from members’ comprehensive interaction histories and our content at a very large scale. It facilitates the distribution of these learnings to other models, either through shared model weights for fine tuning or directly through embeddings.

The impetus for constructing a foundational recommendation model is based on the paradigm shift in natural language processing (NLP) to large language models (LLMs). In NLP, the trend is moving away from numerous small, specialized models towards a single, large language model that can perform a variety of tasks either directly or with minimal fine-tuning. Key insights from this shift include:

1. A Data-Centric Approach: Shifting focus from model-centric strategies, which heavily rely on feature engineering, to a data-centric one. This approach prioritizes the accumulation of large-scale, high-quality data and, where feasible, aims for end-to-end learning.
2. Leveraging Semi-Supervised Learning: The next-token prediction objective in LLMs has proven remarkably effective. It enables large-scale semi-supervised learning using unlabeled data while also equipping the model with a surprisingly deep understanding of world knowledge.

These insights have shaped the design of our foundation model, enabling a transition from maintaining numerous small, specialized models to building a scalable, efficient system. By scaling up semi-supervised training data and model parameters, we aim to develop a model that not only meets current needs but also adapts dynamically to evolving demands, ensuring sustainable innovation and resource efficiency.

Data

At Netflix, user engagement spans a wide spectrum, from casual browsing to committed movie watching. With over 300 million users at the end of 2024, this translates into hundreds of billions of interactions — an immense dataset comparable in scale to the token volume of large language models (LLMs). However, as in LLMs, the quality of data often outweighs its sheer volume. To harness this data effectively, we employ a process of interaction tokenization, ensuring meaningful events are identified and redundancies are minimized.

Tokenizing User Interactions: Not all raw user actions contribute equally to understanding preferences. Tokenization helps define what constitutes a meaningful “token” in a sequence. Drawing an analogy to Byte Pair Encoding (BPE) in NLP, we can think of tokenization as merging adjacent actions to form new, higher-level tokens. However, unlike language tokenization, creating these new tokens requires careful consideration of what information to retain. For instance, the total watch duration might need to be summed or engagement types aggregated to preserve critical details.

This tradeoff between granular data and sequence compression is akin to the balance in LLMs between vocabulary size and context window. In our case, the goal is to balance the length of interaction history against the level of detail retained in individual tokens. Overly lossy tokenization risks losing valuable signals, while too granular a sequence can exceed practical limits on processing time and memory.

Even with such strategies, interaction histories from active users can span thousands of events, exceeding the capacity of transformer models with standard self attention layers. In recommendation systems, context windows during inference are often limited to hundreds of events — not due to model capability but because these services typically require millisecond-level latency. This constraint is more stringent than what is typical in LLM applications, where longer inference times (seconds) are more tolerable.

To address this during training, we implement two key solutions:

1. Sparse Attention Mechanisms: By leveraging sparse attention techniques such as low-rank compression, the model can extend its context window to several hundred events while maintaining computational efficiency. This enables it to process more extensive interaction histories and derive richer insights into long-term preferences.
2. Sliding Window Sampling: During training, we sample overlapping windows of interactions from the full sequence. This ensures the model is exposed to different segments of the user’s history over multiple epochs, allowing it to learn from the entire sequence without requiring an impractically large context window.

At inference time, when multi-step decoding is needed, we can deploy KV caching to efficiently reuse past computations and maintain low latency.

These approaches collectively allow us to balance the need for detailed, long-term interaction modeling with the practical constraints of model training and inference, enhancing both the precision and scalability of our recommendation system.

Information in Each ‘Token’: While the first part of our tokenization process focuses on structuring sequences of interactions, the next critical step is defining the rich information contained within each token. Unlike LLMs, which typically rely on a single embedding space to represent input tokens, our interaction events are packed with heterogeneous details. These include attributes of the action itself (such as locale, time, duration, and device type) as well as information about the content (such as item ID and metadata like genre and release country). Most of these features, especially categorical ones, are directly embedded within the model, embracing an end-to-end learning approach. However, certain features require special attention. For example, timestamps need additional processing to capture both absolute and relative notions of time, with absolute time being particularly important for understanding time-sensitive behaviors.

To enhance prediction accuracy in sequential recommendation systems, we organize token features into two categories:

1. Request-Time Features: These are features available at the moment of prediction, such as log-in time, device, or location.
2. Post-Action Features: These are details available after an interaction has occurred, such as the specific show interacted with or the duration of the interaction.

To predict the next interaction, we combine request-time features from the current step with post-action features from the previous step. This blending of contextual and historical information ensures each token in the sequence carries a comprehensive representation, capturing both the immediate context and user behavior patterns over time.

Considerations for Model Objective and Architecture

As previously mentioned, our default approach employs the autoregressive next-token prediction objective, similar to GPT. This strategy effectively leverages the vast scale of unlabeled user interaction data. The adoption of this objective in recommendation systems has shown multiple successes [1–3]. However, given the distinct differences between language tasks and recommendation tasks, we have made several critical modifications to the objective.

Firstly, during the pretraining phase of typical LLMs, such as GPT, every target token is generally treated with equal weight. In contrast, in our model, not all user interactions are of equal importance. For instance, a 5-minute trailer play should not carry the same weight as a 2-hour full movie watch. A greater challenge arises when trying to align long-term user satisfaction with specific interactions and recommendations. To address this, we can adopt a multi-token prediction objective during training, where the model predicts the next n tokens at each step instead of a single token[4]. This approach encourages the model to capture longer-term dependencies and avoid myopic predictions focused solely on immediate next events.

Secondly, we can use multiple fields in our input data as auxiliary prediction objectives in addition to predicting the next item ID, which remains the primary target. For example, we can derive genres from the items in the original sequence and use this genre sequence as an auxiliary target. This approach serves several purposes: it acts as a regularizer to reduce overfitting on noisy item ID predictions, provides additional insights into user intentions or long-term genre preferences, and, when structured hierarchically, can improve the accuracy of predicting the target item ID. By first predicting auxiliary targets, such as genre or original language, the model effectively narrows down the candidate list, simplifying subsequent item ID prediction.

Unique Challenges for Recommendation FM

In addition to the infrastructure challenges posed by training bigger models with substantial amounts of user interaction data that are common when trying to build foundation models, there are several unique hurdles specific to recommendations to make them viable. One of unique challenges is entity cold-starting.

At Netflix, our mission is to entertain the world. New titles are added to the catalog frequently. Therefore the recommendation foundation models require a cold start capability, which means the models need to estimate members’ preferences for newly launched titles before anyone has engaged with them. To enable this, our foundation model training framework is built with the following two capabilities: Incremental training and being able to do inference with unseen entities.

1. Incremental training : Foundation models are trained on extensive datasets, including every member’s history of plays and actions, making frequent retraining impractical. However, our catalog and member preferences continually evolve. Unlike large language models, which can be incrementally trained with stable token vocabularies, our recommendation models require new embeddings for new titles, necessitating expanded embedding layers and output components. To address this, we warm-start new models by reusing parameters from previous models and initializing new parameters for new titles. For example, new title embeddings can be initialized by adding slight random noise to existing average embeddings or by using a weighted combination of similar titles’ embeddings based on metadata. This approach allows new titles to start with relevant embeddings, facilitating faster fine-tuning. In practice, the initialization method becomes less critical when more member interaction data is used for fine-tuning.
2. Dealing with unseen entities : Even with incremental training, it’s not always guaranteed to learn efficiently on new entities (ex: newly launched titles). It’s also possible that there will be some new entities that are not included/seen in the training data even if we fine-tune foundation models on a frequent basis. Therefore, it’s also important to let foundation models use metadata information of entities and inputs, not just member interaction data. Thus, our foundation model combines both learnable item id embeddings and learnable embeddings from metadata. The following diagram demonstrates this idea.

To create the final title embedding, we combine this metadata-based embedding with a fully-learnable ID-based embedding using a mixing layer. Instead of simply summing these embeddings, we use an attention mechanism based on the “age” of the entity. This approach allows new titles with limited interaction data to rely more on metadata, while established titles can depend more on ID-based embeddings. Since titles with similar metadata can have different user engagement, their embeddings should reflect these differences. Introducing some randomness during training encourages the model to learn from metadata rather than relying solely on ID embeddings. This method ensures that newly-launched or pre-launch titles have reasonable embeddings even with no user interaction data.

Downstream Applications and Challenges

Our recommendation foundation model is designed to understand long-term member preferences and can be utilized in various ways by downstream applications:

1. Direct Use as a Predictive Model The model is primarily trained to predict the next entity a user will interact with. It includes multiple predictor heads for different tasks, such as forecasting member preferences for various genres. These can be directly applied to meet diverse business needs..
2. Utilizing embeddings The model generates valuable embeddings for members and entities like videos, games, and genres. These embeddings are calculated in batch jobs and stored for use in both offline and online applications. They can serve as features in other models or be used for candidate generation, such as retrieving appealing titles for a user. High-quality title embeddings also support title-to-title recommendations. However, one important consideration is that the embedding space has arbitrary, uninterpretable dimensions and is incompatible across different model training runs. This poses challenges for downstream consumers, who must adapt to each retraining and redeployment, risking bugs due to invalidated assumptions about the embedding structure. To address this, we apply an orthogonal low-rank transformation to stabilize the user/item embedding space, ensuring consistent meaning of embedding dimensions, even as the base foundation model is retrained and redeployed.
3. Fine-Tuning with Specific Data The model’s adaptability allows for fine-tuning with application-specific data. Users can integrate the full model or subgraphs into their own models, fine-tuning them with less data and computational power. This approach achieves performance comparable to previous models, despite the initial foundation model requiring significant resources.

Scaling Foundation Models for Netflix Recommendations

In scaling up our foundation model for Netflix recommendations, we draw inspiration from the success of large language models (LLMs). Just as LLMs have demonstrated the power of scaling in improving performance, we find that scaling is crucial for enhancing generative recommendation tasks. Successful scaling demands robust evaluation, efficient training algorithms, and substantial computing resources. Evaluation must effectively differentiate model performance and identify areas for improvement. Scaling involves data, model, and context scaling, incorporating user engagement, external reviews, multimedia assets, and high-quality embeddings. Our experiments confirm that the scaling law also applies to our foundation model, with consistent improvements observed as we increase data and model size.

Conclusion

In conclusion, our Foundation Model for Personalized Recommendation represents a significant step towards creating a unified, data-centric system that leverages large-scale data to increase the quality of recommendations for our members. This approach borrows insights from Large Language Models (LLMs), particularly the principles of semi-supervised learning and end-to-end training, aiming to harness the vast scale of unlabeled user interaction data. Addressing unique challenges, like cold start and presentation bias, the model also acknowledges the distinct differences between language tasks and recommendation. The Foundation Model allows various downstream applications, from direct use as a predictive model to generate user and entity embeddings for other applications, and can be fine-tuned for specific canvases. We see promising results from downstream integrations. This move from multiple specialized models to a more comprehensive system marks an exciting development in the field of personalized recommendation systems.

Acknowledgements

Contributors to this work (name in alphabetical order): Ai-Lei Sun Aish Fenton Anne Cocos Anuj Shah Arash Aghevli Baolin Li Bowei Yan Dan Zheng Dawen Liang Ding Tong Divya Gadde Emma Kong Gary Yeh Inbar Naor Jin Wang Justin Basilico Kabir Nagrecha Kevin Zielnicki Linas Baltrunas Lingyi Liu Luke Wang Matan Appelbaum Michael Tu Moumita Bhattacharya Pablo Delgado Qiuling Xu Rakesh Komuravelli Raveesh Bhalla Rob Story Roger Menezes Sejoon Oh Shahrzad Naseri Swanand Joshi Trung Nguyen Vito Ostuni Wei Wang Zhe Zhang

Reference

1. C. K. Kang and J. McAuley, “Self-Attentive Sequential Recommendation,” 2018 IEEE International Conference on Data Mining (ICDM), Singapore, 2018, pp. 197–206, doi: 10.1109/ICDM.2018.00035.
2. F. Sun et al., “BERT4Rec: Sequential Recommendation with Bidirectional Encoder Representations from Transformer,” Proceedings of the 28th ACM International Conference on Information and Knowledge Management (CIKM ‘19), Beijing, China, 2019, pp. 1441–1450, doi: 10.1145/3357384.3357895.
3. J. Zhai et al., “Actions Speak Louder than Words: Trillion-Parameter Sequential Transducers for Generative Recommendations,” arXiv preprint arXiv:2402.17152, 2024.
4. F. Gloeckle, B. Youbi Idrissi, B. Rozière, D. Lopez-Paz, and G. Synnaeve, “Better & Faster Large Language Models via Multi-token Prediction,” arXiv preprint arXiv:2404.19737, Apr. 2024.

Roger Quero, Liwei Guo, Jeff Watts, Joseph McCormick, Agata Opalach, Anush Moorthy

We are excited to announce that we are now streaming HDR10+ content on our service for AV1-enabled devices, enhancing the viewing experience for certified HDR10+ devices, which previously only received HDR10 content. The dynamic metadata included in our HDR10+ content improves the quality and accuracy of the picture when viewed on these devices.

Delighting Members with Even Better Picture Quality

Nearly a decade ago, we made a bold move to be a pioneering adopter of High Dynamic Range (HDR) technology. HDR enables images to have more details, vivid colors, and improved realism. We began producing our shows and movies in HDR, encoding them in HDR, and streaming them in HDR for our members. We were confident that it would greatly enhance our members’ viewing experience, and unlock new creative visions — and we were right! In the last five years, HDR streaming has increased by more than 300%, while the number of HDR-configured devices watching Netflix has more than doubled. Since launching HDR with season one of Marco Polo, Netflix now has over 11,000 hours of HDR titles for members to immerse themselves in.

We continue to enhance member joy while maintaining creative vision by adding support for HDR10+. This will further augment Netflix’s growing HDR ecosystem, preserve creative intent on even more devices, and provide a more immersive viewing experience.

We enabled HDR10+ on Netflix using the AV1 video codec that was standardized by the Alliance for Open Media (AOM) in 2018. AV1 is one of the most efficient codecs available today. We previously enabled AV1 encoding for SDR content, and saw tremendous value for our members, including higher and more consistent visual quality, lower play delay and increased streaming at the highest resolution. AV1-SDR is already the second most streamed codec at Netflix, behind H.264/AVC, which has been around for over 20 years! With the addition of HDR10+ streams to AV1, we expect the day is not far when AV1 will be the most streamed codec at Netflix.

To enhance our offering, we have been adding HDR10+ streams to both new releases and existing popular HDR titles. AV1-HDR10+ now accounts for 50% of all eligible viewing hours. We will continue expanding our HDR10+ offerings with the goal of providing an HDR10+ experience for all HDR titles by the end of this year¹.

Industry Adopted Formats

Today, the industry recognizes three prevalent HDR formats: Dolby Vision, HDR10, and HDR10+. For all three HDR Formats, metadata is embedded in the content, serving as instructions to guide the playback device — whether it’s a TV, mobile device, or computer — on how to display the image.

HDR10 is the most widely adopted HDR format, supported by all HDR devices. HDR10 uses static metadata that is defined once for the entire content detailing aspects such as the maximum content light level (MaxCLL), maximum frame average light level (MaxFALL), as well as characteristics of the mastering display used for color grading. This metadata only allows for a one-size-fits-all tone mapping of the content for display devices. It cannot account for dynamic contrast across scenes, which most content contains.

HDR10+ and Dolby Vision improve on this with dynamic metadata that provides content image statistics on a per-frame basis, enabling optimized tone mapping adjustments for each scene. This achieves greater perceptual fidelity to the original, preserving creative intent.

HDR10 vs. HDR10+

The figure below shows screen grabs of two AV1-encoded frames of the same content displayed using HDR10 (top) and HDR10+ (bottom).

Photographs of devices displaying the same frame with HDR10 metadata (top) and HDR10+ metadata (bottom). Notice the preservation of the flashlight detail in the HDR10+ capture, and the over-exposure of the region under the flashlight in the HDR10 one².

As seen in the flashlight on the table, the highlight details are clipped in the HDR10 content, but are recovered in HDR10+. Further, the region under the flashlight is overexposed in the HDR10 content, while HDR10+ renders that region with greater fidelity to the source. The reason HDR10+, with its dynamic metadata, shines in this example is that the scenes preceding and following the scene with this frame have markedly different luminance statistics. The static HDR10 metadata is unable to account for the change in the content. While this is a simple example, the dynamic metadata in HDR10+ demonstrates such value across any set of scenes. This consistency allows our members to stay immersed in the content, and better preserves creative intent.

Receiving HDR10+

At the time of launch, these requirements must be satisfied to receive HDR10+:

1.Member must have a Netflix Premium plan subscription

2. Title must be available in HDR10+ format

3. Member device must support AV1 & HDR10+. Here are some examples of compatible devices:

• SmartTVs, mobile phones, and tablets that meet Netflix certification for HDR10+
• Source device (such as set-top boxes, streaming devices, MVPDs, etc.) that meets Netflix certification for HDR10+, connected to an HDR10+ compliant display via HDMI

4. For TV or streaming devices, ensure that the HDR toggle is enabled in our Netflix application settings: https://help.netflix.com/en/node/100220

Additional guidance: https://help.netflix.com/en/node/13444

Summary

More HDR content is watched every day on Netflix. Expanding the Netflix HDR ecosystem to include HDR10+ increases the accessibility of HDR content with dynamic metadata to more members, improves the viewing experience, and preserves the creative intent of our content creators. The commitment to innovation and quality underscores our dedication to delivering an immersive and authentic viewing experience for all our members.

Acknowledgements

Launching HDR10+ was a collaborative effort involving multiple teams at Netflix, and we are grateful to everyone who contributed to making this idea a reality. We would like to extend our thanks to the following teams for their crucial roles in this launch:

• The various Client and Partner Engineering teams at Netflix that manage the Netflix experience across different device platforms.
  Special acknowledgments: Akshay Garg, Dasha Polyakova, Vivian Li, Ben Toofer, Allan Zhou, Artem Danylenko
• The Encoding Technologies team that is responsible for producing optimized encodings to enable high-quality experiences for our members. Special acknowledgments: Adithya Prakash, Vinicius Carvalho
• The Content Operations & Innovation teams responsible for producing and delivering HDR content to Netflix, maintaining the intent of creative vision from production to streaming. Special acknowledgements: Michael Keegan

Footnotes

1. While we have enabled HDR10+ for distribution i.e., for what our members consume on their devices, we continue to accept only Dolby Vision masters on the ingest side, i.e., for all content delivery to Netflix as per our delivery specification. In addition to HDR10+, we continue to serve HDR10 and DolbyVision. Our encoding pipeline is designed with flexibility and extensibility where all these HDR formats could be derived from a single DolbyVision deliverable efficiently at scale.
2. We recognize that it is hard to convey visual improvements in HDR video using still photographs converted to SDR. We encourage the reader to stream Netflix content in HDR10+ and check for yourself!

David J. Berg*, David Casler^, Romain Cledat*, Qian Huang*, Rui Lin*, Nissan Pow*, Nurcan Sonmez*, Shashank Srikanth*, Chaoying Wang*, Regina Wang*, Darin Yu*
*: Model Development Team, Machine Learning Platform
^: Content Demand Modeling Team

A month ago at QConSF, we showcased how Netflix utilizes Metaflow to power a diverse set of ML and AI use cases, managing thousands of unique Metaflow flows. This followed a previous blog on the same topic. Many of these projects are under constant development by dedicated teams with their own business goals and development best practices, such as the system that supports our content decision makers, or the system that ranks which language subtitles are most valuable for a specific piece of content.

As a central ML and AI platform team, our role is to empower our partner teams with tools that maximize their productivity and effectiveness, while adapting to their specific needs (not the other way around). This has been a guiding design principle with Metaflow since its inception.

Standing on the shoulders of our extensive cloud infrastructure, Metaflow facilitates easy access to data, compute, and production-grade workflow orchestration, as well as built-in best practices for common concerns such as collaboration, versioning, dependency management, and observability, which teams use to setup ML/AI experiments and systems that work for them. As a result, Metaflow users at Netflix have been able to run millions of experiments over the past few years without wasting time on low-level concerns.

A long standing FAQ: configurable flows

While Metaflow aims to be un-opinionated about some of the upper levels of the stack, some teams within Netflix have developed their own opinionated tooling. As part of Metaflow’s adaptation to their specific needs, we constantly try to understand what has been developed and, more importantly, what gaps these solutions are filling.

In some cases, we determine that the gap being addressed is very team specific, or too opinionated at too high a level in the stack, and we therefore decide to not develop it within Metaflow. In other cases, however, we realize that we can develop an underlying construct that aids in filling that gap. Note that even in that case, we do not always aim to completely fill the gap and instead focus on extracting a more general lower level concept that can be leveraged by that particular user but also by others. One such recurring pattern we noticed at Netflix is the need to deploy sets of closely related flows, often as part of a larger pipeline involving table creations, ETLs, and deployment jobs. Frequently, practitioners want to experiment with variants of these flows, testing new data, new parameterizations, or new algorithms, while keeping the overall structure of the flow or flows intact.

A natural solution is to make flows configurable using configuration files, so variants can be defined without changing the code. Thus far, there hasn’t been a built-in solution for configuring flows, so teams have built their bespoke solutions leveraging Metaflow’s JSON-typed Parameters, IncludeFile, and deploy-time Parameters or deploying their own home-grown solution (often with great pain). However, none of these solutions make it easy to configure all aspects of the flow’s behavior, decorators in particular.

Outside Netflix, we have seen similar frequently asked questions on the Metaflow community Slack as shown in the user quotes above:

• how can I adjust the @resource requirements, such as CPU or memory, without having to hardcode the values in my flows?
• how to adjust the triggering @schedule programmatically, so our production and staging deployments can run at different cadences?

New in Metaflow: Configs!

Today, to answer the FAQ, we introduce a new — small but mighty — feature in Metaflow: a Config object. Configs complement the existing Metaflow constructs of artifacts and Parameters, by allowing you to configure all aspects of the flow, decorators in particular, prior to any run starting. At the end of the day, artifacts, Parameters and Configs are all stored as artifacts by Metaflow but they differ in when they are persisted as shown in the diagram below:

Said another way:

• An artifact is resolved and persisted to the datastore at the end of each task.
• A parameter is resolved and persisted at the start of a run; it can therefore be modified up to that point. One common use case is to use triggers to pass values to a run right before executing. Parameters can only be used within your step code.
• A config is resolved and persisted when the flow is deployed. When using a scheduler such as Argo Workflows, deployment happens when create’ing the flow. In the case of a local run, “deployment” happens just prior to the execution of the run — think of “deployment” as gathering all that is needed to run the flow. Unlike parameters, configs can be used more widely in your flow code, particularly, they can be used in step or flow level decorators as well as to set defaults for parameters. Configs can of course also be used within your flow.

As an example, you can specify a Config that reads a pleasantly human-readable configuration file, formatted as TOML. The Config specifies a triggering ‘@schedule’ and ‘@resource’ requirements, as well as application-specific parameters for this specific deployment:

[schedule]
cron = "0 * * * *"[model]
optimizer = "adam"
learning_rate = 0.5[resources]
cpu = 1

Using the newly released Metaflow 2.13, you can configure a flow with a Config like above, as demonstrated by this flow:

import pprint
from metaflow import FlowSpec, step, Config, resources, config_expr, schedule@schedule(cron=config_expr("config.schedule.cron"))
class ConfigurableFlow(FlowSpec):
    config = Config("config", default="myconfig.toml", parser="tomllib.loads")@resources(cpu=config.resources.cpu)
    @step
    def start(self):
        print("Config loaded:")
        pprint.pp(self.config)
        self.next(self.end)@step
    def end(self):
        passif __name__ == "__main__":
    ConfigurableFlow()

There is a lot going on in the code above, a few highlights:

• you can refer to configs before they have been defined using ‘config_expr’.
• you can define arbitrary parsers — using a string means the parser doesn’t even have to be present remotely!

From the developer’s point of view, Configs behave like dictionary-like artifacts. For convenience, they support the dot-syntax (when possible) for accessing keys, making it easy to access values in a nested configuration. You can also unpack the whole Config (or a subtree of it) with Python’s standard dictionary unpacking syntax, ‘**config’. The standard dictionary subscript notation is also available.

Since Configs turn into dictionary artifacts, they get versioned and persisted automatically as artifacts. You can access Configs of any past runs easily through the Client API. As a result, your data, models, code, Parameters, Configs, and execution environments are all stored as a consistent bundle — neatly organized in Metaflow namespaces — paving the way for easily reproducible, consistent, low-boilerplate, and now easily configurable experiments and robust production deployments.

More than a humble config file

While you can get far by accompanying your flow with a simple config file (stored in your favorite format, thanks to user-definable parsers), Configs unlock a number of advanced use cases. Consider these examples from the updated documentation:

• You can choose the right level of runtime configurability versus fixed deployments by mixing Parameters and Configs. For instance, you can use a Config to define a default value for a parameter which can be overridden by a real-time event as a run is triggered.
• You can define a custom parser to validate the configuration, e.g. using the popular Pydantic library.
• You are not limited to using a single file: you can leverage a configuration manager like OmegaConf or Hydra to manage a hierarchy of cascading configuration files. You can also use a domain-specific tool for generating Configs, such as Netflix’s Metaboost which we cover below.
• You can also generate configurations on the fly, e.g. fetch Configs from an external service, or inspect the execution environment, such as the current GIT branch, and include it as an extra piece of context in runs.

A major benefit of Config over previous more hacky solutions for configuring flows is that they work seamlessly with other features of Metaflow: you can run steps remotely and deploy flows to production, even when relying on custom parsers, without having to worry about packaging Configs or parsers manually or keeping Configs consistent across tasks. Configs also work with the Runner and Deployer.

The Hollywood principle: don’t call us, we’ll call you

When used in conjunction with a configuration manager like Hydra, Configs enable a pattern that is highly relevant for ML and AI use cases: orchestrating experiments over multiple configurations or sweeping over parameter spaces. While Metaflow has always supported sweeping over parameter grids easily using foreaches, it hasn’t been easily possible to alter the flow itself, e.g. to change @resources or @pypi/@conda dependencies for every experiment.

In a typical case, you trigger a Metaflow flow that consumes a configuration file, changing how a run behaves. With Hydra, you can invert the control: it is Hydra that decides what gets run based on a configuration file. Thanks to Metaflow’s new Runner and Deployer APIs, you can create a Hydra app that operates Metaflow programmatically — for instance, to deploy and execute hundreds of variants of a flow in a large-scale experiment.

Take a look at two interesting examples of this pattern in the documentation. As a teaser, this video shows Hydra orchestrating deployment of tens of Metaflow flows, each of which benchmarks PyTorch using a varying number of CPU cores and tensor sizes, updating a visualization of the results in real-time as the experiment progresses:

Metaboosting Metaflow — based on a true story

To give a motivating example of what configurations look like at Netflix in practice, let’s consider Metaboost, an internal Netflix CLI tool that helps ML practitioners manage, develop and execute their cross-platform projects, somewhat similar to the open-source Hydra discussed above but with specific integrations to the Netflix ecosystem. Metaboost is an example of an opinionated framework developed by a team already using Metaflow. In fact, a part of the inspiration for introducing Configs in Metaflow came from this very use case.

Metaboost serves as a single interface to three different internal platforms at Netflix that manage ETL/Workflows (Maestro), Machine Learning Pipelines (Metaflow) and Data Warehouse Tables (Kragle). In this context, having a single configuration system to manage a ML project holistically gives users increased project coherence and decreased project risk.

Configuration in Metaboost

Ease of configuration and templatizing are core values of Metaboost. Templatizing in Metaboost is achieved through the concept of bindings, wherein we can bind a Metaflow pipeline to an arbitrary label, and then create a corresponding bespoke configuration for that label. The binding-connected configuration is then merged into a global set of configurations containing such information as GIT repository, branch, etc. Binding a Metaflow, will also signal to Metaboost that it should instantiate the Metaflow flow once per binding into our orchestration cluster.

Imagine a ML practitioner on the Netflix Content ML team, sourcing features from hundreds of columns in our data warehouse, and creating a multitude of models against a growing suite of metrics. When a brand new content metric comes along, with Metaboost, the first version of the metric’s predictive model can easily be created by simply swapping the target column against which the model is trained.

Subsequent versions of the model will result from experimenting with hyper parameters, tweaking feature engineering, or conducting feature diets. Metaboost’s bindings, and their integration with Metaflow Configs, can be leveraged to scale the number of experiments as fast as a scientist can create experiment based configurations.

Scaling experiments with Metaboost bindings — backed by Metaflow Config

Consider a Metaboost ML project named `demo` that creates and loads data to custom tables (ETL managed by Maestro), and then trains a simple model on this data (ML Pipeline managed by Metaflow). The project structure of this repository might look like the following:

├── metaflows
│   ├── custom                               -> custom python code, used by
|   |   |                                       Metaflow
│   │   ├── data.py
│   │   └── model.py
│   └── training.py                          -> defines our Metaflow pipeline
├── schemas
│   ├── demo_features_f.tbl.yaml             -> table DDL, stores our ETL
|   |                                           output, Metaflow input
│   └── demo_predictions_f.tbl.yaml          -> table DDL,
|                                               stores our Metaflow output
├── settings
│   ├── settings.configuration.EXP_01.yaml   -> defines the additive
|   |                                           config for Experiment 1
│   ├── settings.configuration.EXP_02.yaml   -> defines the additive
|   |                                           config for Experiment 2
│   ├── settings.configuration.yaml          -> defines our global
|   |                                           configuration
│   └── settings.environment.yaml            -> defines parameters based on
|                                               git branch (e.g. READ_DB)
├── tests
├── workflows
│   ├── sql
│   ├── demo.demo_features_f.sch.yaml        -> Maestro workflow, defines ETL
│   └── demo.main.sch.yaml                   -> Maestro workflow, orchestrates
|                                               ETLs and Metaflow
└── metaboost.yaml                           -> defines our project for
                                                Metaboost

The configuration files in the settings directory above contain the following YAML files:

# settings.configuration.yaml (global configuration)
model:
  fit_intercept: True
conda:
  numpy: '1.22.4'
  "scikit-learn": '1.4.0'

# settings.configuration.EXP_01.yaml
target_column: metricA
features:
  - runtime
  - content_type
  - top_billed_talent

# settings.configuration.EXP_02.yaml
target_column: metricA
features:
  - runtime
  - director
  - box_office

Metaboost will merge each experiment configuration (*.EXP*.yaml) into the global configuration (settings.configuration.yaml) individually at Metaboost command initialization. Let’s take a look at how Metaboost combines these configurations with a Metaboost command:

(venv-demo) ~/projects/metaboost-demo [branch=demoX]
$ metaboost metaflow settings show --yaml-path=configurationbinding=EXP_01:
model:                     -> defined in setting.configuration.yaml (global)
  fit_intercept: true
conda:                     -> defined in setting.configuration.yaml (global)
  numpy: 1.22.4
  "scikit-learn": 1.4.0
target_column: metricA     -> defined in setting.configuration.EXP_01.yaml
features:                  -> defined in setting.configuration.EXP_01.yaml
- runtime
- content_type
- top_billed_talentbinding=EXP_02:
model:                     -> defined in setting.configuration.yaml (global)
  fit_intercept: true
conda:                     -> defined in setting.configuration.yaml (global)
  numpy: 1.22.4
  "scikit-learn": 1.4.0
target_column: metricA     -> defined in setting.configuration.EXP_02.yaml
features:                  -> defined in setting.configuration.EXP_02.yaml
- runtime
- director
- box_office

Metaboost understands it should deploy/run two independent instances of training.py — one for the EXP_01 binding and one for the EXP_02 binding. You can also see that Metaboost is aware that the tables and ETL workflows are not bound, and should only be deployed once. These details of which artifacts to bind and which to leave unbound are encoded in the project’s top-level metaboost.yaml file.

(venv-demo) ~/projects/metaboost-demo [branch=demoX]
$ metaboost project listTables (metaboost table list):
schemas/demo_predictions_f.tbl.yaml (binding=default):
    table_path=prodhive/demo_db/demo_predictions_f
schemas/demo_features_f.tbl.yaml (binding=default):
    table_path=prodhive/demo_db/demo_features_fWorkflows (metaboost workflow list):
workflows/demo.demo_features_f.sch.yaml (binding=default):
    cluster=sandbox, workflow.id=demo.branch_demox.demo_features_f
workflows/demo.main.sch.yaml (binding=default):
    cluster=sandbox, workflow.id=demo.branch_demox.mainMetaflows (metaboost metaflow list):
metaflows/training.py (binding=EXP_01): -> EXP_01 instance of training.py
    cluster=sandbox, workflow.id=demo.branch_demox.EXP_01.training
metaflows/training.py (binding=EXP_02): -> EXP_02 instance of training.py
    cluster=sandbox, workflow.id=demo.branch_demox.EXP_02.training

Below is a simple Metaflow pipeline that fetches data, executes feature engineering, and trains a LinearRegression model. The work to integrate Metaboost Settings into a user’s Metaflow pipeline (implemented using Metaflow Configs) is as easy as adding a single mix-in to the FlowSpec definition:

from metaflow import FlowSpec, Parameter, conda_base, step
from custom.data import feature_engineer, get_data
from metaflow.metaboost import MetaboostSettings@conda_base(
    libraries=MetaboostSettings.get_deploy_time_settings("configuration.conda")
)
class DemoTraining(FlowSpec, MetaboostSettings):
    prediction_date = Parameter("prediction_date", type=int, default=-1)@step
    def start(self):
        # get show_settings() for free with the mixin
        # and get convenient debugging info
        self.show_settings(exclude_patterns=["artifact*", "system*"])self.next(self.get_features)@step
    def get_features(self):
        # feature engineers on our extracted data
        self.fe_df = feature_engineer(
            # loads data from our ETL pipeline
            data=get_data(prediction_date=self.prediction_date),
            features=self.settings.configuration.features +
                [self.settings.configuration.target_column]
        )self.next(self.train)@step
    def train(self):
        from sklearn.linear_model import LinearRegression# trains our model
        self.model = LinearRegression(
            fit_intercept=self.settings.configuration.model.fit_intercept
        ).fit(
            X=self.fe_df[self.settings.configuration.features],
            y=self.fe_df[self.settings.configuration.target_column]
        )
        print(f"Fit slope: {self.model.coef_[0]}")
        print(f"Fit intercept: {self.model.intercept_}")self.next(self.end)@step
    def end(self):
        passif __name__ == "__main__":
    DemoTraining()

The Metaflow Config is added to the FlowSpec by mixing in the MetaboostSettings class. Referencing a configuration value is as easy as using the dot syntax to drill into whichever parameter you’d like.

Finally let’s take a look at the output from our sample Metaflow above. We execute experiment EXP_01 with

metaboost metaflow run --binding=EXP_01

which upon execution will merge the configurations into a single settings file (shown previously) and serialize it as a yaml file to the .metaboost/settings/compiled/ directory.

You can see the actual command and args that were sub-processed in the Metaboost Execution section below. Please note the –config argument pointing to the serialized yaml file, and then subsequently accessible via self.settings. Also note the convenient printing of configuration values to stdout during the start step using a mixed in function named show_settings().

(venv-demo) ~/projects/metaboost-demo [branch=demoX]
$ metaboost metaflow run --binding=EXP_01Metaboost Execution:
 - python3.10 /root/repos/cdm-metaboost-irl/metaflows/training.py
   --no-pylint --package-suffixes=.py --environment=conda
   --config settings
   .metaboost/settings/compiled/settings.branch_demox.EXP_01.training.mP4eIStG.yaml
   run --prediction_date20241006Metaflow 2.12.39+nflxfastdata(2.13.5);nflx(2.13.5);metaboost(0.0.27)
  executing DemoTraining for user:dcasler
Validating your flow...
    The graph looks good!
Bootstrapping Conda environment... (this could take a few minutes)
All packages already cached in s3.
All environments already cached in s3.Workflow starting (run-id 50), see it in the UI at
https://metaflowui.prod.netflix.net/DemoTraining/50[50/start/251640833] Task is starting.
[50/start/251640833] Configuration Values:
[50/start/251640833]   settings.configuration.conda.numpy            = 1.22.4
[50/start/251640833]   settings.configuration.features.0             = runtime
[50/start/251640833]   settings.configuration.features.1             = content_type
[50/start/251640833]   settings.configuration.features.2             = top_billed_talent
[50/start/251640833]   settings.configuration.model.fit_intercept    = True
[50/start/251640833]   settings.configuration.target_column          = metricA
[50/start/251640833]   settings.environment.READ_DATABASE            = data_warehouse_prod
[50/start/251640833]   settings.environment.TARGET_DATABASE          = demo_dev
[50/start/251640833] Task finished successfully.[50/get_features/251640840] Task is starting.
[50/get_features/251640840] Task finished successfully.[50/train/251640854] Task is starting.
[50/train/251640854] Fit slope: 0.4702672504331096
[50/train/251640854] Fit intercept: -6.247919678070083
[50/train/251640854] Task finished successfully.[50/end/251640868] Task is starting.
[50/end/251640868] Task finished successfully.Done! See the run in the UI at
https://metaflowui.prod.netflix.net/DemoTraining/50

Takeaways

Metaboost is an integration tool that aims to ease the project development, management and execution burden of ML projects at Netflix. It employs a configuration system that combines git based parameters, global configurations and arbitrarily bound configuration files for use during execution against internal Netflix platforms.

Integrating this configuration system with the new Config in Metaflow is incredibly simple (by design), only requiring users to add a mix-in class to their FlowSpec — similar to this example in Metaflow documentation — and then reference the configuration values in steps or decorators. The example above templatizes a training Metaflow for the sake of experimentation, but users could just as easily use bindings/configs to templatize their flows across target metrics, business initiatives or any other arbitrary lines of work.

Try it at home

It couldn’t be easier to get started with Configs! Just

pip install -U metaflow

to get the latest version and head to the updated documentation for examples. If you are impatient, you can find and execute all config-related examples in this repository as well.

If you have any questions or feedback about Config (or other Metaflow features), you can reach out to us at the Metaflow community Slack.

Acknowledgments

We would like to thank Outerbounds for their collaboration on this feature; for rigorously testing it and developing a repository of examples to showcase some of the possibilities offered by this feature.

By J Han, Pallavi Phadnis

Context

At Netflix, we use Amazon Web Services (AWS) for our cloud infrastructure needs, such as compute, storage, and networking to build and run the streaming platform that we love. Our ecosystem enables engineering teams to run applications and services at scale, utilizing a mix of open-source and proprietary solutions. In turn, our self-serve platforms allow teams to create and deploy, sometimes custom, workloads more efficiently. This diverse technological landscape generates extensive and rich data from various infrastructure entities, from which, data engineers and analysts collaborate to provide actionable insights to the engineering organization in a continuous feedback loop that ultimately enhances the business.

One crucial way in which we do this is through the democratization of highly curated data sources that sunshine usage and cost patterns across Netflix’s services and teams. The Data & Insights organization partners closely with our engineering teams to share key efficiency metrics, empowering internal stakeholders to make informed business decisions.

Data is Key

This is where our team, Platform DSE (Data Science Engineering), comes in to enable our engineering partners to understand what resources they’re using, how effectively and efficiently they use those resources, and the cost associated with their resource usage. We want our downstream consumers to make cost conscious decisions using our datasets.

To address these numerous analytic needs in a scalable way, we’ve developed a two-component solution:

1. Foundational Platform Data (FPD): This component provides a centralized data layer for all platform data, featuring a consistent data model and standardized data processing methodology.
2. Cloud Efficiency Analytics (CEA): Built on top of FPD, this component offers an analytics data layer that provides time series efficiency metrics across various business use cases.

Foundational Platform Data (FPD)

We work with different platform data providers to get inventory, ownership, and usage data for the respective platforms they own. Below is an example of how this framework applies to the Spark platform. FPD establishes data contracts with producers to ensure data quality and reliability; these contracts allow the team to leverage a common data model for ownership. The standardized data model and processing promotes scalability and consistency.

Cloud Efficiency Analytics (CEA Data)

Once the foundational data is ready, CEA consumes inventory, ownership, and usage data and applies the appropriate business logic to produce cost and ownership attribution at various granularities. The data model approach in CEA is to compartmentalize and be transparent; we want downstream consumers to understand why they’re seeing resources show up under their name/org and how those costs are calculated. Another benefit to this approach is the ability to pivot quickly as new or changes in business logic is/are introduced.

* For cost accounting purposes, we resolve assets to a single owner, or distribute costs when assets are multi-tenant. However, we do also provide usage and cost at different aggregations for different consumers.

Data Principles

As the source of truth for efficiency metrics, our team’s tenants are to provide accurate, reliable, and accessible data, comprehensive documentation to navigate the complexity of the efficiency space, and well-defined Service Level Agreements (SLAs) to set expectations with downstream consumers during delays, outages or changes.

While ownership and cost may seem straightforward, the complexity of the datasets is considerably high due to the breadth and scope of the business infrastructure and platform specific features. Services can have multiple owners, cost heuristics are unique to each platform, and the scale of infra data is large. As we work on expanding infrastructure coverage to all verticals of the business, we face a unique set of challenges:

A Few Sizes to Fit the Majority

Despite data contracts and a standardized data model on transforming upstream platform data into FPD and CEA, there is usually some degree of customization that is unique to that particular platform. As the centralized source of truth, we feel the constant tension of where to place the processing burden. Decision-making involves ongoing transparent conversations with both our data producers and consumers, frequent prioritization checks, and alignment with business needs as informed captains in this space.

Data Guarantees

For data correctness and trust, it’s crucial that we have audits and visibility into health metrics at each layer in the pipeline in order to investigate issues and root cause anomalies quickly. Maintaining data completeness while ensuring correctness becomes challenging due to upstream latency and required transformations to have the data ready for consumption. We continuously iterate our audits and incorporate feedback to refine and meet our SLAs.

Abstraction Layers

We value people over process, and it is not uncommon for engineering teams to build custom SaaS solutions for other parts of the organization. Although this fosters innovation and improves development velocity, it can create a bit of a conundrum when it comes to understanding and interpreting usage patterns and attributing cost in a way that makes sense to the business and end consumer. With clear inventory, ownership, and usage data from FPD, and precise attribution in the analytical layer, we aim to provide metrics to downstream users regardless of whether they utilize and build on top of internal platforms or on AWS resources directly.

Future Forward

Looking ahead, we aim to continue onboarding platforms to FPD and CEA, striving for nearly complete cost insight coverage in the upcoming year. Longer term, we plan to extend FPD to other areas of the business such as security and availability. We aim to move towards proactive approaches via predictive analytics and ML for optimizing usage and detecting anomalies in cost.

Ultimately, our goal is to enable our engineering organization to make efficiency-conscious decisions when building and maintaining the myriad of services that allow us to enjoy Netflix as a streaming service.

Acknowledgments

The FPD and CEA work would not have been possible without the cross functional input of many outstanding colleagues and our dedicated team building these important data assets.

—

A bit about the authors:

JHan enjoys nature, reading fantasy, and finding the best chocolate chip cookies and cinnamon rolls. She is adamant about writing the SQL select statement with leading commas.

Pallavi enjoys music, travel and watching astrophysics documentaries. With 15+ years working with data, she knows everything’s better with a dash of analytics and a cup of coffee!

By: Rajiv Shringi, Oleksii Tkachuk, Kartik Sathyanarayanan

Introduction

In our previous blog post, we introduced Netflix’s TimeSeries Abstraction, a distributed service designed to store and query large volumes of temporal event data with low millisecond latencies. Today, we’re excited to present the Distributed Counter Abstraction. This counting service, built on top of the TimeSeries Abstraction, enables distributed counting at scale while maintaining similar low latency performance. As with all our abstractions, we use our Data Gateway Control Plane to shard, configure, and deploy this service globally.

Distributed counting is a challenging problem in computer science. In this blog post, we’ll explore the diverse counting requirements at Netflix, the challenges of achieving accurate counts in near real-time, and the rationale behind our chosen approach, including the necessary trade-offs.

Note: When it comes to distributed counters, terms such as ‘accurate’ or ‘precise’ should be taken with a grain of salt. In this context, they refer to a count very close to accurate, presented with minimal delays.

Use Cases and Requirements

At Netflix, our counting use cases include tracking millions of user interactions, monitoring how often specific features or experiences are shown to users, and counting multiple facets of data during A/B test experiments, among others.

At Netflix, these use cases can be classified into two broad categories:

1. Best-Effort: For this category, the count doesn’t have to be very accurate or durable. However, this category requires near-immediate access to the current count at low latencies, all while keeping infrastructure costs to a minimum.
2. Eventually Consistent: This category needs accurate and durable counts, and is willing to tolerate a slight delay in accuracy and a slightly higher infrastructure cost as a trade-off.

Both categories share common requirements, such as high throughput and high availability. The table below provides a detailed overview of the diverse requirements across these two categories.

Distributed Counter Abstraction

To meet the outlined requirements, the Counter Abstraction was designed to be highly configurable. It allows users to choose between different counting modes, such as Best-Effort or Eventually Consistent, while considering the documented trade-offs of each option. After selecting a mode, users can interact with APIs without needing to worry about the underlying storage mechanisms and counting methods.

Let’s take a closer look at the structure and functionality of the API.

API

Counters are organized into separate namespaces that users set up for each of their specific use cases. Each namespace can be configured with different parameters, such as Type of Counter, Time-To-Live (TTL), and Counter Cardinality, using the service’s Control Plane.

The Counter Abstraction API resembles Java’s AtomicInteger interface:

AddCount/AddAndGetCount: Adjusts the count for the specified counter by the given delta value within a dataset. The delta value can be positive or negative. The AddAndGetCount counterpart also returns the count after performing the add operation.

{
  "namespace": "my_dataset",
  "counter_name": "counter123",
  "delta": 2,
  "idempotency_token": {
    "token": "some_event_id",
    "generation_time": "2024-10-05T14:48:00Z"
  }
}

The idempotency token can be used for counter types that support them. Clients can use this token to safely retry or hedge their requests. Failures in a distributed system are a given, and having the ability to safely retry requests enhances the reliability of the service.

GetCount: Retrieves the count value of the specified counter within a dataset.

{
  "namespace": "my_dataset",
  "counter_name": "counter123"
}

ClearCount: Effectively resets the count to 0 for the specified counter within a dataset.

{
  "namespace": "my_dataset",
  "counter_name": "counter456",
  "idempotency_token": {...}
}

Now, let’s look at the different types of counters supported within the Abstraction.

Types of Counters

The service primarily supports two types of counters: Best-Effort and Eventually Consistent, along with a third experimental type: Accurate. In the following sections, we’ll describe the different approaches for these types of counters and the trade-offs associated with each.

Best Effort Regional Counter

This type of counter is powered by EVCache, Netflix’s distributed caching solution built on the widely popular Memcached. It is suitable for use cases like A/B experiments, where many concurrent experiments are run for relatively short durations and an approximate count is sufficient. Setting aside the complexities of provisioning, resource allocation, and control plane management, the core of this solution is remarkably straightforward:

// counter cache key
counterCacheKey = <namespace>:<counter_name>// add operation
return delta > 0
    ? cache.incr(counterCacheKey, delta, TTL)
    : cache.decr(counterCacheKey, Math.abs(delta), TTL);// get operation
cache.get(counterCacheKey);// clear counts from all replicas
cache.delete(counterCacheKey, ReplicaPolicy.ALL);

EVCache delivers extremely high throughput at low millisecond latency or better within a single region, enabling a multi-tenant setup within a shared cluster, saving infrastructure costs. However, there are some trade-offs: it lacks cross-region replication for the increment operation and does not provide consistency guarantees, which may be necessary for an accurate count. Additionally, idempotency is not natively supported, making it unsafe to retry or hedge requests.

Eventually Consistent Global Counter

While some users may accept the limitations of a Best-Effort counter, others opt for precise counts, durability and global availability. In the following sections, we’ll explore various strategies for achieving durable and accurate counts. Our objective is to highlight the challenges inherent in global distributed counting and explain the reasoning behind our chosen approach.

Approach 1: Storing a Single Row per Counter

Let’s start simple by using a single row per counter key within a table in a globally replicated datastore.

Let’s examine some of the drawbacks of this approach:

• Lack of Idempotency: There is no idempotency key baked into the storage data-model preventing users from safely retrying requests. Implementing idempotency would likely require using an external system for such keys, which can further degrade performance or cause race conditions.
• Heavy Contention: To update counts reliably, every writer must perform a Compare-And-Swap operation for a given counter using locks or transactions. Depending on the throughput and concurrency of operations, this can lead to significant contention, heavily impacting performance.

Secondary Keys: One way to reduce contention in this approach would be to use a secondary key, such as a bucket_id, which allows for distributing writes by splitting a given counter into buckets, while enabling reads to aggregate across buckets. The challenge lies in determining the appropriate number of buckets. A static number may still lead to contention with hot keys, while dynamically assigning the number of buckets per counter across millions of counters presents a more complex problem.

Let’s see if we can iterate on our solution to overcome these drawbacks.

Approach 2: Per Instance Aggregation

To address issues of hot keys and contention from writing to the same row in real-time, we could implement a strategy where each instance aggregates the counts in memory and then flushes them to disk at regular intervals. Introducing sufficient jitter to the flush process can further reduce contention.

However, this solution presents a new set of issues:

• Vulnerability to Data Loss: The solution is vulnerable to data loss for all in-memory data during instance failures, restarts, or deployments.
• Inability to Reliably Reset Counts: Due to counting requests being distributed across multiple machines, it is challenging to establish consensus on the exact point in time when a counter reset occurred.
• Lack of Idempotency: Just like the previous approach, this approach does not natively guarantee idempotency. One way to ensure idempotency is to consistently route the same set of counters to the same instance. However, such an approach may introduce additional complexity, and potential challenges with availability and latency in the write path.

That said, this approach may still be suitable in scenarios where these trade-offs are acceptable. However, let’s see if we can address some of these issues with a different event-based approach.

Approach 3: Using Durable Queues

In this approach, we log counter events into a durable queuing system like Apache Kafka to prevent any potential data loss. By creating multiple topic partitions and hashing the counter key to a specific partition, we ensure that the same set of counters are processed by the same set of consumers. This setup simplifies facilitating idempotency checks and resetting counts. Furthermore, by leveraging additional stream processing frameworks such as Kafka Streams or Apache Flink, we can implement windowed aggregations.

However, this approach comes with some challenges:

• Potential Delays: Having the same consumer process all the counts from a given partition can lead to backups and delays, resulting in stale counts.
• Rebalancing Partitions: This approach requires auto-scaling and rebalancing of topic partitions as the cardinality of counters and throughput increases.

Furthermore, all approaches that pre-aggregate counts make it challenging to support two of our requirements for accurate counters:

• Auditing of Counts: Auditing involves extracting data to an offline system for analysis to ensure that increments were applied correctly to reach the final value. This process can also be used to track the provenance of increments. However, auditing becomes infeasible when counts are aggregated without storing the individual increments.
• Potential Recounting: Similar to auditing, if adjustments to increments are necessary and recounting of events within a time window is required, pre-aggregating counts makes this infeasible.

Barring those few requirements, this approach can still be effective if we determine the right way to scale our queue partitions and consumers while maintaining idempotency. However, let’s explore how we can adjust this approach to meet the auditing and recounting requirements.

Approach 4: Event Log of Individual Increments

In this approach, we log each individual counter increment along with its event_time and event_id. The event_id can include the source information of where the increment originated. The combination of event_time and event_id can also serve as the idempotency key for the write.

However, in its simplest form, this approach has several drawbacks:

• Read Latency: Each read request requires scanning all increments for a given counter potentially degrading performance.
• Duplicate Work: Multiple threads might duplicate the effort of aggregating the same set of counters during read operations, leading to wasted effort and subpar resource utilization.
• Wide Partitions: If using a datastore like Apache Cassandra, storing many increments for the same counter could lead to a wide partition, affecting read performance.
• Large Data Footprint: Storing each increment individually could also result in a substantial data footprint over time. Without an efficient data retention strategy, this approach may struggle to scale effectively.

The combined impact of these issues can lead to increased infrastructure costs that may be difficult to justify. However, adopting an event-driven approach seems to be a significant step forward in addressing some of the challenges we’ve encountered and meeting our requirements.

How can we improve this solution further?

Netflix’s Approach

We use a combination of the previous approaches, where we log each counting activity as an event, and continuously aggregate these events in the background using queues and a sliding time window. Additionally, we employ a bucketing strategy to prevent wide partitions. In the following sections, we’ll explore how this approach addresses the previously mentioned drawbacks and meets all our requirements.

Note: From here on, we will use the words “rollup” and “aggregate” interchangeably. They essentially mean the same thing, i.e., collecting individual counter increments/decrements and arriving at the final value.

TimeSeries Event Store:

We chose the TimeSeries Data Abstraction as our event store, where counter mutations are ingested as event records. Some of the benefits of storing events in TimeSeries include:

High-Performance: The TimeSeries abstraction already addresses many of our requirements, including high availability and throughput, reliable and fast performance, and more.

Reducing Code Complexity: We reduce a lot of code complexity in Counter Abstraction by delegating a major portion of the functionality to an existing service.

TimeSeries Abstraction uses Cassandra as the underlying event store, but it can be configured to work with any persistent store. Here is what it looks like:

Handling Wide Partitions: The time_bucket and event_bucket columns play a crucial role in breaking up a wide partition, preventing high-throughput counter events from overwhelming a given partition. For more information regarding this, refer to our previous blog.

No Over-Counting: The event_time, event_id and event_item_key columns form the idempotency key for the events for a given counter, enabling clients to retry safely without the risk of over-counting.

Event Ordering: TimeSeries orders all events in descending order of time allowing us to leverage this property for events like count resets.

Event Retention: The TimeSeries Abstraction includes retention policies to ensure that events are not stored indefinitely, saving disk space and reducing infrastructure costs. Once events have been aggregated and moved to a more cost-effective store for audits, there’s no need to retain them in the primary storage.

Now, let’s see how these events are aggregated for a given counter.

Aggregating Count Events:

As mentioned earlier, collecting all individual increments for every read request would be cost-prohibitive in terms of read performance. Therefore, a background aggregation process is necessary to continually converge counts and ensure optimal read performance.

But how can we safely aggregate count events amidst ongoing write operations?

This is where the concept of Eventually Consistent counts becomes crucial. By intentionally lagging behind the current time by a safe margin, we ensure that aggregation always occurs within an immutable window.

Lets see what that looks like:

Let’s break this down:

• lastRollupTs: This represents the most recent time when the counter value was last aggregated. For a counter being operated for the first time, this timestamp defaults to a reasonable time in the past.
• Immutable Window and Lag: Aggregation can only occur safely within an immutable window that is no longer receiving counter events. The “acceptLimit” parameter of the TimeSeries Abstraction plays a crucial role here, as it rejects incoming events with timestamps beyond this limit. During aggregations, this window is pushed slightly further back to account for clock skews.

This does mean that the counter value will lag behind its most recent update by some margin (typically in the order of seconds). This approach does leave the door open for missed events due to cross-region replication issues. See “Future Work” section at the end.

• Aggregation Process: The rollup process aggregates all events in the aggregation window since the last rollup to arrive at the new value.

Rollup Store:

We save the results of this aggregation in a persistent store. The next aggregation will simply continue from this checkpoint.

We create one such Rollup table per dataset and use Cassandra as our persistent store. However, as you will soon see in the Control Plane section, the Counter service can be configured to work with any persistent store.

LastWriteTs: Every time a given counter receives a write, we also log a last-write-timestamp as a columnar update in this table. This is done using Cassandra’s USING TIMESTAMP feature to predictably apply the Last-Write-Win (LWW) semantics. This timestamp is the same as the event_time for the event. In the subsequent sections, we’ll see how this timestamp is used to keep some counters in active rollup circulation until they have caught up to their latest value.

Rollup Cache

To optimize read performance, these values are cached in EVCache for each counter. We combine the lastRollupCount and lastRollupTs into a single cached value per counter to prevent potential mismatches between the count and its corresponding checkpoint timestamp.

But, how do we know which counters to trigger rollups for? Let’s explore our Write and Read path to understand this better.

Add/Clear Count:

An add or clear count request writes durably to the TimeSeries Abstraction and updates the last-write-timestamp in the Rollup store. If the durability acknowledgement fails, clients can retry their requests with the same idempotency token without the risk of overcounting.Upon durability, we send a fire-and-forget request to trigger the rollup for the request counter.

GetCount:

We return the last rolled-up count as a quick point-read operation, accepting the trade-off of potentially delivering a slightly stale count. We also trigger a rollup during the read operation to advance the last-rollup-timestamp, enhancing the performance of subsequent aggregations. This process also self-remediates a stale count if any previous rollups had failed.

With this approach, the counts continually converge to their latest value. Now, let’s see how we scale this approach to millions of counters and thousands of concurrent operations using our Rollup Pipeline.

Rollup Pipeline:

Each Counter-Rollup server operates a rollup pipeline to efficiently aggregate counts across millions of counters. This is where most of the complexity in Counter Abstraction comes in. In the following sections, we will share key details on how efficient aggregations are achieved.

Light-Weight Roll-Up Event: As seen in our Write and Read paths above, every operation on a counter sends a light-weight event to the Rollup server:

rollupEvent: {
  "namespace": "my_dataset",
  "counter": "counter123"
}

Note that this event does not include the increment. This is only an indication to the Rollup server that this counter has been accessed and now needs to be aggregated. Knowing exactly which specific counters need to be aggregated prevents scanning the entire event dataset for the purpose of aggregations.

In-Memory Rollup Queues: A given Rollup server instance runs a set of in-memory queues to receive rollup events and parallelize aggregations. In the first version of this service, we settled on using in-memory queues to reduce provisioning complexity, save on infrastructure costs, and make rebalancing the number of queues fairly straightforward. However, this comes with the trade-off of potentially missing rollup events in case of an instance crash. For more details, see the “Stale Counts” section in “Future Work.”

Minimize Duplicate Effort: We use a fast non-cryptographic hash like XXHash to ensure that the same set of counters end up on the same queue. Further, we try to minimize the amount of duplicate aggregation work by having a separate rollup stack that chooses to run fewer beefier instances.

Availability and Race Conditions: Having a single Rollup server instance can minimize duplicate aggregation work but may create availability challenges for triggering rollups. If we choose to horizontally scale the Rollup servers, we allow threads to overwrite rollup values while avoiding any form of distributed locking mechanisms to maintain high availability and performance. This approach remains safe because aggregation occurs within an immutable window. Although the concept of now() may differ between threads, causing rollup values to sometimes fluctuate, the counts will eventually converge to an accurate value within each immutable aggregation window.

Rebalancing Queues: If we need to scale the number of queues, a simple Control Plane configuration update followed by a re-deploy is enough to rebalance the number of queues.

      "eventual_counter_config": {
          "queue_config": {
            "num_queues" : 8,  // change to 16 and re-deploy
...

Handling Deployments: During deployments, these queues shut down gracefully, draining all existing events first, while the new Rollup server instance starts up with potentially new queue configurations. There may be a brief period when both the old and new Rollup servers are active, but as mentioned before, this race condition is managed since aggregations occur within immutable windows.

Minimize Rollup Effort: Receiving multiple events for the same counter doesn’t mean rolling it up multiple times. We drain these rollup events into a Set, ensuring a given counter is rolled up only once during a rollup window.

Efficient Aggregation: Each rollup consumer processes a batch of counters simultaneously. Within each batch, it queries the underlying TimeSeries abstraction in parallel to aggregate events within specified time boundaries. The TimeSeries abstraction optimizes these range scans to achieve low millisecond latencies.

Dynamic Batching: The Rollup server dynamically adjusts the number of time partitions that need to be scanned based on cardinality of counters in order to prevent overwhelming the underlying store with many parallel read requests.

Adaptive Back-Pressure: Each consumer waits for one batch to complete before issuing the rollups for the next batch. It adjusts the wait time between batches based on the performance of the previous batch. This approach provides back-pressure during rollups to prevent overwhelming the underlying TimeSeries store.

Handling Convergence:

In order to prevent low-cardinality counters from lagging behind too much and subsequently scanning too many time partitions, they are kept in constant rollup circulation. For high-cardinality counters, continuously circulating them would consume excessive memory in our Rollup queues. This is where the last-write-timestamp mentioned previously plays a crucial role. The Rollup server inspects this timestamp to determine if a given counter needs to be re-queued, ensuring that we continue aggregating until it has fully caught up with the writes.

Now, let’s see how we leverage this counter type to provide an up-to-date current count in near-realtime.

Experimental: Accurate Global Counter

We are experimenting with a slightly modified version of the Eventually Consistent counter. Again, take the term ‘Accurate’ with a grain of salt. The key difference between this type of counter and its counterpart is that the delta, representing the counts since the last-rolled-up timestamp, is computed in real-time.

Aggregating this delta in real-time can impact the performance of this operation, depending on the number of events and partitions that need to be scanned to retrieve this delta. The same principle of rolling up in batches applies here to prevent scanning too many partitions in parallel.

Conversely, if the counters in this dataset areaccessedfrequently, the time gap for the delta remains narrow, making this approach of fetching current counts quite effective.

Now, let’s see how all this complexity is managed by having a unified Control Plane configuration.

Control Plane

The Data Gateway Platform Control Plane manages control settings for all abstractions and namespaces, including the Counter Abstraction. Below, is an example of a control plane configuration for a namespace that supports eventually consistent counters with low cardinality:

"persistence_configuration": [
  {
    "id": "CACHE",                             // Counter cache config
    "scope": "dal=counter",
    "physical_storage": {
      "type": "EVCACHE",                       // type of cache storage
      "cluster": "evcache_dgw_counter_tier1"   // Shared EVCache cluster
    }
  },
  {
    "id": "COUNTER_ROLLUP",
    "scope": "dal=counter",                    // Counter abstraction config
    "physical_storage": {
      "type": "CASSANDRA",                     // type of Rollup store
      "cluster": "cass_dgw_counter_uc1",       // physical cluster name
      "dataset": "my_dataset_1"                // namespace/dataset
    },
    "counter_cardinality": "LOW",              // supported counter cardinality
    "config": {
      "counter_type": "EVENTUAL",              // Type of counter
      "eventual_counter_config": {             // eventual counter type
        "internal_config": {
          "queue_config": {                    // adjust w.r.t cardinality
            "num_queues" : 8,                  // Rollup queues per instance
            "coalesce_ms": 10000,              // coalesce duration for rollups
            "capacity_bytes": 16777216         // allocated memory per queue
          },
          "rollup_batch_count": 32             // parallelization factor
        }
      }
    }
  },
  {
    "id": "EVENT_STORAGE",
    "scope": "dal=ts",                         // TimeSeries Event store
    "physical_storage": {
      "type": "CASSANDRA",                     // persistent store type
      "cluster": "cass_dgw_counter_uc1",       // physical cluster name
      "dataset": "my_dataset_1",               // keyspace name
    },
    "config": {
      "time_partition": {                      // time-partitioning for events
        "buckets_per_id": 4,                   // event buckets within
        "seconds_per_bucket": "600",           // smaller width for LOW card
        "seconds_per_slice": "86400",          // width of a time slice table
      },
      "accept_limit": "5s",                    // boundary for immutability
    },
    "lifecycleConfigs": {
      "lifecycleConfig": [
        {
          "type": "retention",                 // Event retention
          "config": {
            "close_after": "518400s",
            "delete_after": "604800s"          // 7 day count event retention
          }
        }
      ]
    }
  }
]

Using such a control plane configuration, we compose multiple abstraction layers using containers deployed on the same host, with each container fetching configuration specific to its scope.

Provisioning

As with the TimeSeries abstraction, our automation uses a bunch of user inputs regarding their workload and cardinalities to arrive at the right set of infrastructure and related control plane configuration. You can learn more about this process in a talk given by one of our stunning colleagues, Joey Lynch : How Netflix optimally provisions infrastructure in the cloud.

Performance

At the time of writing this blog, this service was processing close to 75K count requests/second globally across the different API endpoints and datasets:

while providing single-digit millisecond latencies for all its endpoints:

Future Work

While our system is robust, we still have work to do in making it more reliable and enhancing its features. Some of that work includes:

• Regional Rollups: Cross-region replication issues can result in missed events from other regions. An alternate strategy involves establishing a rollup table for each region, and then tallying them in a global rollup table. A key challenge in this design would be effectively communicating the clearing of the counter across regions.
• Error Detection and Stale Counts: Excessively stale counts can occur if rollup events are lost or if a rollups fails and isn’t retried. This isn’t an issue for frequently accessed counters, as they remain in rollup circulation. This issue is more pronounced for counters that aren’t accessed frequently. Typically, the initial read for such a counter will trigger a rollup, self-remediating the issue. However, for use cases that cannot accept potentially stale initial reads, we plan to implement improved error detection and utilize durable queues for resilient retries.

Conclusion

Distributed counting remains a challenging problem in computer science. In this blog, we explored multiple approaches to implement and deploy a Counting service at scale. While there may be other methods for distributed counting, our goal has been to deliver blazing fast performance at low infrastructure costs while maintaining high availability and providing idempotency guarantees. Along the way, we make various trade-offs to meet the diverse counting requirements at Netflix. We hope you found this blog post insightful.

Stay tuned for Part 3 of Composite Abstractions at Netflix, where we’ll introduce our Graph Abstraction, a new service being built on top of the Key-Value Abstraction and the TimeSeries Abstraction to handle high-throughput, low-latency graphs.

Acknowledgments

Special thanks to our stunning colleagues who contributed to the Counter Abstraction’s success: Joey Lynch, Vinay Chella, Kaidan Fullerton, Tom DeVoe, Mengqing Wang

By: Hechao Li and Marcelo Mayworm

With special thanks to our stunning colleagues Amer Ather, Itay Dafna, Luca Pozzi, Matheus Leão, and Ye Ji.

Overview

At Netflix, the Analytics and Developer Experience organization, part of the Data Platform, offers a product called Workbench. Workbench is a remote development workspace based on Titus that allows data practitioners to work with big data and machine learning use cases at scale. A common use case for Workbench is running JupyterLab Notebooks.

Recently, several users reported that their JupyterLab UI becomes slow and unresponsive when running certain notebooks. This document details the intriguing process of debugging this issue, all the way from the UI down to the Linux kernel.

Symptom

Machine Learning engineer Luca Pozzi reported to our Data Platform team that their JupyterLab UI on their workbench becomes slow and unresponsive when running some of their Notebooks. Restarting the ipykernel process, which runs the Notebook, might temporarily alleviate the problem, but the frustration persists as more notebooks are run.

Quantify the Slowness

While we observed the issue firsthand, the term “UI being slow” is subjective and difficult to measure. To investigate this issue, we needed a quantitative analysis of the slowness.

Itay Dafna devised an effective and simple method to quantify the UI slowness. Specifically, we opened a terminal via JupyterLab and held down a key (e.g., “j”) for 15 seconds while running the user’s notebook. The input to stdin is sent to the backend (i.e., JupyterLab) via a WebSocket, and the output to stdout is sent back from the backend and displayed on the UI. We then exported the .har file recording all communications from the browser and loaded it into a Notebook for analysis.

Using this approach, we observed latencies ranging from 1 to 10 seconds, averaging 7.4 seconds.

Blame The Notebook

Now that we have an objective metric for the slowness, let’s officially start our investigation. If you have read the symptom carefully, you must have noticed that the slowness only occurs when the user runs certain notebooks but not others.

Therefore, the first step is scrutinizing the specific Notebook experiencing the issue. Why does the UI always slow down after running this particular Notebook? Naturally, you would think that there must be something wrong with the code running in it.

Upon closely examining the user’s Notebook, we noticed a library called pystan , which provides Python bindings to a native C++ library called stan, looked suspicious. Specifically, pystan uses asyncio. However, because there is already an existing asyncio event loop running in the Notebook process and asyncio cannot be nested by design, in order for pystan to work, the authors of pystan recommend injecting pystan into the existing event loop by using a package called nest_asyncio, a library that became unmaintained because the author unfortunately passed away.

Given this seemingly hacky usage, we naturally suspected that the events injected by pystan into the event loop were blocking the handling of the WebSocket messages used to communicate with the JupyterLab UI. This reasoning sounds very plausible. However, the user claimed that there were cases when a Notebook not using pystan runs, the UI also became slow.

Moreover, after several rounds of discussion with ChatGPT, we learned more about the architecture and realized that, in theory, the usage of pystan and nest_asyncio should not cause the slowness in handling the UI WebSocket for the following reasons:

Even though pystan uses nest_asyncio to inject itself into the main event loop, the Notebook runs on a child process (i.e., the ipykernel process) of the jupyter-lab server process, which means the main event loop being injected by pystan is that of the ipykernel process, not the jupyter-server process. Therefore, even if pystan blocks the event loop, it shouldn’t impact the jupyter-lab main event loop that is used for UI websocket communication. See the diagram below:

In other words, pystan events are injected to the event loop B in this diagram instead of event loop A. So, it shouldn’t block the UI WebSocket events.

You might also think that because event loop A handles both the WebSocket events from the UI and the ZeroMQ socket events from the ipykernel process, a high volume of ZeroMQ events generated by the notebook could block the WebSocket. However, when we captured packets on the ZeroMQ socket while reproducing the issue, we didn’t observe heavy traffic on this socket that could cause such blocking.

A stronger piece of evidence to rule out pystan was that we were ultimately able to reproduce the issue even without it, which I’ll dive into later.

Blame Noisy Neighbors

The Workbench instance runs as a Titus container. To efficiently utilize our compute resources, Titus employs a CPU oversubscription feature, meaning the combined virtual CPUs allocated to containers exceed the number of available physical CPUs on a Titus agent. If a container is unfortunate enough to be scheduled alongside other “noisy” containers — those that consume a lot of CPU resources — it could suffer from CPU deficiency.

However, after examining the CPU utilization of neighboring containers on the same Titus agent as the Workbench instance, as well as the overall CPU utilization of the Titus agent, we quickly ruled out this hypothesis. Using the top command on the Workbench, we observed that when running the Notebook, the Workbench instance uses only 4 out of the 64 CPUs allocated to it. Simply put, this workload is not CPU-bound.

Blame The Network

The next theory was that the network between the web browser UI (on the laptop) and the JupyterLab server was slow. To investigate, we captured all the packets between the laptop and the server while running the Notebook and continuously pressing ‘j’ in the terminal.

When the UI experienced delays, we observed a 5-second pause in packet transmission from server port 8888 to the laptop. Meanwhile, traffic from other ports, such as port 22 for SSH, remained unaffected. This led us to conclude that the pause was caused by the application running on port 8888 (i.e., the JupyterLab process) rather than the network.

The Minimal Reproduction

As previously mentioned, another strong piece of evidence proving the innocence of pystan was that we could reproduce the issue without it. By gradually stripping down the “bad” Notebook, we eventually arrived at a minimal snippet of code that reproduces the issue without any third-party dependencies or complex logic:

import time
import os
from multiprocessing import ProcessN = os.cpu_count()def launch_worker(worker_id):
  time.sleep(60)if __name__ == '__main__':
  with open('/root/2GB_file', 'r') as file:
    data = file.read()
    processes = []
    for i in range(N):
      p = Process(target=launch_worker, args=(i,))
      processes.append(p)
      p.start()for p in processes:
      p.join()

The code does only two things:

1. Read a 2GB file into memory (the Workbench instance has 480G memory in total so this memory usage is almost negligible).
2. Start N processes where N is the number of CPUs. The N processes do nothing but sleep.

There is no doubt that this is the most silly piece of code I’ve ever written. It is neither CPU bound nor memory bound. Yet it can cause the JupyterLab UI to stall for as many as 10 seconds!

Questions

There are a couple of interesting observations that raise several questions:

• We noticed that both steps are required in order to reproduce the issue. If you don’t read the 2GB file (that is not even used!), the issue is not reproducible. Why using 2GB out of 480GB memory could impact the performance?
• When the UI delay occurs, the jupyter-lab process CPU utilization spikes to 100%, hinting at contention on the single-threaded event loop in this process (event loop A in the diagram before). What does the jupyter-lab process need the CPU for, given that it is not the process that runs the Notebook?
• The code runs in a Notebook, which means it runs in the ipykernel process, that is a child process of the jupyter-lab process. How can anything that happens in a child process cause the parent process to have CPU contention?
• The workbench has 64CPUs. But when we printed os.cpu_count(), the output was 96. That means the code starts more processes than the number of CPUs. Why is that?

Let’s answer the last question first. In fact, if you run lscpu and nproc commands inside a Titus container, you will also see different results — the former gives you 96, which is the number of physical CPUs on the Titus agent, whereas the latter gives you 64, which is the number of virtual CPUs allocated to the container. This discrepancy is due to the lack of a “CPU namespace” in the Linux kernel, causing the number of physical CPUs to be leaked to the container when calling certain functions to get the CPU count. The assumption here is that Python os.cpu_count() uses the same function as the lscpu command, causing it to get the CPU count of the host instead of the container. Python 3.13 has a new call that can be used to get the accurate CPU count, but it’s not GA’ed yet.

It will be proven later that this inaccurate number of CPUs can be a contributing factor to the slowness.

More Clues

Next, we used py-spy to do a profiling of the jupyter-lab process. Note that we profiled the parent jupyter-lab process, not the ipykernel child process that runs the reproduction code. The profiling result is as follows:

As one can see, a lot of CPU time (89%!!) is spent on a function called __parse_smaps_rollup. In comparison, the terminal handler used only 0.47% CPU time. From the stack trace, we see that this function is inside the event loop A, so it can definitely cause the UI WebSocket events to be delayed.

The stack trace also shows that this function is ultimately called by a function used by a Jupyter lab extension called jupyter_resource_usage. We then disabled this extension and restarted the jupyter-lab process. As you may have guessed, we could no longer reproduce the slowness!

But our puzzle is not solved yet. Why does this extension cause the UI to slow down? Let’s keep digging.

Root Cause Analysis

From the name of the extension and the names of the other functions it calls, we can infer that this extension is used to get resources such as CPU and memory usage information. Examining the code, we see that this function call stack is triggered when an API endpoint /metrics/v1 is called from the UI. The UI apparently calls this function periodically, according to the network traffic tab in Chrome’s Developer Tools.

Now let’s look at the implementation starting from the call get(jupter_resource_usage/api.py:42) . The full code is here and the key lines are shown below:

cur_process = psutil.Process()
all_processes = [cur_process] + cur_process.children(recursive=True)for p in all_processes:
  info = p.memory_full_info()

Basically, it gets all children processes of the jupyter-lab process recursively, including both the ipykernel Notebook process and all processes created by the Notebook. Obviously, the cost of this function is linear to the number of all children processes. In the reproduction code, we create 96 processes. So here we will have at least 96 (sleep processes) + 1 (ipykernel process) + 1 (jupyter-lab process) = 98 processes when it should actually be 64 (allocated CPUs) + 1 (ipykernel process) + 1 (jupyter-lab process) = 66 processes, because the number of CPUs allocated to the container is, in fact, 64.

This is truly ironic. The more CPUs we have, the slower we are!

At this point, we have answered one question: Why does starting many grandchildren processes in the child process cause the parent process to be slow? Because the parent process runs a function that’s linear to the number all children process recursively.

However, this solves only half of the puzzle. If you remember the previous analysis, starting many child processes ALONE doesn’t reproduce the issue. If we don’t read the 2GB file, even if we create 2x more processes, we can’t reproduce the slowness.

So now we must answer the next question: Why does reading a 2GB file in the child process affect the parent process performance, especially when the workbench has as much as 480GB memory in total?

To answer this question, let’s look closely at the function __parse_smaps_rollup. As the name implies, this function parses the file /proc/<pid>/smaps_rollup.

def _parse_smaps_rollup(self):
  uss = pss = swap = 0
  with open_binary("{}/{}/smaps_rollup".format(self._procfs_path, self.pid)) as f:
  for line in f:
    if line.startswith(b”Private_”):
    # Private_Clean, Private_Dirty, Private_Hugetlb
      s uss += int(line.split()[1]) * 1024
    elif line.startswith(b”Pss:”):
      pss = int(line.split()[1]) * 1024
    elif line.startswith(b”Swap:”):
      swap = int(line.split()[1]) * 1024
return (uss, pss, swap)

Naturally, you might think that when memory usage increases, this file becomes larger in size, causing the function to take longer to parse. Unfortunately, this is not the answer because:

• First, the number of lines in this file is constant for all processes.
• Second, this is a special file in the /proc filesystem, which should be seen as a kernel interface instead of a regular file on disk. In other words, I/O operations of this file are handled by the kernel rather than disk.

This file was introduced in this commit in 2017, with the purpose of improving the performance of user programs that determine aggregate memory statistics. Let’s first focus on the handler of open syscall on this /proc/<pid>/smaps_rollup.

Following through the single_open function, we will find that it uses the function show_smaps_rollup for the show operation, which can translate to the read system call on the file. Next, we look at the show_smaps_rollup implementation. You will notice a do-while loop that is linear to the virtual memory area.

static int show_smaps_rollup(struct seq_file *m, void *v) {
  …
  vma_start = vma->vm_start;
  do {
    smap_gather_stats(vma, &mss, 0);
    last_vma_end = vma->vm_end;
    …
  } for_each_vma(vmi, vma);
  …
}

This perfectly explains why the function gets slower when a 2GB file is read into memory. Because the handler of reading the smaps_rollup file now takes longer to run the while loop. Basically, even though smaps_rollup already improved the performance of getting memory information compared to the old method of parsing the /proc/<pid>/smaps file, it is still linear to the virtual memory used.

More Quantitative Analysis

Even though at this point the puzzle is solved, let’s conduct a more quantitative analysis. How much is the time difference when reading the smaps_rollup file with small versus large virtual memory utilization? Let’s write some simple benchmark code like below:

import osdef read_smaps_rollup(pid):
  with open("/proc/{}/smaps_rollup".format(pid), "rb") as f:
    for line in f:
      passif __name__ == “__main__”:
  pid = os.getpid()read_smaps_rollup(pid)with open(“/root/2G_file”, “rb”) as f:
    data = f.read()read_smaps_rollup(pid)

This program performs the following steps:

1. Reads the smaps_rollup file of the current process.
2. Reads a 2GB file into memory.
3. Repeats step 1.

We then use strace to find the accurate time of reading the smaps_rollup file.

$ sudo strace -T -e trace=openat,read python3 benchmark.py 2>&1 | grep “smaps_rollup” -A 1openat(AT_FDCWD, “/proc/3107492/smaps_rollup”, O_RDONLY|O_CLOEXEC) = 3 <0.000023>
read(3, “560b42ed4000–7ffdadcef000 — -p 0”…, 1024) = 670 <0.000259>
...
openat(AT_FDCWD, “/proc/3107492/smaps_rollup”, O_RDONLY|O_CLOEXEC) = 3 <0.000029>
read(3, “560b42ed4000–7ffdadcef000 — -p 0”…, 1024) = 670 <0.027698>

As you can see, both times, the read syscall returned 670, meaning the file size remained the same at 670 bytes. However, the time it took the second time (i.e., 0.027698 seconds) is 100x the time it took the first time (i.e., 0.000259 seconds)! This means that if there are 98 processes, the time spent on reading this file alone will be 98 * 0.027698 = 2.7 seconds! Such a delay can significantly affect the UI experience.

Solution

This extension is used to display the CPU and memory usage of the notebook process on the bar at the bottom of the Notebook:

We confirmed with the user that disabling the jupyter-resource-usage extension meets their requirements for UI responsiveness, and that this extension is not critical to their use case. Therefore, we provided a way for them to disable the extension.

Summary

This was such a challenging issue that required debugging from the UI all the way down to the Linux kernel. It is fascinating that the problem is linear to both the number of CPUs and the virtual memory size — two dimensions that are generally viewed separately.

Overall, we hope you enjoyed the irony of:

1. The extension used to monitor CPU usage causing CPU contention.
2. An interesting case where the more CPUs you have, the slower you get!

If you’re excited by tackling such technical challenges and have the opportunity to solve complex technical challenges and drive innovation, consider joining our Data Platform teams. Be part of shaping the future of Data Security and Infrastructure, Data Developer Experience, Analytics Infrastructure and Enablement, and more. Explore the impact you can make with us!

Rajiv Shringi Vinay Chella Kaidan Fullerton Oleksii Tkachuk Joey Lynch

Introduction

As Netflix continues to expand and diversify into various sectors like Video on Demand and Gaming, the ability to ingest and store vast amounts of temporal data — often reaching petabytes — with millisecond access latency has become increasingly vital. In previous blog posts, we introduced the Key-Value Data Abstraction Layer and the Data Gateway Platform, both of which are integral to Netflix’s data architecture. The Key-Value Abstraction offers a flexible, scalable solution for storing and accessing structured key-value data, while the Data Gateway Platform provides essential infrastructure for protecting, configuring, and deploying the data tier.

Building on these foundational abstractions, we developed the TimeSeries Abstraction — a versatile and scalable solution designed to efficiently store and query large volumes of temporal event data with low millisecond latencies, all in a cost-effective manner across various use cases.

In this post, we will delve into the architecture, design principles, and real-world applications of the TimeSeries Abstraction, demonstrating how it enhances our platform’s ability to manage temporal data at scale.

Note: Contrary to what the name may suggest, this system is not built as a general-purpose time series database. We do not use it for metrics, histograms, timers, or any such near-real time analytics use case. Those use cases are well served by the Netflix Atlas telemetry system. Instead, we focus on addressing the challenge of storing and accessing extremely high-throughput, immutable temporal event data in a low-latency and cost-efficient manner.

Challenges

At Netflix, temporal data is continuously generated and utilized, whether from user interactions like video-play events, asset impressions, or complex micro-service network activities. Effectively managing this data at scale to extract valuable insights is crucial for ensuring optimal user experiences and system reliability.

However, storing and querying such data presents a unique set of challenges:

• High Throughput: Managing up to 10 million writes per second while maintaining high availability.
• Efficient Querying in Large Datasets: Storing petabytes of data while ensuring primary key reads return results within low double-digit milliseconds, and supporting searches and aggregations across multiple secondary attributes.
• Global Reads and Writes: Facilitating read and write operations from anywhere in the world with adjustable consistency models.
• Tunable Configuration: Offering the ability to partition datasets in either a single-tenant or multi-tenant datastore, with options to adjust various dataset aspects such as retention and consistency.
• Handling Bursty Traffic: Managing significant traffic spikes during high-demand events, such as new content launches or regional failovers.
• Cost Efficiency: Reducing the cost per byte and per operation to optimize long-term retention while minimizing infrastructure expenses, which can amount to millions of dollars for Netflix.

TimeSeries Abstraction

The TimeSeries Abstraction was developed to meet these requirements, built around the following core design principles:

• Partitioned Data: Data is partitioned using a unique temporal partitioning strategy combined with an event bucketing approach to efficiently manage bursty workloads and streamline queries.
• Flexible Storage: The service is designed to integrate with various storage backends, including Apache Cassandra and Elasticsearch, allowing Netflix to customize storage solutions based on specific use case requirements.
• Configurability: TimeSeries offers a range of tunable options for each dataset, providing the flexibility needed to accommodate a wide array of use cases.
• Scalability: The architecture supports both horizontal and vertical scaling, enabling the system to handle increasing throughput and data volumes as Netflix expands its user base and services.
• Sharded Infrastructure: Leveraging the Data Gateway Platform, we can deploy single-tenant and/or multi-tenant infrastructure with the necessary access and traffic isolation.

Let’s dive into the various aspects of this abstraction.

Data Model

We follow a unique event data model that encapsulates all the data we want to capture for events, while allowing us to query them efficiently.

Let’s start with the smallest unit of data in the abstraction and work our way up.

• Event Item: An event item is a key-value pair that users use to store data for a given event. For example: {“device_type”: “ios”}.
• Event: An event is a structured collection of one or more such event items. An event occurs at a specific point in time and is identified by a client-generated timestamp and an event identifier (such as a UUID). This combination of event_time and event_id also forms part of the unique idempotency key for the event, enabling users to safely retry requests.
• Time Series ID: A time_series_id is a collection of one or more such events over the dataset’s retention period. For instance, a device_id would store all events occurring for a given device over the retention period. All events are immutable, and the TimeSeries service only ever appends events to a given time series ID.
• Namespace: A namespace is a collection of time series IDs and event data, representing the complete TimeSeries dataset. Users can create one or more namespaces for each of their use cases. The abstraction applies various tunable options at the namespace level, which we will discuss further when we explore the service’s control plane.

API

The abstraction provides the following APIs to interact with the event data.

• WriteEventRecordsSync: This endpoint writes a batch of events and sends back a durability acknowledgement to the client. This is used in cases where users require a guarantee of durability.
• WriteEventRecords: This is the fire-and-forget version of the above endpoint. It enqueues a batch of events without the durability acknowledgement. This is used in cases like logging or tracing, where users care more about throughput and can tolerate a small amount of data loss.

{
  "namespace": "my_dataset",
  "events": [
    {
      "timeSeriesId": "profile100",
      "eventTime": "2024-10-03T21:24:23.988Z",
      "eventId": "550e8400-e29b-41d4-a716-446655440000",
      "eventItems": [
        {
          "eventItemKey": "ZGV2aWNlVHlwZQ==",
          "eventItemValue": "aW9z"
        },
        {
          "eventItemKey": "ZGV2aWNlTWV0YWRhdGE=",
          "eventItemValue": "c29tZSBtZXRhZGF0YQ=="
        }
      ]
    },
    {
      "timeSeriesId": "profile100",
      "eventTime": "2024-10-03T21:23:30.000Z",
      "eventId": "123e4567-e89b-12d3-a456-426614174000",
      "eventItems": [
        {
          "eventItemKey": "ZGV2aWNlVHlwZQ==",
          "eventItemValue": "YW5kcm9pZA=="
        }
      ]
    }
  ]
}

ReadEventRecords: Given a combination of a namespace, a timeSeriesId, a timeInterval, and optional eventFilters, this endpoint returns all the matching events, sorted descending by event_time, with low millisecond latency.

{
  "namespace": "my_dataset",
  "timeSeriesId": "profile100",
  "timeInterval": {
    "start": "2024-10-02T21:00:00.000Z",
    "end":   "2024-10-03T21:00:00.000Z"
  },
  "eventFilters": [
    {
      "matchEventItemKey": "ZGV2aWNlVHlwZQ==",
      "matchEventItemValue": "aW9z"
    }
  ],
  "pageSize": 100,
  "totalRecordLimit": 1000
}

SearchEventRecords: Given a search criteria and a time interval, this endpoint returns all the matching events. These use cases are fine with eventually consistent reads.

{
  "namespace": "my_dataset",
  "timeInterval": {
    "start": "2024-10-02T21:00:00.000Z",
    "end": "2024-10-03T21:00:00.000Z"
  },
  "searchQuery": {
    "booleanQuery": {
      "searchQuery": [
        {
          "equals": {
            "eventItemKey": "deviceType",
            "eventItemValue": "aW9z"
          }
        },
        {
          "equals": {
            "eventItemKey": "deviceType",
            "eventItemValue": "YW5kcm9pZA=="
          }
        }
      ],
      "operator": "OR"
    }
  },
  "pageSize": 100,
  "totalRecordLimit": 1000
}

AggregateEventRecords: Given a search criteria and an aggregation mode (e.g. DistinctAggregation) , this endpoint performs the given aggregation within a given time interval. Similar to the Search endpoint, users can tolerate eventual consistency and a potentially higher latency (in seconds).

{
  "namespace": "my_dataset",
  "timeInterval": {
    "start": "2024-10-02T21:00:00.000Z",
    "end": "2024-10-03T21:00:00.000Z"
  },
  "searchQuery": {...some search criteria...},
  "aggregationQuery": {
    "distinct": {
      "eventItemKey": "deviceType",
      "pageSize": 100
    }
  }
}

In the subsequent sections, we will talk about how we interact with this data at the storage layer.

Storage Layer

The storage layer for TimeSeries comprises a primary data store and an optional index data store. The primary data store ensures data durability during writes and is used for primary read operations, while the index data store is utilized for search and aggregate operations. At Netflix, Apache Cassandra is the preferred choice for storing durable data in high-throughput scenarios, while Elasticsearch is the preferred data store for indexing. However, similar to our approach with the API, the storage layer is not tightly coupled to these specific data stores. Instead, we define storage API contracts that must be fulfilled, allowing us the flexibility to replace the underlying data stores as needed.

Primary Datastore

In this section, we will talk about how we leverage Apache Cassandra for TimeSeries use cases.

Partitioning Scheme

At Netflix’s scale, the continuous influx of event data can quickly overwhelm traditional databases. Temporal partitioning addresses this challenge by dividing the data into manageable chunks based on time intervals, such as hourly, daily, or monthly windows. This approach enables efficient querying of specific time ranges without the need to scan the entire dataset. It also allows Netflix to archive, compress, or delete older data efficiently, optimizing both storage and query performance. Additionally, this partitioning mitigates the performance issues typically associated with wide partitions in Cassandra. By employing this strategy, we can operate at much higher disk utilization, as it reduces the need to reserve large amounts of disk space for compactions, thereby saving costs.

Here is what it looks like :

Time Slice: Atime slice is the unit of data retention and maps directly to a Cassandra table. We create multiple such time slices, each covering a specific interval of time. An event lands in one of these slices based on the event_time. These slices are joined with no time gapsin between, with operations being start-inclusive and end-exclusive, ensuring that all data lands in one of the slices.

Why not use row-based Time-To-Live (TTL)?

Using TTL on individual events would generate a significant number of tombstones in Cassandra, degrading performance, especially during range scans. By employing discrete time slices and dropping them, we avoid the tombstone issue entirely. The tradeoff is that data may be retained slightly longer than necessary, as an entire table’s time range must fall outside the retention window before it can be dropped. Additionally, TTLs are difficult to adjust later, whereas TimeSeries can extend the dataset retention instantly with a single control plane operation.

Time Buckets: Within a time slice, data is further partitioned into time buckets. This facilitates effective range scans by allowing us to target specific time buckets for a given query range. The tradeoff is that if a user wants to read the entire range of data over a large time period, we must scan many partitions. We mitigate potential latency by scanning these partitions in parallel and aggregating the data at the end. In most cases, the advantage of targeting smaller data subsets outweighs the read amplification from these scatter-gather operations. Typically, users read a smaller subset of data rather than the entire retention range.

Event Buckets: To manage extremely high-throughput write operations, which may result in a burst of writes for a given time series within a short period, we further divide the time bucket into event buckets. This prevents overloading the same partition for a given time range and also reduces partition sizes further, albeit with a slight increase in read amplification.

Note: With Cassandra 4.x onwards, we notice a substantial improvement in the performance of scanning a range of data in a wide partition. See Future Enhancements at the end to see the Dynamic Event bucketing work that aims to take advantage of this.

Storage Tables

We use two kinds of tables

• Data tables: These are the time slices that store the actual event data.
• Metadata table: This table stores information about how each time slice is configured per namespace.

Data tables

The partition key enables splitting events for a time_series_id over a range of time_bucket(s) and event_bucket(s), thus mitigating hot partitions, while the clustering key allows us to keep data sorted on disk in the order we almost always want to read it. The value_metadata column stores metadata for the event_item_value such as compression.

Writing to the data table:

User writes will land in a given time slice, time bucket, and event bucket as a factor of the event_time attached to the event. This factor is dictated by the control plane configuration of a given namespace.

For example:

Reading from the data table:

The below illustration depicts at a high-level on how we scatter-gather the reads from multiple partitions and join the result set at the end to return the final result.

Metadata table

This table stores the configuration data about the time slices for a given namespace.

Note the following:

• No Time Gaps: The end_time of a given time slice overlaps with the start_time of the next time slice, ensuring all events find a home.
• Retention: The status indicates which tables fall inside and outside of the retention window.
• Flexible: This metadata can be adjusted per time slice, allowing us to tune the partition settings of future time slices based on observed data patterns in the current time slice.

There is a lot more information that can be stored into the metadata column (e.g., compaction settings for the table), but we only show the partition settings here for brevity.

Index Datastore

To support secondary access patterns via non-primary key attributes, we index data into Elasticsearch. Users can configure a list of attributes per namespace that they wish to search and/or aggregate data on. The service extracts these fields from events as they stream in, indexing the resultant documents into Elasticsearch. Depending on the throughput, we may use Elasticsearch as a reverse index, retrieving the full data from Cassandra, or we may store the entire source data directly in Elasticsearch.

Note: Again, users are never directly exposed to Elasticsearch, just like they are not directly exposed to Cassandra. Instead, they interact with the Search and Aggregate API endpoints that translate a given query to that needed for the underlying datastore.

In the next section, we will talk about how we configure these data stores for different datasets.

Control Plane

The data plane is responsible for executing the read and write operations, while the control plane configures every aspect of a namespace’s behavior. The data plane communicates with the TimeSeries control stack, which manages this configuration information. In turn, the TimeSeries control stack interacts with a sharded Data Gateway Platform Control Plane that oversees control configurations for all abstractions and namespaces.

Separating the responsibilities of the data plane and control plane helps maintain the high availability of our data plane, as the control plane takes on tasks that may require some form of schema consensus from the underlying data stores.

Namespace Configuration

The below configuration snippet demonstrates the immense flexibility of the service and how we can tune several things per namespace using our control plane.

"persistence_configuration": [
  {
    "id": "PRIMARY_STORAGE",
    "physical_storage": {
      "type": "CASSANDRA",                  // type of primary storage
      "cluster": "cass_dgw_ts_tracing",     // physical cluster name
      "dataset": "tracing_default"          // maps to the keyspace
    },
    "config": {
      "timePartition": {
        "secondsPerTimeSlice": "129600",    // width of a time slice
        "secondPerTimeBucket": "3600",      // width of a time bucket
        "eventBuckets": 4                   // how many event buckets within
      },
      "queueBuffering": {
        "coalesce": "1s",                   // how long to coalesce writes
        "bufferCapacity": 4194304           // queue capacity in bytes
      },
      "consistencyScope": "LOCAL",          // single-region/multi-region
      "consistencyTarget": "EVENTUAL",      // read/write consistency
      "acceptLimit": "129600s"              // how far back writes are allowed
    },
    "lifecycleConfigs": {
      "lifecycleConfig": [                  // Primary store data retention
        {
          "type": "retention",
          "config": {
            "close_after": "1296000s",      // close for reads/writes
            "delete_after": "1382400s"      // drop time slice
          }
        }
      ]
    }
  },
  {
    "id": "INDEX_STORAGE",
    "physicalStorage": {
      "type": "ELASTICSEARCH",              // type of index storage
      "cluster": "es_dgw_ts_tracing",       // ES cluster name
      "dataset": "tracing_default_useast1"  // base index name
    },
    "config": {
      "timePartition": {
        "secondsPerSlice": "129600"         // width of the index slice
      },
      "consistencyScope": "LOCAL",
      "consistencyTarget": "EVENTUAL",      // how should we read/write data
      "acceptLimit": "129600s",             // how far back writes are allowed
      "indexConfig": {
        "fieldMapping": {                   // fields to extract to index
          "tags.nf.app": "KEYWORD",
          "tags.duration": "INTEGER",
          "tags.enabled": "BOOLEAN"
        },
        "refreshInterval": "60s"            // Index related settings
      }
    },
    "lifecycleConfigs": {
      "lifecycleConfig": [
        {
          "type": "retention",              // Index retention settings
          "config": {
            "close_after": "1296000s",
            "delete_after": "1382400s"
          }
        }
      ]
    }
  }
]

Provisioning Infrastructure

With so many different parameters, we need automated provisioning workflows to deduce the best settings for a given workload. When users want to create their namespaces, they specify a list of workload desires, which the automation translates into concrete infrastructure and related control plane configuration. We highly encourage you to watch this ApacheCon talk, by one of our stunning colleagues Joey Lynch, on how we achieve this. We may go into detail on this subject in one of our future blog posts.

Once the system provisions the initial infrastructure, it then scales in response to the user workload. The next section describes how this is achieved.

Scalability

Our users may operate with limited information at the time of provisioning their namespaces, resulting in best-effort provisioning estimates. Further, evolving use-cases may introduce new throughput requirements over time. Here’s how we manage this:

• Horizontal scaling: TimeSeries server instances can auto-scale up and down as per attached scaling policies to meet the traffic demand. The storage server capacity can be recomputed to accommodate changing requirements using our capacity planner.
• Vertical scaling: We may also choose to vertically scale our TimeSeries server instances or our storage instances to get greater CPU, RAM and/or attached storage capacity.
• Scaling disk: We may attach EBS to store data if the capacity planner prefers infrastructure that offers larger storage at a lower cost rather than SSDs optimized for latency. In such cases, we deploy jobs to scale the EBS volume when the disk storage reaches a certain percentage threshold.
• Re-partitioning data: Inaccurate workload estimates can lead to over or under-partitioning of our datasets. TimeSeries control-plane can adjust the partitioning configuration for upcoming time slices, once we realize the nature of data in the wild (via partition histograms). In the future we plan to support re-partitioning of older data and dynamic partitioning of current data.

Design Principles

So far, we have seen how TimeSeries stores, configures and interacts with event datasets. Let’s see how we apply different techniques to improve the performance of our operations and provide better guarantees.

Event Idempotency

We prefer to bake in idempotency in all mutation endpoints, so that users can retry or hedge their requests safely. Hedging is when the client sends an identical competing request to the server, if the original request does not come back with a response in an expected amount of time. The client then responds with whichever request completes first. This is done to keep the tail latencies for an application relatively low. This can only be done safely if the mutations are idempotent. For TimeSeries, the combination of event_time, event_id and event_item_key form the idempotency key for a given time_series_id event.

SLO-based Hedging

We assign Service Level Objectives (SLO) targets for different endpoints within TimeSeries, as an indication of what we think the performance of those endpoints should be for a given namespace. We can then hedge a request if the response does not come back in that configured amount of time.

"slos": {
  "read": {               // SLOs per endpoint
    "latency": {
      "target": "0.5s",   // hedge around this number
      "max": "1s"         // time-out around this number
    }
  },
  "write": {
    "latency": {
      "target": "0.01s",
      "max": "0.05s"
    }
  }
}

Partial Return

Sometimes, a client may be sensitive to latency and willing to accept a partial result set. A real-world example of this is real-time frequency capping. Precision is not critical in this case, but if the response is delayed, it becomes practically useless to the upstream client. Therefore, the client prefers to work with whatever data has been collected so far rather than timing out while waiting for all the data. The TimeSeries client supports partial returns around SLOs for this purpose. Importantly, we still maintain the latest order of events in this partial fetch.

Adaptive Pagination

All reads start with a default fanout factor, scanning 8 partition buckets in parallel. However, if the service layer determines that the time_series dataset is dense — i.e., most reads are satisfied by reading the first few partition buckets — then it dynamically adjusts the fanout factor of future reads in order to reduce the read amplification on the underlying datastore. Conversely, if the dataset is sparse, we may want to increase this limit with a reasonable upper bound.

Limited Write Window

In most cases, the active range for writing data is smaller than the range for reading data — i.e., we want a range of time to become immutable as soon as possible so that we can apply optimizations on top of it. We control this by having a configurable “acceptLimit” parameter that prevents users from writing events older than this time limit. For example, an accept limit of 4 hours means that users cannot write events older than now() — 4 hours. We sometimes raise this limit for backfilling historical data, but it is tuned back down for regular write operations. Once a range of data becomes immutable, we can safely do things like caching, compressing, and compacting it for reads.

Buffering Writes

We frequently leverage this service for handling bursty workloads. Rather than overwhelming the underlying datastore with this load all at once, we aim to distribute it more evenly by allowing events to coalesce over short durations (typically seconds). These events accumulate in in-memory queues running on each instance. Dedicated consumers then steadily drain these queues, grouping the events by their partition key, and batching the writes to the underlying datastore.

The queues are tailored to each datastore since their operational characteristics depend on the specific datastore being written to. For instance, the batch size for writing to Cassandra is significantly smaller than that for indexing into Elasticsearch, leading to different drain rates and batch sizes for the associated consumers.

While using in-memory queues does increase JVM garbage collection, we have experienced substantial improvements by transitioning to JDK 21 with ZGC. To illustrate the impact, ZGC has reduced our tail latencies by an impressive 86%:

Because we use in-memory queues, we are prone to losing events in case of an instance crash. As such, these queues are only used for use cases that can tolerate some amount of data loss .e.g. tracing/logging. For use cases that need guaranteed durability and/or read-after-write consistency, these queues are effectively disabled and writes are flushed to the data store almost immediately.

Dynamic Compaction

Once a time slice exits the active write window, we can leverage the immutability of the data to optimize it for read performance. This process may involve re-compacting immutable data using optimal compaction strategies, dynamically shrinking and/or splitting shards to optimize system resources, and other similar techniques to ensure fast and reliable performance.

The following section provides a glimpse into the real-world performance of some of our TimeSeries datasets.

Real-world Performance

The service can write data in the order of low single digit milliseconds

while consistently maintaining stable point-read latencies:

At the time of writing this blog, the service was processing close to 15 million events/second across all the different datasets at peak globally.

Time Series Usage @ Netflix

The TimeSeries Abstraction plays a vital role across key services at Netflix. Here are some impactful use cases:

• Tracing and Insights: Logs traces across all apps and micro-services within Netflix, to understand service-to-service communication, aid in debugging of issues, and answer support requests.
• User Interaction Tracking: Tracks millions of user interactions — such as video playbacks, searches, and content engagement — providing insights that enhance Netflix’s recommendation algorithms in real-time and improve the overall user experience.
• Feature Rollout and Performance Analysis: Tracks the rollout and performance of new product features, enabling Netflix engineers to measure how users engage with features, which powers data-driven decisions about future improvements.
• Asset Impression Tracking and Optimization: Tracks asset impressions ensuring content and assets are delivered efficiently while providing real-time feedback for optimizations.
• Billing and Subscription Management: Stores historical data related to billing and subscription management, ensuring accuracy in transaction records and supporting customer service inquiries.

and more…

Future Enhancements

As the use cases evolve, and the need to make the abstraction even more cost effective grows, we aim to make many improvements to the service in the upcoming months. Some of them are:

• Tiered Storage for Cost Efficiency: Support moving older, lesser-accessed data into cheaper object storage that has higher time to first byte, potentially saving Netflix millions of dollars.
• Dynamic Event Bucketing: Support real-time partitioning of keys into optimally-sized partitions as events stream in, rather than having a somewhat static configuration at the time of provisioning a namespace. This strategy has a huge advantage of not partitioning time_series_ids that don’t need it, thus saving the overall cost of read amplification. Also, with Cassandra 4.x, we have noted major improvements in reading a subset of data in a wide partition that could lead us to be less aggressive with partitioning the entire dataset ahead of time.
• Caching: Take advantage of immutability of data and cache it intelligently for discrete time ranges.
• Count and other Aggregations: Some users are only interested in counting events in a given time interval rather than fetching all the event data for it.

Conclusion

The TimeSeries Abstraction is a vital component of Netflix’s online data infrastructure, playing a crucial role in supporting both real-time and long-term decision-making. Whether it’s monitoring system performance during high-traffic events or optimizing user engagement through behavior analytics, TimeSeries Abstraction ensures that Netflix operates seamlessly and efficiently on a global scale.

As Netflix continues to innovate and expand into new verticals, the TimeSeries Abstraction will remain a cornerstone of our platform, helping us push the boundaries of what’s possible in streaming and beyond.

Stay tuned for Part 2, where we’ll introduce our Distributed Counter Abstraction, a key element of Netflix’s Composite Abstractions, built on top of the TimeSeries Abstraction.

Acknowledgments

Special thanks to our stunning colleagues who contributed to TimeSeries Abstraction’s success: Tom DeVoe Mengqing Wang, Kartik Sathyanarayanan, Jordan West, Matt Lehman, Cheng Wang, Chris Lohfink .

Vidhya Arvind, Rajasekhar Ummadisetty, Joey Lynch, Vinay Chella

Introduction

At Netflix our ability to deliver seamless, high-quality, streaming experiences to millions of users hinges on robust, global backend infrastructure. Central to this infrastructure is our use of multiple online distributed databases such as Apache Cassandra, a NoSQL database known for its high availability and scalability. Cassandra serves as the backbone for a diverse array of use cases within Netflix, ranging from user sign-ups and storing viewing histories to supporting real-time analytics and live streaming.

Over time as new key-value databases were introduced and service owners launched new use cases, we encountered numerous challenges with datastore misuse. Firstly, developers struggled to reason about consistency, durability and performance in this complex global deployment across multiple stores. Second, developers had to constantly re-learn new data modeling practices and common yet critical data access patterns. These include challenges with tail latency and idempotency, managing “wide” partitions with many rows, handling single large “fat” columns, and slow response pagination. Additionally, the tight coupling with multiple native database APIs — APIs that continually evolve and sometimes introduce backward-incompatible changes — resulted in org-wide engineering efforts to maintain and optimize our microservice’s data access.

To overcome these challenges, we developed a holistic approach that builds upon our Data Gateway Platform. This approach led to the creation of several foundational abstraction services, the most mature of which is our Key-Value (KV) Data Abstraction Layer (DAL). This abstraction simplifies data access, enhances the reliability of our infrastructure, and enables us to support the broad spectrum of use cases that Netflix demands with minimal developer effort.

In this post, we dive deep into how Netflix’s KV abstraction works, the architectural principles guiding its design, the challenges we faced in scaling diverse use cases, and the technical innovations that have allowed us to achieve the performance and reliability required by Netflix’s global operations.

The Key-Value Service

The KV data abstraction service was introduced to solve the persistent challenges we faced with data access patterns in our distributed databases. Our goal was to build a versatile and efficient data storage solution that could handle a wide variety of use cases, ranging from the simplest hashmaps to more complex data structures, all while ensuring high availability, tunable consistency, and low latency.

Data Model

At its core, the KV abstraction is built around a two-level map architecture. The first level is a hashed string ID (the primary key), and the second level is a sorted map of a key-value pair of bytes. This model supports both simple and complex data models, balancing flexibility and efficiency.

HashMap<String, SortedMap<Bytes, Bytes>>

For complex data models such as structured Records or time-ordered Events, this two-level approach handles hierarchical structures effectively, allowing related data to be retrieved together. For simpler use cases, it also represents flat key-value Maps (e.g. id → {"" → value}) or named Sets (e.g.id → {key → ""}). This adaptability allows the KV abstraction to be used in hundreds of diverse use cases, making it a versatile solution for managing both simple and complex data models in large-scale infrastructures like Netflix.

The KV data can be visualized at a high level, as shown in the diagram below, where three records are shown.

message Item (
  Bytes    key,
  Bytes    value,
  Metadata metadata,
  Integer  chunk
)

Database Agnostic Abstraction

The KV abstraction is designed to hide the implementation details of the underlying database, offering a consistent interface to application developers regardless of the optimal storage system for that use case. While Cassandra is one example, the abstraction works with multiple data stores like EVCache, DynamoDB, RocksDB, etc…

For example, when implemented with Cassandra, the abstraction leverages Cassandra’s partitioning and clustering capabilities. The record ID acts as the partition key, and the item key as the clustering column:

The corresponding Data Definition Language (DDL) for this structure in Cassandra is:

CREATE TABLE IF NOT EXISTS <ns>.<table> (
  id             text,
  key            blob,
  value          blob,
  value_metadata blob,PRIMARY KEY (id, key))
WITH CLUSTERING ORDER BY (key <ASC|DESC>)

Namespace: Logical and Physical Configuration

A namespace defines where and how data is stored, providing logical and physical separation while abstracting the underlying storage systems. It also serves as central configuration of access patterns such as consistency or latency targets. Each namespace may use different backends: Cassandra, EVCache, or combinations of multiple. This flexibility allows our Data Platform to route different use cases to the most suitable storage system based on performance, durability, and consistency needs. Developers just provide their data problem rather than a database solution!

In this example configuration, the ngsegment namespace is backed by both a Cassandra cluster and an EVCache caching layer, allowing for highly durable persistent storage and lower-latency point reads.

"persistence_configuration":[
  {
    "id":"PRIMARY_STORAGE",
    "physical_storage": {
      "type":"CASSANDRA",
      "cluster":"cassandra_kv_ngsegment",
      "dataset":"ngsegment",
      "table":"ngsegment",
      "regions": ["us-east-1"],
      "config": {
        "consistency_scope": "LOCAL",
        "consistency_target": "READ_YOUR_WRITES"
      }
    }
  },
  {
    "id":"CACHE",
    "physical_storage": {
      "type":"CACHE",
      "cluster":"evcache_kv_ngsegment"
     },
     "config": {
       "default_cache_ttl": 180s
     }
  }
]

Key APIs of the KV Abstraction

To support diverse use-cases, the KV abstraction provides four basic CRUD APIs:

PutItems — Write one or more Items to a Record

The PutItems API is an upsert operation, it can insert new data or update existing data in the two-level map structure.

message PutItemRequest (
  IdempotencyToken idempotency_token,
  string           namespace,
  string           id,
  List<Item>       items
)

As you can see, the request includes the namespace, Record ID, one or more items, and an idempotency token to ensure retries of the same write are safe. Chunked data can be written by staging chunks and then committing them with appropriate metadata (e.g. number of chunks).

GetItems — Read one or more Items from a Record

The GetItemsAPI provides a structured and adaptive way to fetch data using ID, predicates, and selection mechanisms. This approach balances the need to retrieve large volumes of data while meeting stringent Service Level Objectives (SLOs) for performance and reliability.

message GetItemsRequest (
  String              namespace,
  String              id,
  Predicate           predicate,
  Selection           selection,
  Map<String, Struct> signals
)

The GetItemsRequest includes several key parameters:

• Namespace: Specifies the logical dataset or table
• Id: Identifies the entry in the top-level HashMap
• Predicate: Filters the matching items and can retrieve all items (match_all), specific items (match_keys), or a range (match_range)
• Selection: Narrows returned responses for example page_size_bytes for pagination, item_limit for limiting the total number of items across pages and include/exclude to include or exclude large values from responses
• Signals: Provides in-band signaling to indicate client capabilities, such as supporting client compression or chunking.

The GetItemResponse message contains the matching data:

message GetItemResponse (
  List<Item>       items,
  Optional<String> next_page_token
)

• Items: A list of retrieved items based on the Predicate and Selection defined in the request.
• Next Page Token: An optional token indicating the position for subsequent reads if needed, essential for handling large data sets across multiple requests. Pagination is a critical component for efficiently managing data retrieval, especially when dealing with large datasets that could exceed typical response size limits.

DeleteItems — Delete one or more Items from a Record

The DeleteItems API provides flexible options for removing data, including record-level, item-level, and range deletes — all while supporting idempotency.

message DeleteItemsRequest (
  IdempotencyToken idempotency_token,
  String           namespace,
  String           id,
  Predicate        predicate
)

Just like in the GetItems API, the Predicate allows one or more Items to be addressed at once:

• Record-Level Deletes (match_all): Removes the entire record in constant latency regardless of the number of items in the record.
• Item-Range Deletes (match_range): This deletes a range of items within a Record. Useful for keeping “n-newest” or prefix path deletion.
• Item-Level Deletes (match_keys): Deletes one or more individual items.

Some storage engines (any store which defers true deletion) such as Cassandra struggle with high volumes of deletes due to tombstone and compaction overhead. Key-Value optimizes both record and range deletes to generate a single tombstone for the operation — you can learn more about tombstones in About Deletes and Tombstones.

Item-level deletes create many tombstones but KV hides that storage engine complexity via TTL-based deletes with jitter. Instead of immediate deletion, item metadata is updated as expired with randomly jittered TTL applied to stagger deletions. This technique maintains read pagination protections. While this doesn’t completely solve the problem it reduces load spikes and helps maintain consistent performance while compaction catches up. These strategies help maintain system performance, reduce read overhead, and meet SLOs by minimizing the impact of deletes.

Complex Mutate and Scan APIs

Beyond simple CRUD on single Records, KV also supports complex multi-item and multi-record mutations and scans via MutateItems and ScanItems APIs. PutItems also supports atomic writes of large blob data within a single Item via a chunked protocol. These complex APIs require careful consideration to ensure predictable linear low-latency and we will share details on their implementation in a future post.

Design Philosophies for reliable and predictable performance

Idempotency to fight tail latencies

To ensure data integrity the PutItems and DeleteItems APIs use idempotency tokens, which uniquely identify each mutative operation and guarantee that operations are logically executed in order, even when hedged or retried for latency reasons. This is especially crucial in last-write-wins databases like Cassandra, where ensuring the correct order and de-duplication of requests is vital.

In the Key-Value abstraction, idempotency tokens contain a generation timestamp and random nonce token. Either or both may be required by backing storage engines to de-duplicate mutations.

message IdempotencyToken (
  Timestamp generation_time,
  String    token
)

At Netflix, client-generated monotonic tokens are preferred due to their reliability, especially in environments where network delays could impact server-side token generation. This combines a client provided monotonic generation_time timestamp with a 128 bit random UUID token. Although clock-based token generation can suffer from clock skew, our tests on EC2 Nitro instances show drift is minimal (under 1 millisecond). In some cases that require stronger ordering, regionally unique tokens can be generated using tools like Zookeeper, or globally unique tokens such as a transaction IDs can be used.

The following graphs illustrate the observed clock skew on our Cassandra fleet, suggesting the safety of this technique on modern cloud VMs with direct access to high-quality clocks. To further maintain safety, KV servers reject writes bearing tokens with large drift both preventing silent write discard (write has timestamp far in past) and immutable doomstones (write has a timestamp far in future) in storage engines vulnerable to those.

Handling Large Data through Chunking

Key-Value is also designed to efficiently handle large blobs, a common challenge for traditional key-value stores. Databases often face limitations on the amount of data that can be stored per key or partition. To address these constraints, KV uses transparent chunking to manage large data efficiently.

For items smaller than 1 MiB, data is stored directly in the main backing storage (e.g. Cassandra), ensuring fast and efficient access. However, for larger items, only the id, key, and metadata are stored in the primary storage, while the actual data is split into smaller chunks and stored separately in chunk storage. This chunk storage can also be Cassandra but with a different partitioning scheme optimized for handling large values. The idempotency token ties all these writes together into one atomic operation.

By splitting large items into chunks, we ensure that latency scales linearly with the size of the data, making the system both predictable and efficient. A future blog post will describe the chunking architecture in more detail, including its intricacies and optimization strategies.

Client-Side Compression

The KV abstraction leverages client-side payload compression to optimize performance, especially for large data transfers. While many databases offer server-side compression, handling compression on the client side reduces expensive server CPU usage, network bandwidth, and disk I/O. In one of our deployments, which helps power Netflix’s search, enabling client-side compression reduced payload sizes by 75%, significantly improving cost efficiency.

Smarter Pagination

We chose payload size in bytes as the limit per response page rather than the number of items because it allows us to provide predictable operation SLOs. For instance, we can provide a single-digit millisecond SLO on a 2 MiB page read. Conversely, using the number of items per page as the limit would result in unpredictable latencies due to significant variations in item size. A request for 10 items per page could result in vastly different latencies if each item was 1 KiB versus 1 MiB.

Using bytes as a limit poses challenges as few backing stores support byte-based pagination; most data stores use the number of results e.g. DynamoDB and Cassandra limit by number of items or rows. To address this, we use a static limit for the initial queries to the backing store, query with this limit, and process the results. If more data is needed to meet the byte limit, additional queries are executed until the limit is met, the excess result is discarded and a page token is generated.

This static limit can lead to inefficiencies, one large item in the result may cause us to discard many results, while small items may require multiple iterations to fill a page, resulting in read amplification. To mitigate these issues, we implemented adaptive pagination which dynamically tunes the limits based on observed data.

Adaptive Pagination

When an initial request is made, a query is executed in the storage engine, and the results are retrieved. As the consumer processes these results, the system tracks the number of items consumed and the total size used. This data helps calculate an approximate item size, which is stored in the page token. For subsequent page requests, this stored information allows the server to apply the appropriate limits to the underlying storage, reducing unnecessary work and minimizing read amplification.

While this method is effective for follow-up page requests, what happens with the initial request? In addition to storing item size information in the page token, the server also estimates the average item size for a given namespace and caches it locally. This cached estimate helps the server set a more optimal limit on the backing store for the initial request, improving efficiency. The server continuously adjusts this limit based on recent query patterns or other factors to keep it accurate. For subsequent pages, the server uses both the cached data and the information in the page token to fine-tune the limits.

In addition to adaptive pagination, a mechanism is in place to send a response early if the server detects that processing the request is at risk of exceeding the request’s latency SLO.

For example, let us assume a client submits a GetItems request with a per-page limit of 2 MiB and a maximum end-to-end latency limit of 500ms. While processing this request, the server retrieves data from the backing store. This particular record has thousands of small items so it would normally take longer than the 500ms SLO to gather the full page of data. If this happens, the client would receive an SLO violation error, causing the request to fail even though there is nothing exceptional. To prevent this, the server tracks the elapsed time while fetching data. If it determines that continuing to retrieve more data might breach the SLO, the server will stop processing further results and return a response with a pagination token.

This approach ensures that requests are processed within the SLO, even if the full page size isn’t met, giving clients predictable progress. Furthermore, if the client is a gRPC server with proper deadlines, the client is smart enough not to issue further requests, reducing useless work.

If you want to know more, the How Netflix Ensures Highly-Reliable Online Stateful Systems article talks in further detail about these and many other techniques.

Signaling

KV uses in-band messaging we call signaling that allows the dynamic configuration of the client and enables it to communicate its capabilities to the server. This ensures that configuration settings and tuning parameters can be exchanged seamlessly between the client and server. Without signaling, the client would need static configuration — requiring a redeployment for each change — or, with dynamic configuration, would require coordination with the client team.

For server-side signals, when the client is initialized, it sends a handshake to the server. The server responds back with signals, such as target or max latency SLOs, allowing the client to dynamically adjust timeouts and hedging policies. Handshakes are then made periodically in the background to keep the configuration current. For client-communicated signals, the client, along with each request, communicates its capabilities, such as whether it can handle compression, chunking, and other features.

KV Usage @ Netflix

The KV abstraction powers several key Netflix use cases, including:

• Streaming Metadata: High-throughput, low-latency access to streaming metadata, ensuring personalized content delivery in real-time.
• User Profiles: Efficient storage and retrieval of user preferences and history, enabling seamless, personalized experiences across devices.
• Messaging: Storage and retrieval of push registry for messaging needs, enabling the millions of requests to flow through.
• Real-Time Analytics: This persists large-scale impression and provides insights into user behavior and system performance, moving data from offline to online and vice versa.

Future Enhancements

Looking forward, we plan to enhance the KV abstraction with:

• Lifecycle Management: Fine-grained control over data retention and deletion.
• Summarization: Techniques to improve retrieval efficiency by summarizing records with many items into fewer backing rows.
• New Storage Engines: Integration with more storage systems to support new use cases.
• Dictionary Compression: Further reducing data size while maintaining performance.

Conclusion

The Key-Value service at Netflix is a flexible, cost-effective solution that supports a wide range of data patterns and use cases, from low to high traffic scenarios, including critical Netflix streaming use-cases. The simple yet robust design allows it to handle diverse data models like HashMaps, Sets, Event storage, Lists, and Graphs. It abstracts the complexity of the underlying databases from our developers, which enables our application engineers to focus on solving business problems instead of becoming experts in every storage engine and their distributed consistency models. As Netflix continues to innovate in online datastores, the KV abstraction remains a central component in managing data efficiently and reliably at scale, ensuring a solid foundation for future growth.

Acknowledgments: Special thanks to our stunning colleagues who contributed to Key Value’s success: William Schor, Mengqing Wang, Chandrasekhar Thumuluru, John Lu, George Cambell, Ammar Khaku, Jordan West, Chris Lohfink, Matt Lehman, and the whole online datastores team (ODS, f.k.a CDE).

By Karthik Yagna, Baskar Odayarkoil, and Alex Ellis

Pushy is Netflix’s WebSocket server that maintains persistent WebSocket connections with devices running the Netflix application. This allows data to be sent to the device from backend services on demand, without the need for continually polling requests from the device. Over the last few years, Pushy has seen tremendous growth, evolving from its role as a best-effort message delivery service to be an integral part of the Netflix ecosystem. This post describes how we’ve grown and scaled Pushy to meet its new and future needs, as it handles hundreds of millions of concurrent WebSocket connections, delivers hundreds of thousands of messages per second, and maintains a steady 99.999% message delivery reliability rate.

History & motivation

There were two main motivating use cases that drove Pushy’s initial development and usage. The first was voice control, where you can play a title or search using your virtual assistant with a voice command like “Show me Stranger Things on Netflix.” (See How to use voice controls with Netflix if you want to do this yourself!).

If we consider the Alexa use case, we can see how this partnership with Amazon enabled this to work. Once they receive the voice command, we allow them to make an authenticated call through apiproxy, our streaming edge proxy, to our internal voice service. This call includes metadata, such as the user’s information and details about the command, such as the specific show to play. The voice service then constructs a message for the device and places it on the message queue, which is then processed and sent to Pushy to deliver to the device. Finally, the device receives the message, and the action, such as “Show me Stranger Things on Netflix”, is performed. This initial functionality was built out for FireTVs and was expanded from there.

The other main use case was RENO, the Rapid Event Notification System mentioned above. Before the integration with Pushy, the TV UI would continuously poll a backend service to see if there were any row updates to get the latest information. These requests would happen every few seconds, which ended up creating extraneous requests to the backend and were costly for devices, which are frequently resource constrained. The integration with WebSockets and Pushy alleviated both of these points, allowing the origin service to send row updates as they were ready, resulting in lower request rates and cost savings.

For more background on Pushy, you can see this InfoQ talk by Susheel Aroskar. Since that presentation, Pushy has grown in both size and scope, and this article will be discussing the investments we’ve made to evolve Pushy for the next generation of features.

Client Reach

This integration was initially rolled out for Fire TVs, PS4s, Samsung TVs, and LG TVs, leading to a reach of about 30 million candidate devices. With these clear benefits, we continued to build out this functionality for more devices, enabling the same efficiency wins. As of today, we’ve expanded our list of candidate devices even further to nearly a billion devices, including mobile devices running the Netflix app and the website experience. We’ve even extended support to older devices that lack modern capabilities, like support for TLS and HTTPS requests. For those, we’ve enabled secure communication from client to Pushy via an encryption/decryption layer on each, allowing for confidential messages to flow between the device and server.

Scaling to handle that growth (and more)

Growth

With that extended reach, Pushy has gotten busier. Over the last five years, Pushy has gone from tens of millions of concurrent connections to hundreds of millions of concurrent connections, and it regularly reaches 300,000 messages sent per second. To support this growth, we’ve revisited Pushy’s past assumptions and design decisions with an eye towards both Pushy’s future role and future stability. Pushy had been relatively hands-free operationally over the last few years, and as we updated Pushy to fit its evolving role, our goal was also to get it into a stable state for the next few years. This is particularly important as we build out new functionality that relies on Pushy; a strong, stable infrastructure foundation allows our partners to continue to build on top of Pushy with confidence.

Throughout this evolution, we’ve been able to maintain high availability and a consistent message delivery rate, with Pushy successfully maintaining 99.999% reliability for message delivery over the last few months. When our partners want to deliver a message to a device, it’s our job to make sure they can do so.

Here are a few of the ways we’ve evolved Pushy to handle its growing scale.

Message processor

One aspect that we invested in was the evolution of the asynchronous message processor. The previous version of the message processor was a Mantis stream-processing job that processed messages from the message queue. It was very efficient, but it had a set job size, requiring manual intervention if we wanted to horizontally scale it, and it required manual intervention when rolling out a new version.

It served Pushy’s needs well for many years. As the scale of the messages being processed increased and we were making more code changes in the message processor, we found ourselves looking for something more flexible. In particular, we were looking for some of the features we enjoy with our other services: automatic horizontal scaling, canaries, automated red/black rollouts, and more observability. With this in mind, we rewrote the message processor as a standalone Spring Boot service using Netflix paved-path components. Its job is the same, but it does so with easy rollouts, canary configuration that lets us roll changes safely, and autoscaling policies we’ve defined to let it handle varying volumes.

Rewriting always comes with a risk, and it’s never the first solution we reach for, particularly when working with a system that’s in place and working well. In this case, we found that the burden from maintaining and improving the custom stream processing job was increasing, and we made the judgment call to do the rewrite. Part of the reason we did so was the clear role that the message processor played — we weren’t rewriting a huge monolithic service, but instead a well-scoped component that had explicit goals, well-defined success criteria, and a clear path towards improvement. Since the rewrite was completed in mid-2023, the message processor component has been completely zero touch, happily automated and running reliably on its own.

Push Registry

For most of its life, Pushy has used Dynomite for keeping track of device connection metadata in its Push Registry. Dynomite is a Netflix open source wrapper around Redis that provides a few additional features like auto-sharding and cross-region replication, and it provided Pushy with low latency and easy record expiry, both of which are critical for Pushy’s workload.

As Pushy’s portfolio grew, we experienced some pain points with Dynomite. Dynomite had great performance, but it required manual scaling as the system grew. The folks on the Cloud Data Engineering (CDE) team, the ones building the paved path for internal data at Netflix, graciously helped us scale it up and make adjustments, but it ended up being an involved process as we kept growing.

These pain points coincided with the introduction of KeyValue, which was a new offering from the CDE team that is roughly “HashMap as a service” for Netflix developers. KeyValue is an abstraction over the storage engine itself, which allows us to choose the best storage engine that meets our SLO needs. In our case, we value low latency — the faster we can read from KeyValue, the faster these messages can get delivered. With CDE’s help, we migrated our Push Registry to use KV instead, and we have been extremely satisfied with the result. After tuning our store for Pushy’s needs, it has been on autopilot since, appropriately scaling and serving our requests with very low latency.

Scaling Pushy horizontally and vertically

Most of the other services our team runs, like apiproxy, the streaming edge proxy, are CPU bound, and we have autoscaling policies that scale them horizontally when we see an increase in CPU usage. This maps well to their workload — more HTTP requests means more CPU used, and we can scale up and down accordingly.

Pushy has slightly different performance characteristics, with each node maintaining many connections and delivering messages on demand. In Pushy’s case, CPU usage is consistently low, since most of the connections are parked and waiting for an occasional message. Instead of relying on CPU, we scale Pushy on the number of connections, with exponential scaling to scale faster after higher thresholds are reached. We load balance the initial HTTP requests to establish the connections and rely on a reconnect protocol where devices will reconnect every 30 minutes or so, with some staggering, that gives us a steady stream of reconnecting devices to balance connections across all available instances.

For a few years, our scaling policy had been that we would add new instances when the average number of connections reached 60,000 connections per instance. For a couple hundred million devices, this meant that we were regularly running thousands of Pushy instances. We can horizontally scale Pushy to our heart’s content, but we would be less content with our bill and would have to shard Pushy further to get around NLB connection limits. This evolution effort aligned well with an internal focus on cost efficiency, and we used this as an opportunity to revisit these earlier assumptions with an eye towards efficiency.

Both of these would be helped by increasing the number of connections that each Pushy node could handle, reducing the total number of Pushy instances and running more efficiently with the right balance between instance type, instance cost, and maximum concurrent connections. It would also allow us to have more breathing room with the NLB limits, reducing the toil of additional sharding as we continue to grow. That being said, increasing the number of connections per node is not without its own drawbacks. When a Pushy instance goes down, the devices that were connected to it will immediately try to reconnect. By increasing the number of connections per instance, it means that we would be increasing the number of devices that would be immediately trying to reconnect. We could have a million connections per instance, but a down node would lead to a thundering herd of a million devices reconnecting at the same time.

This delicate balance led to us doing a deep evaluation of many instance types and performance tuning options. Striking that balance, we ended up with instances that handle an average of 200,000 connections per node, with breathing room to go up to 400,000 connections if we had to. This makes for a nice balance between CPU usage, memory usage, and the thundering herd when a device connects. We’ve also enhanced our autoscaling policies to scale exponentially; the farther we are past our target average connection count, the more instances we’ll add. These improvements have enabled Pushy to be almost entirely hands off operationally, giving us plenty of flexibility as more devices come online in different patterns.

Reliability & building a stable foundation

Alongside these efforts to scale Pushy for the future, we also took a close look at our reliability after finding some connectivity edge cases during recent feature development. We found a few areas for improvement around the connection between Pushy and the device, with failures due to Pushy attempting to send messages on a connection that had failed without notifying Pushy. Ideally something like a silent failure wouldn’t happen, but we frequently see odd client behavior, particularly on older devices.

In collaboration with the client teams, we were able to make some improvements. On the client side, better connection handling and improvements around the reconnect flow meant that they were more likely to reconnect appropriately. In Pushy, we added additional heartbeats, idle connection cleanup, and better connection tracking, which meant that we were keeping around fewer and fewer stale connections.

While these improvements were mostly around those edge cases for the feature development, they had the side benefit of bumping our message delivery rates up even further. We already had a good message delivery rate, but this additional bump has enabled Pushy to regularly average 5 9s of message delivery reliability.

Recent developments

With this stable foundation and all of these connections, what can we now do with them? This question has been the driving force behind nearly all of the recent features built on top of Pushy, and it’s an exciting question to ask, particularly as an infrastructure team.

Shift towards direct push

The first change from Pushy’s traditional role is what we call direct push; instead of a backend service dropping the message on the asynchronous message queue, it can instead leverage the Push library to skip the asynchronous queue entirely. When called to deliver a message in the direct path, the Push library will look up the Pushy connected to the target device in the Push Registry, then send the message directly to that Pushy. Pushy will respond with a status code reflecting whether it was able to successfully deliver the message or it encountered an error, and the Push library will bubble that up to the calling code in the service.

Susheel, the original author of Pushy, added this functionality as an optional path, but for years, nearly all backend services relied on the indirect path with its “best-effort” being good enough for their use cases. In recent years, we’ve seen usage of this direct path really take off as the needs of backend services have grown. In particular, rather than being just best effort, these direct messages allow the calling service to have immediate feedback about the delivery, letting them retry if a device they’re targeting has gone offline.

These days, messages sent via direct push make up the majority of messages sent through Pushy. For example, for a recent 24 hour period, direct messages averaged around 160,000 messages per second and indirect averaged at around 50,000 messages per second..

Device to device messaging

As we’ve thought through this evolving use case, our concept of a message sender has also evolved. What if we wanted to move past Pushy’s pattern of delivering server-side messages? What if we wanted to have a device send a message to a backend service, or maybe even to another device? Our messages had traditionally been unidirectional as we send messages from the server to the device, but we now leverage these bidirectional connections and direct device messaging to enable what we call device to device messaging. This device to device messaging supported early phone-to-TV communication in support of games like Triviaverse, and it’s the messaging foundation for our Companion Mode as TVs and phones communicate back and forth.

This requires higher level knowledge of the system, where we need to know not just information about a single device, but more broader information, like what devices are connected for an account that the phone can pair with. This also enables things like subscribing to device events to know when another device comes online and when they’re available to pair or send a message to. This has been built out with an additional service that receives device connection information from Pushy. These events, sent over a Kafka topic, let the service keep track of the device list for a given account. Devices can subscribe to these events, allowing them to receive a message from the service when another device for the same account comes online.

This device list enables the discoverability aspect of these device to device messages. Once the devices have this knowledge of the other devices connected for the same account, they’re able to choose a target device from this list that they can then send messages to.

Once a device has that list, it can send a message to Pushy over its WebSocket connection with that device as the target in what we call a device to device message (1 in the diagram below). Pushy looks up the target device’s metadata in the Push registry (2) and sends the message to the second Pushy that the target device is connected to (3), as if it was the backend service in the direct push pattern above. That Pushy delivers the message to the target device (4), and the original Pushy will receive a status code in response, which it can pass back to the source device (5).

The messaging protocol

We’ve defined a basic JSON-based message protocol for device to device messaging that lets these messages be passed from the source device to the target device. As a networking team, we naturally lean towards abstracting the communication layer with encapsulation wherever possible. This generalized message means that device teams are able to define their own protocols on top of these messages — Pushy would just be the transport layer, happily forwarding messages back and forth.

This generalization paid off in terms of investment and operational support. We built the majority of this functionality in October 2022, and we’ve only needed small tweaks since then. We needed nearly no modifications as client teams built out the functionality on top of this layer, defining the higher level application-specific protocols that powered the features they were building. We really do enjoy working with our partner teams, but if we’re able to give them the freedom to build on top of our infrastructure layer without us getting involved, then we’re able to increase their velocity, make their lives easier, and play our infrastructure roles as message platform providers.

With early features in experimentation, Pushy sees an average of 1000 device to device messages per second, a number that will only continue to grow.

The Netty-gritty details

In Pushy, we handle incoming WebSocket messages in our PushClientProtocolHandler (code pointer to class in Zuul that we extend), which extends Netty’s ChannelInboundHandlerAdapter and is added to the Netty pipeline for each client connection. We listen for incoming WebSocket messages from the connected device in its channelRead method and parse the incoming message. If it’s a device to device message, we pass the message, the ChannelHandlerContext, and the PushUserAuth information about the connection’s identity to our DeviceToDeviceManager.

The DeviceToDeviceManager is responsible for validating the message, doing some bookkeeping, and kicking off an async call that validates that the device is an authorized target, looks up the Pushy for the target device in the local cache (or makes a call to the data store if it’s not found), and forwards on the message. We run this asynchronously to avoid any event loop blocking due to these calls. The DeviceToDeviceManager is also responsible for observability, with metrics around cache hits, calls to the data store, message delivery rates, and latency percentile measurements. We’ve relied heavily on these metrics for alerts and optimizations — Pushy really is a metrics service that occasionally will deliver a message or two!

Security

As the edge of the Netflix cloud, security considerations are always top of mind. With every connection over HTTPS, we’ve limited these messages to just authenticated WebSocket connections, added rate limiting, and added authorization checks to ensure that a device is able to target another device — you may have the best intentions in mind, but I’d strongly prefer it if you weren’t able to send arbitrary data to my personal TV from yours (and vice versa, I’m sure!).

Latency and other considerations

One main consideration with the products built on top of this is latency, particularly when this feature is used for anything interactive within the Netflix app.

We’ve added caching to Pushy to reduce the number of lookups in the hotpath for things that are unlikely to change frequently, like a device’s allowed list of targets and the Pushy instance the target device is connected to. We have to do some lookups on the initial messages to know where to send them, but it enables us to send subsequent messages faster without any KeyValue lookups. For these requests where caching removed KeyValue from the hot path, we were able to greatly speed things up. From the incoming message arriving at Pushy to the response being sent back to the device, we reduced median latency to less than a millisecond, with the 99th percentile of latency at less than 4ms.

Our KeyValue latency is usually very low, but we have seen brief periods of elevated read latencies due to underlying issues in our KeyValue datastore. Overall latencies increased for other parts of Pushy, like client registration, but we saw very little increase in device to device latency with this caching in place.

Cultural aspects that enable this work

Pushy’s scale and system design considerations make the work technically interesting, but we also deliberately focus on non-technical aspects that have helped to drive Pushy’s growth. We focus on iterative development that solves the hardest problem first, with projects frequently starting with quick hacks or prototypes to prove out a feature. As we do this initial version, we do our best to keep an eye towards the future, allowing us to move quickly from supporting a single, focused use case to a broad, generalized solution. For example, for our cross-device messaging, we were able to solve hard problems in the early work for Triviaverse that we later leveraged for the generic device to device solution.

As one can immediately see in the system diagrams above, Pushy does not exist in a vacuum, with projects frequently involving at least half a dozen teams. Trust, experience, communication, and strong relationships all enable this to work. Our team wouldn’t exist without our platform users, and we certainly wouldn’t be here writing this post without all of the work our product and client teams do. This has also emphasized the importance of building and sharing — if we’re able to get a prototype together with a device team, we’re able to then show it off to seed ideas from other teams. It’s one thing to mention that you can send these messages, but it’s another to show off the TV responding to the first click of the phone controller button!

The future of Pushy

If there’s anything certain in this world, it’s that Pushy will continue to grow and evolve. We have many new features in the works, like WebSocket message proxying, WebSocket message tracing, a global broadcast mechanism, and subscription functionality in support of Games and Live. With all of this investment, Pushy is a stable, reinforced foundation, ready for this next generation of features.

We’ll be writing about those new features as well — stay tuned for future posts.

Special thanks to our stunning colleagues Jeremy Kelly and Justin Guerra who have both been invaluable to Pushy’s growth and the WebSocket ecosystem at large. We would also like to thank our larger teams and our numerous partners for their great work; it truly takes a village!

By Jiangwei Pan, Gary Tang, Henry Wang, and Justin Basilico

Introduction

Our mission at Netflix is to entertain the world. Our personalization algorithms play a crucial role in delivering on this mission for all members by recommending the right shows, movies, and games at the right time. This goal extends beyond immediate engagement; we aim to create an experience that brings lasting enjoyment to our members. Traditional recommender systems often optimize for short-term metrics like clicks or engagement, which may not fully capture long-term satisfaction. We strive to recommend content that not only engages members in the moment but also enhances their long-term satisfaction, which increases the value they get from Netflix, and thus they’ll be more likely to continue to be a member.

Recommendations as Contextual Bandit

One simple way we can view recommendations is as a contextual bandit problem. When a member visits, that becomes a context for our system and it selects an action of what recommendations to show, and then the member provides various types of feedback. These feedback signals can be immediate (skips, plays, thumbs up/down, or adding items to their playlist) or delayed (completing a show or renewing their subscription). We can define reward functions to reflect the quality of the recommendations from these feedback signals and then train a contextual bandit policy on historical data to maximize the expected reward.

Improving Recommendations: Models and Objectives

There are many ways that a recommendation model can be improved. They may come from more informative input features, more data, different architectures, more parameters, and so forth. In this post, we focus on a less-discussed aspect about improving the recommender objective by defining a reward function that tries to better reflect long-term member satisfaction.

Retention as Reward?

Member retention might seem like an obvious reward for optimizing long-term satisfaction because members should stay if they’re satisfied, however it has several drawbacks:

• Noisy: Retention can be influenced by numerous external factors, such as seasonal trends, marketing campaigns, or personal circumstances unrelated to the service.
• Low Sensitivity: Retention is only sensitive for members on the verge of canceling their subscription, not capturing the full spectrum of member satisfaction.
• Hard to Attribute: Members might cancel only after a series of bad recommendations.
• Slow to Measure: We only get one signal per account per month.

Due to these challenges, optimizing for retention alone is impractical.

Proxy Rewards

Instead, we can train our bandit policy to optimize a proxy reward function that is highly aligned with long-term member satisfaction while being sensitive to individual recommendations. The proxy reward r(user, item) is a function of user interaction with the recommended item. For example, if we recommend “One Piece” and a member plays then subsequently completes and gives it a thumbs-up, a simple proxy reward might be defined as r(user, item) = f(play, complete, thumb).

Click-through rate (CTR)

Click-through rate (CTR), or in our case play-through rate, can be viewed as a simple proxy reward where r(user, item) = 1 if the user clicks a recommendation and 0 otherwise. CTR is a common feedback signal that generally reflects user preference expectations. It is a simple yet strong baseline for many recommendation applications. In some cases, such as ads personalization where the click is the target action, CTR may even be a reasonable reward for production models. However, in most cases, over-optimizing CTR can lead to promoting clickbaity items, which may harm long-term satisfaction.

Beyond CTR

To align the proxy reward function more closely with long-term satisfaction, we need to look beyond simple interactions, consider all types of user actions, and understand their true implications on user satisfaction.

We give a few examples in the Netflix context:

• Fast season completion ✅: Completing a season of a recommended TV show in one day is a strong sign of enjoyment and long-term satisfaction.
• Thumbs-down after completion ❌: Completing a TV show in several weeks followed by a thumbs-down indicates low satisfaction despite significant time spent.
• Playing a movie for just 10 minutes ❓: In this case, the user’s satisfaction is ambiguous. The brief engagement might indicate that the user decided to abandon the movie, or it could simply mean the user was interrupted and plans to finish the movie later, perhaps the next day.
• Discovering new genres ✅ ✅: Watching more Korean or game shows after “Squid Game” suggests the user is discovering something new. This discovery was likely even more valuable since it led to a variety of engagements in a new area for a member.

Reward Engineering

Reward engineering is the iterative process of refining the proxy reward function to align with long-term member satisfaction. It is similar to feature engineering, except that it can be derived from data that isn’t available at serving time. Reward engineering involves four stages: hypothesis formation, defining a new proxy reward, training a new bandit policy, and A/B testing. Below is a simple example.

Challenge: Delayed Feedback

User feedback used in the proxy reward function is often delayed or missing. For example, a member may decide to play a recommended show for just a few minutes on the first day and take several weeks to fully complete the show. This completion feedback is therefore delayed. Additionally, some user feedback may never occur; while we may wish otherwise, not all members provide a thumbs-up or thumbs-down after completing a show, leaving us uncertain about their level of enjoyment.

We could try and wait to give a longer window to observe feedback, but how long should we wait for delayed feedback before computing the proxy rewards? If we wait too long (e.g., weeks), we miss the opportunity to update the bandit policy with the latest data. In a highly dynamic environment like Netflix, a stale bandit policy can degrade the user experience and be particularly bad at recommending newer items.

Solution: predict missing feedback

We aim to update the bandit policy shortly after making a recommendation while also defining the proxy reward function based on all user feedback, including delayed feedback. Since delayed feedback has not been observed at the time of policy training, we can predict it. This prediction occurs for each training example with delayed feedback, using already observed feedback and other relevant information up to the training time as input features. Thus, the prediction also gets better as time progresses.
